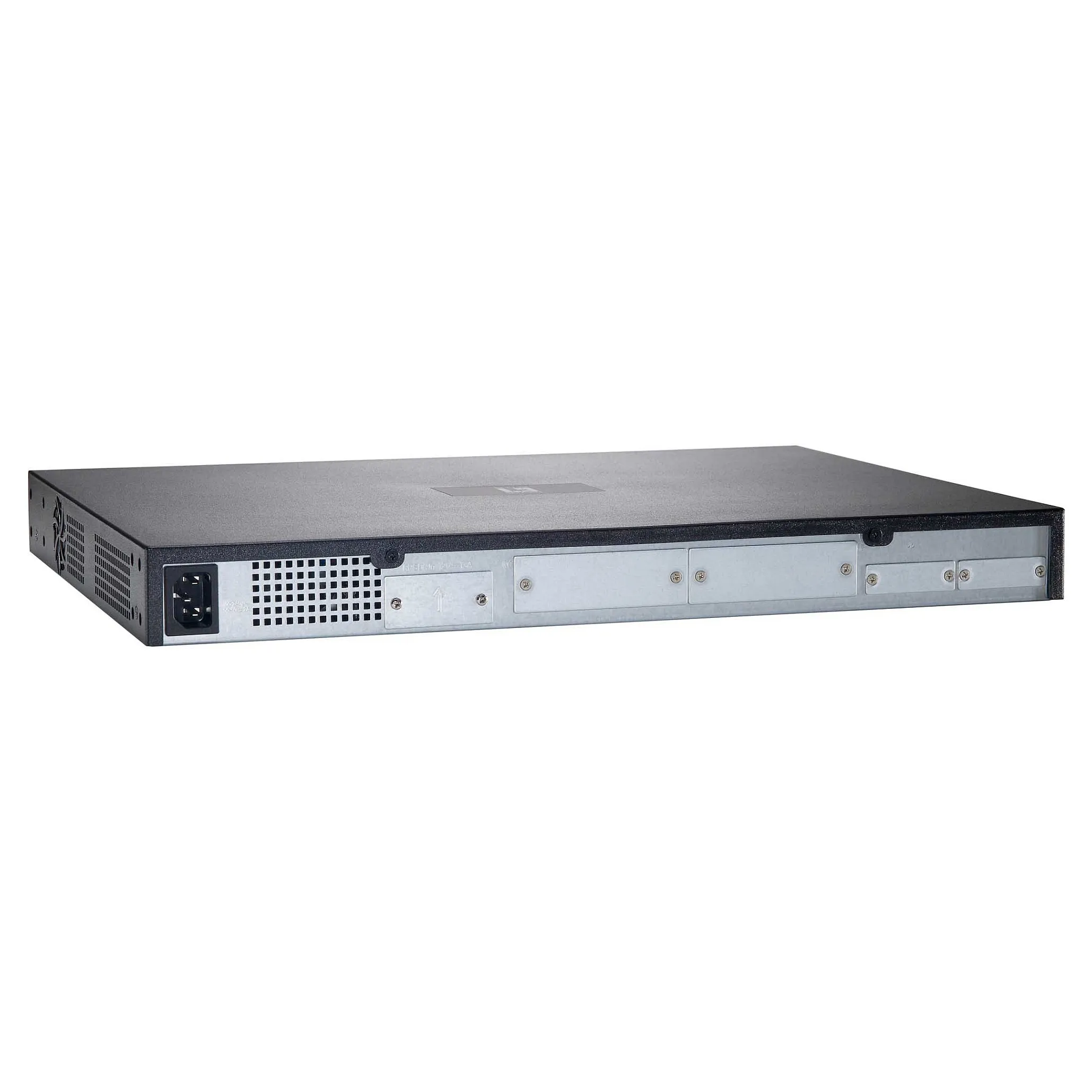

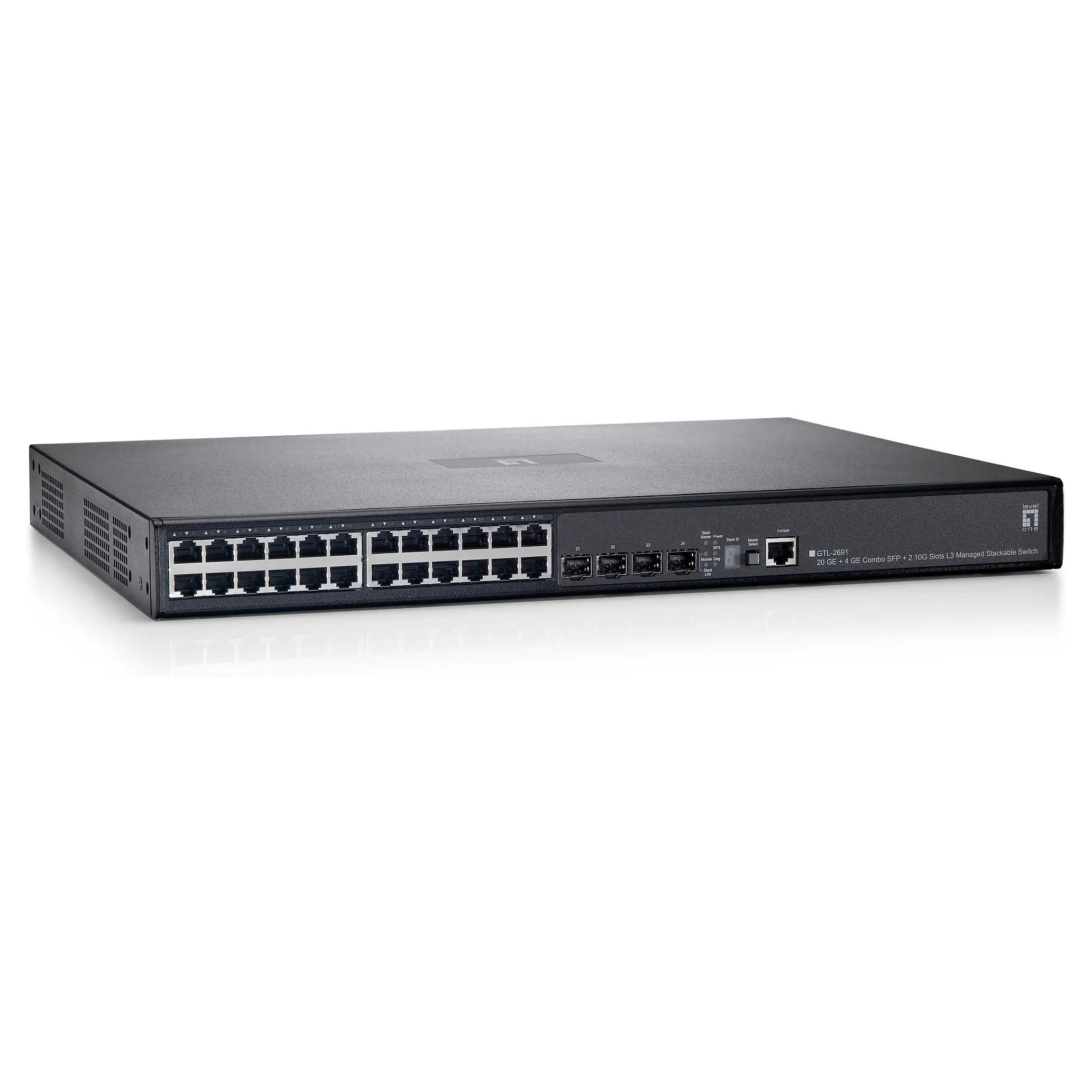

LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE…. Rack mounting
The switch provides a flexible, web-based management interface SNMP for both IPv4 and IPv6 as well as layer 3 management features. Despite its affordable pricing, the GEL-2691 is equipped with many advanced features such as unicast routes, multicast routing IGMP V1/V2/V3, IGMP v3 proxy, IP VLANs, VLAN trunk, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL) of up to 512 entries for easy network security, Link Aggregation Control (LACP), IEEE 802.1p QoS with 8 priority queues much more.
An ideal network solution for workgroups and edge deployments, or anyone looking for an affordable and efficient way to expand their network.
– 24 Gigabit Ethernet ports with 4 shared SFP and 2 10-Gigabit slots
– Multicast routing IGMP V1/V2/V3, MLD
– Supports DHCP relay features under Layer 3 protocol
– Supports Access Control List (ACL) authentication of up to 256 entries and port-based security with IEEE802.1X
– IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
– IEEE 802.3ad LACP for auto port aggregation
– IEEE 802.1p QoS with 8 priority queues
– Supports IPv4/IPv6 network operation
– Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
SFP/SFP+ slots quantity: 2
SFP module slots quantity: 4
Console port: RJ-45
Network
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Active link detection
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Private VLAN, Port-based VLAN
Data transmission
Switching capacity: 128 Gbit/s
Forwarding rate: 95.2 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Number of queues: 8
Number of static routes: 512
Feature: Jumbo frames support
Jumbo frames: 9000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 14880 pps
Security
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: Auto-edge port
Authentication: MAC-based authentication
Multicast features
Feature: Multicast support
Multicast MAC address table: 1024 entries
Protocols
Management protocols: Telnet, SNMP, SNTP, RMON,
Supported network protocols: IPv6, IPv4, BOOTP
Design
Feature: Rack mounting
Feature: Stackable
Product colour: Black
LED indicators: Yes
Performance
Feature: Firmware upgradeable
Buffer size: 2048 KB
Power
AC input voltage: 100 – 240 V
AC input frequency: 47/63 Hz
Power consumption (typical): 49.6 W
Power consumption (max): 63.96 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 440 mm
Depth: 415 mm
Height: 44 mm
Weight: 5.7 kg
Packaging data
Package type: Box
Package width: 530 mm
Package depth: 420 mm
Package height: 135 mm
Certificates
Certification: FCC Part 15 Class A, CE, RoHS
Logistics data
Harmonized System (HS) code: 85176990
