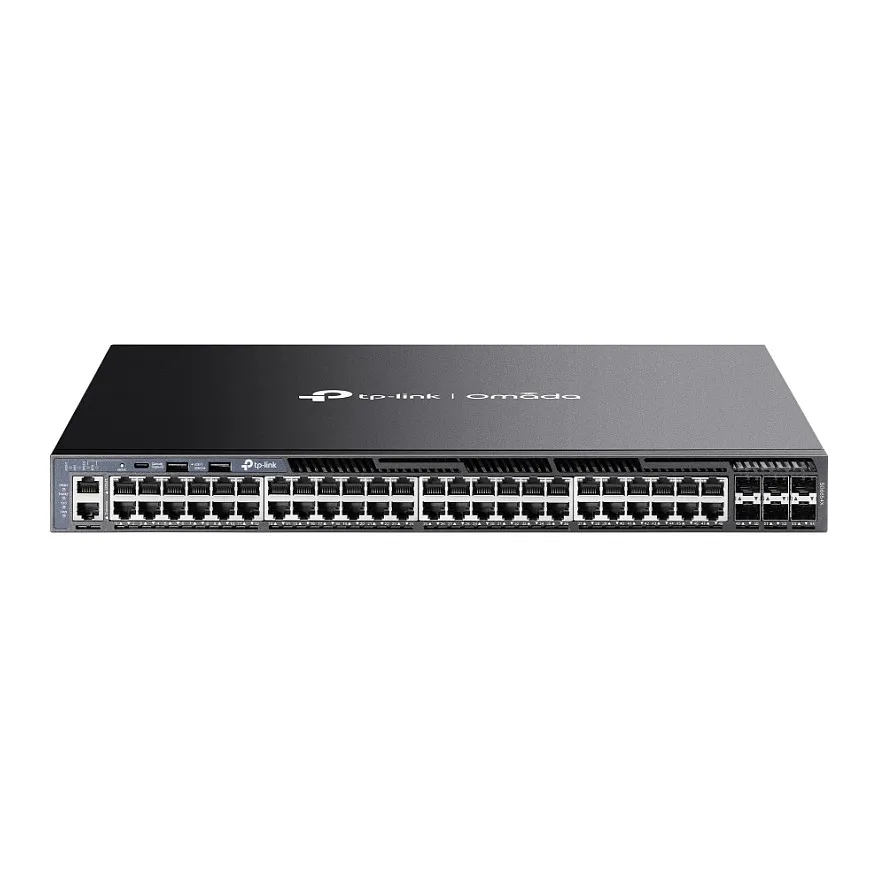

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 2, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x. Rack mounting, Form factor: 1U
Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
High-speed Connectivity and Powerful Stacking
48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6654X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 6
Console port: RJ-45/USB Type-C
USB 2.0 ports quantity: 2
Network
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
Feature: Port mirroring
Feature: IP routing
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 216 Gbit/s
Forwarding rate: 160.7 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 3 MB
Security
DHCP features: DHCP relay, DHCP snooping, DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
IGMP entries: 2048
Feature: SSH/SSL support
Feature: Loop protection
Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type: RADIUS
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 4 fan(s)
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 39.8 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 135.81 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 380 mm
Height: 44 mm
Packaging content
Cables included: AC, LAN (RJ-45)
Feature: Manual
