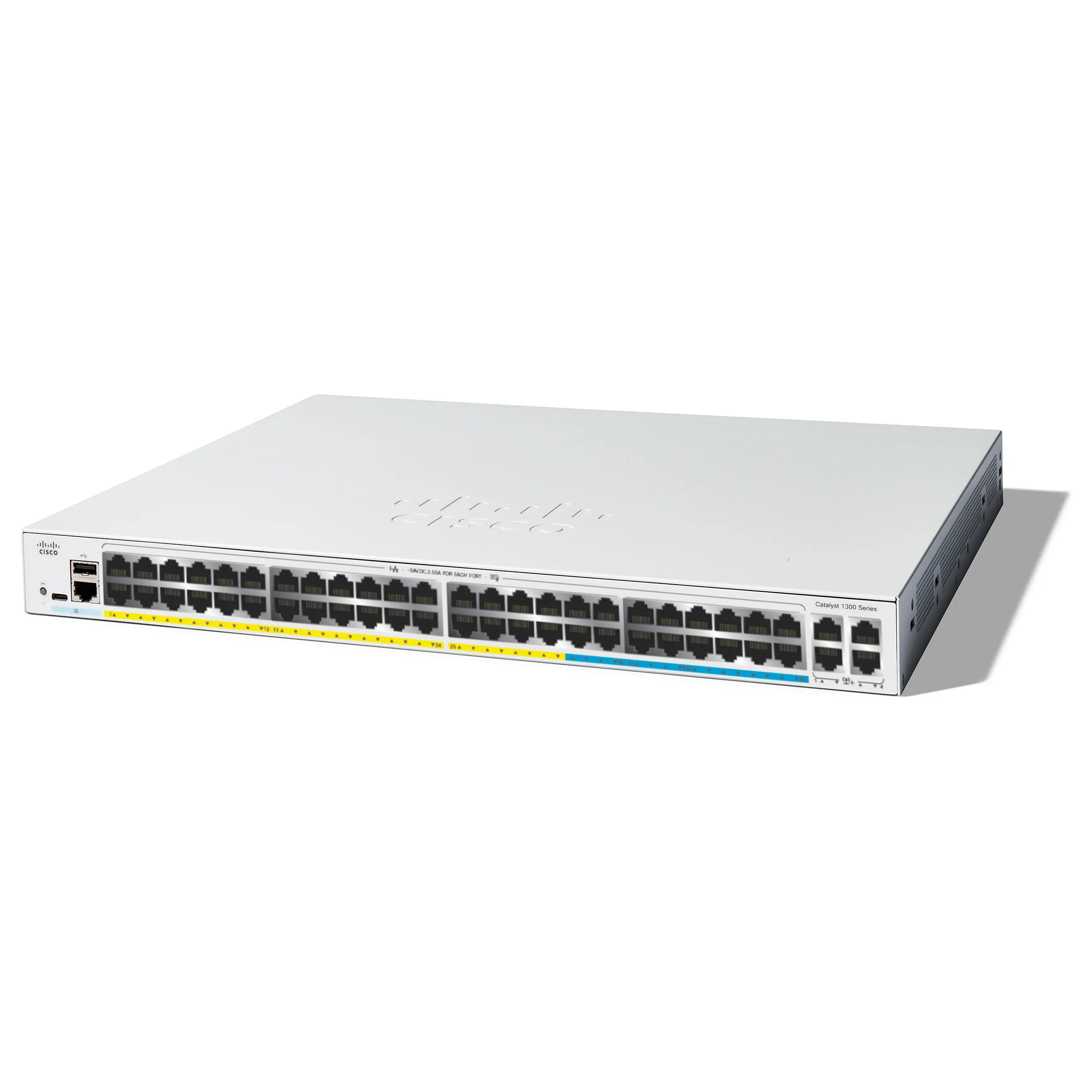

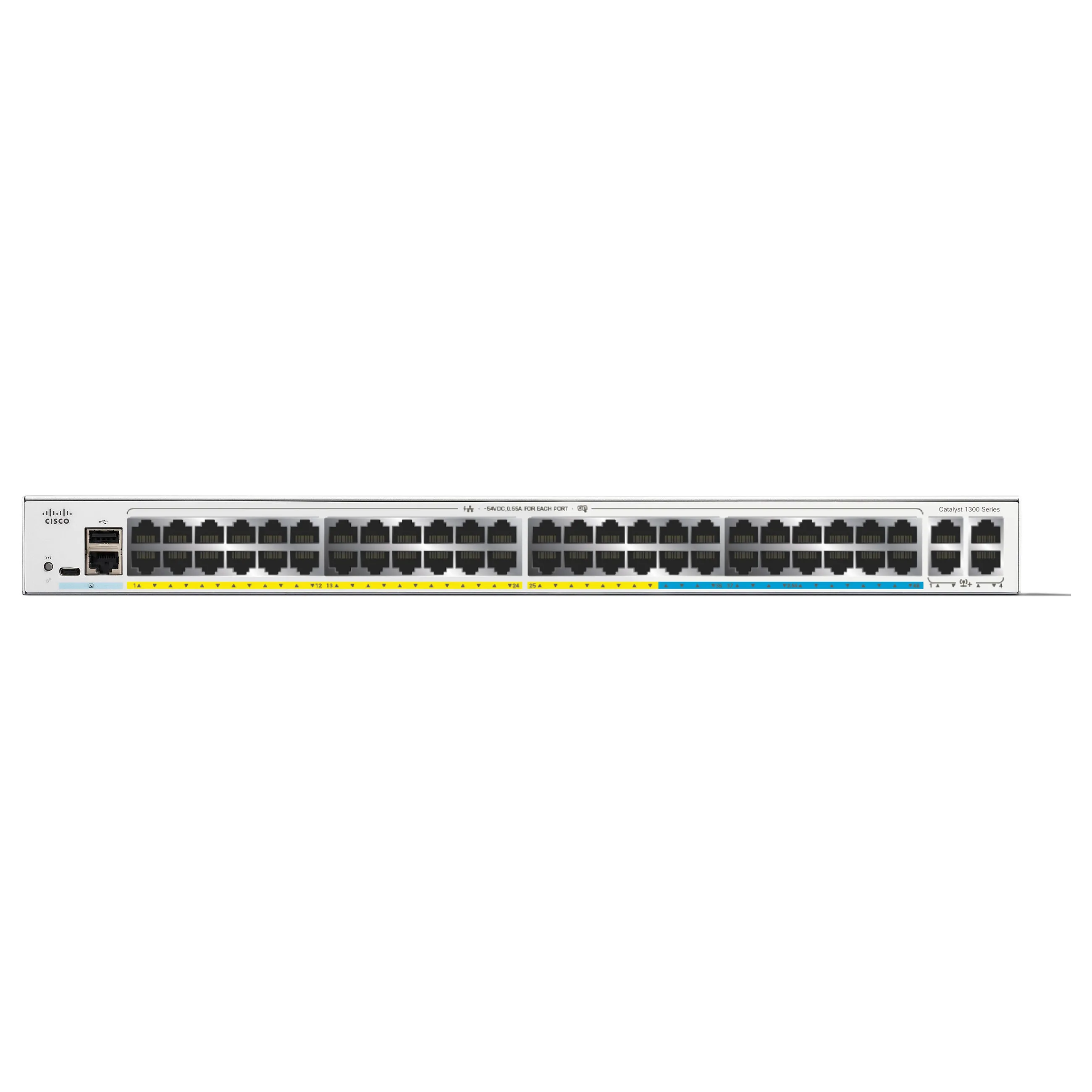

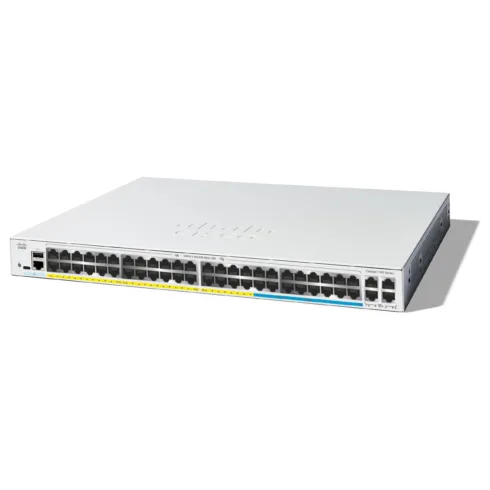

Cisco Catalyst C1300-48MGP-4X. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 32. MAC address table: 16000 entries, Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Power over Ethernet (PoE). Rack mounting
The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.
Management features
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
MIB support: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 32
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity: 16
SFP+ module slots quantity: 2
Network
Feature: Port mirroring
Feature: Policy-based routing
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
QinQ implementation: Selective QinQ
Feature: VLAN support
Virtual LAN features: Private VLAN, Voice VLAN
Data transmission
Switching capacity: 224 Gbit/s
MAC address table: 16000 entries
Number of queues: 8
Feature: Static route
Number of static routes: 990
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 3 MB
Security
DHCP features: DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 1024
Feature: IGMP snooping
Feature: IGMP proxy
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Feature: SSH/SSL support
Authentication: MAC-based authentication, Web-based authentication
Feature: DoS attack prevention
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Protocols
Feature: GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features: ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
Design
Feature: Rack mounting
Product colour: Grey
Feature: Reset button
Performance
Feature: Built-in processor
Processor frequency: 1.4 MHz
Memory type: DDR4-SDRAM
Internal memory: 1000 MB
Flash memory: 512 MB
Feature: Plug and Play
Power
Power source: AC
AC input voltage: 100 – 220 V
AC input frequency: 50/60 Hz
Power plug type: Type C
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 445 mm
Depth: 350 mm
Height: 44 mm
Weight: 5.83 kg
Packaging data
Package width: 511.6 mm
Package depth: 574.7 mm
Package height: 108 mm
Package weight: 7.89 kg
Certificates
Certification: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Logistics data
Country of origin: China
