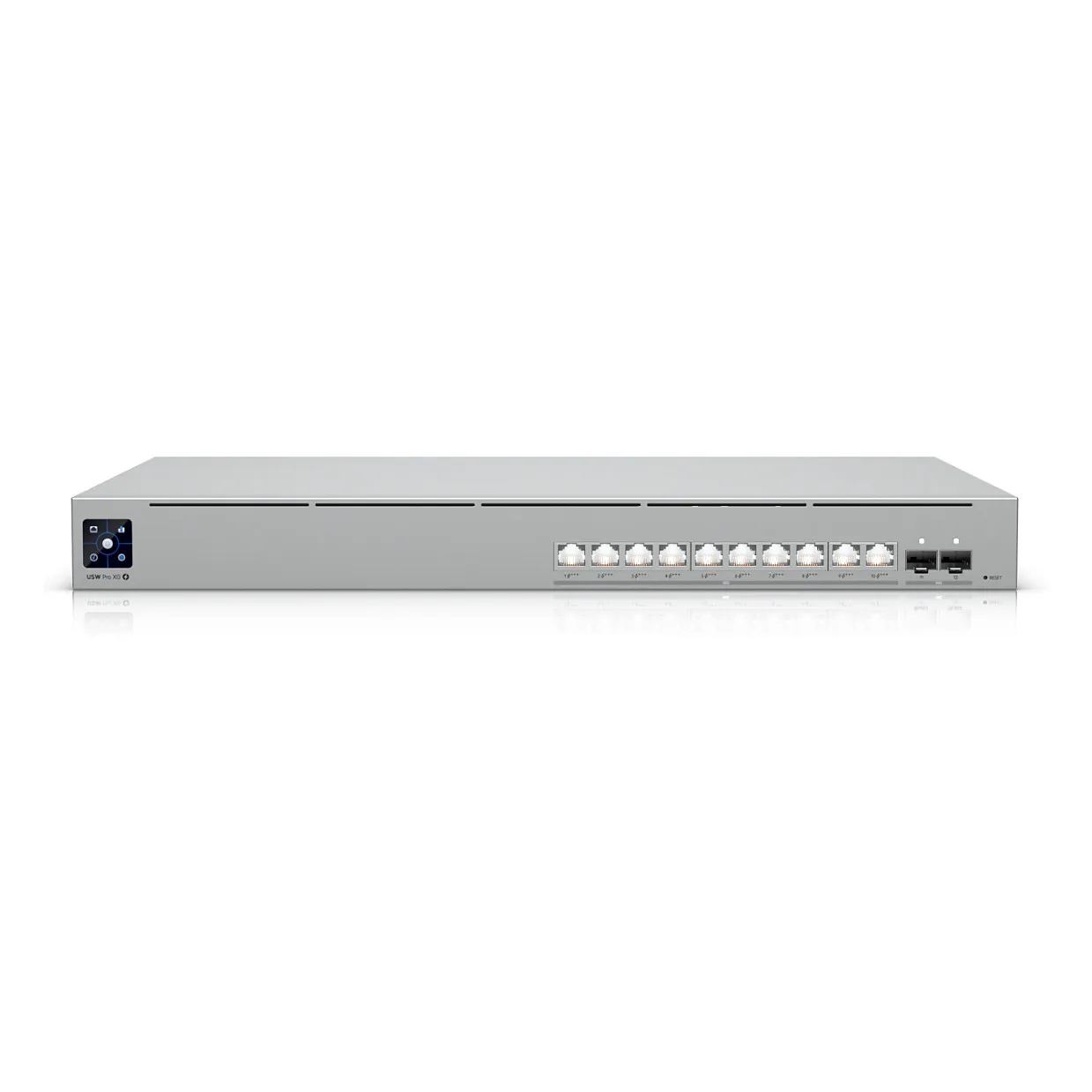

Ubiquiti UniFi Pro XG 10 PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 32000 entries, Switching capacity: 240 Gbit/s. Power connector: AC/DC. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
Management features
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity: 10
SFP+ module slots quantity: 2
Power connector: AC/DC
Network
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
IPv4 routes: 12000
Feature: VLAN support
Virtual LAN features: Interface-based VLAN, Voice VLAN
Number of VLANs: 1000
Data transmission
Switching capacity: 240 Gbit/s
Throughput: 120 Gbit/s
Forwarding rate: 179 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 2 MB
Security
DHCP features: DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Feature: IGMP snooping
Feature: Loop protection
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: System
Display type: LCM
Feature: Backlight display
Power
Power source: AC/DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 520 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE++ (4PPoE), PoE+++
Power over Ethernet 4PPoE (PoE++) ports quantity: 10
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 400 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 442.4 mm
Depth: 285 mm
Height: 44 mm
Weight: 4.6 kg

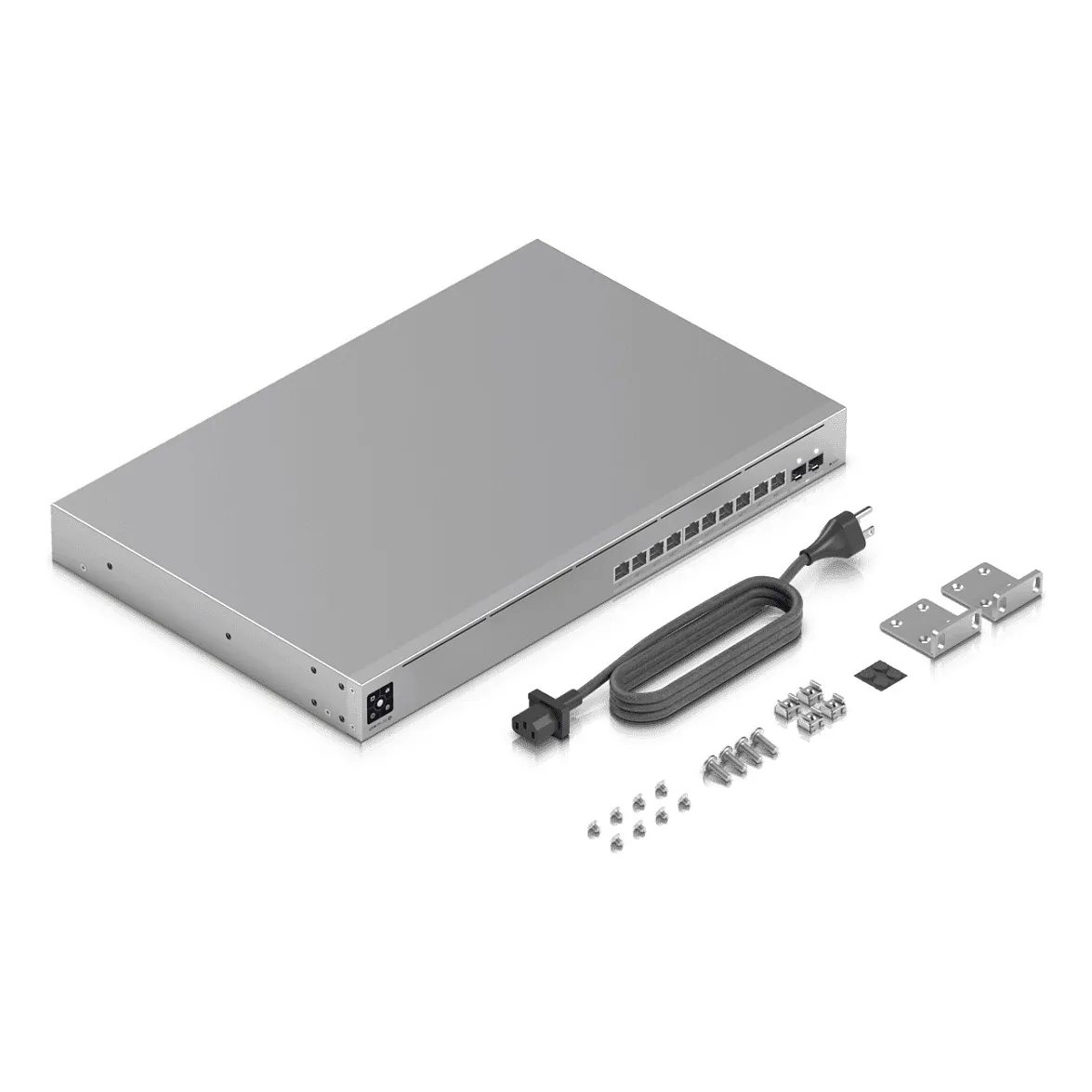

Packaging content
Cables included: Power
Feature: Manual
Feature: Rack mount kit
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
