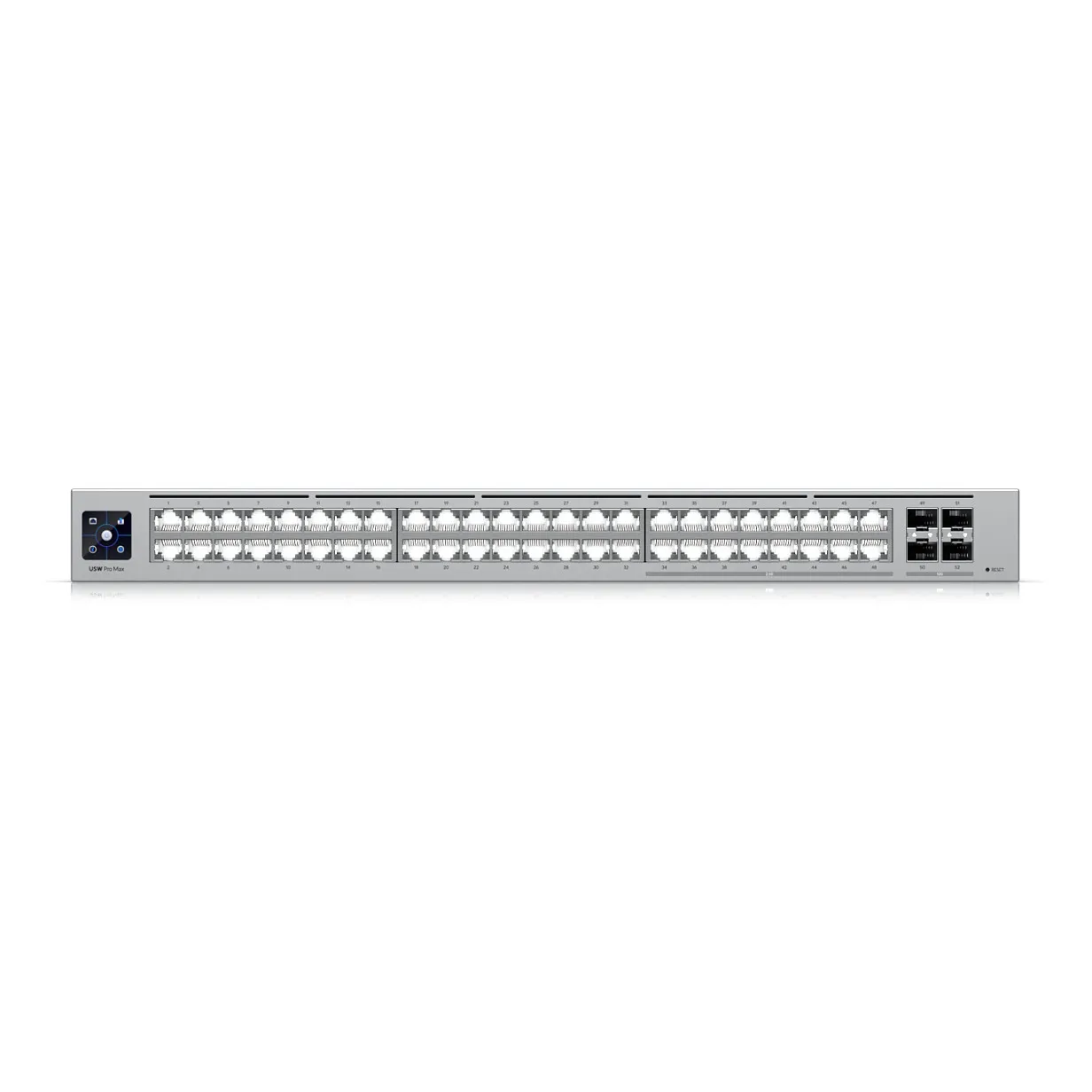

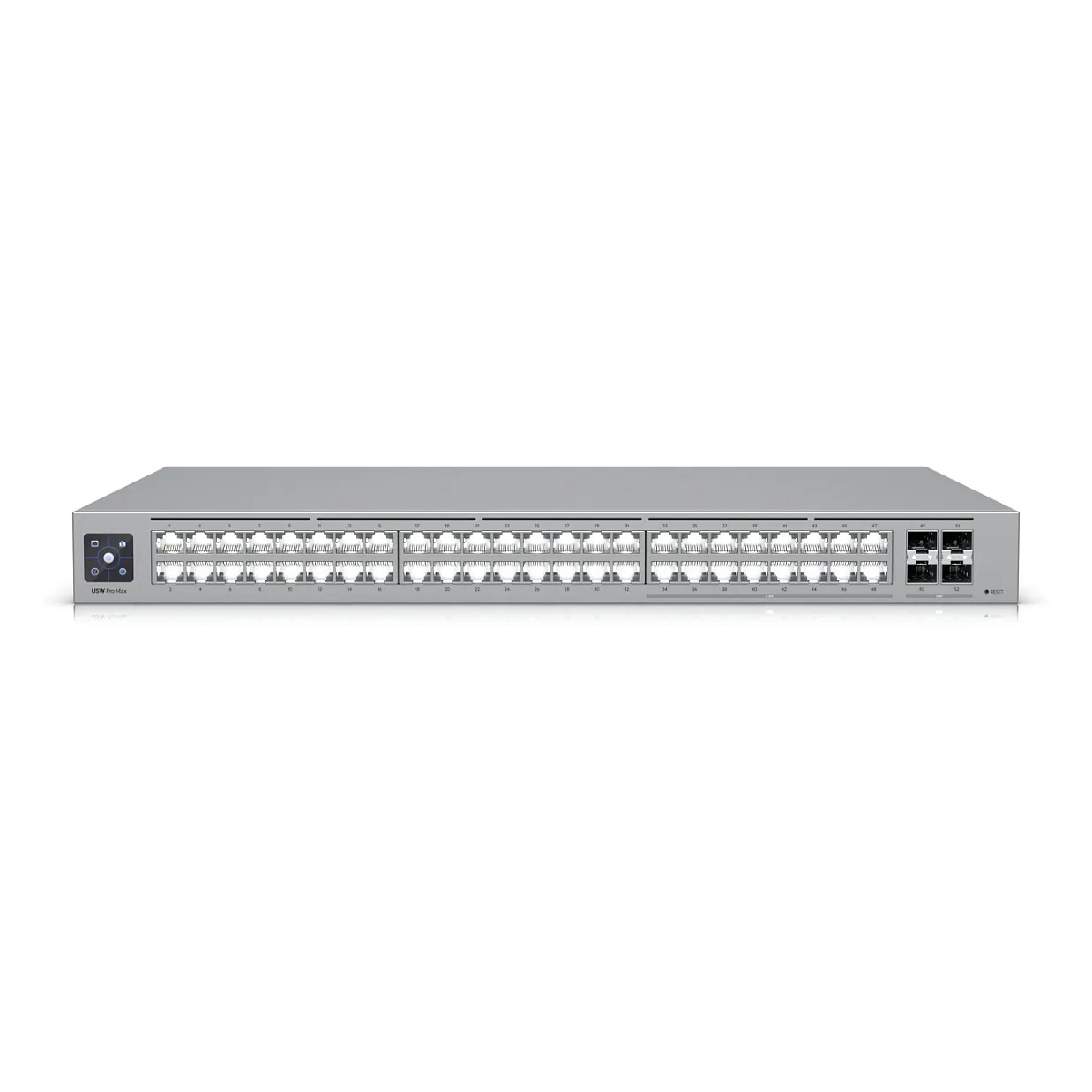

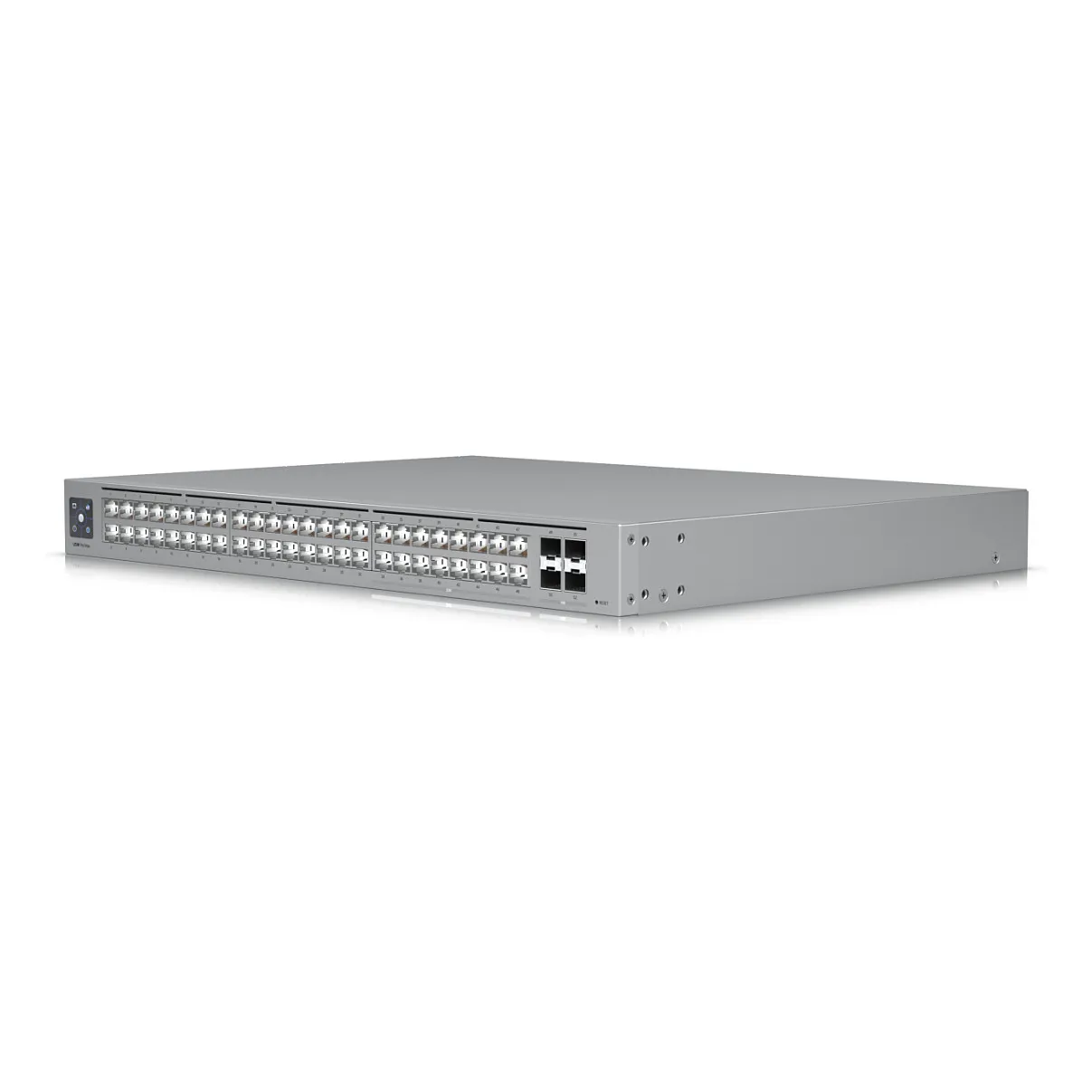

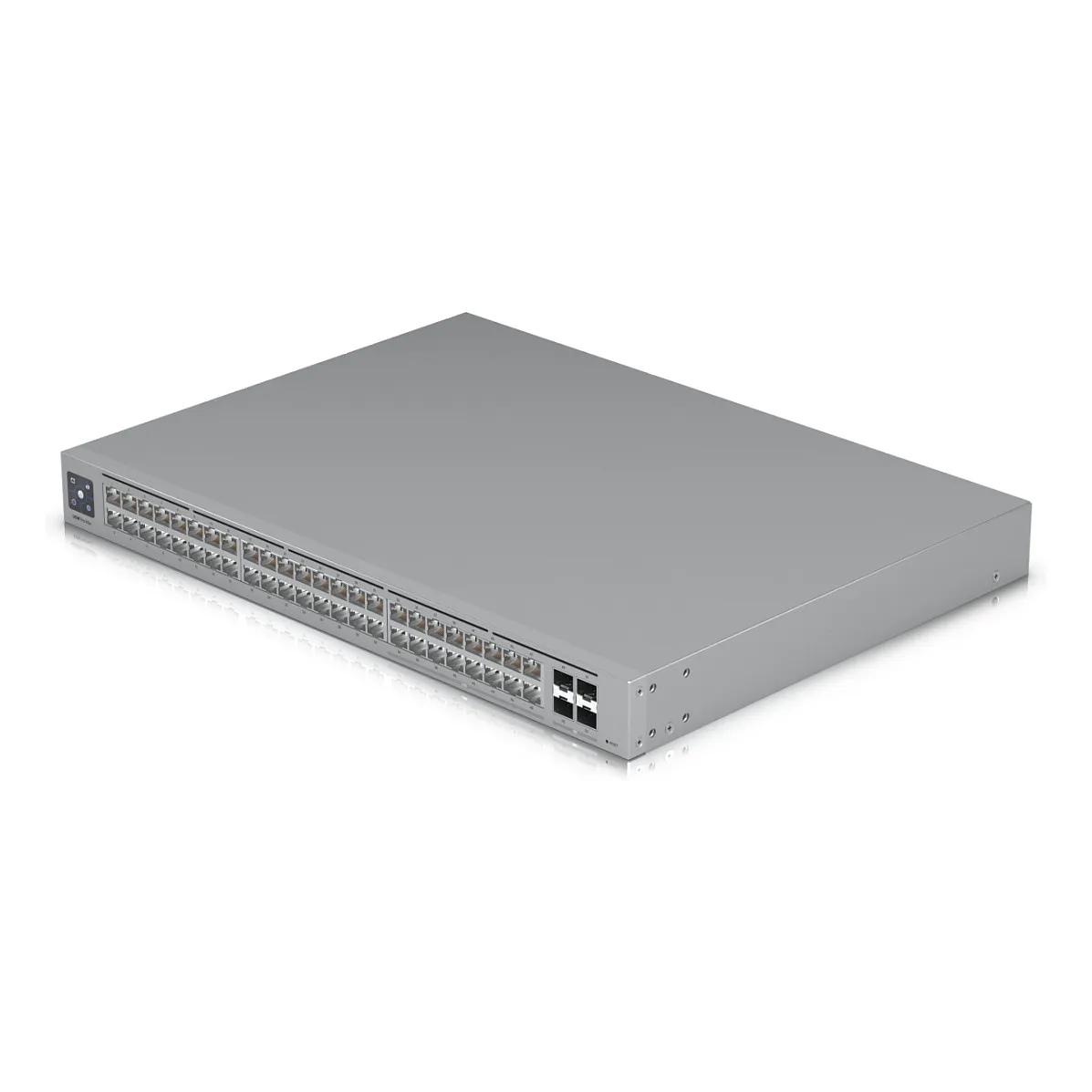

Ubiquiti Pro Max 48

Management features
Switch layer: L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity: 32
2.5G Ethernet (copper) ports quantity: 16
SFP+ module slots quantity: 4
Power connector: AC/DC
Network
Networking standards: IEEE 802.1x
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Feature: VLAN support
Virtual LAN features: Voice VLAN
Data transmission
Switching capacity: 224 Gbit/s
Throughput: 112 Gbit/s
Forwarding rate: 166.656 Mpps
Feature: Static route
Feature: Jumbo frames support
Security
DHCP features: DHCP relay, DHCP snooping
Feature: IGMP snooping
Feature: Loop protection
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: Link, Network, Speed, Status
Display type: LCM
Power
Power source: AC/DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 100 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 442.4 mm
Depth: 325 mm
Height: 43.7 mm
Weight: 4.8 kg

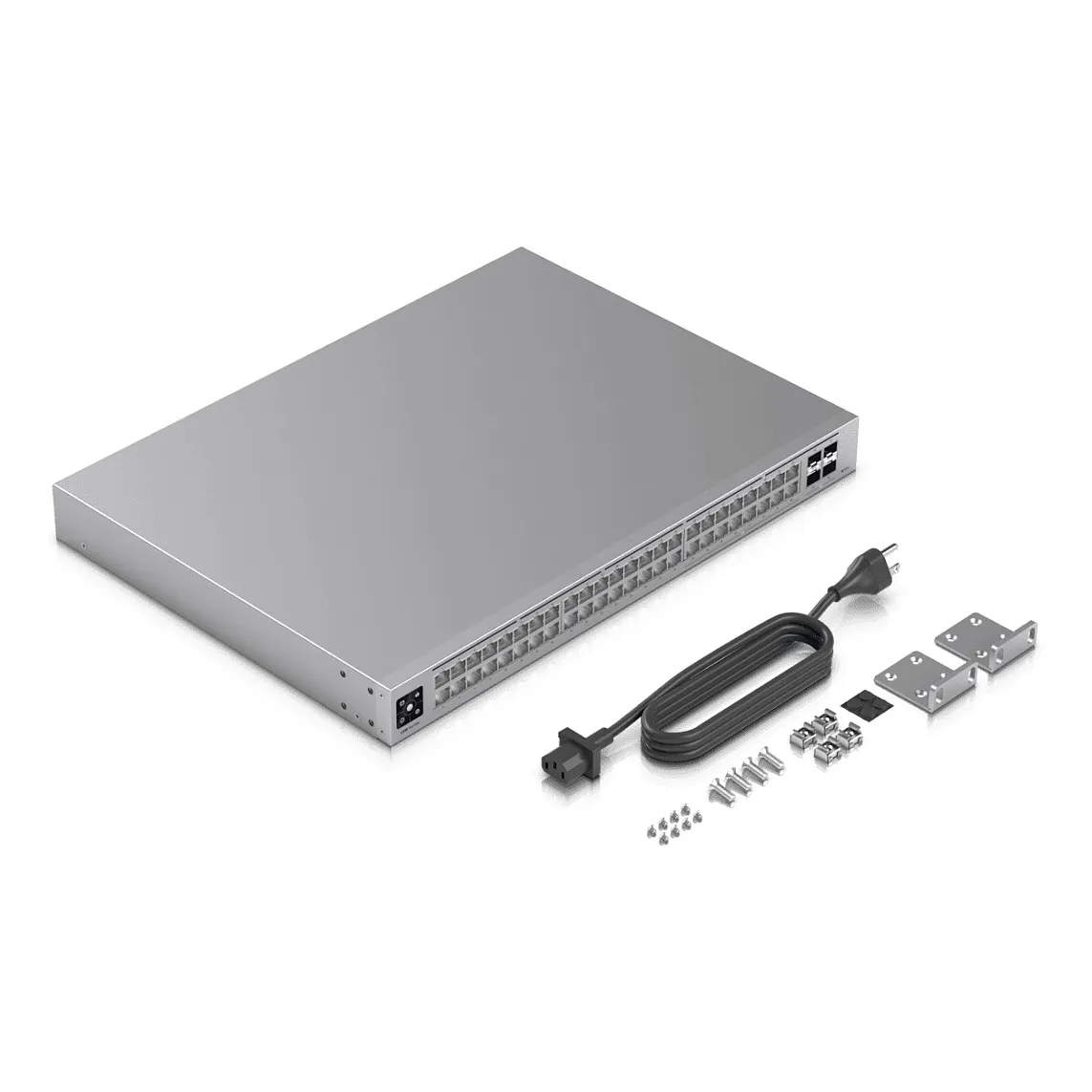

Packaging content
Cables included: Power
Packaging data
Feature: Mounting brackets included
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
