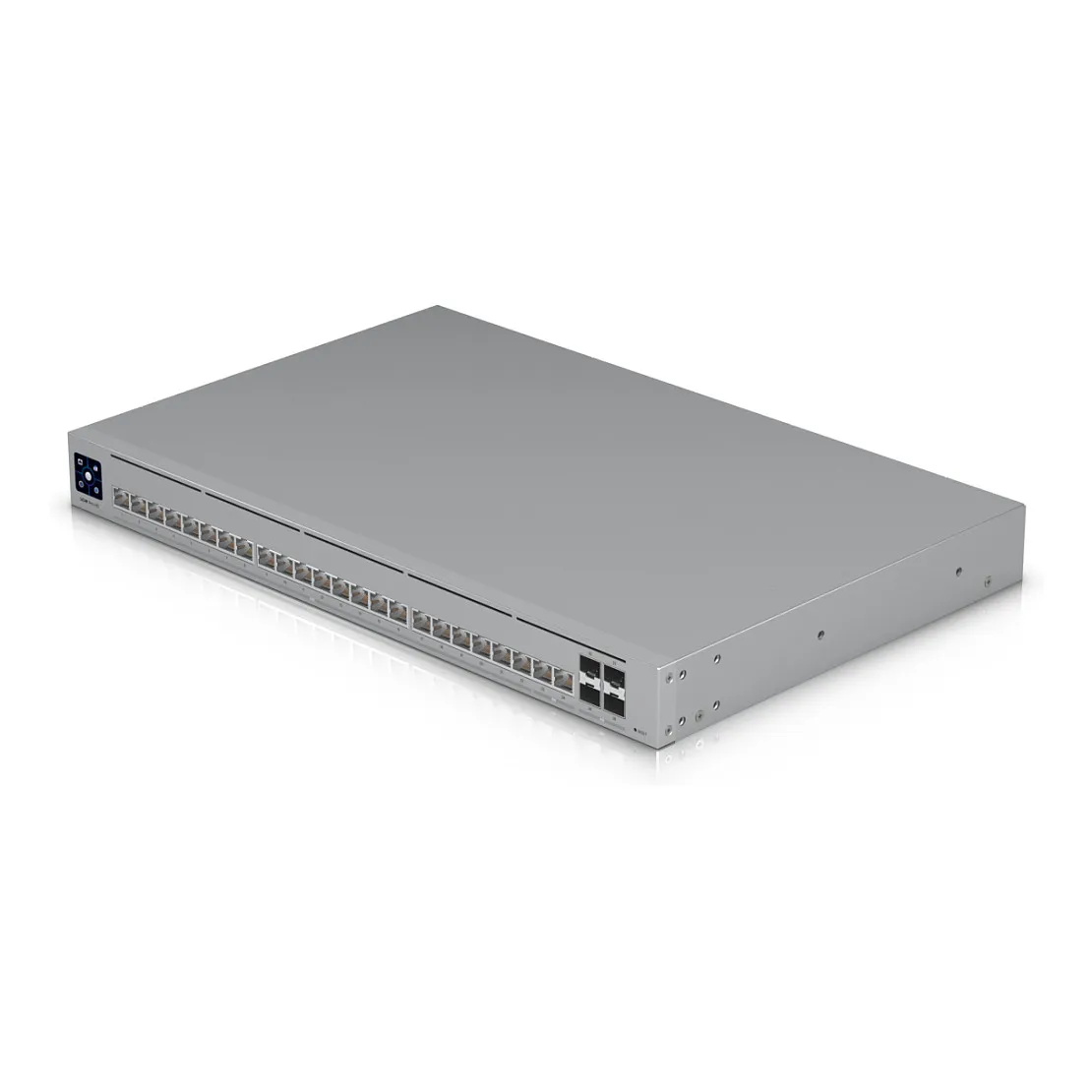

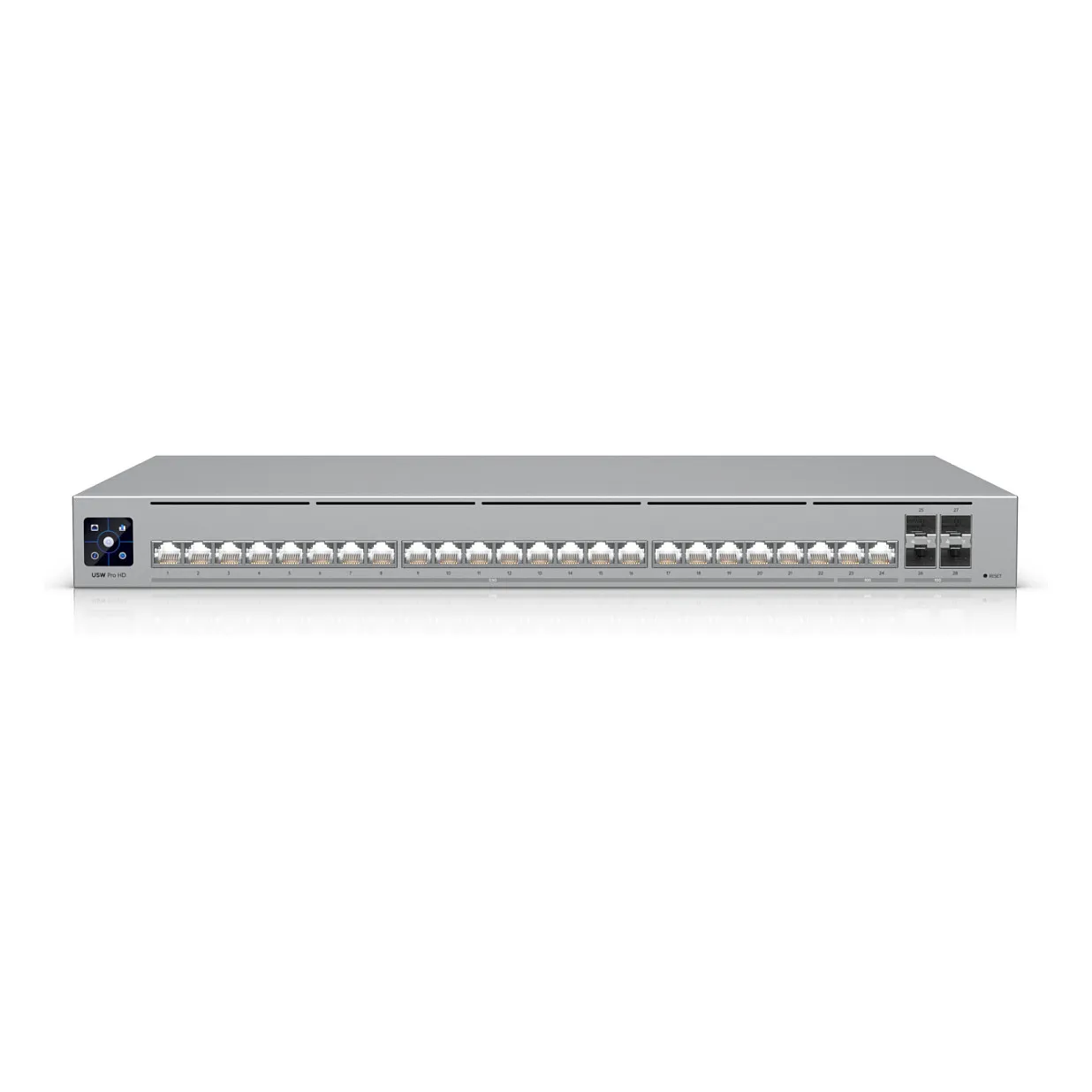

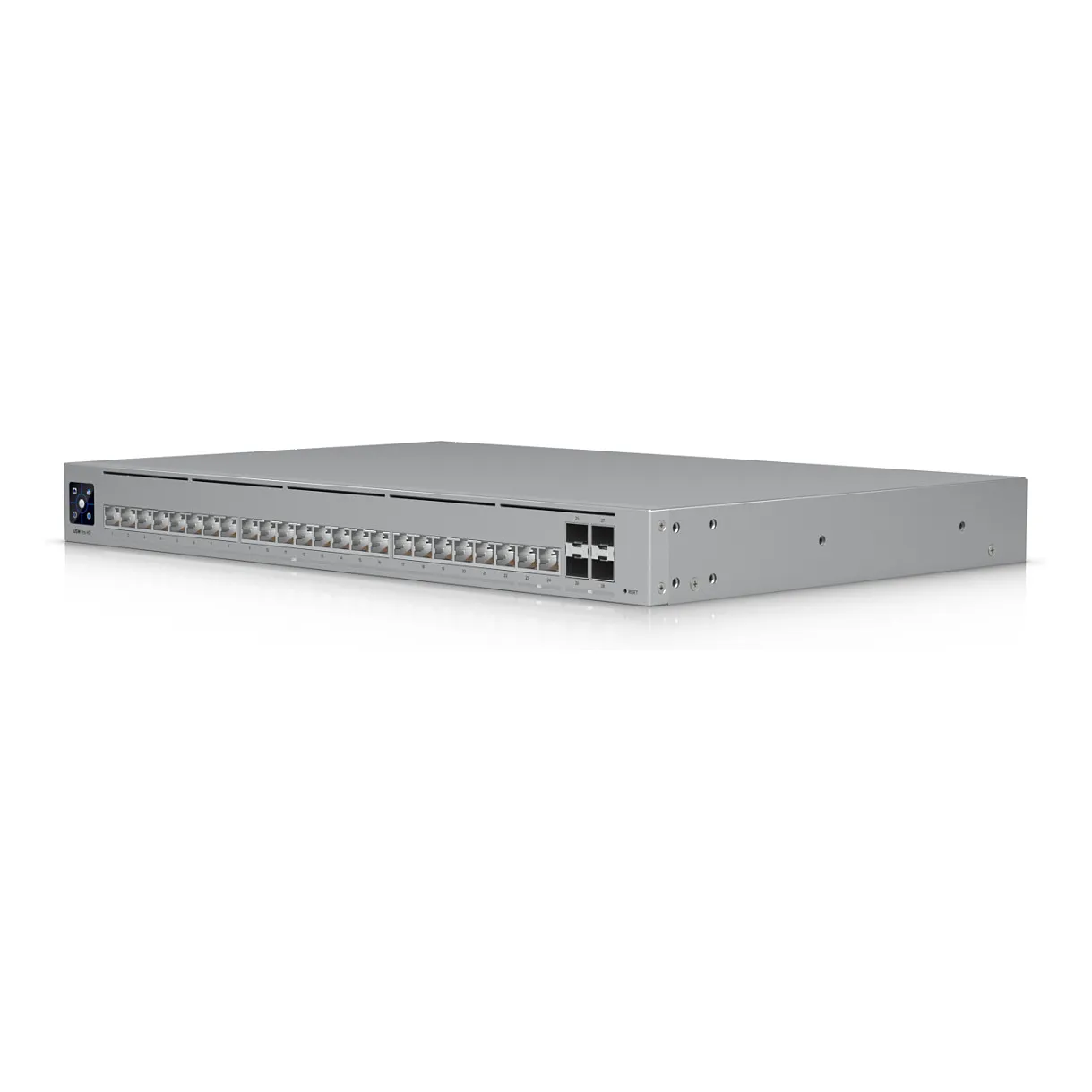

Ubiquiti UniFi Pro HD 24

Management features
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 22
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 22
10G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 4
Power connector: AC/DC
Network
Networking standards: IEEE 802.1x
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
IPv4 routes: 12000
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 1000
Data transmission
Switching capacity: 230 Gbit/s
Throughput: 115 Gbit/s
Forwarding rate: 171.12 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 2 MB
Security
DHCP features: DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Feature: IGMP snooping
Feature: Loop protection
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: Link, Speed, Status
Display type: LCM
Power
Power source: AC/DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 60 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Heat dissipation: 102.36 BTU/h
Weight & dimensions
Width: 442.4 mm
Depth: 285 mm
Height: 44 mm
Weight: 4.2 kg

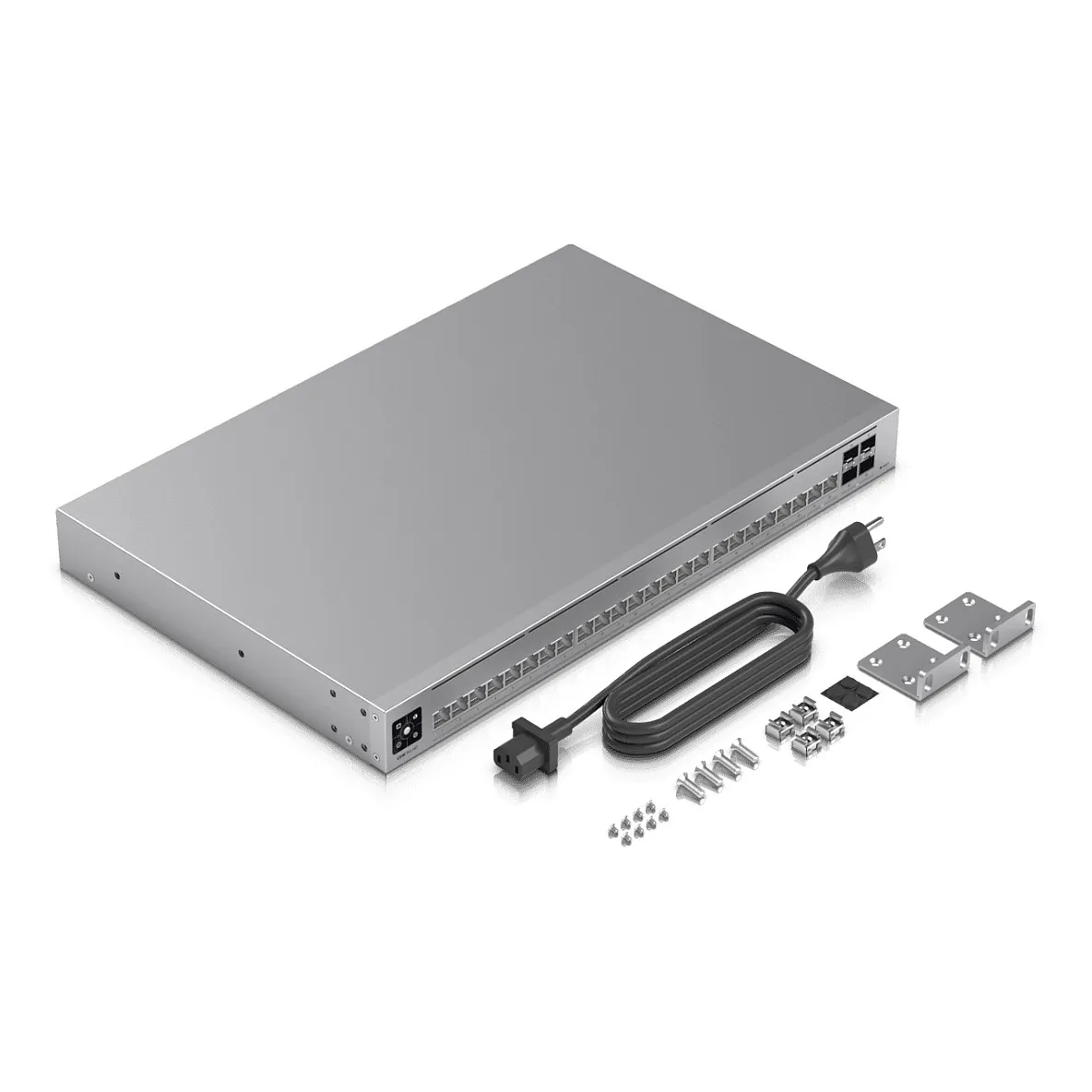

Packaging content
Cables included: Power
Feature: Rack mount kit
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
