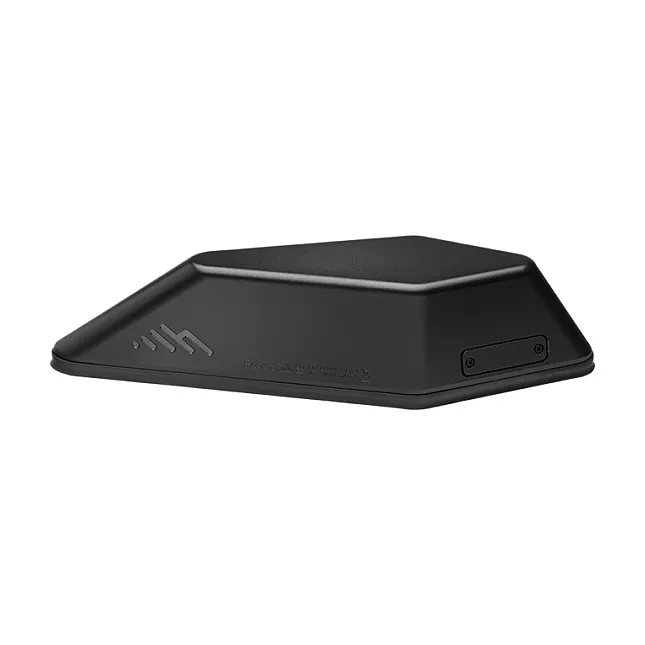

Ericsson R2105. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 2500 Mbit/s. Mobile network generation: 5G, 3G standards: HSPA+, UMTS, WCDMA, 4G standard: LTE. Security algorithms: FIPS 140-3
Built for vehicle and IoT deployments
The R2100 Series is a high-bandwidth, exterior-mounted solution that provides mass transit, public safety, and other organizations with the latest in 5G performance. Integrating the modem, antennas, and router into a single aerodynamic, ruggedized casing, this simplified form factor reduces installation complexity and cost.
The R2100 Series is a high-bandwidth, exterior-mounted solution that provides mass transit, public safety, and other organizations with the latest in 5G performance. Integrating the modem, antennas, and router into a single aerodynamic, ruggedized casing, this simplified form factor reduces installation complexity and cost.
WAN connection
Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 2500 Mbit/s
Mobile network
Mobile network generation: 5G
Feature: Dual SIM support
3G standards: HSPA+, UMTS, WCDMA
4G standard: LTE
Feature: Short Message Service (SMS)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Management features
Feature: MU-MIMO technology
Feature: MIMO
Security
Security algorithms: FIPS 140-3
Design
Product colour: Black
International Protection (IP) code: IP67
Product type: Tabletop router
Certificates
Compliance certificates: REACH, RoHS, WEEE
Sustainability
Feature: Sustainability compliance
Antenna
Antenna design: Internal
Antenna type: 2×2
Features
Feature: Built-in processor
Processor cores: 4
Flash memory: 8000 MB
Mean time between failures (MTBF): 1895792 h
Safety: CB Scheme,IEC/EN 62368-1
Power
Power source type: DC
Power consumption (typical): 14.5 W
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 90%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 115 mm
Depth: 386 mm
Height: 82 mm
Weight: 1.46 kg
Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 2500 Mbit/s
Mobile network
Mobile network generation: 5G
Feature: Dual SIM support
3G standards: HSPA+, UMTS, WCDMA
4G standard: LTE
Feature: Short Message Service (SMS)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Management features
Feature: MU-MIMO technology
Feature: MIMO
Security
Security algorithms: FIPS 140-3
Design
Product colour: Black
International Protection (IP) code: IP67
Product type: Tabletop router
Certificates
Compliance certificates: REACH, RoHS, WEEE
Sustainability
Feature: Sustainability compliance
Antenna
Antenna design: Internal
Antenna type: 2×2
Features
Feature: Built-in processor
Processor cores: 4
Flash memory: 8000 MB
Mean time between failures (MTBF): 1895792 h
Safety: CB Scheme,IEC/EN 62368-1
Power
Power source type: DC
Power consumption (typical): 14.5 W
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 90%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 115 mm
Depth: 386 mm
Height: 82 mm
Weight: 1.46 kg
