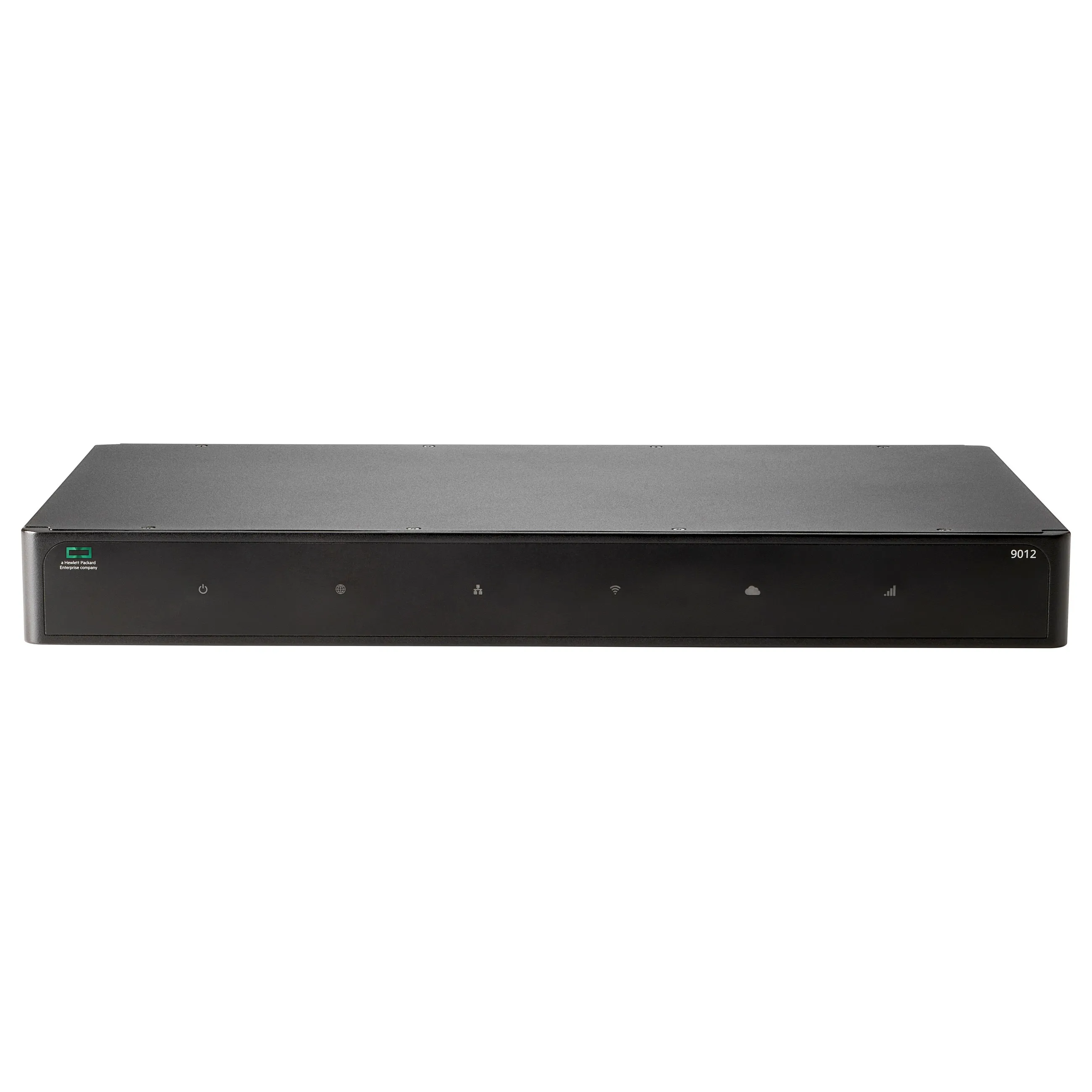

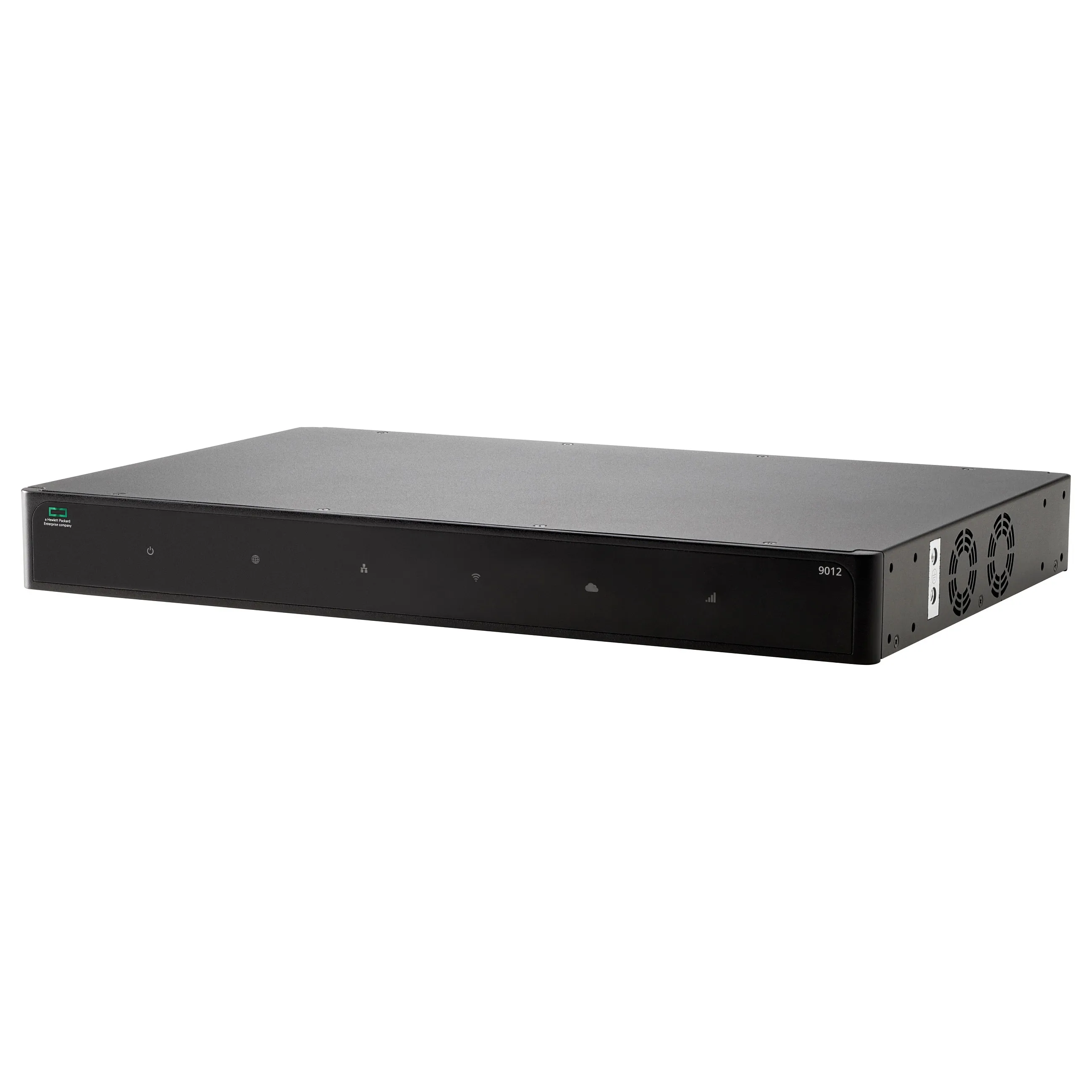

HPE Aruba Networking 9012 (RW) 12xGbE 6xPoE+ Branch 2K Clients – 32 APs Gateway. Product colour: Black, Mounting type: Rack mounting, LED indicators: LAN, Status, WAN. Ethernet LAN data rates: 100,1000 Mbit/s. Security algorithms: IPSec, SSL/TLS. Console port: micro USB, RJ-45. Power consumption (typical): 160 W, Input voltage: 90 – 264 V, Input frequency: 47 – 63 Hz
What is new supporting point:
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.
Product colour: Black
Mounting type: Rack mounting
LED indicators: LAN, Status, WAN
Network
Ethernet LAN data rates: 100,1000 Mbit/s
Security
Security algorithms: IPSec, SSL/TLS
Firewall security: Yes
Feature: VLAN support
Ports & interfaces

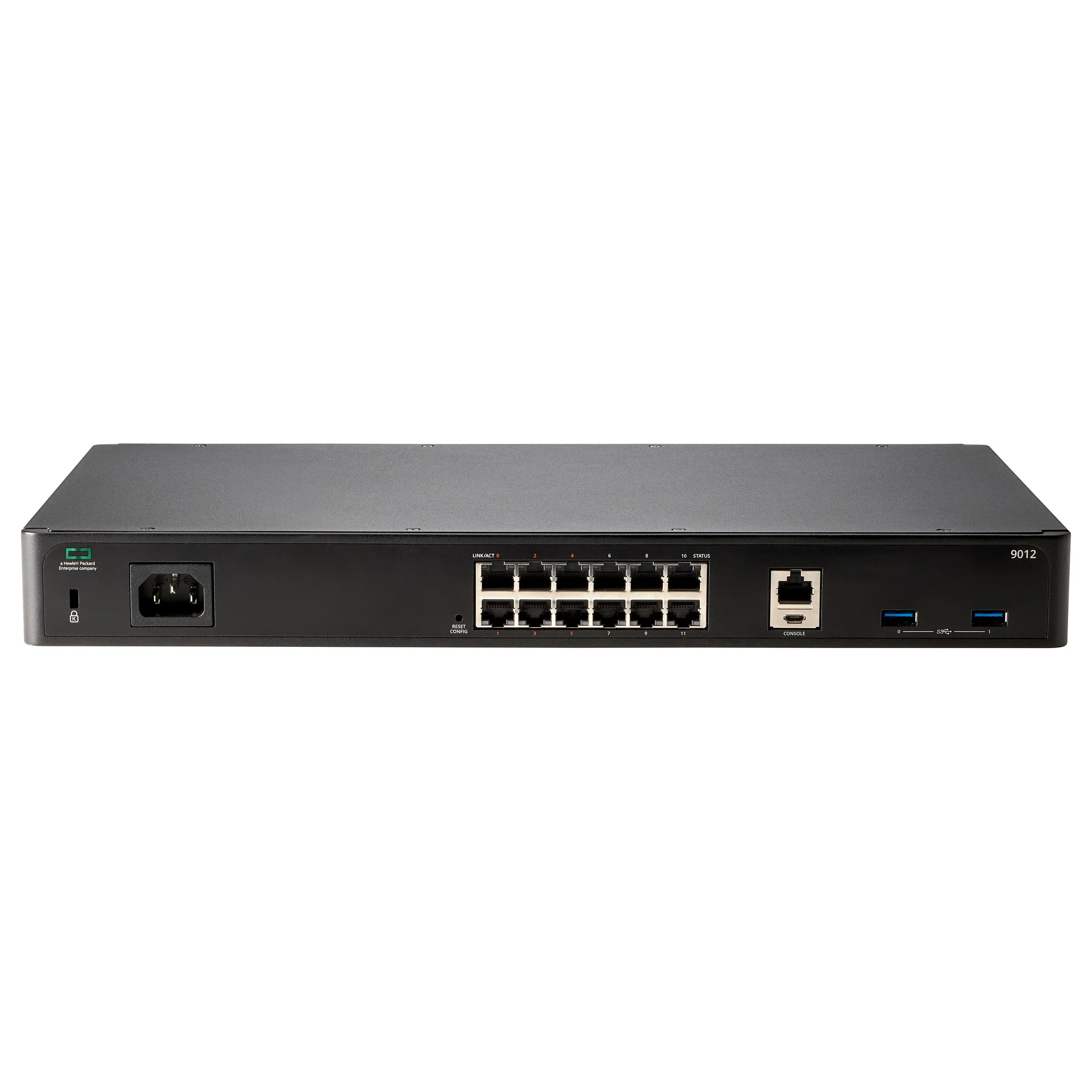

I/O ports: 12 100/1000BASE-T ports (including 6x PoE+)
Console port: micro USB, RJ-45
Ethernet LAN (RJ-45) ports: 12
Power
Power consumption (typical): 160 W
Input voltage: 90 – 264 V
Input frequency: 47 – 63 Hz
Input current: 3 A
Feature: Power over Ethernet (PoE)
Weight & dimensions
Width: 43.7 mm
Depth: 395 mm
Height: 260 mm
Weight: 3.42 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 95%
Operating altitude: 0 – 3048 m
Technical details
Weight (imperial): 3.42 kg (7.54 lbs)
Certificates
Safety: UL 60950-1,CAN/CSA-C22.2 No. 60950-1,EN 60950-1,EN 60950:2005,IEC 60950-1,EN/IEC 62368-1
Certification: FCC/ISED; RED Directive 2014/53/EU; Others: MIC, NCC, ANATEL, COFTEL, CCC
Logistics data
Harmonized System (HS) code: 85176990
