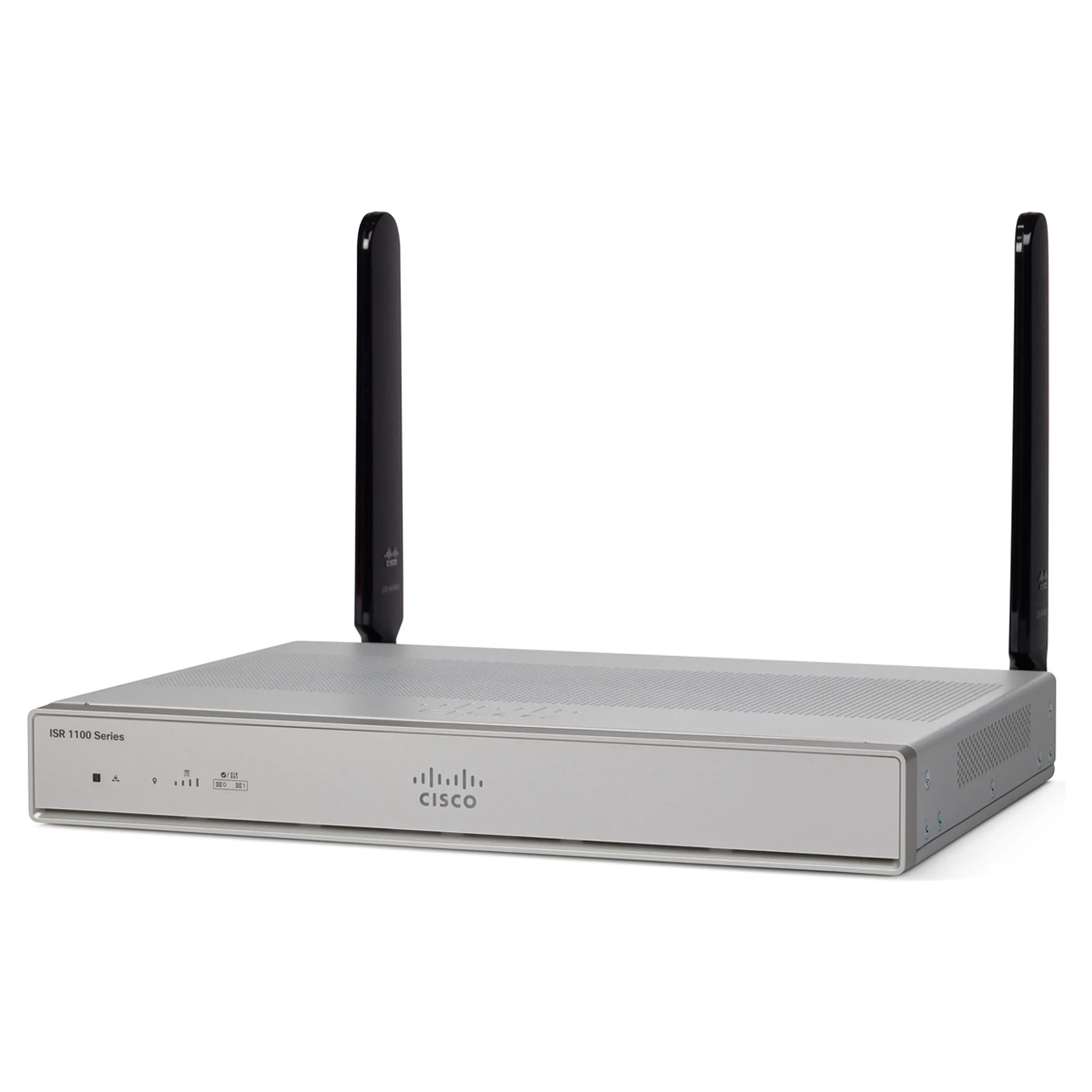

Cisco C1117-4P Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 VA-DSL (Annex A/M) and GE WAN Router, 1-Year Limited Hardware Warranty (C1117-4P). Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Ethernet LAN data rates: 10,100,1000 Mbit/s. USB version: 3.2 Gen 1 (3.1 Gen 1). Security algorithms: 3DES, 802.1x RADIUS, AES, DES. Product colour: Silver, Country of origin: China. AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz
The Cisco C1117-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.
WAN connection
Feature: Ethernet WAN
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
DSL features
Feature: VDSL
Management features
Feature: Web-based management
Feature: Quality of Service (QoS) support
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
USB version: 3.2 Gen 1 (3.1 Gen 1)
Security
Security algorithms: 3DES, 802.1x RADIUS, AES, DES
Feature: Firewall
Design
Product colour: Silver
Country of origin: China
Antenna
Antenna type: Not supported
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): 0 – 65 °C
Operating relative humidity (H-H): 10 – 85%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 4570 m
Weight & dimensions
Width: 323 mm
Depth: 244 mm
Height: 44 mm
Weight: 2.59 kg
Packaging data
Package width: 342.9 mm
Package depth: 508 mm
Package height: 162.1 mm
Package weight: 3.08 kg
Logistics data
Quantity per pack: 1 pc(s)
Harmonized System (HS) code: 85176990
Feature: Ethernet WAN
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
DSL features
Feature: VDSL
Management features
Feature: Web-based management
Feature: Quality of Service (QoS) support
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
USB version: 3.2 Gen 1 (3.1 Gen 1)
Security
Security algorithms: 3DES, 802.1x RADIUS, AES, DES
Feature: Firewall
Design
Product colour: Silver
Country of origin: China
Antenna
Antenna type: Not supported
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): 0 – 65 °C
Operating relative humidity (H-H): 10 – 85%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 4570 m
Weight & dimensions
Width: 323 mm
Depth: 244 mm
Height: 44 mm
Weight: 2.59 kg
Packaging data
Package width: 342.9 mm
Package depth: 508 mm
Package height: 162.1 mm
Package weight: 3.08 kg
Logistics data
Quantity per pack: 1 pc(s)
Harmonized System (HS) code: 85176990
