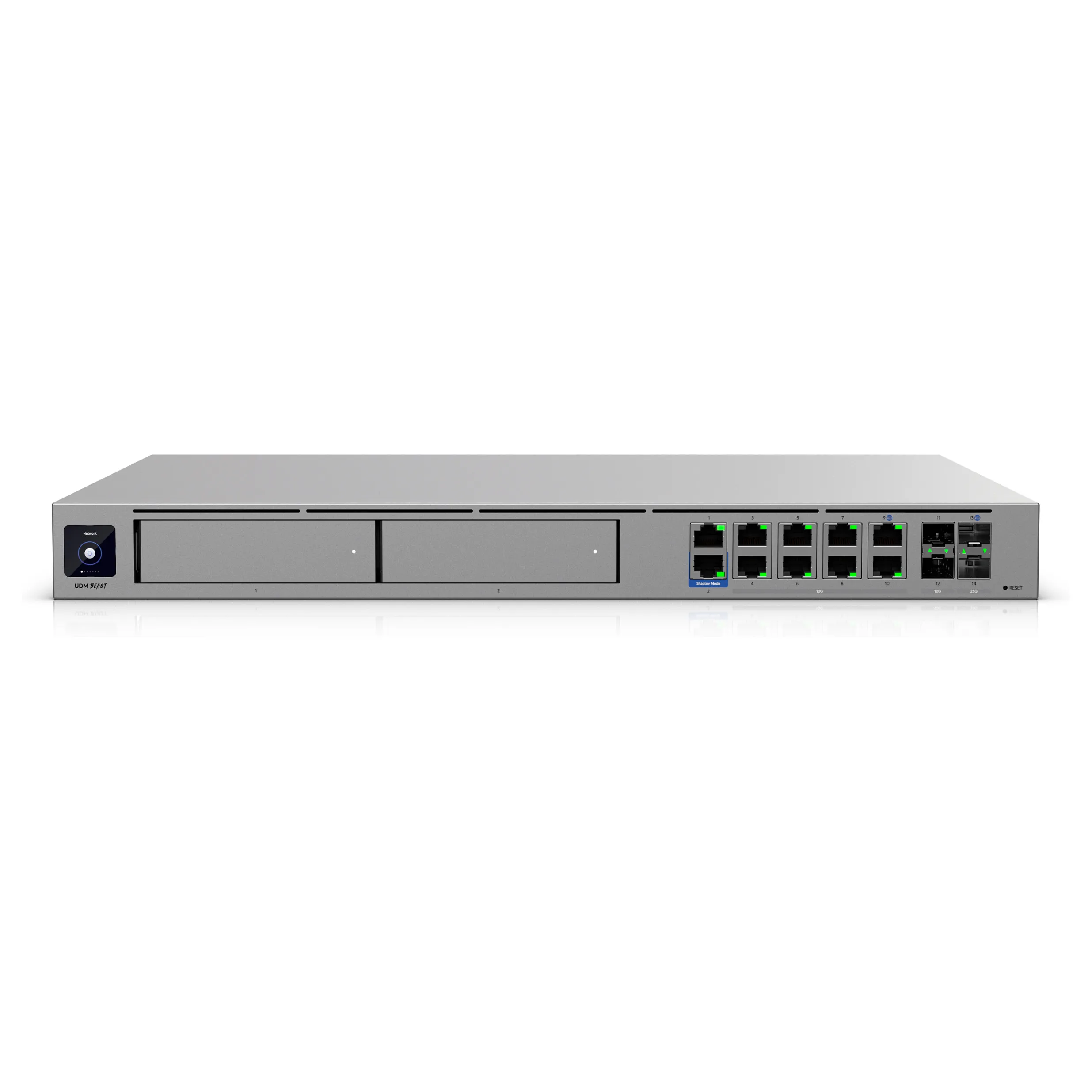

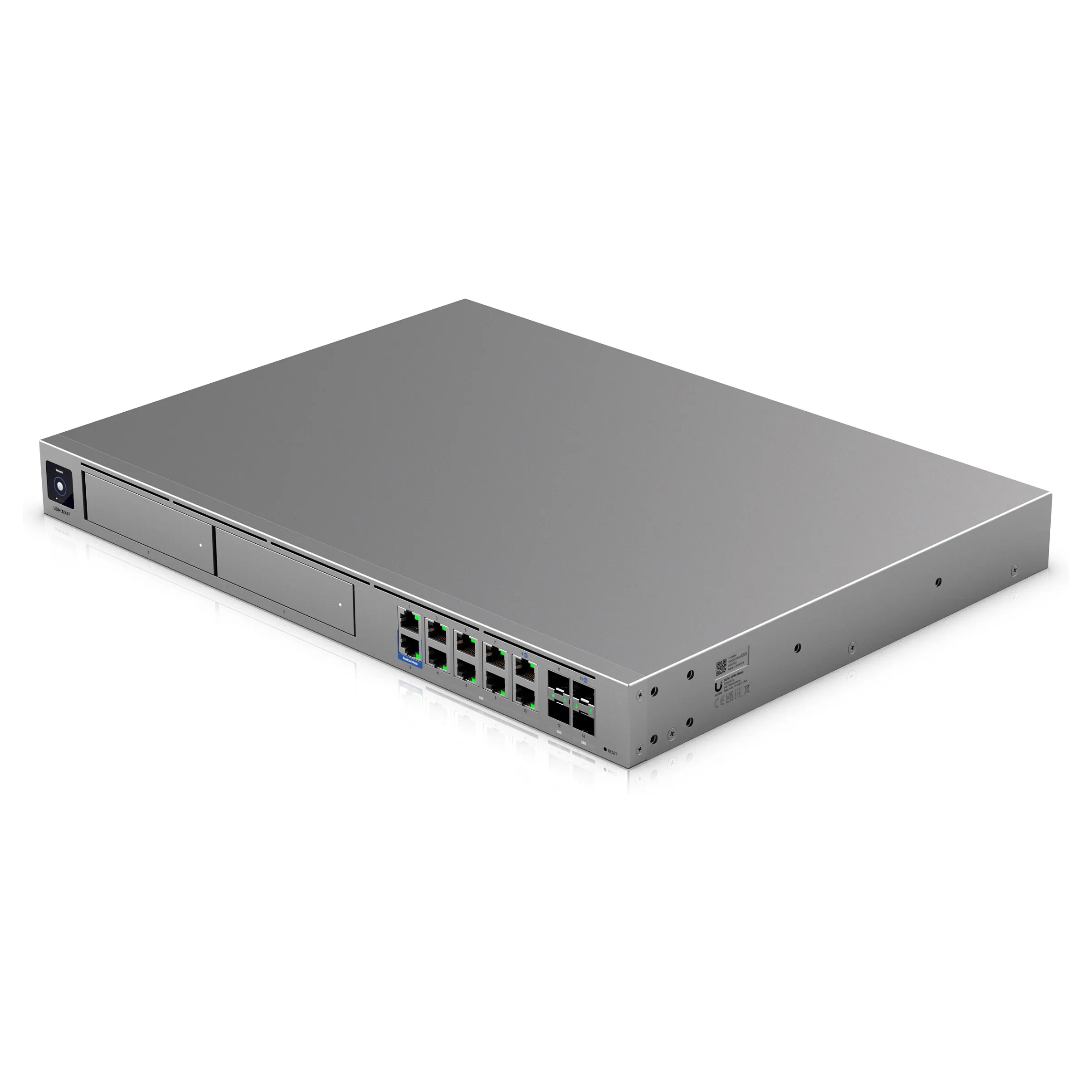

Ubiquiti Dream Machine Beast. Product colour: Grey, Rack capacity: 1U, Enclosure material: Aluminium/SGCC. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Routing protocols: BGP, OSPF. Ethernet LAN data rates: 10,100,1000,2500,10000,5000 Mbit/s. Console port: RJ-45, WAN connection: Ethernet (RJ-45), SFP+
Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.
Design
Product colour: Grey
Rack capacity: 1U
Enclosure material: Aluminium/SGCC

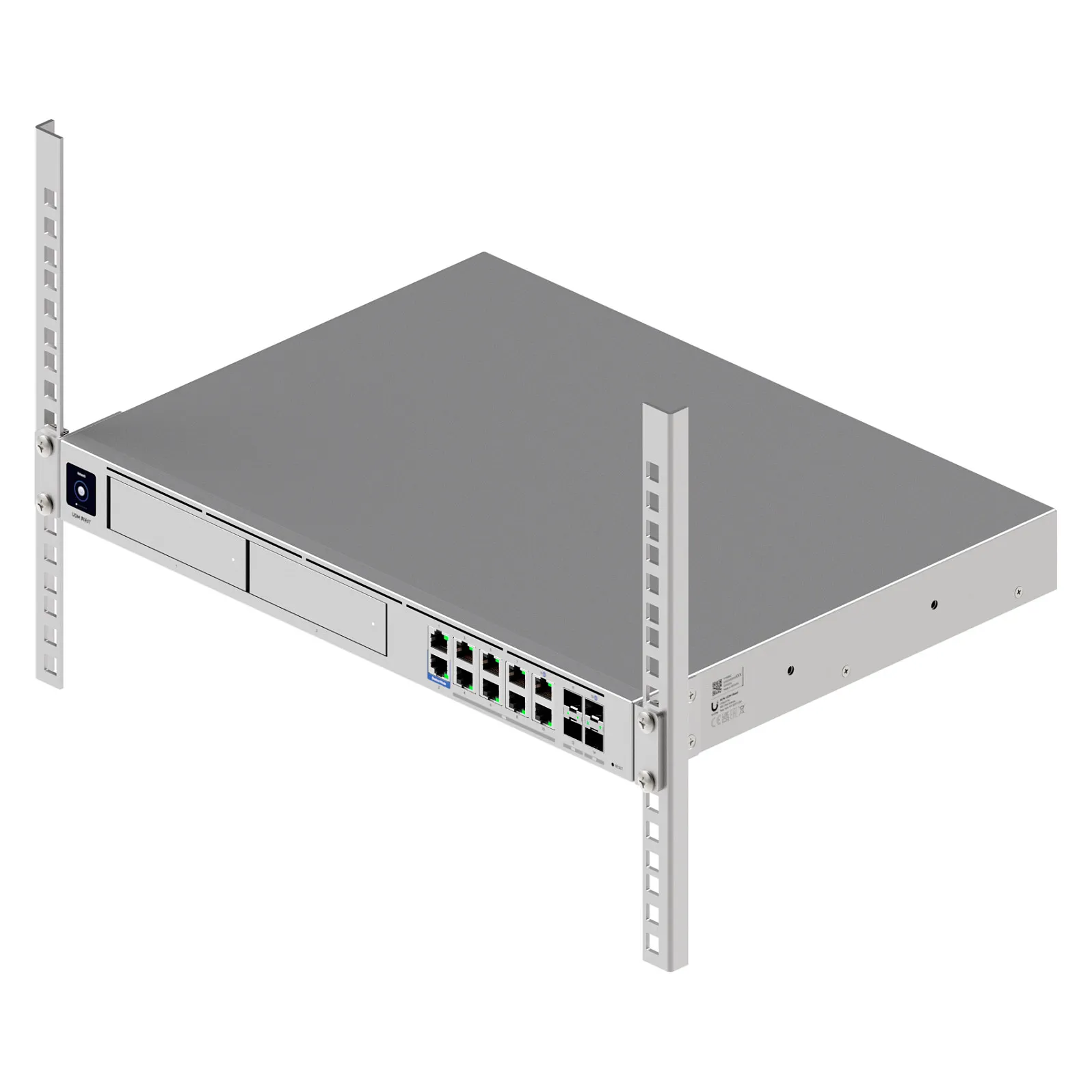

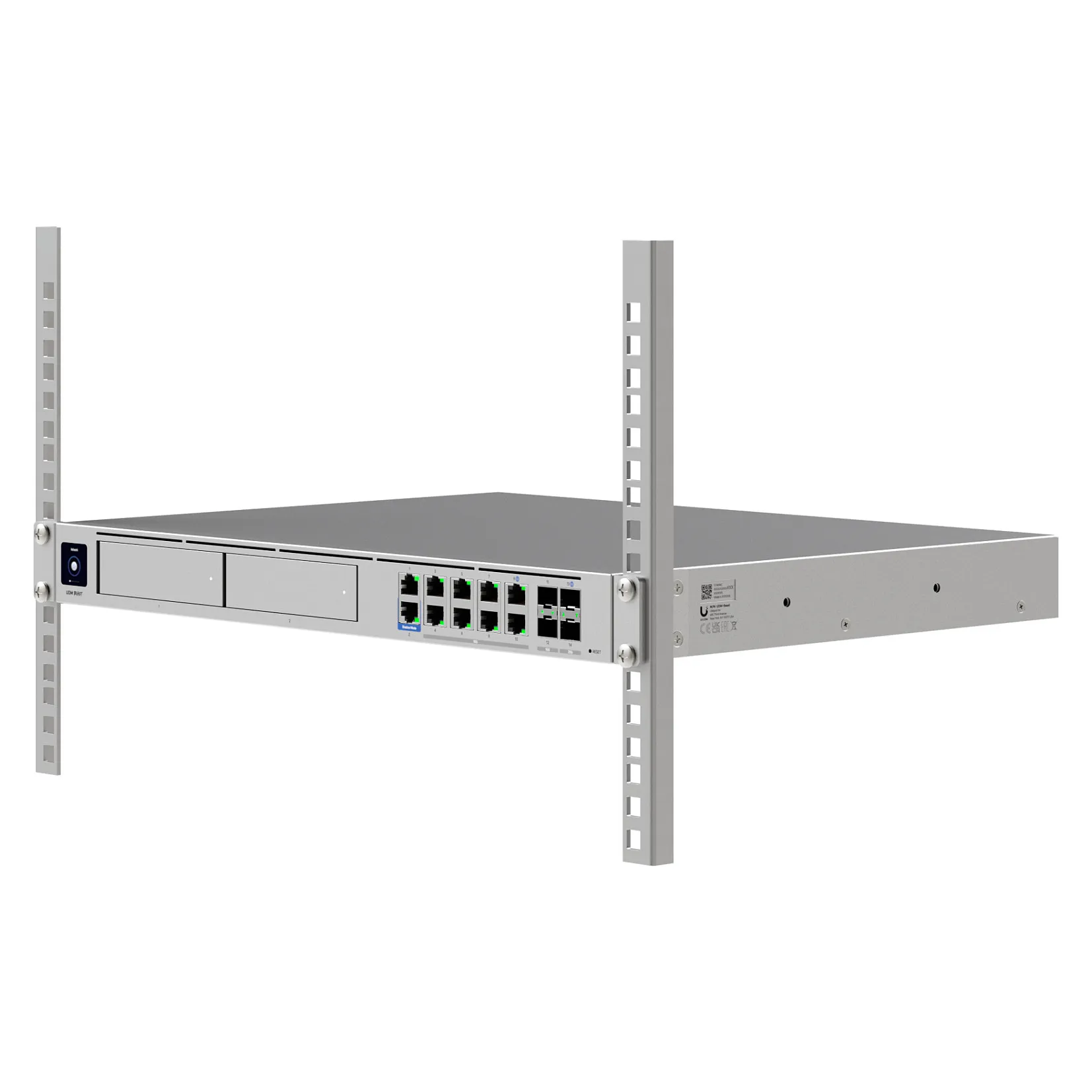

Mounting type: Rack mounting
LED indicators: Activity, Error, Link, Ready
Performance
Feature: Control display unit
Display type: LCM
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor frequency: 2100 MHz
Number of processors installed: 1
Internal memory: 16000 MB
SSD capacity: 128 GB
Protocols
Routing protocols: BGP, OSPF
Feature: DHCP server
Network
Ethernet LAN data rates: 10,100,1000,2500,10000,5000 Mbit/s
Feature: Port aggregation
Security
Firewall security: Yes
Feature: Network address translation (NAT)
Ports & interfaces
Console port: RJ-45
Number of console ports: 1
Ethernet LAN (RJ-45) ports: 10
WAN connection: Ethernet (RJ-45), SFP+
SFP+ ports quantity: 2
Management features
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: Multicast support
Power
Power consumption (max): 100 W
Input voltage: 100 – 240 V
Input frequency: 50/60 Hz
Input current: 3 A
Heat dissipation: 342 BTU/h
DC input voltage: 12 V
Electrostatic Discharge (ESD) protection (air): 8 kV
Electrostatic Discharge (ESD) protection (contact): 4 kV
Feature: Electromagnetic (EMP) protection
Electromagnetic (EMP) protection (air): 8 kV
Electromagnetic (EMP) protection (contact): 4 kV
Weight & dimensions
Width: 442.4 mm
Depth: 325 mm
Height: 43.7 mm
Weight: 5.5 kg

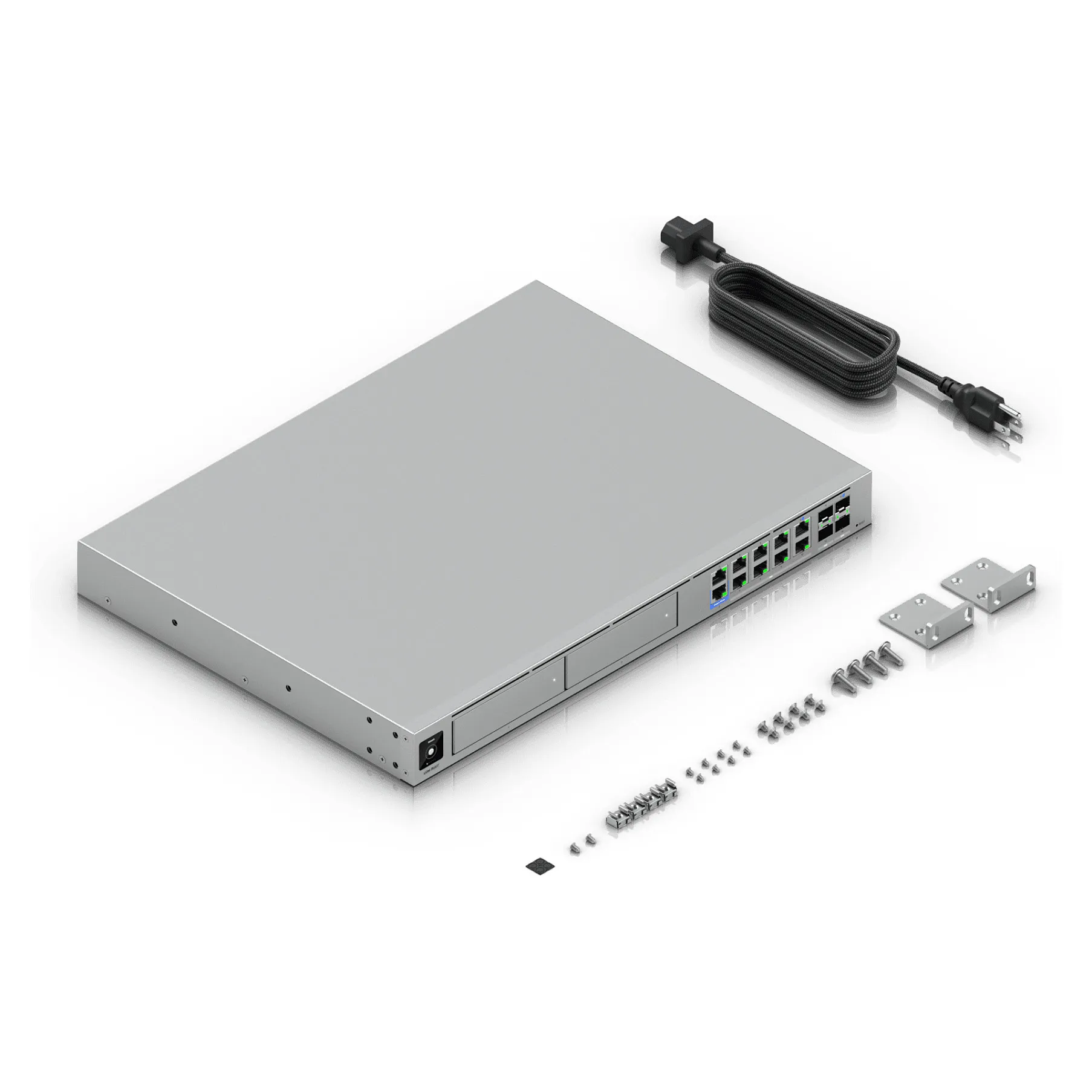

Packaging content
Cables included: AC
Operational conditions
Operating temperature (T-T): -10 – 40 °C
Operating relative humidity (H-H): 5 – 95%
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
