Zyxel XGS1210-12-ZZ0102F. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 66 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az. DC input voltage: 12 V
Maximums the flexibility for your network.

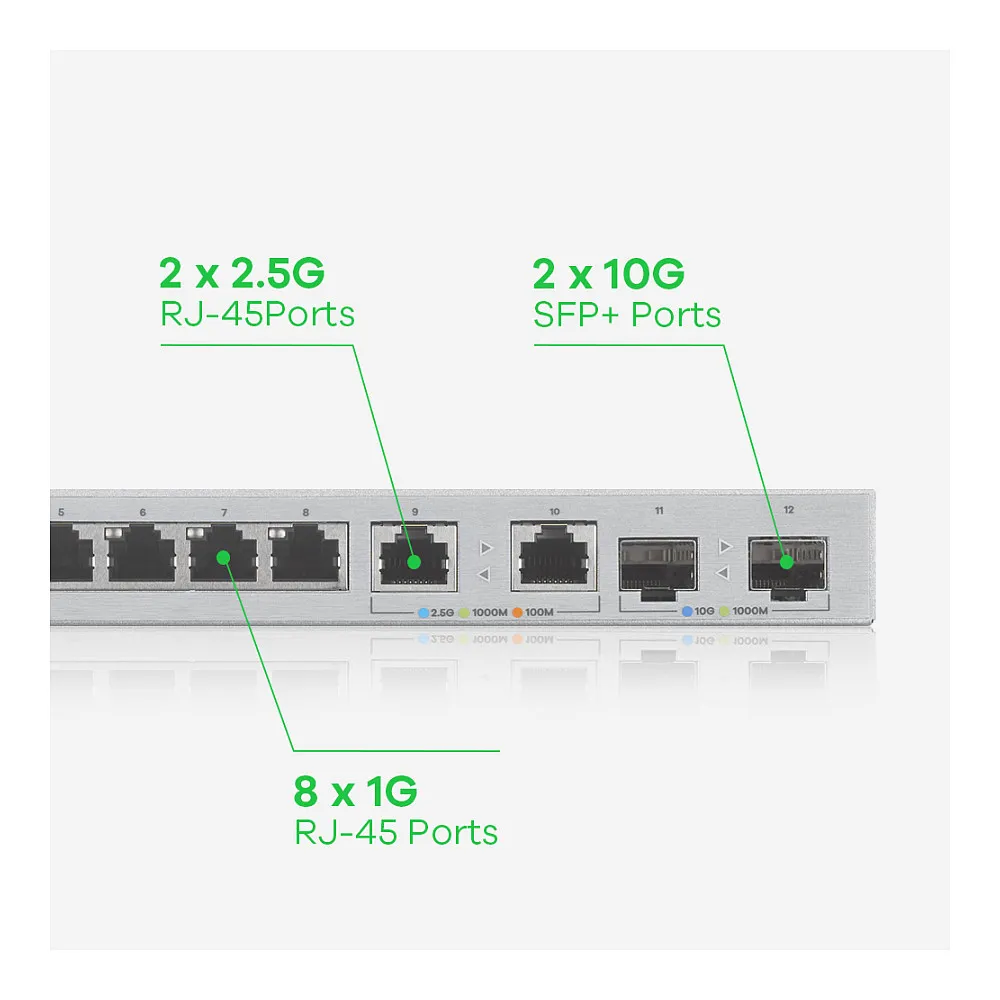

The XGS1210-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.
Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file
10G SFP+ ultra-speed uplink
Provide two SFP+ ports compatible with 10GbE and which offers higher transmission speeds and get customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.
Easy management with intuitive GUI
XGS1210-12 comes with a user-friendly web-based setup wizard that quickly and easily walks you through setup, configuration and management, including configuration backups and firmware upgrades. With a few simple clicks, your network will be up and running, so you can get back to business.
Comprehensive smart features
XGS1210-12 caters to most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring. Does not require any additional software. Simplified for home and small office users’ network.
Saving energy and space.

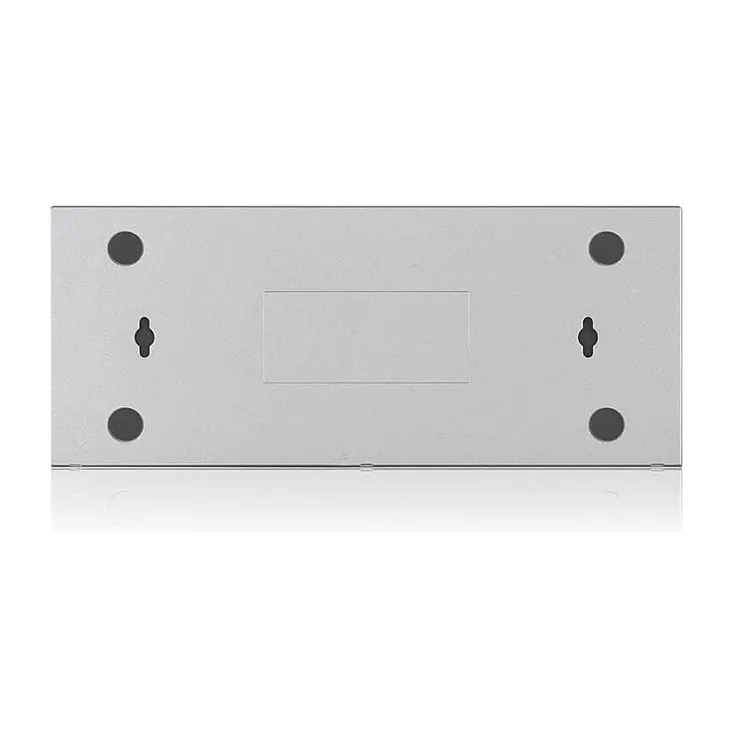

The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.
Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 2
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: VLAN support
Data transmission
Switching capacity: 66 Gbit/s
Forwarding rate: 49 Mpps
MAC address table: 16000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection
Multicast features
Feature: Multicast support
Design
Product colour: Grey
Feature: Reset button
LED indicators: Yes
Number of fans: 0 fan(s)
Power
Power source: AC/DC
Feature: Power supply included
AC input voltage: 100 – 240 V
DC input voltage: 12 V
Input current: 1.5 A
Power consumption (max): 15.61 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 250 mm
Depth: 104 mm
Height: 24 mm
Weight: 768 g
Packaging data
Package width: 306 mm
Package depth: 225 mm
Package height: 64 mm
Package weight: 1.22 kg
Logistics data
Harmonized System (HS) code: 85176990
