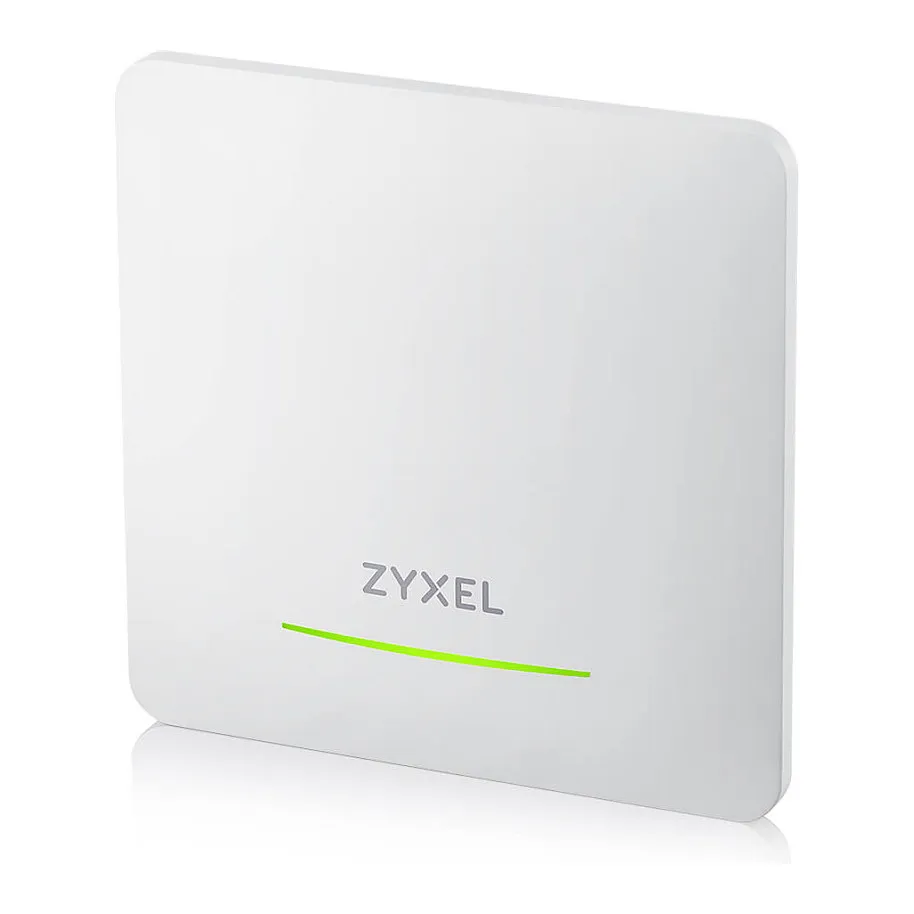

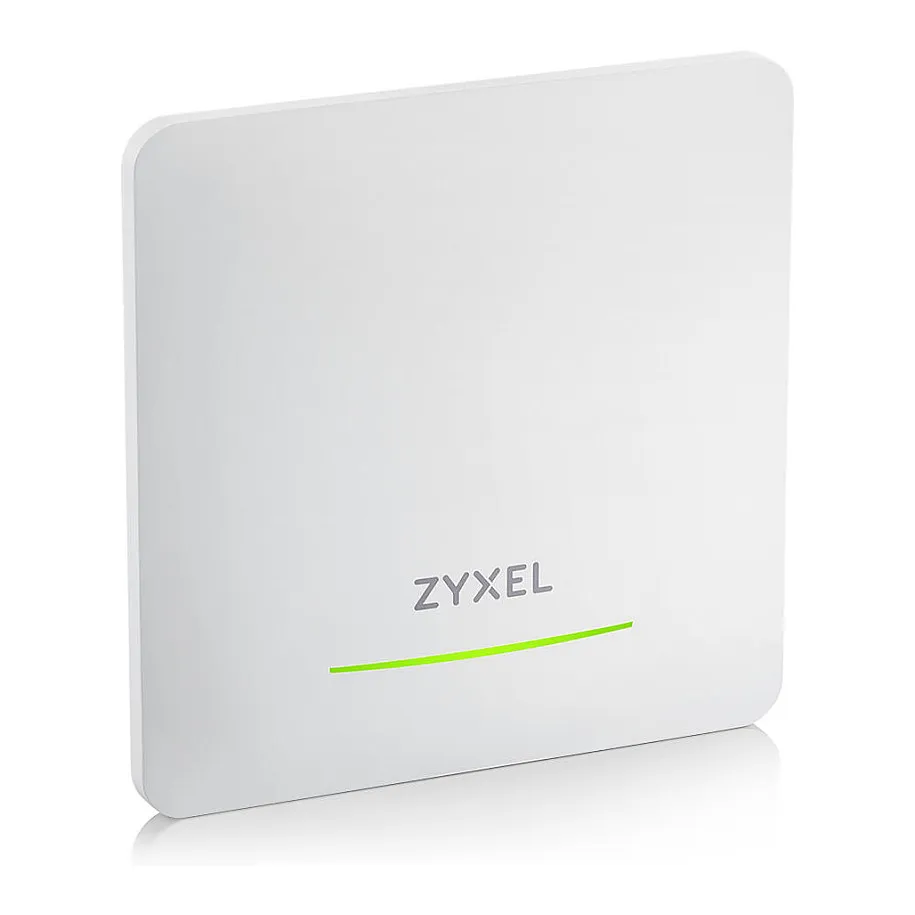

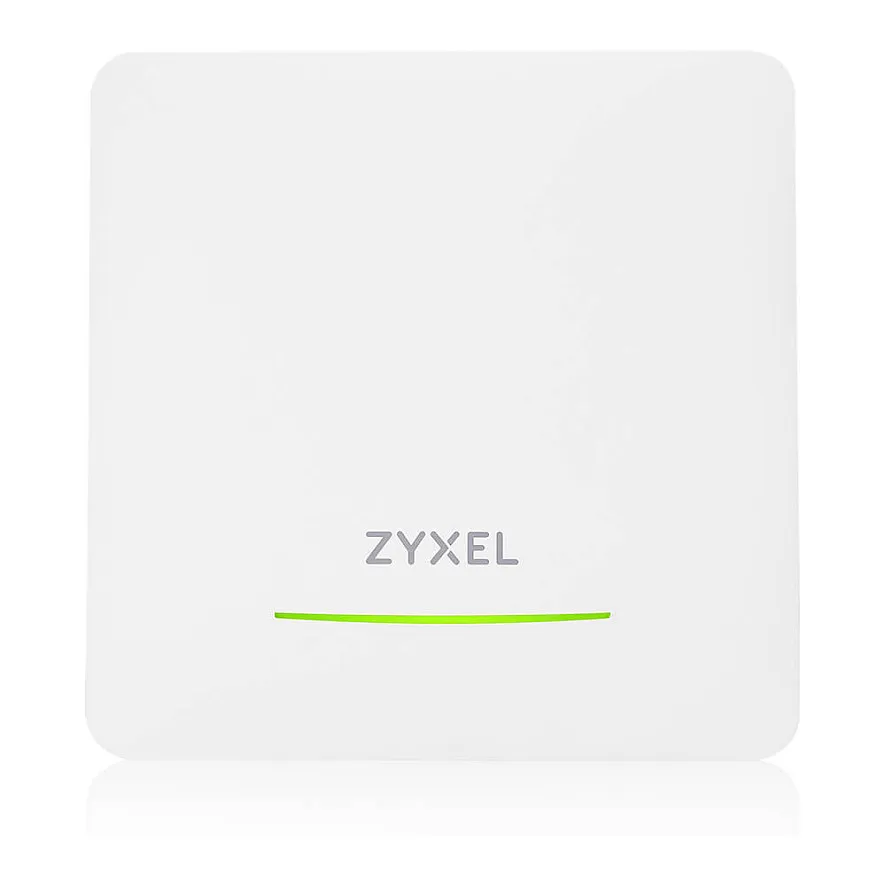

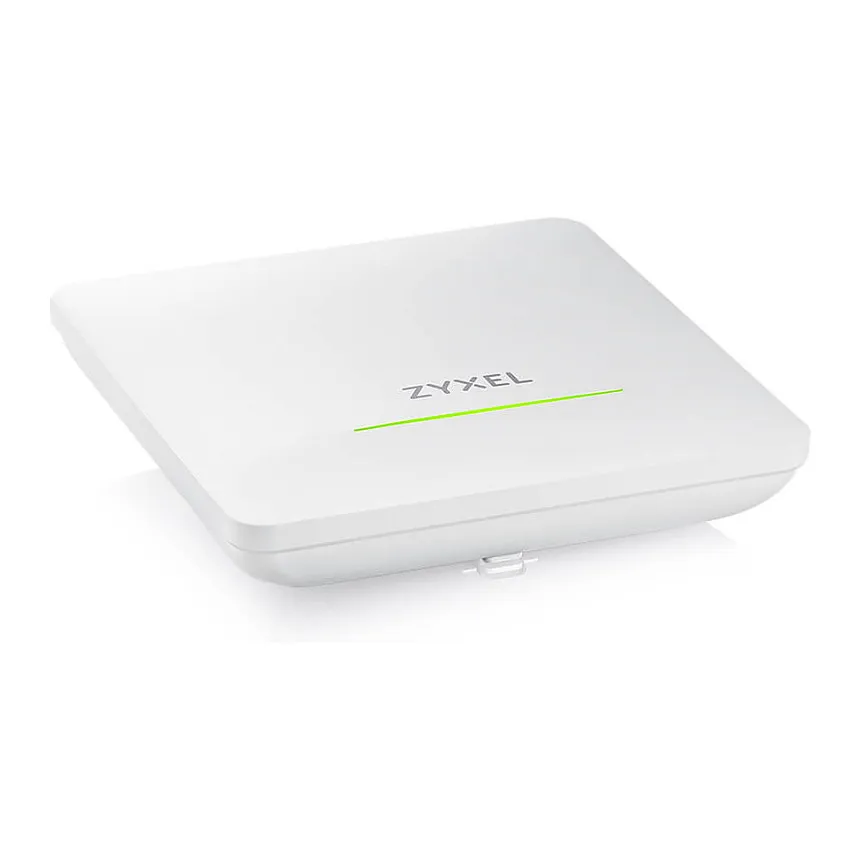

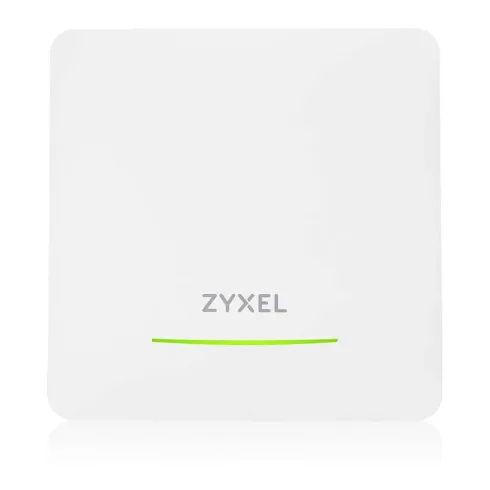

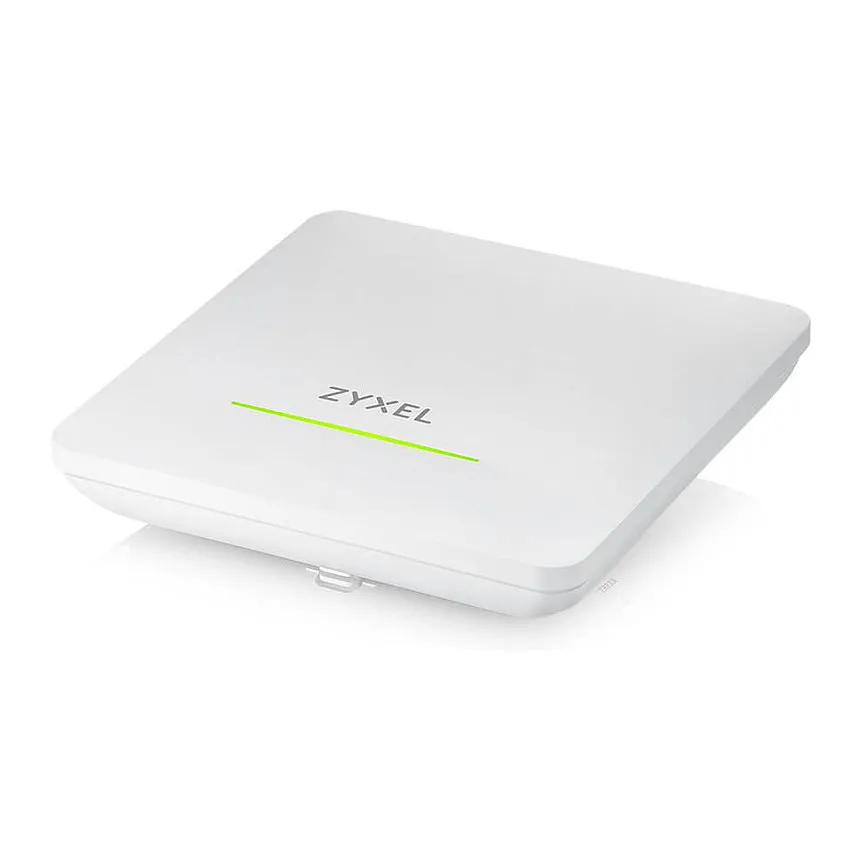

Zyxel NWA90BE. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4324 Mbit/s. Security algorithms: WEP, WPA, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
Smart WiFi 7 for Small Spaces– Easy Setup, Big Performance.
Smart WiFi 7 for Small Spaces
The Zyxel NWA90BE is a WiFi 7 access point designed to provide an ideal feature set for small businesses, SoHo users, and small spaces seeking an affordable upgrade to WiFi 7. Built for home offices, compact workplaces, and homes, it offers an effortless path to WiFi 7 with faster speeds and reliable, wide-area coverage.
NWA90BE – Easy Setup, Big Performance
Powered by a Qualcomm quad-core CPU, the BE5100 (2.4GHz: 2×2:2, 5GHz: 2×2:2) dual-radio access point delivers ultra-fast WiFi 7 speeds of up to 5.1Gbps, ensuring enterprise-grade performance in a compact design. Its 2.5GbE uplink unlocks the full potential of WiFi 7 for high-speed connectivity.
With a straightforward setup via Nebula Cloud Networking, you can quickly configure the access point, set up separate networks for work and family use, and start enjoying ultra-fast WiFi 7 speeds.
Smart Mesh MLO: More Bandwidth, Less Hassle
Smart Mesh MLO (Multiple Link Operation) technology automatically establishes dynamic wireless links, eliminating the need for complex, inconvenient cabling in WiFi deployments.
Unlike traditional mesh networks that rely on a single radio for data transmission, the NWA90BE utilizes dual-radio backhaul, delivering superior bandwidth, enhanced interference resistance, and ultra-low latency for seamless, high-performance connectivity.
Secure Authentication to Safeguard Business Networks
With support for a captive portal, IEEE 802.1X/RADIUS authentication, the NWA90BE not only offers small business users enterprise-level security to protect their networks, but also provides flexible options to customize wireless network login pages for marketing and brand recognition.
Connected – In Just a Few Clicks!
You can be connected in minutes with just a few simple clicks on the Nebula mobile app. The easy step-by-step wizard guides you through the entire installation process, and the intuitive app makes it easy to change settings as needed.
Nebula, The Intelligent Cloud Management
Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app.
With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 4324 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4324 Mbit/s
Ethernet LAN data rates: 1000,2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Fast roaming
Feature: VLAN support
Security
Security algorithms: WEP, WPA, WPA2, WPA3
Feature: Auto Wireless Distribution System (WDS)
Feature: Remote Authentication Dial-In User Service (RADIUS)
Management features
Feature: Cloud-managed

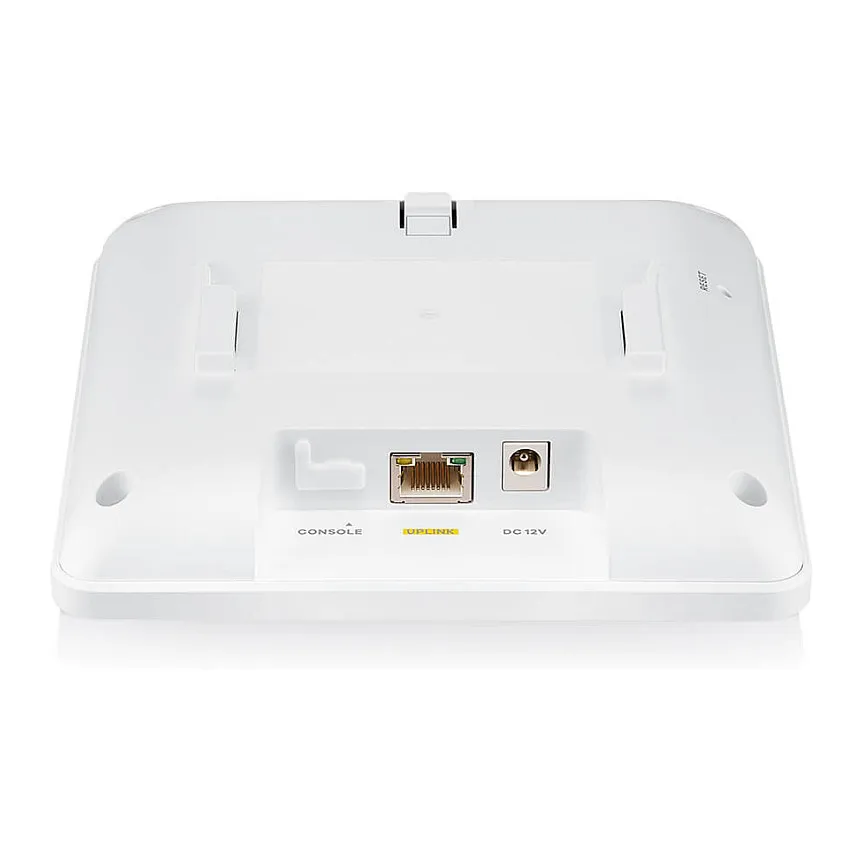

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
DC voltage range: 12 V
Input current: 0.3 A
Output current: 1.5 A
Design

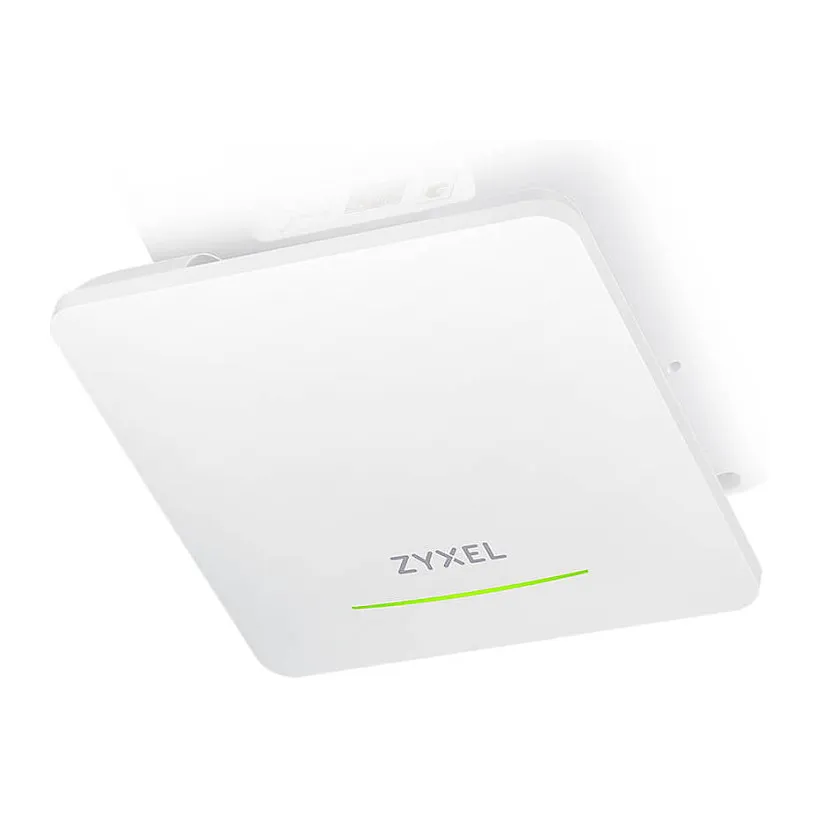

Placement: Ceiling
Product colour: White
Antenna
Antenna type: Internal
Antenna gain level (max): 3 dBi
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 35 mm
Weight: 412 g
Packaging data
Package width: 244 mm
Package depth: 168 mm
Package height: 60 mm
Package weight: 785 g

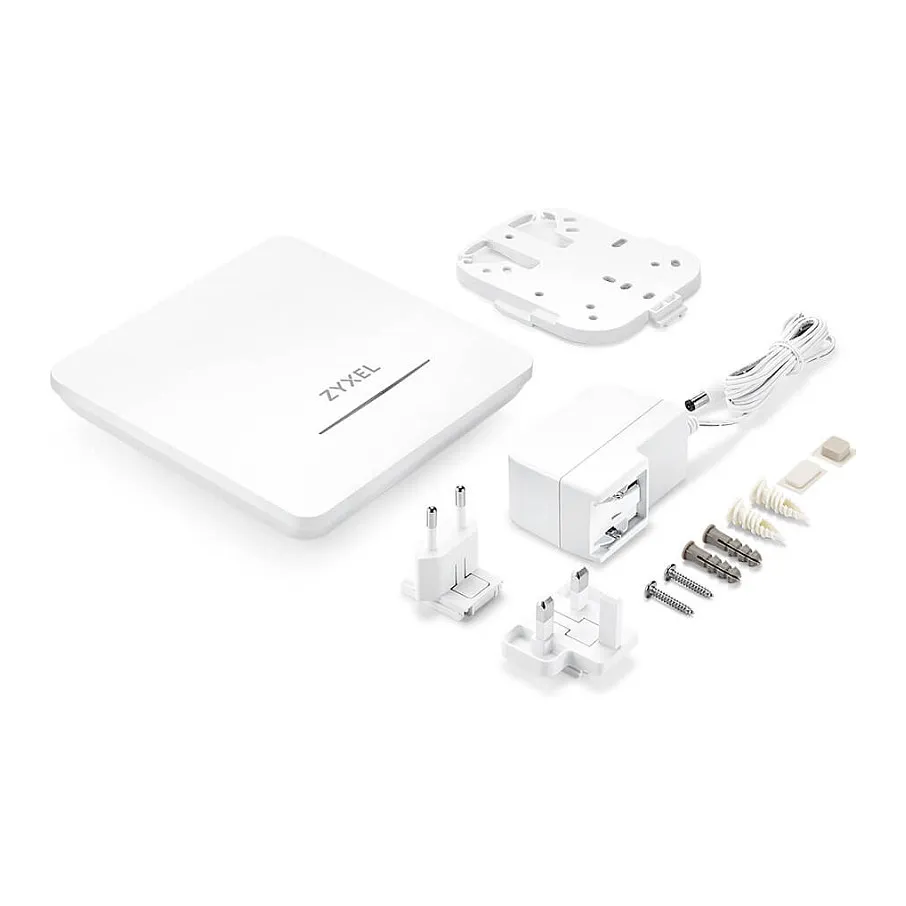

Packaging content
Feature: AC adapter included
Feature: Mounting kit
Operational conditions
Operating relative humidity (H-H): 10 – 95%
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 10 – 90%
