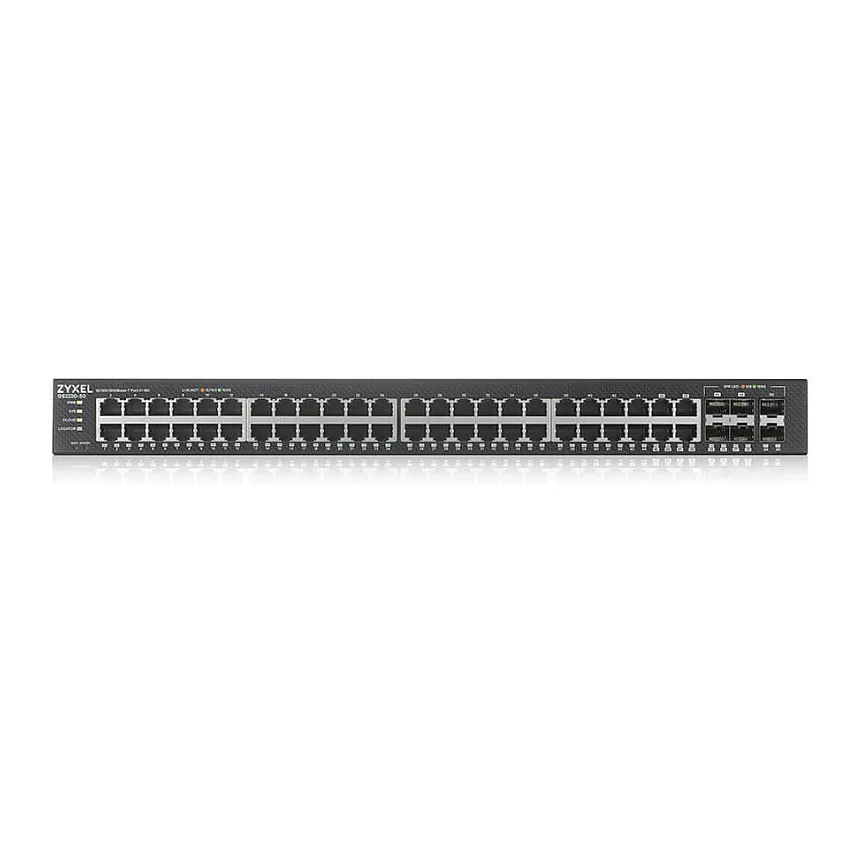

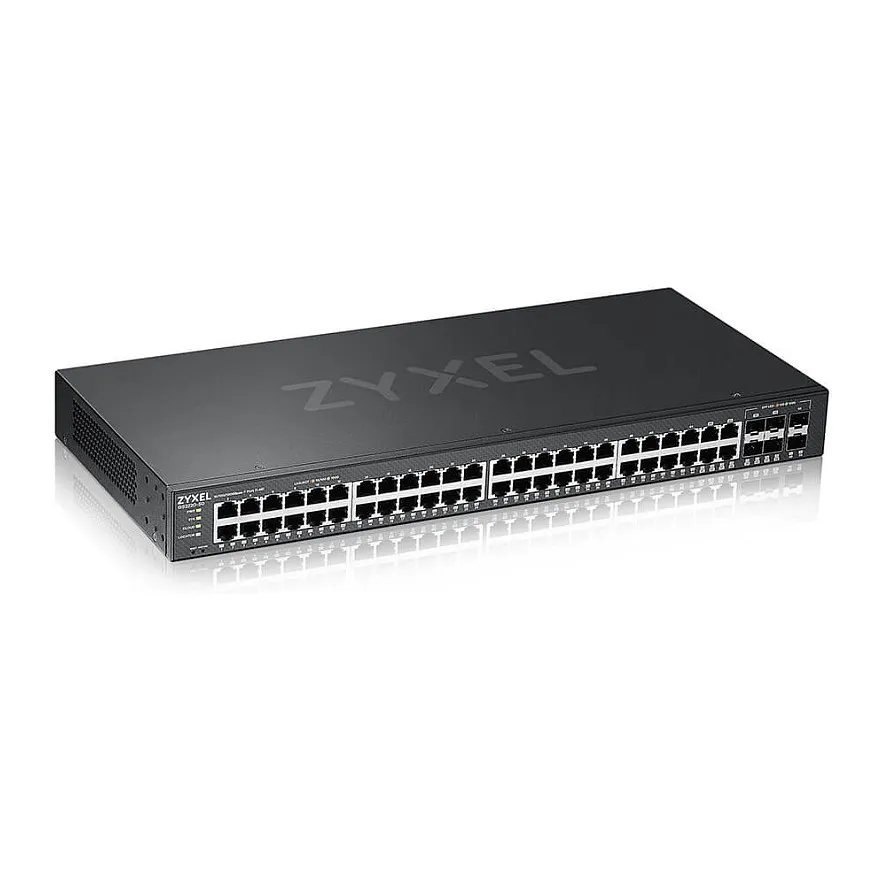

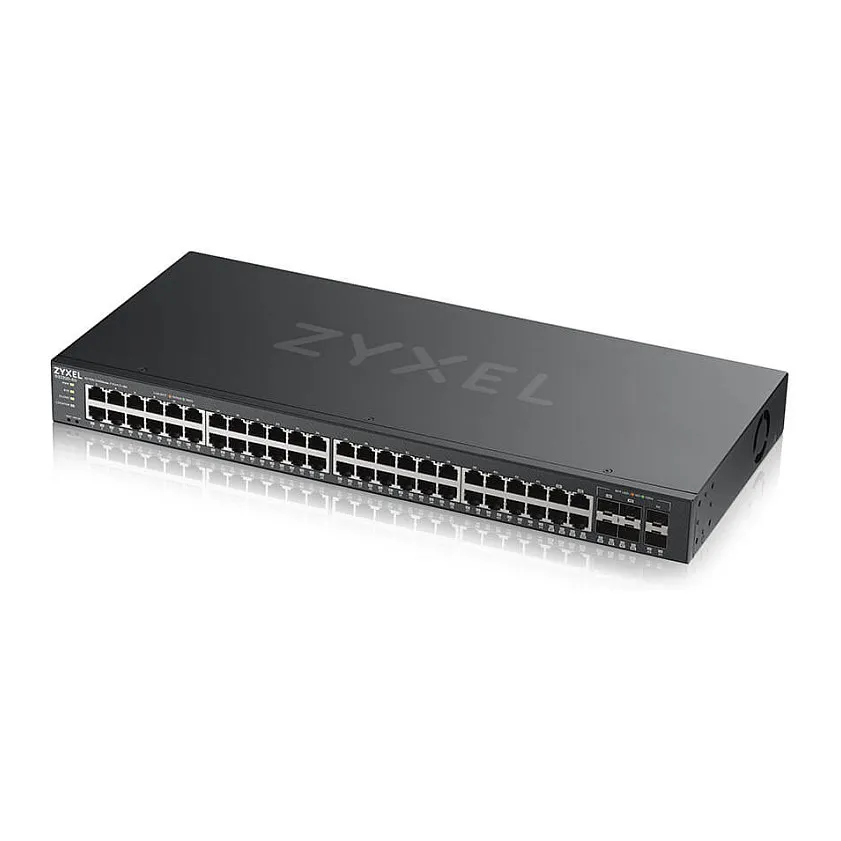

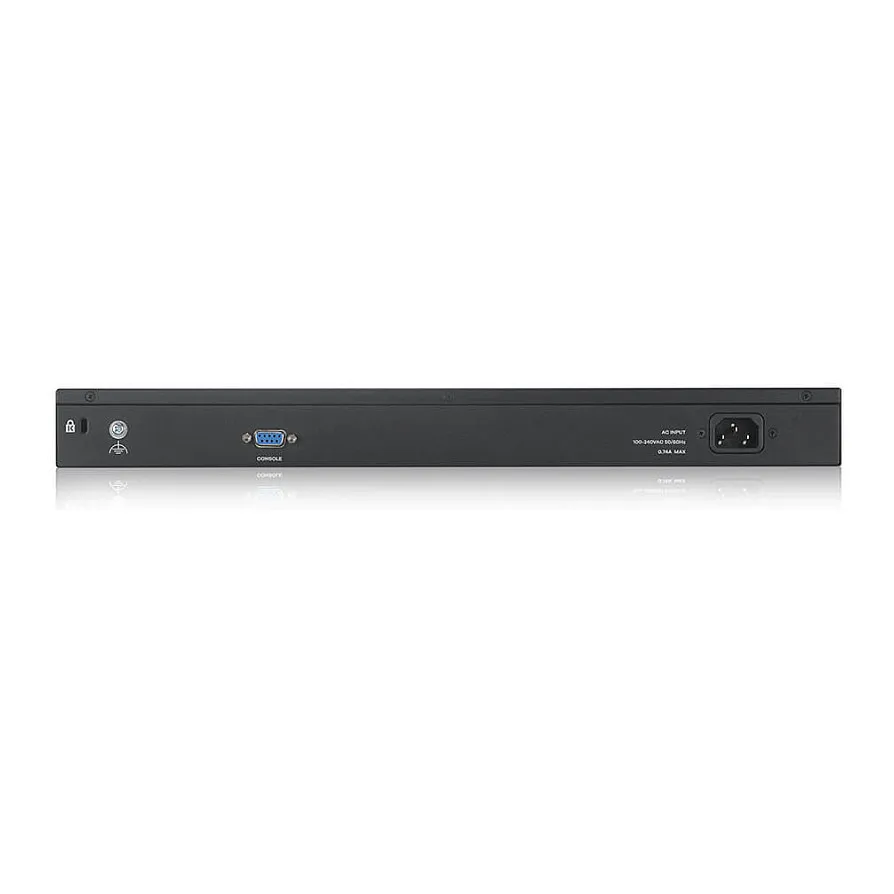

Zyxel GS2220-50-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 44. MAC address table: 16000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE…. Rack mounting
GS2220 Series
Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.
Industry first tri-mode switch.
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.
Powerful L2 features.
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.
Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.
Experience whisper-silent operations.
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.
Flexible port combination.
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.
Plug into the power of the Zyxel One Network.
The Zyxel One Network (ZON) Utility is a unified installation tool to discover and configure Zyxel Switches, WLAN and Gateways in the standalone network. Users can easily maintain the network in a single platform. ZON Utility is a free of charge tool which has been downloaded by over 32,000 users to date.
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 44
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Fiber ports quantity: 2
Fiber optic connector: SFP
Network
Copper ethernet cabling technology: 10BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Optical fiber
Fiber ethernet cabling technology: 1000BASE-X
Data transmission
Switching capacity: 100 Gbit/s
Forwarding rate: 74 Mpps
MAC address table: 16000 entries
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
Feature: MAC address filtering
Authentication: Guest VLAN, MAC-based authentication
Authentication type: IEEE 802.1x, RADIUS
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Product colour: Black
Performance
Internal memory: 256 MB
Flash memory: 32 MB
Noise level: 47.3 dB
Mean time between failures (MTBF): 660245 h
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 36.9 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 95%
Storage relative humidity (H-H): 10 – 95%
Heat dissipation: 125.829 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 200 mm
Height: 44.5 mm
Weight: 2.9 kg
Packaging content
Cables included: AC
Packaging data
Package width: 496 mm
Package depth: 289 mm
Package height: 90 mm
Package weight: 3.97 kg
Certificates
Certification: LVD, BSMIFCC 15 A, CE EMC A, BSMI ENCRoHS A
Logistics data
Harmonized System (HS) code: 85176990
