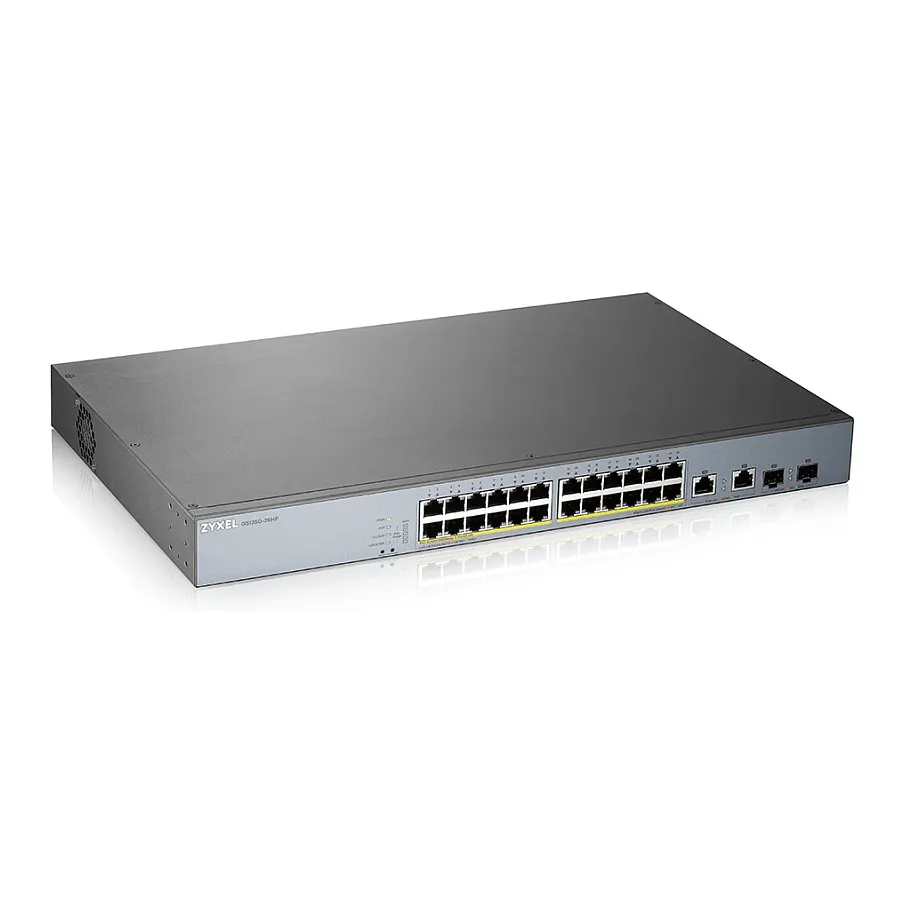

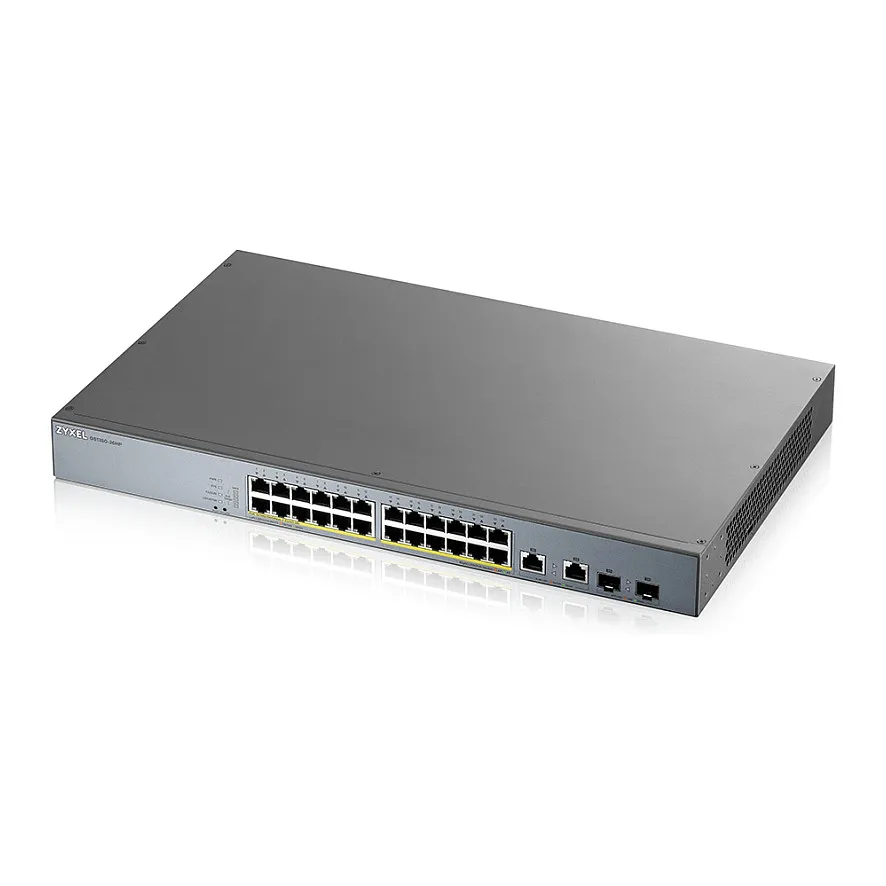

Zyxel GS1350-26HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE…. Power over Ethernet (PoE). Rack mounting
Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications
New outlook
Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.
Specialized PoE software features for surveillance
Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.
Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.
Easy for long-distance deployment
Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

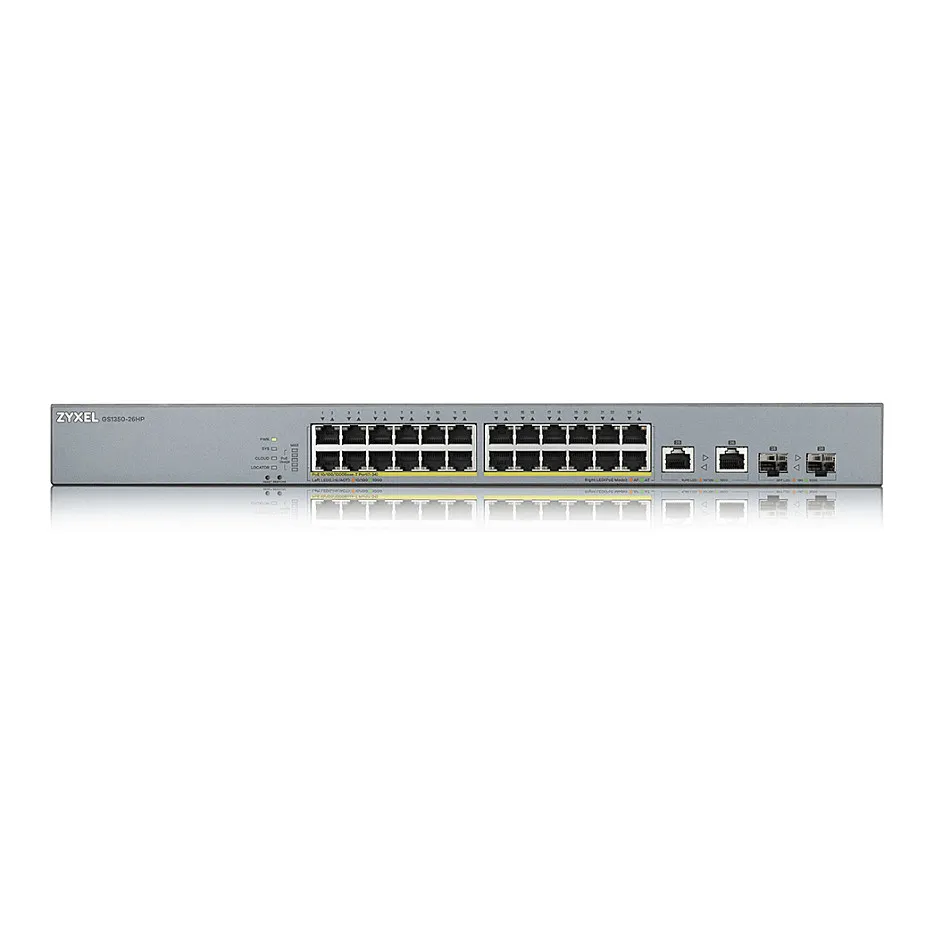

High power budget, intuitive front panel design

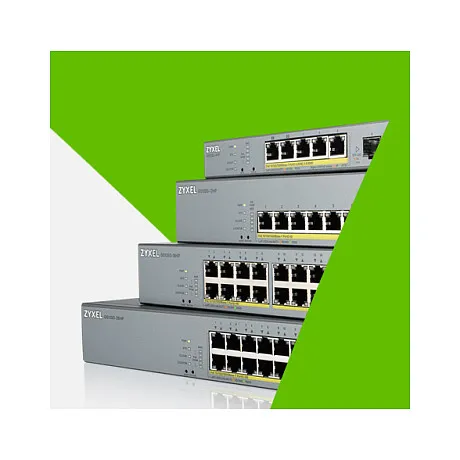

The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations.
Unique hardware, robust design
Stabilized power
Filters electrical noise and surge to ensure supplying stable power to PoE and the system.
Selected power supply
2X Surge and ESD protection.
Isolated Circuit Design
Provides protection to isolate power surges from Ethernet and power supply.
Intelligent System Monitor
Keeps the system operational from anomalies.
Patented Ethernet Protection
– 4X Surge protection.
– 2X ESD resistant.
Switch type: Managed
Switch layer: L2
Web-based management: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

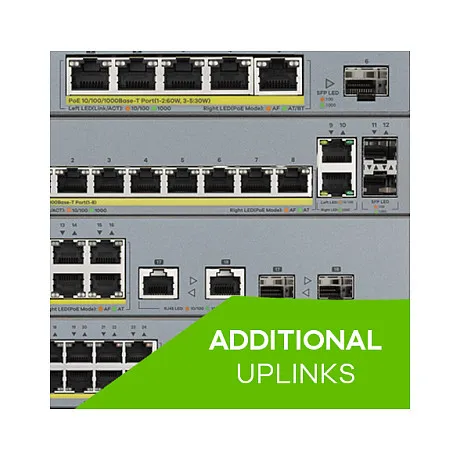

Combo SFP ports quantity: 2
Network
Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Flow control support: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: MAC address-based VLAN, Port-based VLAN
Number of VLANs: 256
Optical fiber
Fiber ethernet cabling technology: 1000BASE-X
Data transmission
Switching capacity: 52 Gbit/s
Forwarding rate: 38.7 Mpps
MAC address table: 8000 entries
Packet buffer memory: 0.525 MB
Security
DHCP features: DHCP client, DHCP relay, DHCP snooping
IGMP snooping: Yes
IGMP proxy: Yes
Security algorithms: SNMP, SNMPv3, SSH, SSL/TLS
Loop protection: Yes
Queue scheduling algorithms: SPQ, WFQ, Weighted Round Robin (WRR)
Multicast features
Multicast support: Yes
Design
Rack mounting: Yes
Product colour: Grey
LED indicators: Yes
Electromagnetic compatibility: CE, FCC, C-Tick, A; BSMI CNS13438
Performance
Noise level: 40.1 dB
Firmware upgradeable: Yes
Mean time between failures (MTBF): 888495 h
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 448.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 24
Total Power over Ethernet (PoE) budget: 375 W
Operational conditions
Operating temperature (T-T): -20 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Heat dissipation: 1530.75 BTU/h
Weight & dimensions
Width: 441 mm
Depth: 270 mm
Height: 44 mm
Weight: 3.58 kg
Packaging content
Cables included: AC
Rack mount kit: Yes
Logistics data
Harmonized System (HS) code: 85176990
