Zyxel GS1008HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 55 V. Power connector: DC-in jack. Power over Ethernet (PoE)
The Zyxel GS1008HP is equipped with 8 gigabit Ethernet ports, all of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1008HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1008HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses.
Smart PoE+ 802.3af/802.3at Support

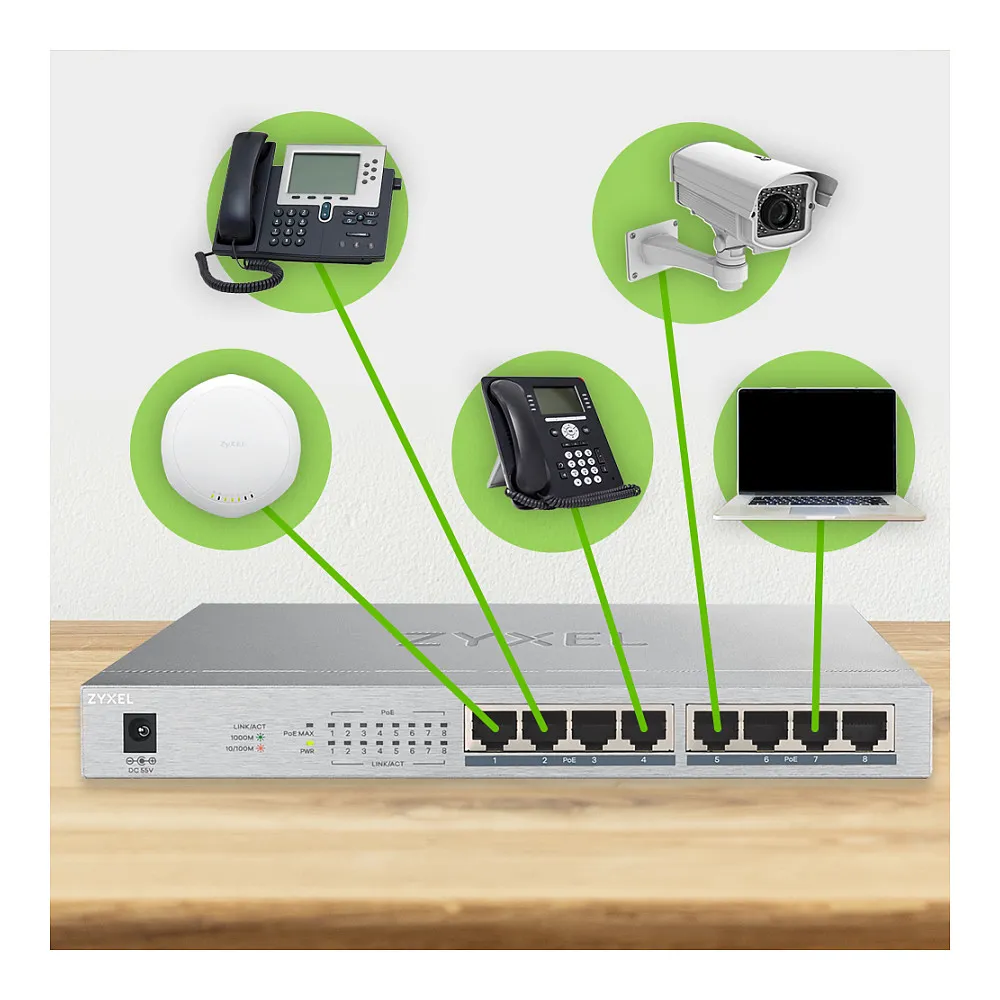

The GS1008HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones.
Easy PoE Budget Management
The GS1008HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device will automatically be dropped with no impact on the other devices that are powered through the switch.
Gigabit data transmission and smart features
Featuring Gigabit performance, it provides 10 times faster than Fast Ethernet. Delivers up to 2,000 Mbps of dedicated bandwidth per port. Get more advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications!
Fanless design
Extend your network without disrupting your quiet business environment. This switch features a fanless design that ensures noiseless operation and greater reliability over time with no moving parts that may fail.
Advanced Energy-Savings at Work
The GS1008HP’s built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support: No
Flow control support: Yes
Auto MDI/MDI-X: Yes
Data transmission
Switching capacity: 16 Gbit/s
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Design
Product colour: Grey
LED indicators: PoE, Power
Power
Power supply included: Yes
DC input voltage: 55 V
Input current: 1.3 A
Power consumption (max): 72 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 240 mm
Depth: 105 mm
Height: 26 mm
Weight: 610 g
Packaging content
Cables included: AC
Quick start guide: Yes
Packaging data
AC adapter included: Yes
Package width: 256 mm
Package depth: 132 mm
Package height: 78 mm
Package weight: 1.26 kg
Logistics data
Master (outer) case width: 283 mm
Master (outer) case length: 415 mm
Master (outer) case height: 282 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 9 kg
