Zotac ZBOX -MI668-BE. Chassis type: 0.64L sized PC, Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6 (802.11ax), Bluetooth version: 5.2. Cooling type: Active. Power supply: 40 W
The ZBOX edge MI648 boasts an award-winning design, and features an ultra-thin enclosure powered by an Intel Core i5 processor. With efficient thermal design, power management, and plenty of open ventilation, the ZBOX edge MI648 still maintains a remarkably low-profile design and a full set of I/O connectivity. Overall, this is an excellent gateway for efficient edge computing or everyday computing tasks in business, office, or home settings.
LIGHTWEIGHT PERFORMANCE
Introducing the ZBOX edge MI668/MI648, mini PCs that deliver essential performance in a lightweight package. Whether it’s the home, office, or on the go, this palm-sized Mini PC series carries the hardware that excels in a wide range of productivity and entertainment scenarios.
POWERFUL AT ITS THINNEST
At only 28mm (1.12 inches) thin, the ZBOX edge MI668/MI648 offers both impressive performance and a cleaner desk. Despite its compact 0.64-liter system size, the ZBOX edge comes equipped with a versatile array of ports and connectivity options for every occasion.
DO MORE, FASTER
The ZBOX edge features an Intel® Core™ Processor with up to 12 cores and DDR5 memory, making it a lightweight champion of everyday computing, multitasking, media serving, or even surveillance and home automation.
STUNNING VISUALS
Featuring integrated Intel Iris® Xe® Graphics, the ZBOX edge has quite the graphical chops. Take your productivity to the next level with multiple displays, immerse yourself in 4K entertainment, or even some light gaming. The versatility of the ZBOX edge is only matched by its graphical prowess.
CONNECTIVITY AT ITS BEST
A practical array of connectivity options are included in the ZBOX edge Mini PCs. With Dual Gigabit Ethernet, WiFi 6, and Bluetooth 5.2, expect fast internet access for online and cloud applications; for connecting other devices and transferring large amounts of data, the USB 3.1 and Thunderbolt 4 port with up to 40GBps data bandwidth come in handy.
CONNECTIVITY SUITE

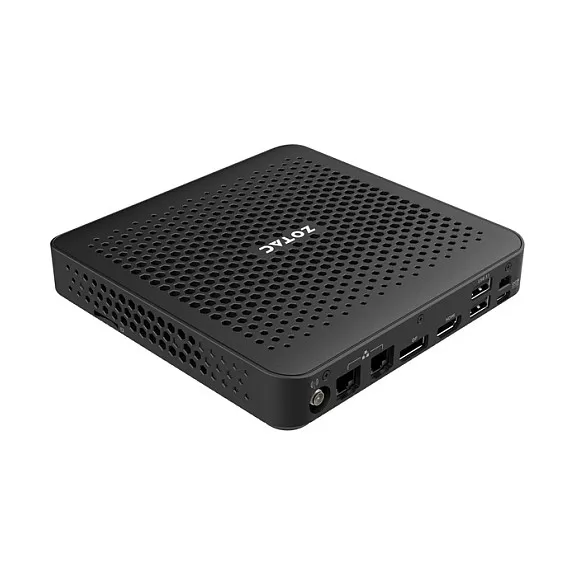

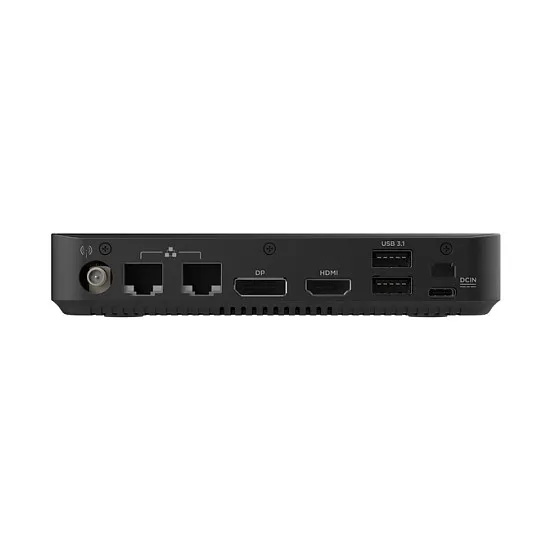

Equipped with a full range of I/O, the ZBOX edge has everything you need as your daily driver.
WHISPER QUIET
The ZBOX edge features a wide ventilation design for increased airflow and a Smart Fan for rapid heat dissipation so that it is always quiet and cool to the touch.
HONEYCOMB VENTS
A wide degree of ventilation maximizes airflow in the low-profile chassis to enable more sustained CPU and GPU performance.
HIGHER CAPACITY
Support for a total of up to 64GB of DDR5 5200MHz memory and up to 2 x M.2 SSDs ensure more storage capacity, lower latency, and snappier operation for your ZBOX edge system.
EASILY UPGRADEABLE
Access the internals in just a few steps, and easily install or update the ZBOX edge Mini PC with up to 2 x M.2 SSDs and up to 64GB DDR5 Memory.
NIMBLE VERSATILITY
The M Series edge is slim enough to fit in the tightest of spaces. With the included VESA mount, there are limitless options for its placement.
MEET ALL COMPUTING NEEDS
ZBOX edge is the thinnest solution that makes a perfect gateway for IoT-enabled applications, daily tasks, and remote management.
Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: 13th gen Intel® Core™ i7
Processor model: i7-1360P
Processor cores: 12
Processor threads: 16
Processor frequency: 2.2 GHz
Performance cores: 4
Efficient cores: 8
Feature: Built-in processor
Performance-core boost frequency: 5 GHz
Efficient-core boost frequency: 3.7 GHz
Processor cache: 18 MB
Thermal Design Power (TDP): 28 W
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 4800,5200 MHz
Supported memory types: DDR5-SDRAM
Storage
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express, Serial ATA
Feature: NVMe
Graphics
Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel Iris Xe Graphics
Maximum resolution: 4096 x 2160 pixels
Performance
Number of processors supported: 1
Network
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 5.2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPort version: 1.4
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
Thunderbolt 4 ports quantity: 1
Feature: DC-in jack
Design
Chassis type: 0.64L sized PC
Product colour: Black
Cooling type: Active
Feature: On/off switch
Feature: VESA mounting
Product type: Mini PC barebone
Software
Windows operating systems supported: Yes
Power
Power supply type: External AC adapter
Power supply: 40 W
Number of power supply units: 1
AC adapter output voltage: 19 V
Weight & dimensions
Width: 149.5 mm
Depth: 149.5 mm
Height: 28.5 mm

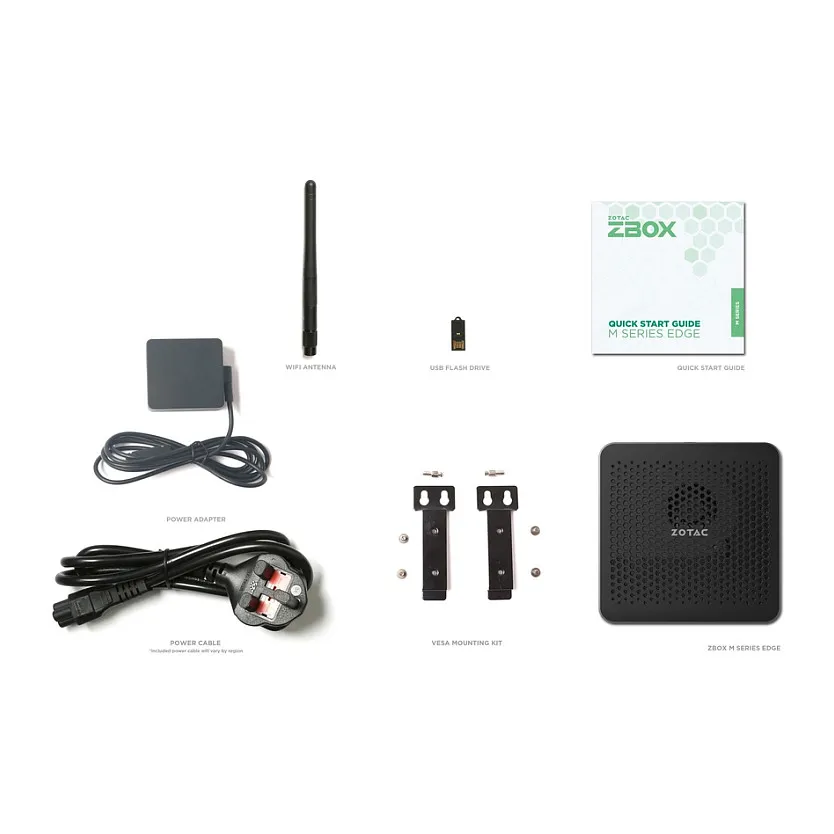

Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
