Zotac ZBOX MAGNUS EAMAX395C. Chassis type: 2.6L sized PC, Product type: Mini PC barebone. Supported memory types: LPDDR5X-SDRAM, Number of memory slots: 1, Maximum internal memory: 128 GB. Storage drive interface: M.2, PCI Express. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 5.4. Cooling type: Active. Power supply: 240 W
The MAGNUS EAMAX395C is equipped with the powerful AMD Ryzen AI MAX series APU, paring a AMD Ryzen AI MAX+ 395 with a powerful AMD Radeon 8060S integrated Graphics for game-changing performance. Its Neural Processing Unit, as well as the powerful graphics capabilities makes it an ideal choice for gamers, creators, or users who require a small mini PC for AI-enhanced workloads.
Processor
Processor manufacturer: AMD
Processor family: AMD Ryzen AI Max+ PRO
Processor generation: AMD Ryzen AI Max 300 Series
Processor model: 395
Processor cores: 16
Processor threads: 32
Processor boost frequency: 5.1 GHz
Processor frequency: 3 GHz
Feature: Built-in processor
Processor lithography: 4 nm
L2 cache: 16 MB
L3 cache: 64 MB
Thermal Design Power (TDP): 55 W
Memory
Feature: Internal memory installed
Number of memory slots: 1
Maximum internal memory: 128 GB
Supported memory clock speeds: 8000 MHz
Supported memory types: LPDDR5X-SDRAM
Storage
Storage drive sizes supported: M.2
Storage drive interface: M.2, PCI Express
Feature: NVMe
Number of storage drives supported: 3
Graphics
Feature: On-board graphics card
Graphics card family: AMD
On-board graphics card model: AMD Radeon 8060S
Number of displays supported: 4
Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 5.4

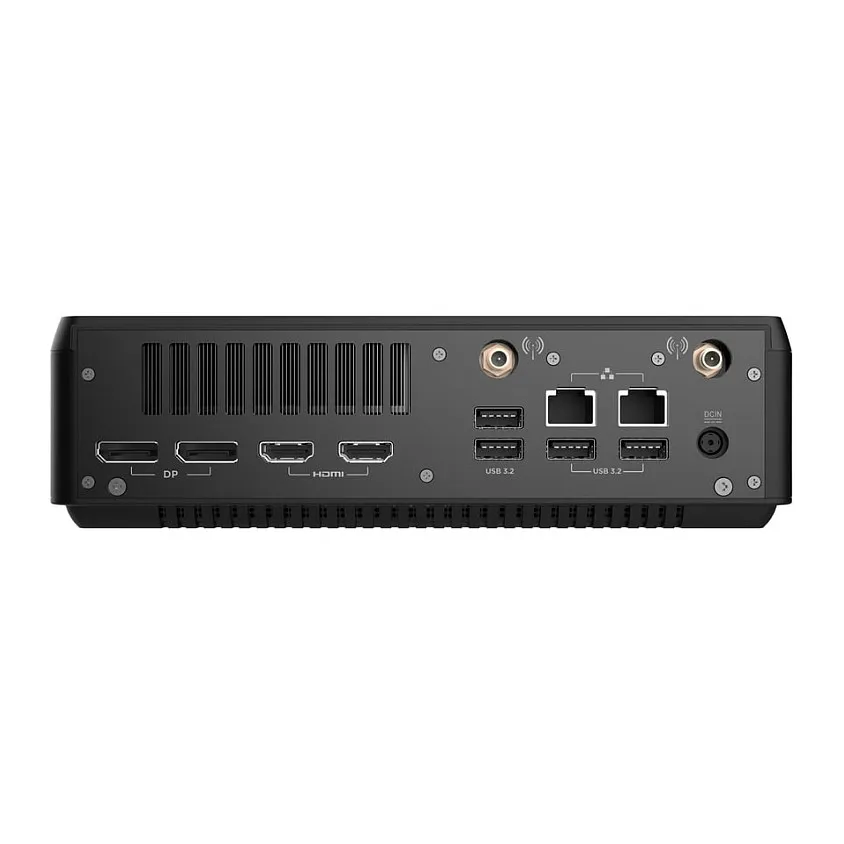

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB4 Gen 3×2 ports quantity: 1
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Expansion slots
PCI Express slots version: 4.0
PCI Express x4 slots: 3
Design
Chassis type: 2.6L sized PC
Product colour: Black
Cooling type: Active
Feature: On/off switch
LED indicators: Power, HDD, Wi-Fi
Feature: Cable lock slot
Cable lock slot type: Kensington
Product type: Mini PC barebone
Power
Power supply type: External AC adapter
Power supply: 240 W
AC adapter output voltage: 20 V
Weight & dimensions
Width: 210 mm
Depth: 203 mm
Height: 62.2 mm
Package width: 265 mm
Package depth: 275 mm
Package height: 129 mm

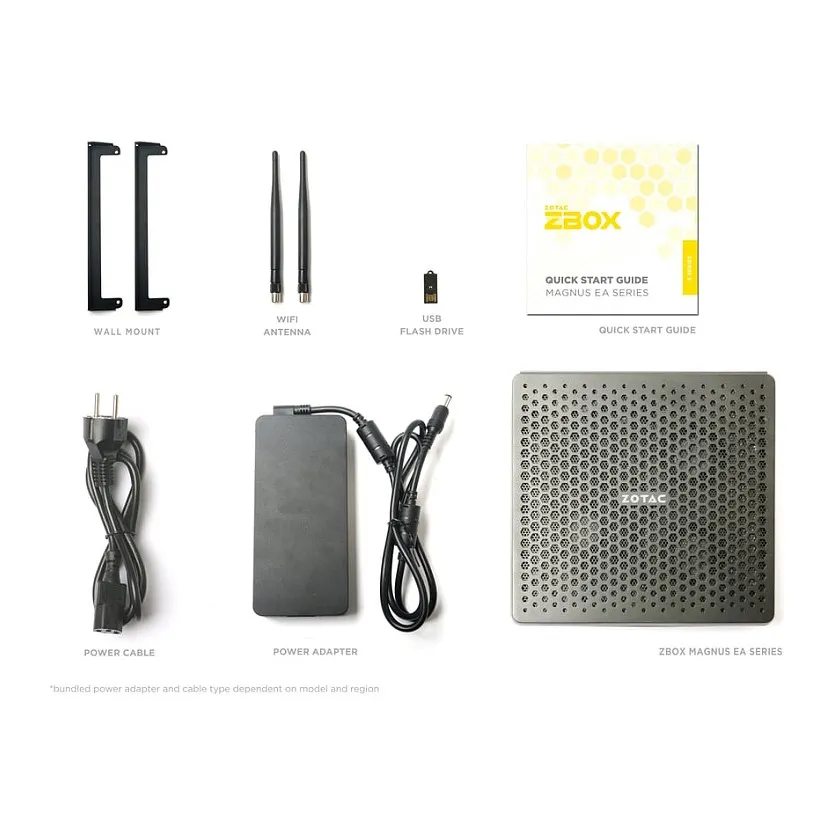

Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
Processor manufacturer: AMD
Processor family: AMD Ryzen AI Max+ PRO
Processor generation: AMD Ryzen AI Max 300 Series
Processor model: 395
Processor cores: 16
Processor threads: 32
Processor boost frequency: 5.1 GHz
Processor frequency: 3 GHz
Feature: Built-in processor
Processor lithography: 4 nm
L2 cache: 16 MB
L3 cache: 64 MB
Thermal Design Power (TDP): 55 W
Memory
Feature: Internal memory installed
Number of memory slots: 1
Maximum internal memory: 128 GB
Supported memory clock speeds: 8000 MHz
Supported memory types: LPDDR5X-SDRAM
Storage
Storage drive sizes supported: M.2
Storage drive interface: M.2, PCI Express
Feature: NVMe
Number of storage drives supported: 3
Graphics
Feature: On-board graphics card
Graphics card family: AMD
On-board graphics card model: AMD Radeon 8060S
Number of displays supported: 4
Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 5.4
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB4 Gen 3×2 ports quantity: 1
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Expansion slots
PCI Express slots version: 4.0
PCI Express x4 slots: 3
Design
Chassis type: 2.6L sized PC
Product colour: Black
Cooling type: Active
Feature: On/off switch
LED indicators: Power, HDD, Wi-Fi
Feature: Cable lock slot
Cable lock slot type: Kensington
Product type: Mini PC barebone
Power
Power supply type: External AC adapter
Power supply: 240 W
AC adapter output voltage: 20 V
Weight & dimensions
Width: 210 mm
Depth: 203 mm
Height: 62.2 mm
Package width: 265 mm
Package depth: 275 mm
Package height: 129 mm
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
