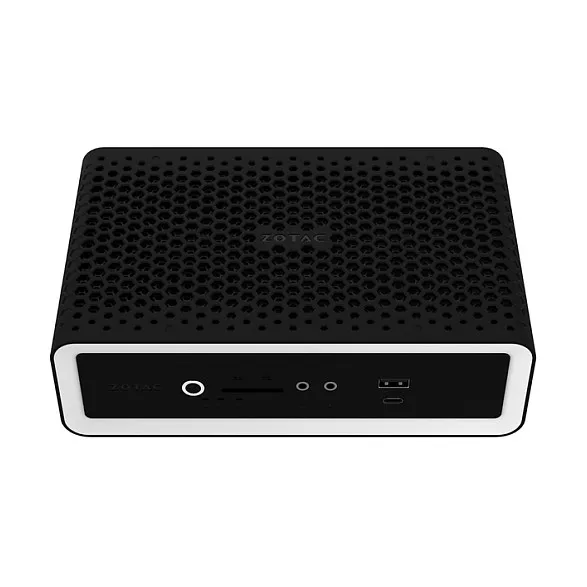

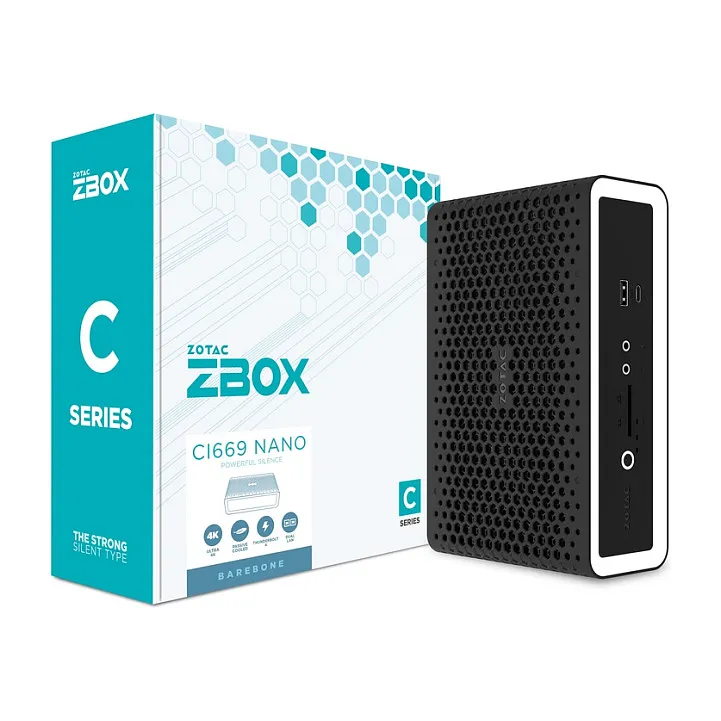

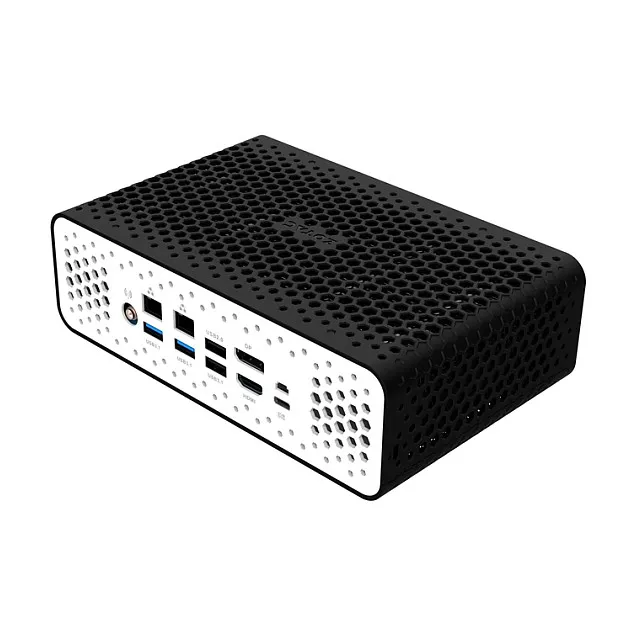

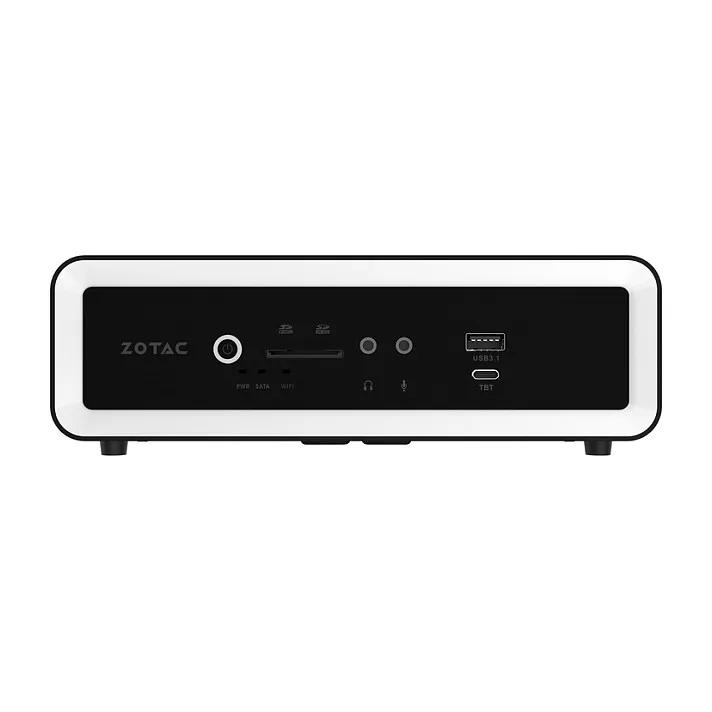

Zotac ZBOX CI669 NANO. Chassis type: 1.8L sized PC, Product type: Workstation barebone. Motherboard chipset: Intel SoC. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6 (802.11ax), Bluetooth version: 5.2. Cooling type: Passive. Power supply: 65 W
The all-new compact ZBOX C Series nano is a leader in silent computing performance. Its rigid enclosure is patterned with nature’s strongest natural structure, further enhanced by 270 degrees of open ventilation for maximum breathability and operability.
DEDICATED
The all-new ZBOX C Series nano Mini PC is an efficiently fast multi-core, multi-threaded multitasker that’s dedicated to help get work done.
EFFICIENT AND RELIABLE
A system that takes up very little space and it’s designed with no moving parts* to remove wear and tear inefficiencies to increase overall system reliability, longevity, and return on investment. At 1.8 liters small, its energy consumption is just as small and efficient, sipping up to 30W under load for additional long term cost savings
Flexible
The ZBOX C Series nano features a built-in VESA mount design to allow for more flexible system placement. The overall small system takes very little desk space, but it also has the potential to take up zero if mounted onto a wall, under the desk, or even behind the display.
HAS GREAT COMMUNICATION
The ZBOX C Series nano’s compact footprint packs in a plethora of built-in fast connectivity which include: WiFi 6, Bluetooth 5.2, Gigabit LAN, and 2.5Gbps LAN. It can also provide great visibility with the ability to support up to 3 displays with HDMI 2.0b, DisplayPort 1.4, and DP via Thunderbolt. The available Thunderbolt 4, USB 3.1, and SDXC Card Reader allows for easy file transfers between devices.
CAN TAKE ON MORE
The ZBOX C Series nano can take on up to 64GB of fast DDR5 5200/4800 MHz Memory, a 2.5” HDD/SSD drive, and an M.2 NVMe PCIe 4.0 x4 SSD with little effort.
Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: 13th gen Intel® Core™ i7
Processor model: i7-1355U
Processor cores: 10
Processor threads: 8
Processor frequency: 1.7 GHz
Performance cores: 2
Efficient cores: 8
Feature: Built-in processor
Performance-core boost frequency: 5 GHz
Efficient-core boost frequency: 3.7 GHz
Processor cache: 12 MB
Thermal Design Power (TDP): 55 W
Memory
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 4800,5200 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Storage
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA
Number of storage drives supported: 2
Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Graphics
Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel Iris Xe Graphics
Maximum resolution: 4096 x 2160 pixels
Number of displays supported: 3
Network
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 5.2

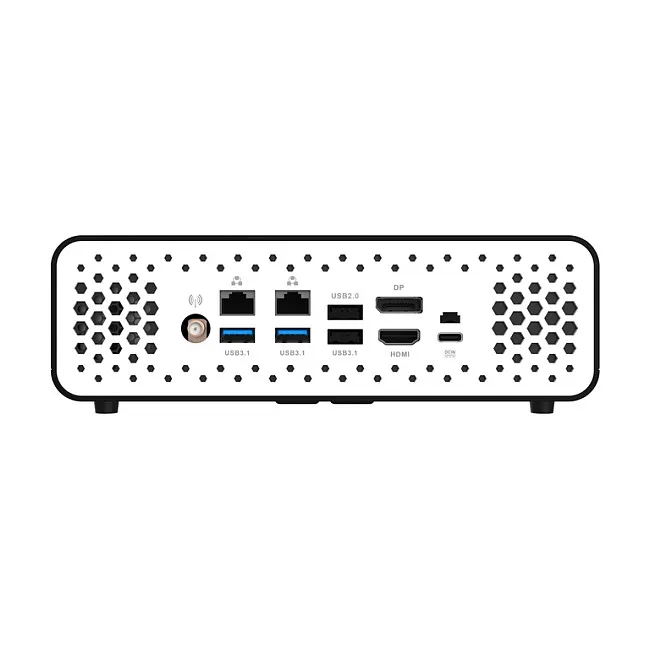

Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
Thunderbolt 4 ports quantity: 1
Design
Chassis type: 1.8L sized PC
Product colour: Black, White
Cooling type: Passive
Feature: On/off switch
LED indicators: HDD, Power, Wi-Fi
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product type: Workstation barebone
Performance
Motherboard chipset: Intel SoC
Audio output channels: 8.0 channels
Software
Windows operating systems supported: Windows 11
Power
Power supply type: External AC adapter
Power supply: 65 W
Weight & dimensions
Width: 204 mm
Depth: 129 mm
Height: 68 mm
Packaging content
Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
