Cudy POE200. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 54 V, Output power: 30 W, AC adapter input voltage: 100 – 240 V. Width: 121 mm, Depth: 50 mm, Height: 36 mm. Number of products included: 1 pc(s)
IEEE 802.3at/af. Max 30W Output.
Provides up to 30W of power in standard 802.3at/af PoE protocol, suitable for powering access points, surveillance cameras, and other PoE clients.
10/100/1000 Mbps Speeds
Stream data at full speed for bandwidth-intensive clients such as access points and 4K cameras with no performance loss.
Exceptional Built-Quality for Stable Operation
Protect Clients with Outstanding EMC
Robust EMC design protects itself and clients from power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV
Built to Last Longer with High-Quality Capacitors
Equipped with high-quality capacitors rated for 1.6× longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.
Easy to Use. Plug and Play.
Auto Negotiating the Power Needed
Connect the power, switches/routers, and clients—the adapter will automatically detect the required power wattage and deliver it accordingly.
Wallmount Ready
Features two mounting holders, allowing you to firmly mount it on the walls.
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3af, IEEE 802.3at
Cable types supported: Cat5e
Features
Product colour: Black
Feature: Wall mountable
Feature: Easy to install
Feature: Plug and Play
Feature: Surge protection
Maximum operating distance: 100 m
LED indicators: PoE, Power
Pin assignment & polarity: 1/2 (-), 3/6 (+)
Power protection features: Over current, Over voltage, Overload
Ports & interfaces

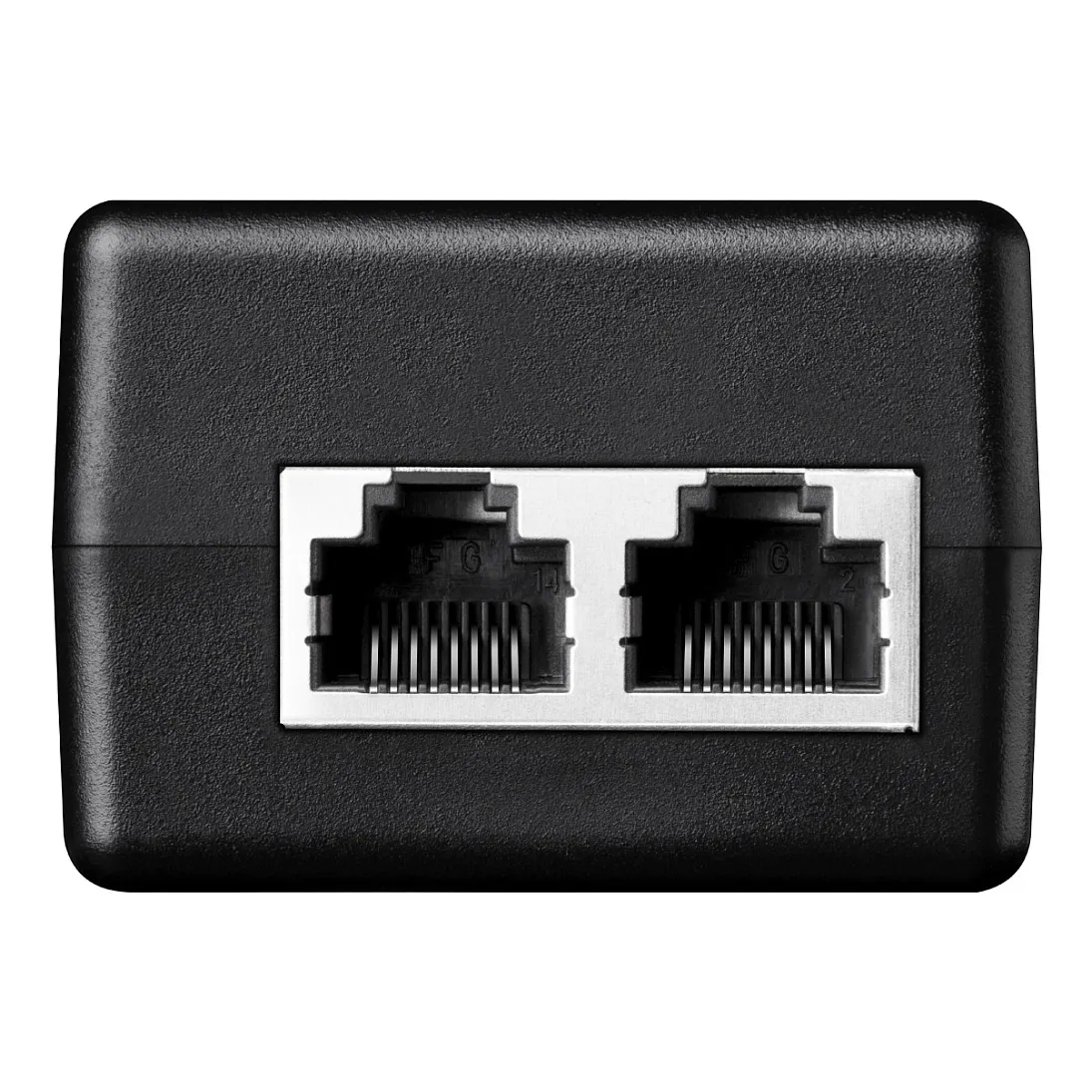

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1
Power
Power over Ethernet (PoE) voltage: 54 V
Output power: 30 W
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50 – 60 Hz
Input current: 0.5 A
Operational conditions
Operating temperature (T-T): -10 – 45 °C
Operating temperature (T-T): 14 – 113 °F
Operating relative humidity (H-H): 10 – 95%
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 121 mm
Depth: 50 mm
Height: 36 mm

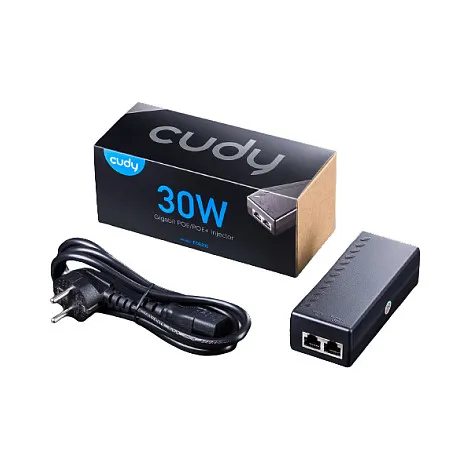

Packaging content
Number of products included: 1 pc(s)

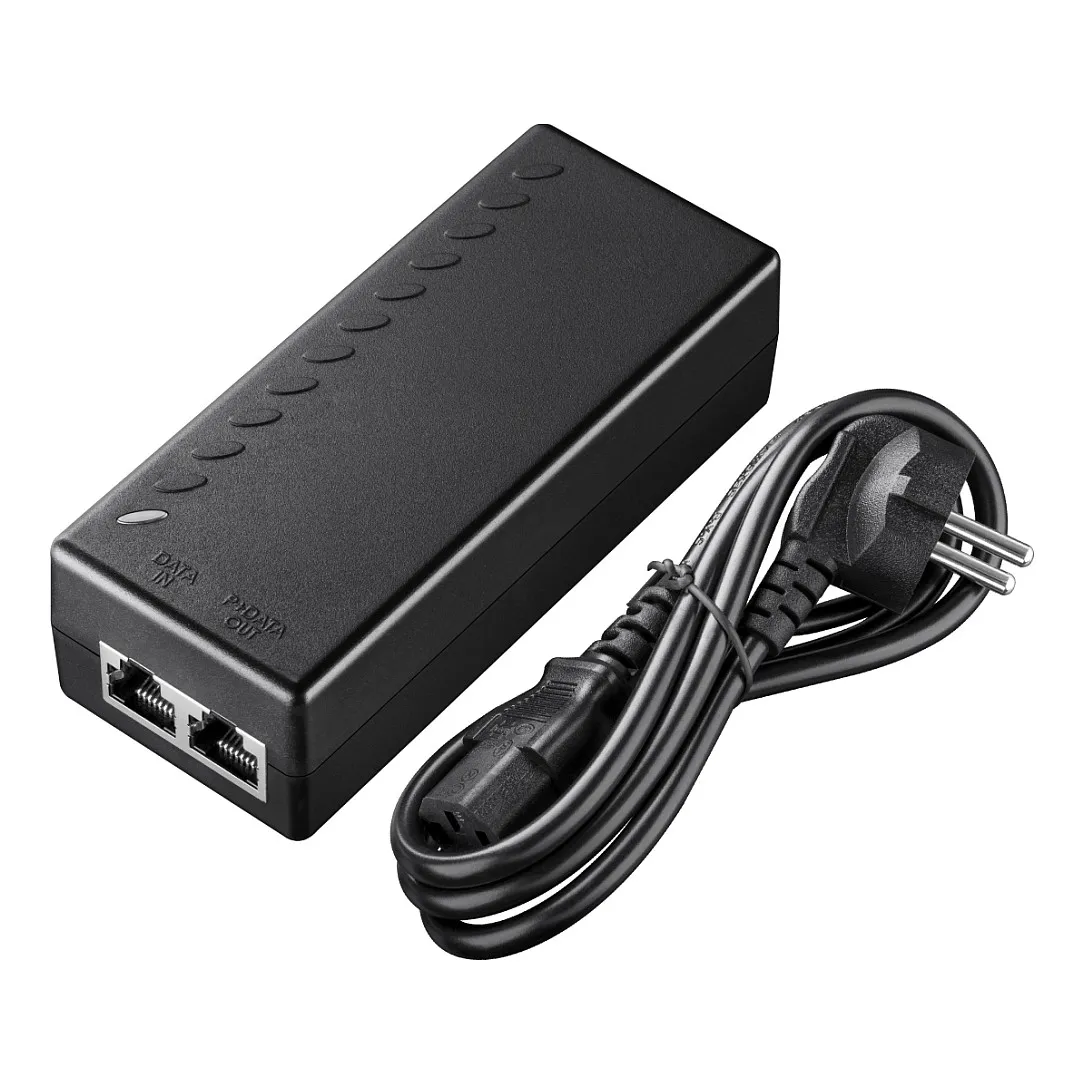

Feature: Power cord included
Packaging data
Package width: 171 mm
Package depth: 72 mm
Package height: 72 mm
Package type: Box
