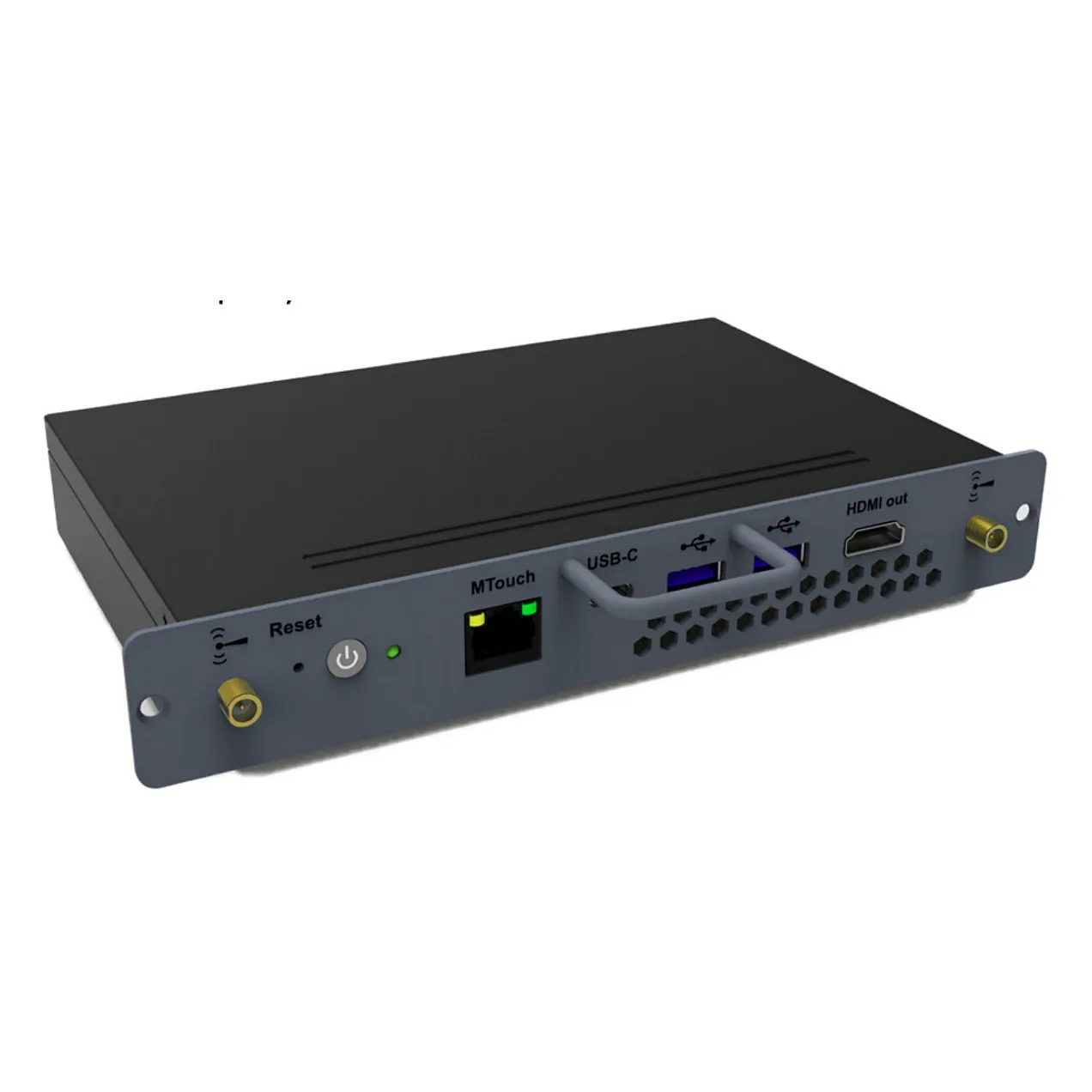

Yealink Windows OPS for MeetingBoard Series – Mcore-OPS. Processor family: Intel® Core™ i5, Processor manufacturer: Intel, Processor model: i5-1135G7. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 2 x 4 GB. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics, On-board graphics card dynamic frequency (max): 1300 MHz. Wi-Fi standards: Wi-Fi 6 (802.11ax)
Yealink MCore-OPS is a modular computing solution specially designed for interactive whiteboards. Pluggable computing module (Windows) with a built-in customized Teams Rooms image, can be connected to the OPS interface of MB65/86 as a secondary system for MB65/86.
Processor
Processor manufacturer: Intel
Processor generation: 11th gen Intel® Core™ i5
Processor family: Intel® Core™ i5
Processor model: i5-1135G7
Processor cores: 4
Processor boost frequency: 4.2 GHz
Processor socket: BGA 1449
Processor cache: 8 MB
Processor cache type: Smart Cache
System bus rate: 4 GT/s
Processor lithography: 10 nm
Processor operating modes: 64-bit
Configurable TDP-up frequency: 2.4 GHz
Configurable TDP-up: 28 W
Configurable TDP-down frequency: 0.9 GHz
Configurable TDP-down: 12 W
Tjunction: 100 °C
Memory
Internal memory: 8 GB
Internal memory type: DDR4-SDRAM
Memory layout (slots x size): 2 x 4 GB
Storage
Total storage capacity: 128 GB
Storage media: SSD
Graphics
Feature: On-board graphics card
On-board graphics card model: Intel Iris Xe Graphics
On-board graphics card dynamic frequency (max): 1300 MHz
Network
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Feature: Ethernet LAN
Feature: Bluetooth
Bluetooth version: 5.2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Software
Operating system installed: Windows 10 IoT Enterprise
Operating system architecture: 64-bit
Power
DC input voltage: 12 – 19 V
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 180 mm
Depth: 119 mm
Height: 30 mm
Weight: 700 g
Package width: 267 mm
Package depth: 215 mm
Package height: 65 mm
Package weight: 890 g
