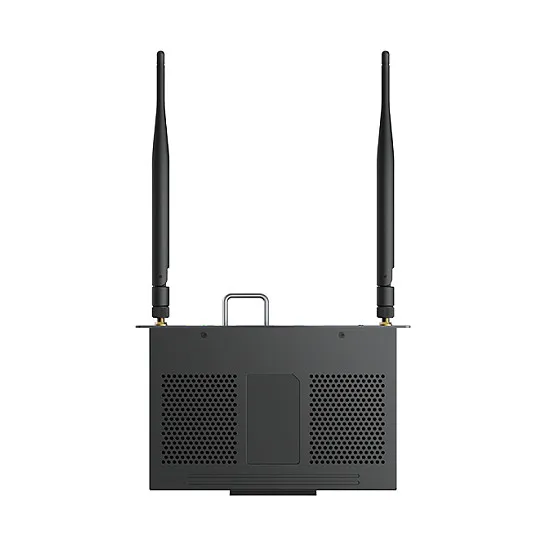

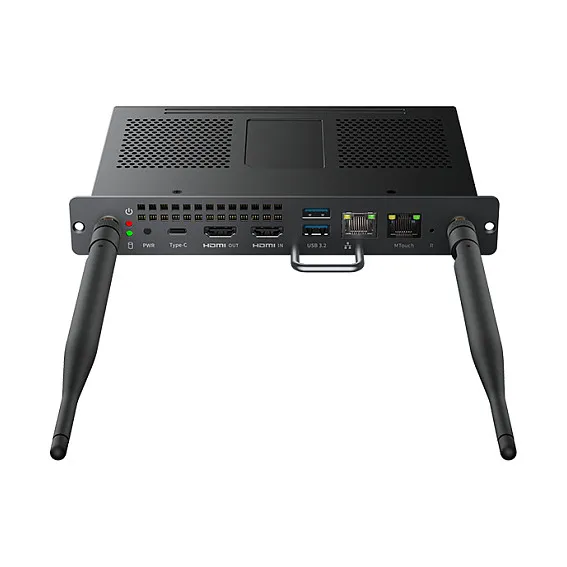

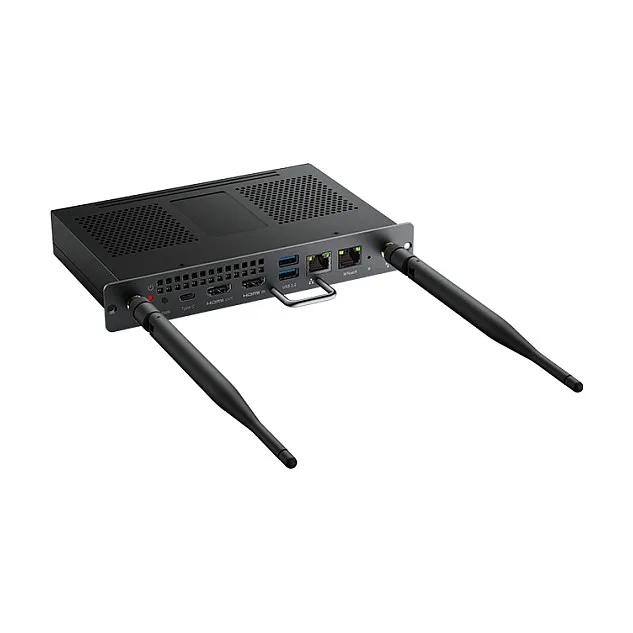

Yealink MCore-OPS-G2T. Processor family: Intel Core Ultra 5, Processor model: 125H. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Wi-Fi. Operating system installed: Windows 11 IoT Enterprise, Operating system architecture: 64-bit. Chassis type: Rack-mounted chassis. Product type: Mini PC. Weight: 700 g. Product colour: Black
Yealink MCore-OPS-G2/MCore-OPS-G2T is the latest modular computing solution designed for Yealink MeetingBoard/MeetingBoard Pro Series. With Intel Core Ultra 5, upgraded memory, and a lightning-fast SSD, it delivers the power you need for smooth multitasking, large-file handling, and audio-video meetings.
Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 125H
Processor cores: 14
Processor threads: 18
Performance cores: 4
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.5 GHz
Efficient-core Max Turbo Frequency: 3.6 GHz
Performance-core base frequency: 1.2 GHz
Efficient-core base frequency: 0.7 GHz
Processor cache: 18 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 28 W
Maximum turbo power: 115 W
Memory
Internal memory: 16 GB
Internal memory type: DDR4-SDRAM
Memory layout (slots x size): 2 x 8 GB
Storage
Total storage capacity: 256 GB
Storage media: SSD
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics
Performance
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.2

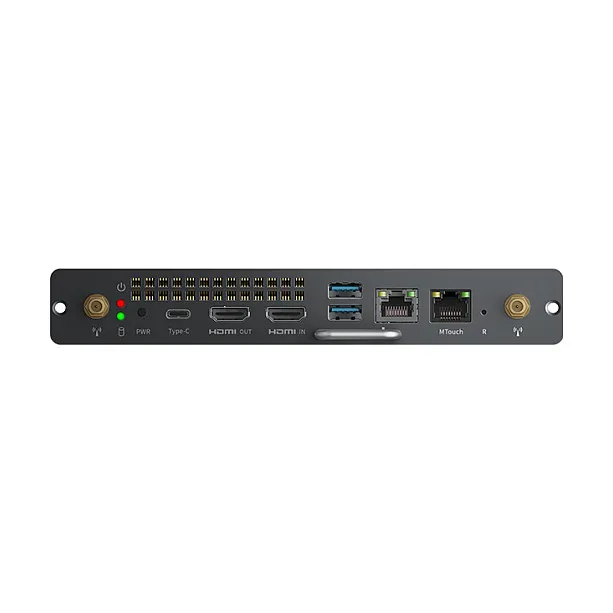

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Design
Chassis type: Rack-mounted chassis
Product colour: Black
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 IoT Enterprise
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 180 mm
Depth: 119 mm
Height: 30 mm
Weight: 700 g
