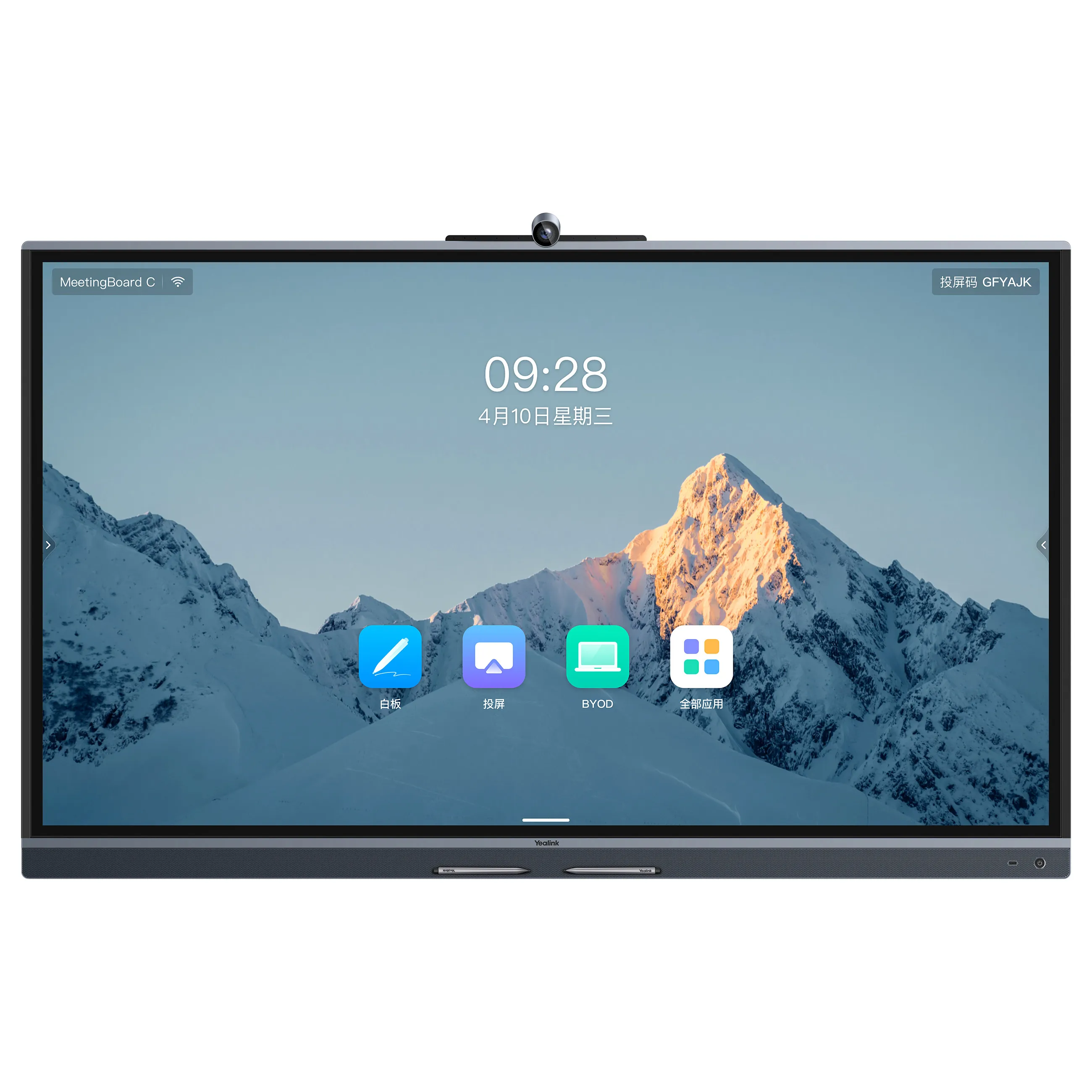

Yealink MB65C-EDLA. Display diagonal: 165.1 cm (65"), Display resolution: 3840 x 2160 pixels, Aspect ratio: 16:9. Housing colour: Black, Panel mounting interface: 600 x 400 mm. RAM capacity: 8 GB, Storage capacity: 64 MB. Speaker power: 25 W. Total megapixels: 50 MP, Maximum resolution: 3840 x 2160 pixels, Field of view (FOV) angle: 98.2°

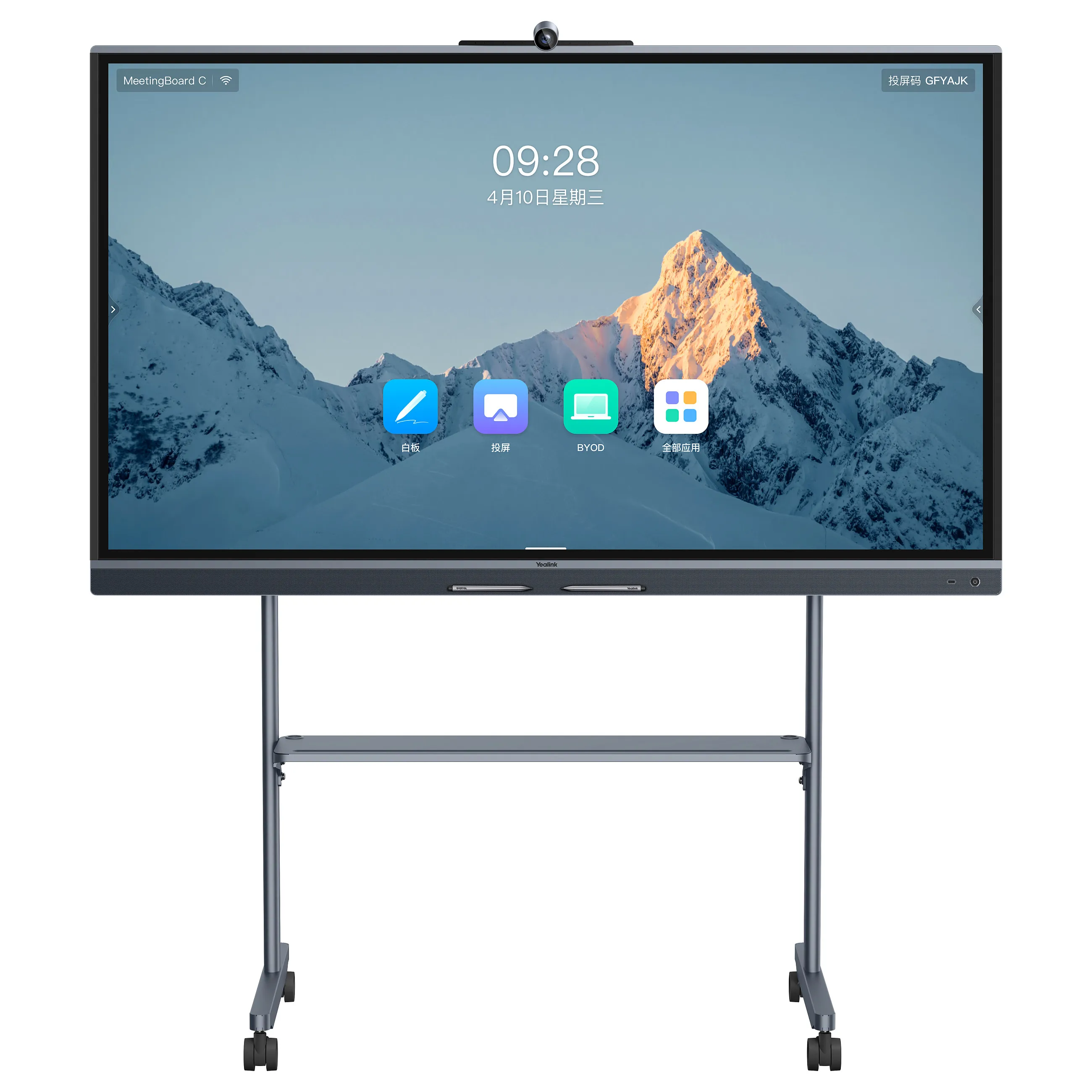

The MeetingBoard 65C is an all-in-one video conferencing device designed with simplicity —streamline installation and deployment. The movable design also allows for flexibility. It takes just 15 minutes to set up, and you can position wherever you need it, get it rolling anywhere, connect with just one cable.
Display
Display diagonal: 165.1 cm (65″)
Display resolution: 3840 x 2160 pixels
Aspect ratio: 16:9
Maximum refresh rate: 60 Hz
Viewing angle: 178°
Display brightness: 350 cd/m²
Contrast ratio (typical): 1200:1
Feature: Touchscreen
Number of simultaneous touchpoints: 20
Feature: Anti-glare surface
Design
Housing colour: Black
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Feature: On/off switch
Performance
Feature: Built-in processor
Processor cores: 8
RAM capacity: 8 GB
Storage capacity: 64 MB
Windows operating systems supported: Yes
Audio
Feature: Built-in speaker(s)
Feature: Built-in microphone
Speaker power: 25 W
Feature: MEMS (Micro-Electro-Mechanical System) microphone
Number of microphones: 8
Feature: Noise reduction
Feature: Echo cancellation
Feature: Automatic gain control
Feature: Audio beamforming
Camera
Feature: Built-in camera
Total megapixels: 50 MP
Maximum resolution: 3840 x 2160 pixels
Field of view (FOV) angle: 98.2°
F-number (relative aperture): 1.56
Feature: PTZ control
Camera shutter type: Electronic
Feature: Camera privacy shutter
Network
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Feature: MIMO
Feature: Bluetooth
Bluetooth version: 5.1
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Security algorithms: 256-bit AES, AES, SRTP, TLS
Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.1x
Feature: Quality of Service (QoS) support
Ports & interfaces
Feature: USB port
USB port type: USB Type-A
Audio RCA inputs: 1
Audio RCA outputs: 1
HDMI input ports quantity: 1
HDMI output ports quantity: 1
RJ-45 ports quantity: 2
USB 2.0 Type-A ports quantity: 3
Feature: 3.5 mm connector
HDMI ports quantity: 2
Power
Power source type: AC
Input voltage: 100 – 240 V
Power consumption (average): 140 W
Power consumption (max): 183 W
USB output voltage: 5 V
USB output current: 0.5 A
Weight & dimensions
Width: 1484 mm
Depth: 83.4 mm
Height: 957.7 mm
Weight: 38.5 kg
Packaging data
Package width: 1615 mm
Package depth: 230 mm
Package height: 1054 mm
Package weight: 46.6 kg
Package type: Box
Packaging content
Cables included: AC, LAN (RJ-45)
Feature: Quick start guide
Feature: Stylus pen
Number of stylus pens: 4
Packaging content: – 1 x 3m AC power cable- 1 x 3m CAT5E network cable- 4 x Stylus pens- 3 x Cable ties- 1 x Quick Start Guide
Operational conditions
Operating relative humidity (H-H): 5 – 95%
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -30 – 70 °C
