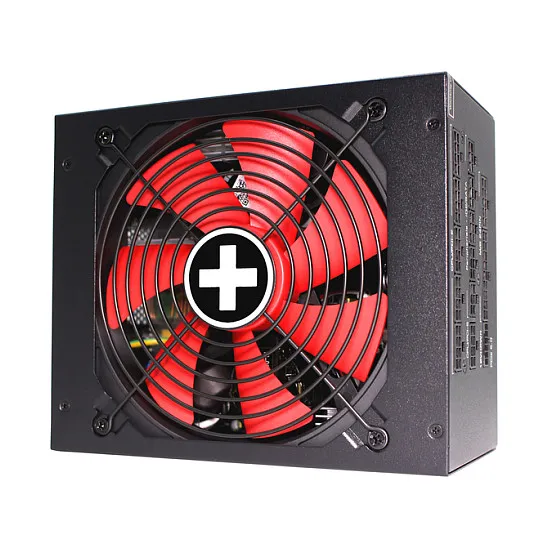

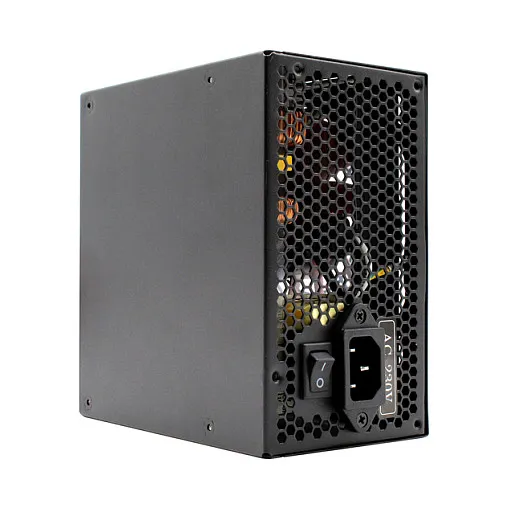

Xilence XP1250MR9.2. Total power: 1250 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: RoHS, WEEE
The fully modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel’s Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
Power

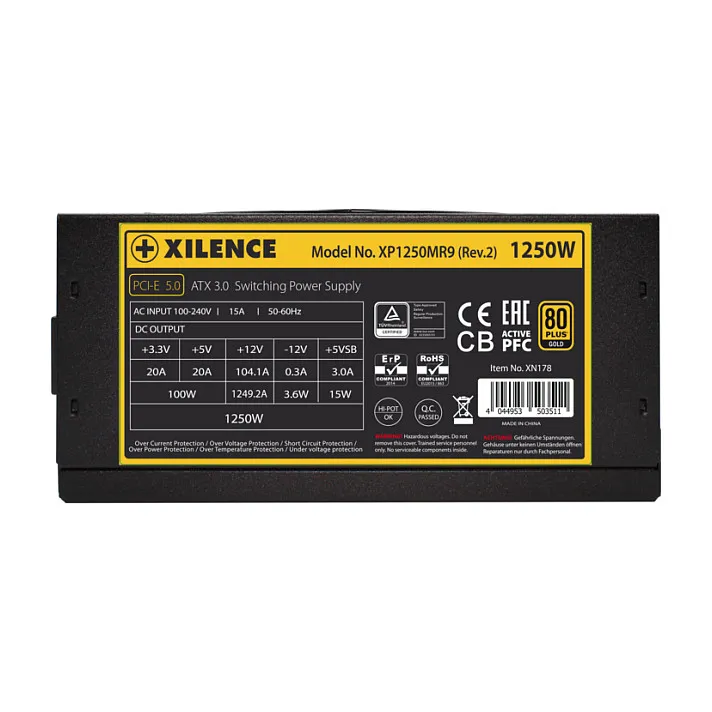

Total power: 1250 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 15 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 20 A
Max output current (+12V): 104.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 89%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces

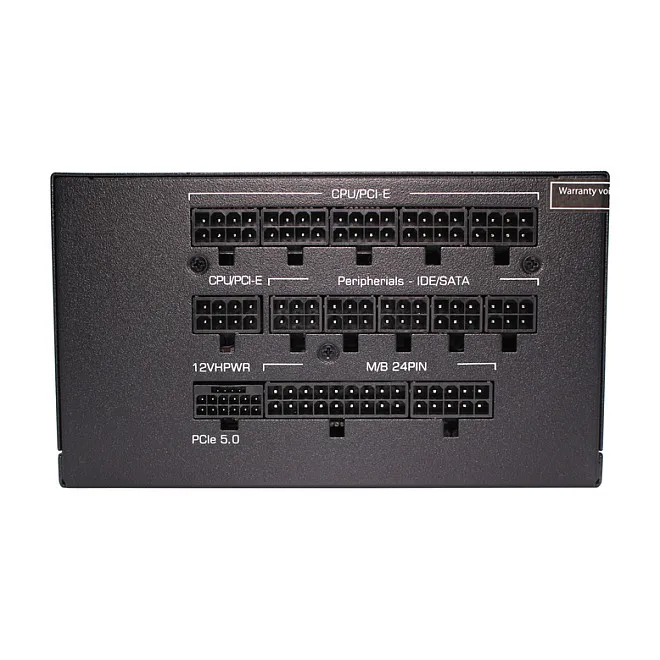

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 12
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (8-pin): 1
Feature: CPU power connector (4+4 pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: FDB
Design
Product colour: Black, Red
Cooling type: Active

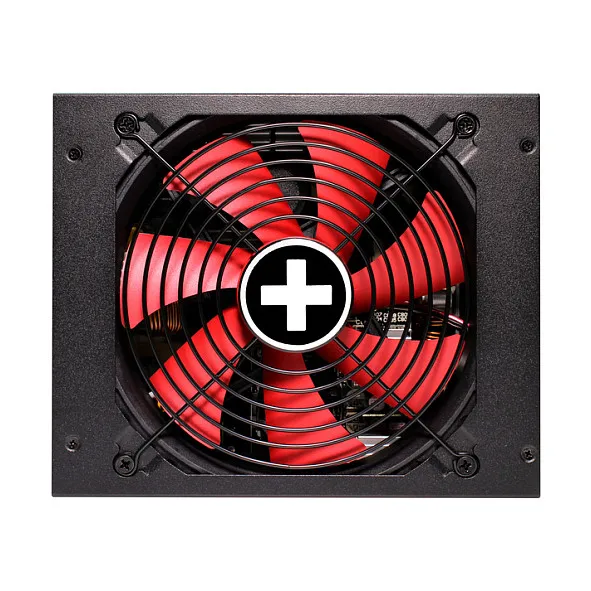

Fan diameter: 14 cm
Number of fans: 1 fan(s)
Certificates
Compliance certificates: RoHS, WEEE
Weight & dimensions
Width: 150 mm
Depth: 180 mm
Height: 86 mm
Packaging data
Package type: Box
Technical details
Feature: Sustainability compliance
Sustainability certificates: ErP
Total power: 1250 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 15 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 20 A
Max output current (+12V): 104.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 89%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 12
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (8-pin): 1
Feature: CPU power connector (4+4 pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: FDB
Design
Product colour: Black, Red
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Certificates
Compliance certificates: RoHS, WEEE
Weight & dimensions
Width: 150 mm
Depth: 180 mm
Height: 86 mm
Packaging data
Package type: Box
Technical details
Feature: Sustainability compliance
Sustainability certificates: ErP
