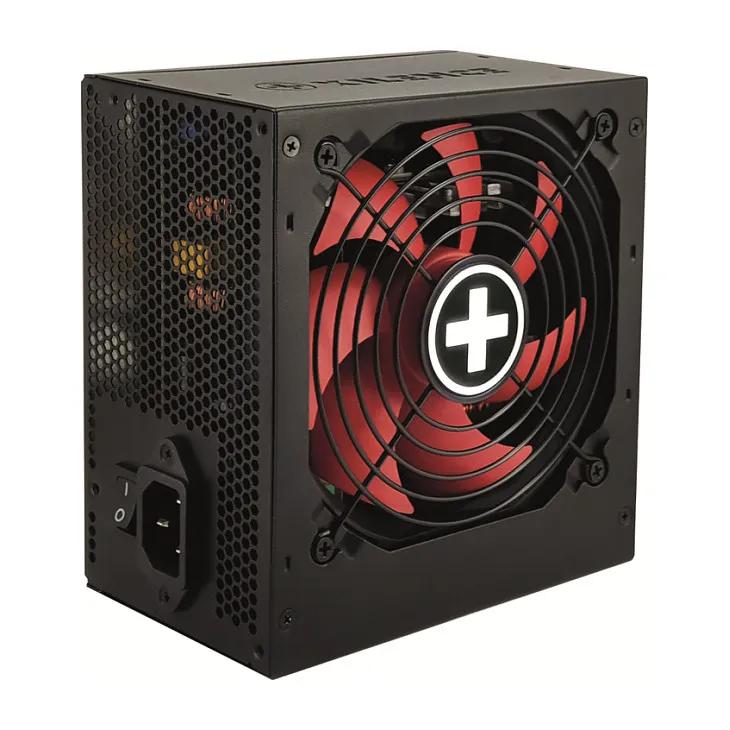

Xilence Performance A+ XN215. Total power: 550 W, AC input voltage: 200 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE
The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.
Power
Total power: 550 W
AC input voltage: 200 – 240 V
AC input frequency: 50 Hz
Input current: 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 105 W
Combined power (+12V): 456 W
Max output current (+3.3V): 21 A
Max output current (+12V): 38 A
Max output current (+5V): 16 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Bearing technology: FDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Certificates
Compliance certificates: RoHS, WEEE
Packaging data
Package weight: 1.89 kg
Package type: Box
Technical details
Sustainability certificates: ErP
Total power: 550 W
AC input voltage: 200 – 240 V
AC input frequency: 50 Hz
Input current: 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 105 W
Combined power (+12V): 456 W
Max output current (+3.3V): 21 A
Max output current (+12V): 38 A
Max output current (+5V): 16 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Bearing technology: FDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Certificates
Compliance certificates: RoHS, WEEE
Packaging data
Package weight: 1.89 kg
Package type: Box
Technical details
Sustainability certificates: ErP
