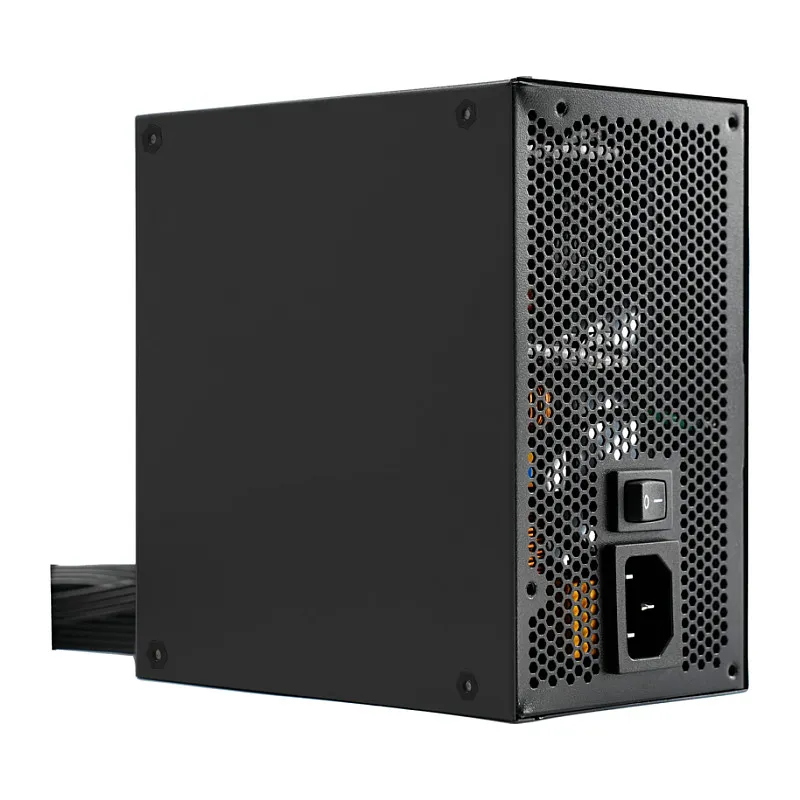

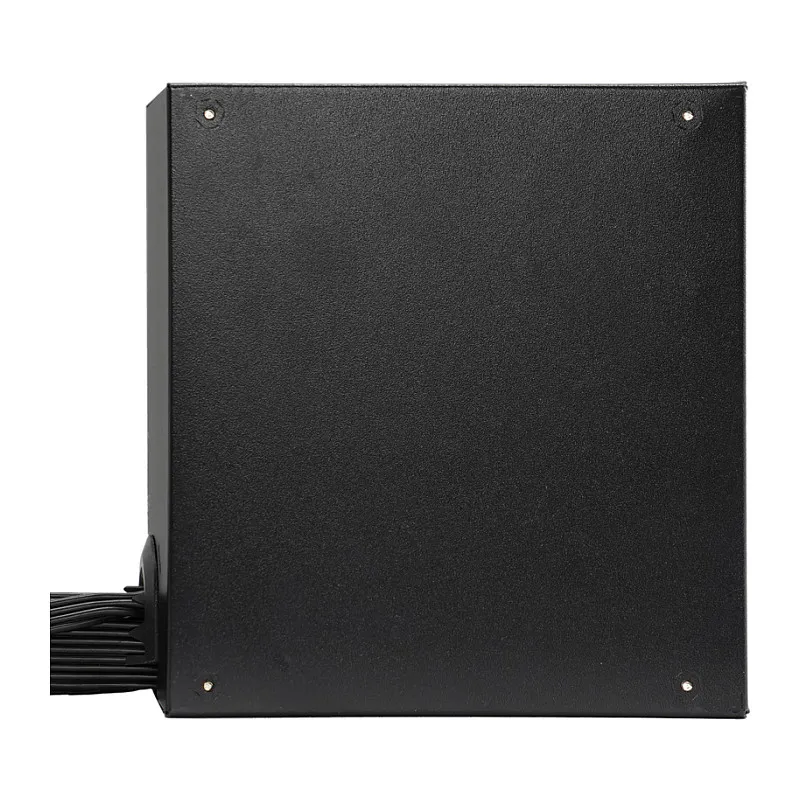

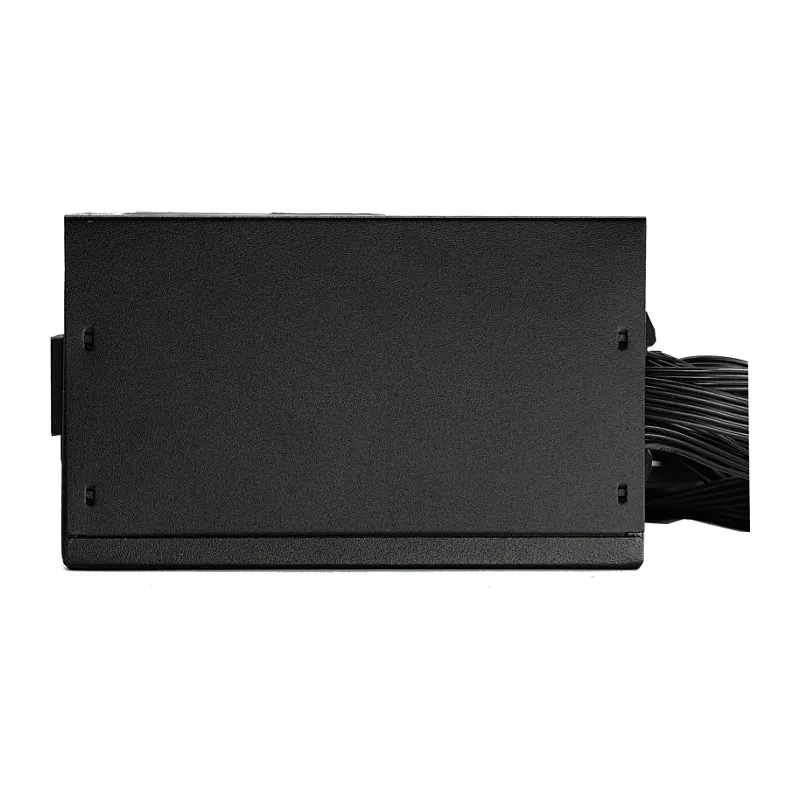

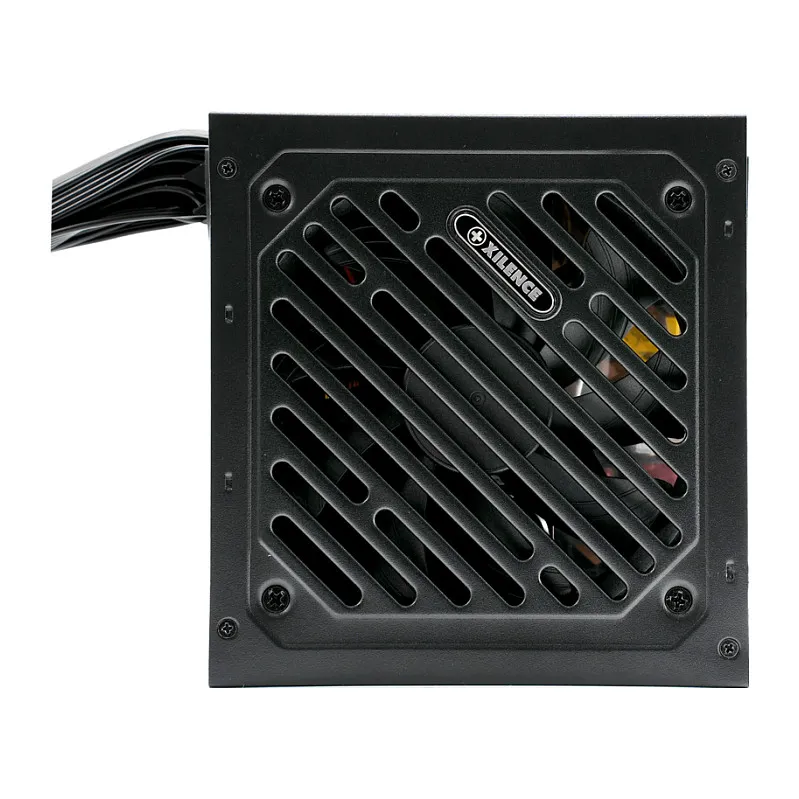

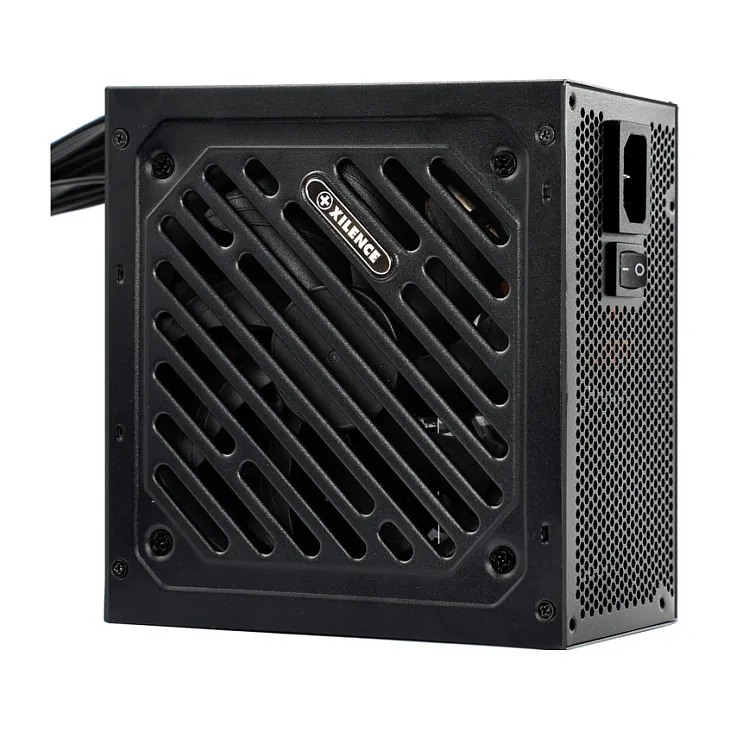

Xilence Gaming Gold Series XP650R12. Total power: 650 W, AC input voltage: 200 – 240 V, Peak power: 650 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE
The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant. The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series.
The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.
The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.
Power
Total power: 650 W
Peak power: 650 W
AC input voltage: 200 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 6.3 A
Maximum input current (@220V): 6.3 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 650 W
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 54.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under power
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 3
Feature: CPU power connector (4+4 pin)
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.52
Bearing technology: Hypro Bearing
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Feature: On/off switch
Certificates
Compliance certificates: RoHS, WEEE
Weight & dimensions
Width: 195 mm
Depth: 270 mm
Height: 95 mm
Weight: 2.3 kg
Technical details
Feature: Sustainability compliance
Sustainability certificates: ErP
Total power: 650 W
Peak power: 650 W
AC input voltage: 200 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 6.3 A
Maximum input current (@220V): 6.3 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 650 W
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 54.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under power
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 3
Feature: CPU power connector (4+4 pin)
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.52
Bearing technology: Hypro Bearing
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Feature: On/off switch
Certificates
Compliance certificates: RoHS, WEEE
Weight & dimensions
Width: 195 mm
Depth: 270 mm
Height: 95 mm
Weight: 2.3 kg
Technical details
Feature: Sustainability compliance
Sustainability certificates: ErP
