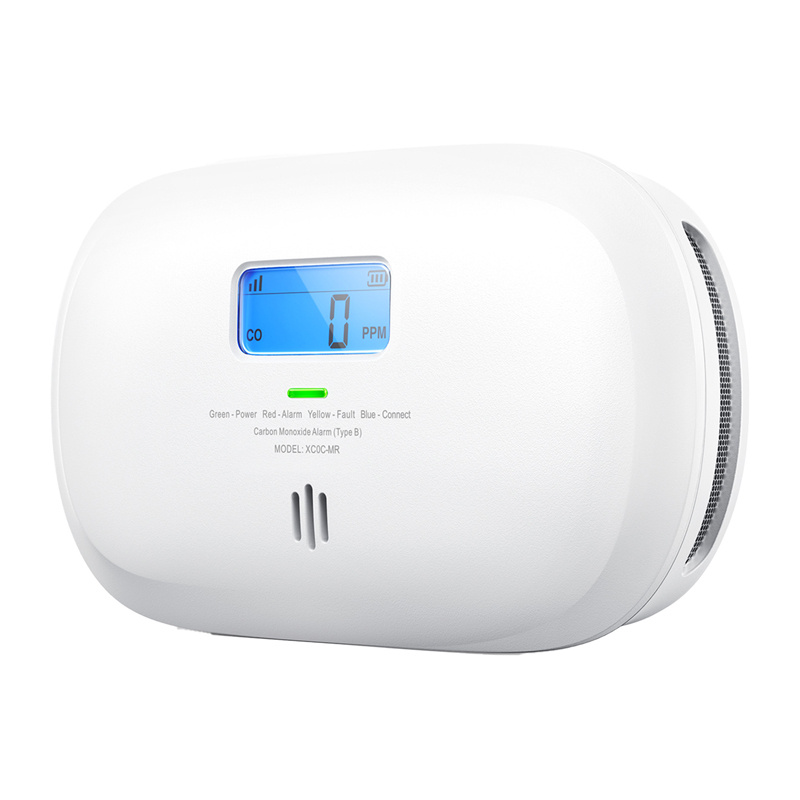

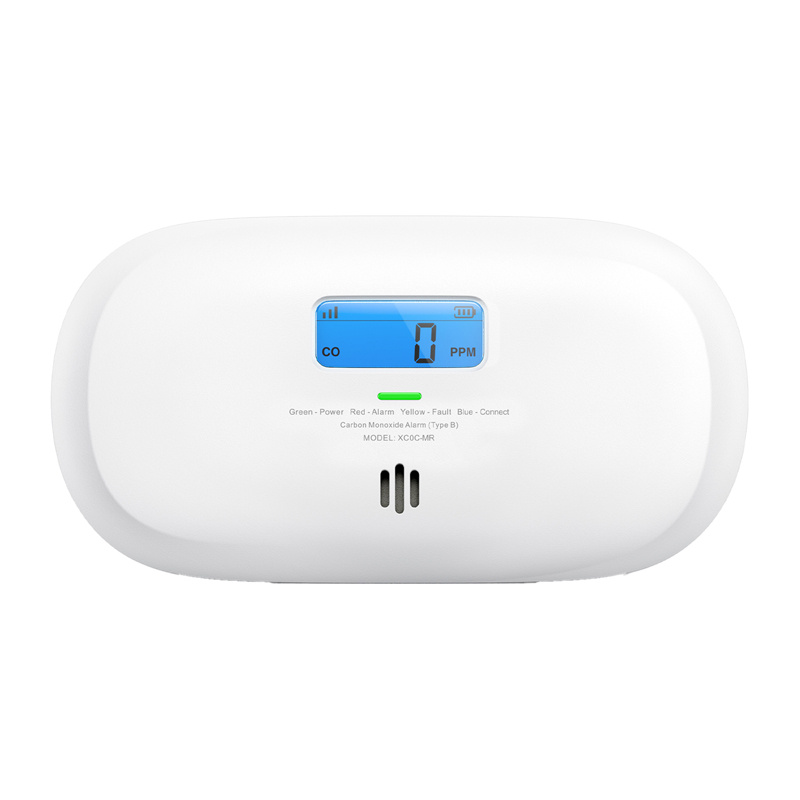

X-Sense XC0C-MR Link+ carbon monoxide detector
X-Sense XC0C-MR Link+ is a carbon monoxide sensor designed to work in the X-Sense Link+ connected alarm system. When it detects a threat, it triggers a local alarm, transmits the signal to other sensors in the network, and sends notifications to the app.
Connected alarm system
The XC0C-MR operates as part of an interconnected system, in which the alarm of one sensor automatically triggers other devices on the network. Communication is done wirelessly over a long distance, allowing multiple rooms to be covered simultaneously. The system requires the use of the X-Sense SBS50 base station (available for sale separately).
Control in the app
Once connected to the base station, the sensor works with a mobile app that allows you to view alarm status, receive instant notifications and manage the device from a single location. The app also allows you to share the system with other household members, so everyone receives alerts at the same time.
Two-level alerting
The sensor supports two warning levels – a preventive alert and a full CO alert. When the carbon monoxide concentration is elevated, but still short-lived, the system sends a warning. If CO levels persist longer, a full audible alarm is triggered, as well as a signal to other devices on the network.
Precise CO measurement.
The high-performance electrochemical CO sensor provides stable and accurate measurement of carbon monoxide concentration. The device complies with EN 50291-1, which means that the alarm response depends on the CO level and how long it persists.
Easy-to-read screen and event memory
The backlit LCD display shows the current CO concentration in ppm and warning messages. The sensor also saves an alarm memory, allowing you to check later for events that were automatically terminated when the CO level dropped.
Loud local alarm
In the event of an emergency, the sensor triggers an audible alarm with a volume of at least 85 dB, clearly audible even from neighboring rooms. Thanks to the Link+ connection, the alarm signal spreads simultaneously throughout the house.
Simple operation and silencing
The Test/Silence button allows you to test the system’s operation and temporarily mute the alarm. After a specified period of time, the sensor automatically returns to standby mode, remaining fully ready for further operation.
Flexible mounting
The unit can be placed on a flat surface or mounted on a wall using the included mounting hardware. The simple form and compact dimensions allow the sensor to easily fit into any room.
Long-lasting use
The expected maximum life of the device is up to 10 years, and the replaceable lithium battery provides up to 5 years of operation with standard use. A signaling system informs you of low battery, malfunction or end of life.
Included:
- Carbon monoxide detector
- CR123A 3 V battery (installed)
- Mounting screw x2
- Expansion bolt x2
- Supporting label for hole spacing
- User manual
| Manufacturer | X-Sense |
|---|---|
| Model | XC0C-MR |
| Power supply | 1 × CR123A 3 V lithium battery (replaceable) |
| Battery life | Up to 5 years (test once a week) |
| Maximum device life | 10 years |
| Sensor type | electrochemical |
| Safety standards | EN 50291-1 |
| CO alarm response time. | 50 ppm: 60-90 minutes 100 ppm: 10-40 minutes 300 ppm: < 3 minutes |
| Operating temperature | 4.4 to 37.8°C |
| Operating humidity | 10 to 85% RH (non-condensing) |
| Alarm volume | ≥ 85 dB (from a distance of 3 m) |
| Alarm silencing time | ≤ 9 minutes |
| Operating band | 869.25-869.3 MHz |
| Maximum RF power | 10 mW |
| Maximum number of devices in Link+ network | 24 wireless alarms (Link+ / Link+ Pro) |
| Maximum number of devices per base station | Up to 50 alarms |
| Transmission range | more than 500 m in open space |
| Weight | 146 g |
| Dimensions | 142 × 75 × 32 mm |
