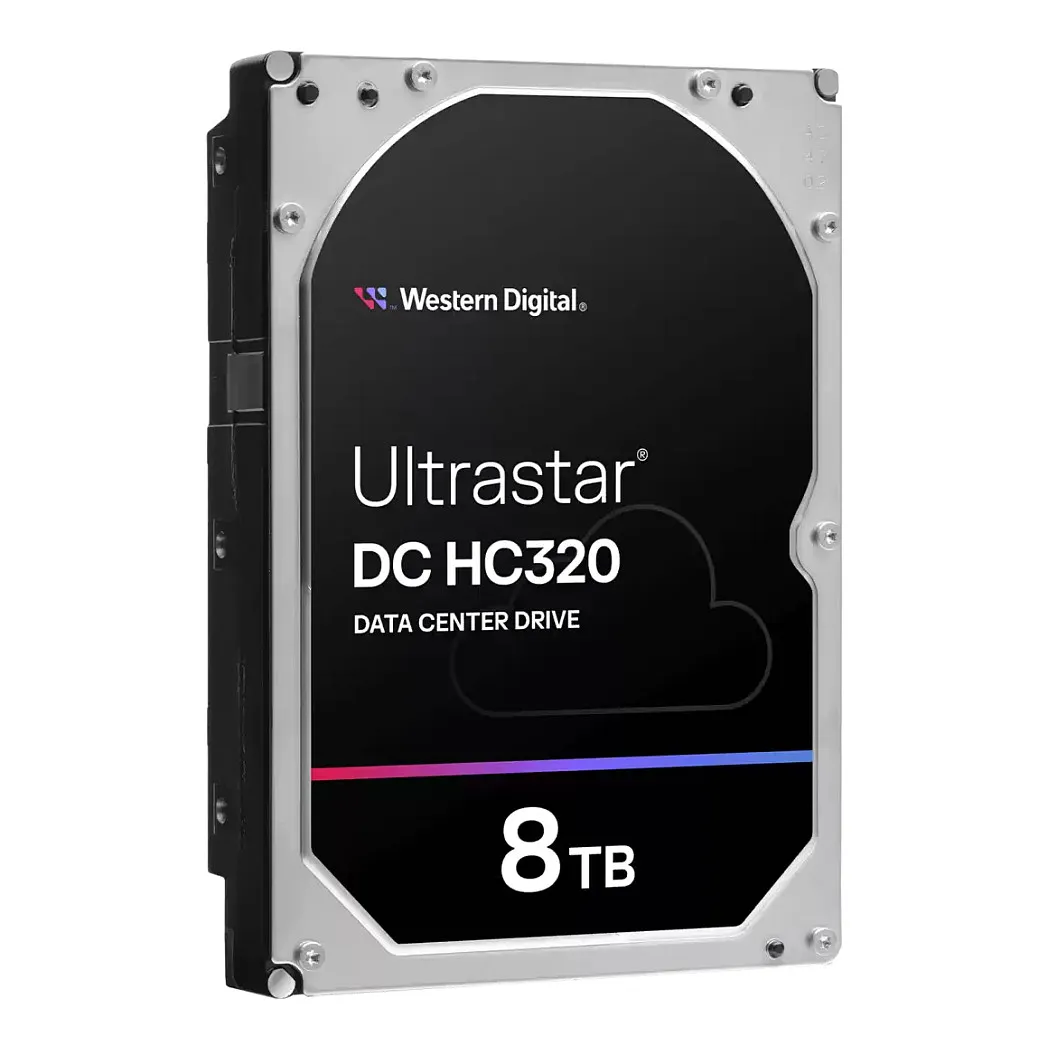

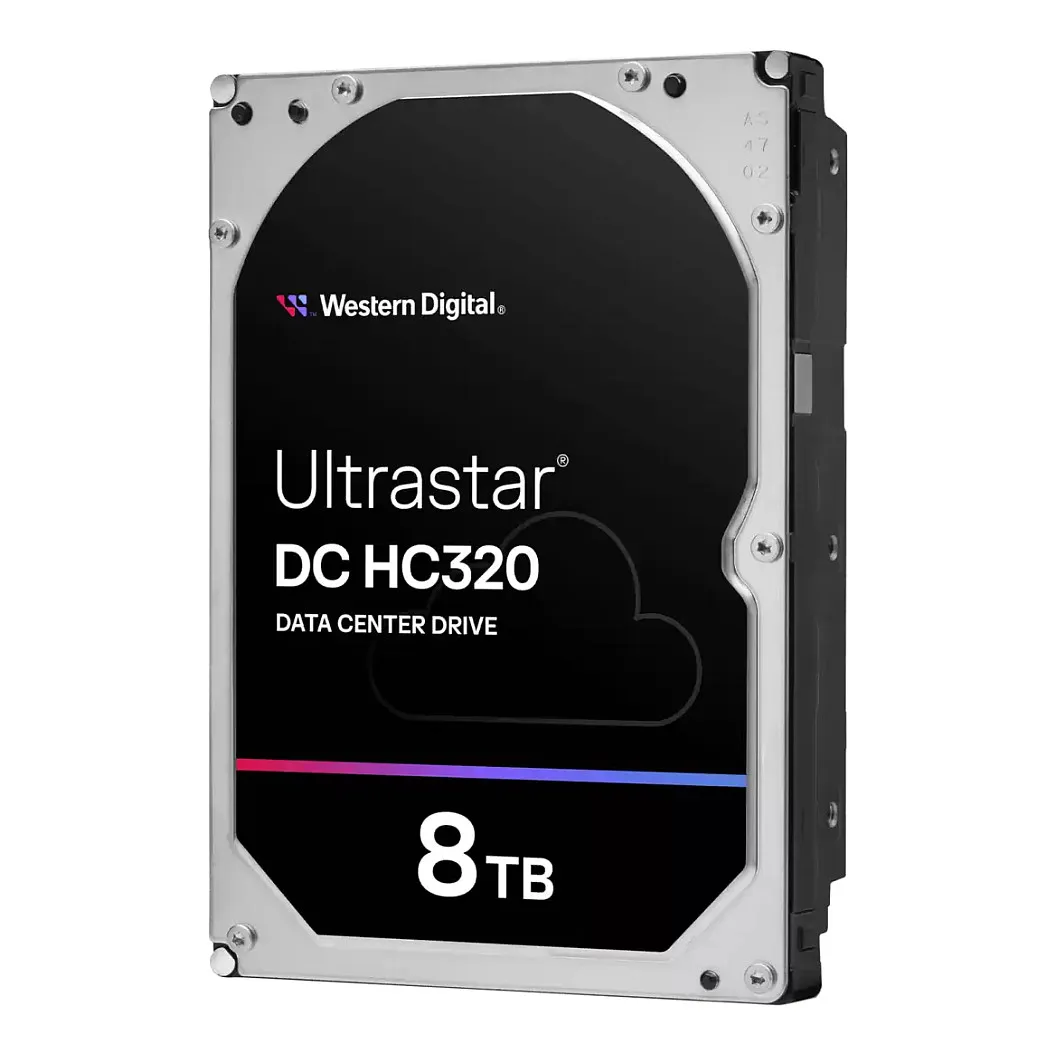

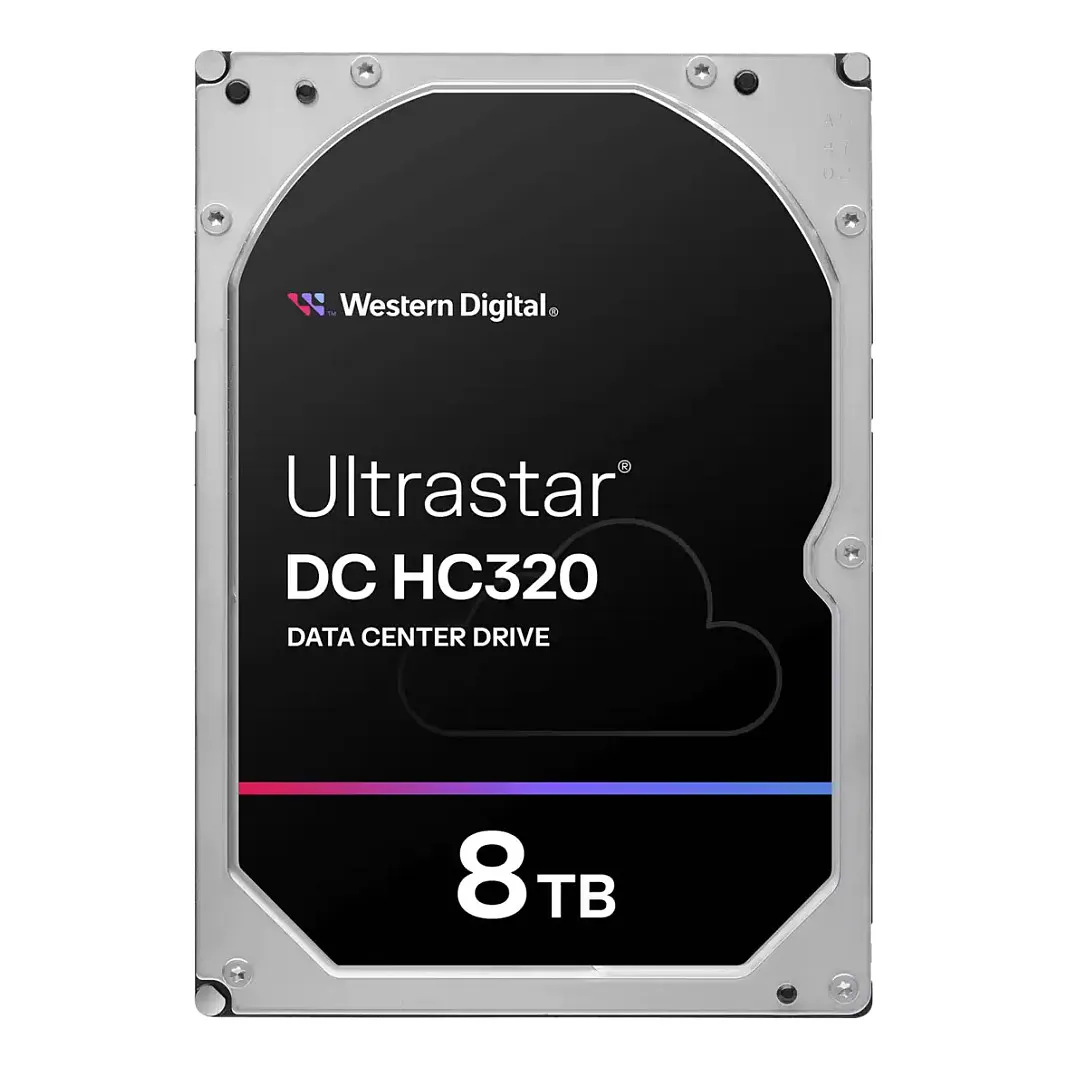

Western Digital Ultrastar DC HC320. HDD capacity: 8 TB, HDD speed: 7200 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: SAS
As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on lower capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, Ultrastar DC HC320 is an 8TB HDD that helps address economic and access requirements of many traditional IT workloads. Lower capacity drives also help address architecture limitations. The Ultrastar DC HC320 is designed for traditional storage and server applications as well as distributed and scalable computing, including block and file storage architectures, providing fast 7200 RPM performance and lower acquisition cost to help ease budget constraints.
Features
HDD capacity: 8 TB
HDD speed: 7200 RPM
Storage drive buffer size: 256 MB
HDD size: 3.5″
Interface: SAS
Type: HDD
Component for: Server/workstation
HDD interface transfer rate: 12 Gbit/s
HDD sustained transfer rate: 243 MiB/s
Read seek time: 8 ms
Write seek time: 8.6 ms
Average latency: 4.16 ms
Start/stop cycles: 600000
Mean time between failures (MTBF): 2000000 h
Power
Power consumption (read): 12.8 W
Power consumption (write): 12.8 W
Power consumption (idle): 12.8 W
Operating voltage: 5 / 12 V
Operational conditions
Operating temperature (T-T): 5 – 60 °C
Storage temperature (T-T): -40 – 70 °C
Operating vibration: 0.67 G
Non-operating vibration: 1.04 G
Operating shock: 70 G
Non-operating shock: 300 G
Weight & dimensions
Width: 101.6 mm
Height: 26.1 mm
Depth: 147 mm
Weight: 715 g
Packaging data
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 84717050
HDD capacity: 8 TB
HDD speed: 7200 RPM
Storage drive buffer size: 256 MB
HDD size: 3.5″
Interface: SAS
Type: HDD
Component for: Server/workstation
HDD interface transfer rate: 12 Gbit/s
HDD sustained transfer rate: 243 MiB/s
Read seek time: 8 ms
Write seek time: 8.6 ms
Average latency: 4.16 ms
Start/stop cycles: 600000
Mean time between failures (MTBF): 2000000 h
Power
Power consumption (read): 12.8 W
Power consumption (write): 12.8 W
Power consumption (idle): 12.8 W
Operating voltage: 5 / 12 V
Operational conditions
Operating temperature (T-T): 5 – 60 °C
Storage temperature (T-T): -40 – 70 °C
Operating vibration: 0.67 G
Non-operating vibration: 1.04 G
Operating shock: 70 G
Non-operating shock: 300 G
Weight & dimensions
Width: 101.6 mm
Height: 26.1 mm
Depth: 147 mm
Weight: 715 g
Packaging data
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 84717050
