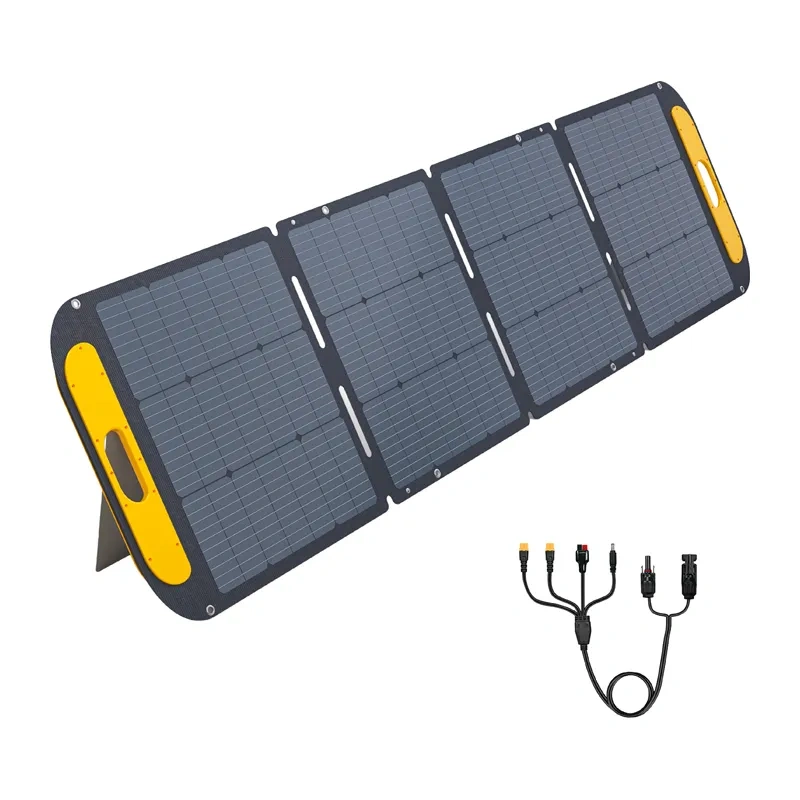

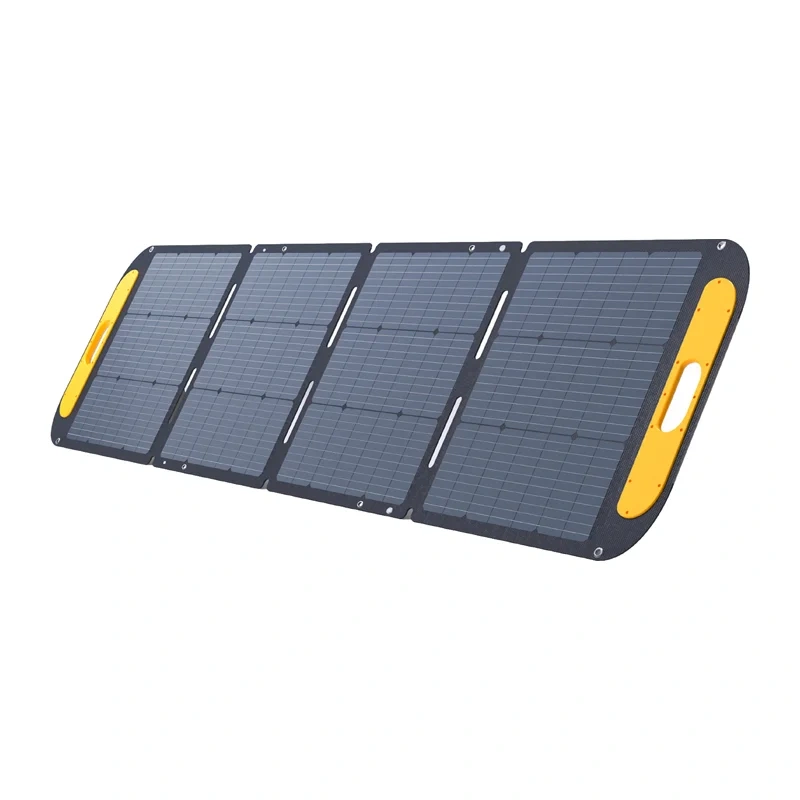

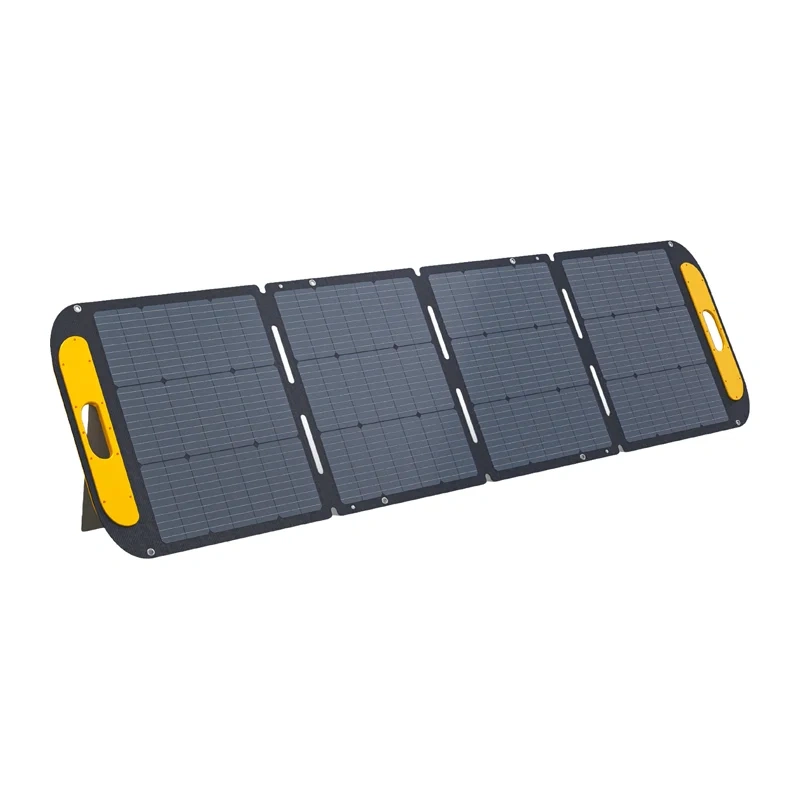

VTOMAN VS200 PRO 200W Portable Solar Panel
The VTOMAN VS200 PRO is a foldable solar panel with a peak power output of 200 W and a conversion efficiency of 25%. It uses Topcorn cells and supports MC-4, Anderson, XT60, XT90, and DC5521 connectors, allowing it to work with VTOMAN portable power stations and compatible models from other brands. The design meets IP67 waterproofing standards, and its foldable form, handles, metal eyelets, and supports make it easy to transport and quickly set up the panel for use.
High Energy Conversion Efficiency
The Topcorn cells used provide a conversion efficiency of 25%, allowing for the effective utilization of available solar energy. The panel offers a peak power of 200 W, an operating voltage of 43.2 V, and an operating current of 4.7 A. The open-circuit voltage is 50.4 V, while the short-circuit current reaches 4.9 A.
Wide Compatibility with Devices
The included 4-in-1 adapter cable allows for use with XT60, XT90, Anderson, and DC5521 connectors. This enables the VS200 PRO to work with VTOMAN portable power stations as well as compatible stations from other brands. The panel can also be used with sealed lead-acid batteries, gel batteries, and open-type lead-acid batteries.
Quick setup in the desired location
Adjustable legs allow you to quickly set up the panel on the ground and adjust its position to suit current conditions. Metal eyelets also allow you to hang the panel, for example, on a balcony or an RV. This makes it easy to adapt the setup to the location and available space.
Foldable design facilitates transport
When unfolded, the panel measures 2154 × 601 × 4 mm; when folded, it measures 584 × 601 × 50 mm. Integrated handles make it easy to carry, and a bag on the back allows you to store the cables along with the panel. This design is ideal for travel, camping, and other applications where there is no constant access to the power grid.
IP67 Protection for Outdoor Use
The VTOMAN VS200 PRO meets IP67 protection standards, which enhances its durability during outdoor use. The net weight is 17.86 lb, and the combination of a foldable design, handles, supports, and metal eyelets makes it easy to use the panel in various conditions. An added convenience is the ability to store the cables in a dedicated bag, keeping the most important components organized and easily accessible.
Included in the set
VTOMAN VS200 PRO solar panel x1
4-in-1 MC4 to XT60 / XT90 / Anderson / DC5521 adapter cable x1
User manual x1
| Manufacturer | VTOMAN |
|---|---|
| Name | Portable Solar Panel VS200 PRO |
| Model | YT-0276 |
| Peak Power | 200 W |
| Operating Voltage | 43.2 V |
| Operating Current | 4.7 A |
| Open-Circuit Voltage | 50.4 V |
| Short-Circuit Current | 4.9 A |
| Conversion Efficiency | 25% |
| Cells | Topcorn |
| Waterproof Rating | IP67 |
| Net Weight | 17.86 lb |
| Dimensions (Folded) | 584 × 601 × 50 mm |
| Dimensions (Unfolded) | 2154 × 601 × 4 mm |
| Compatible Connectors | MC-4, Anderson, XT60, XT90, DC5521 |
| Compatible Devices | VTOMAN portable power stations, portable power stations from other brands |
| Compatible Battery Types | Sealed lead-acid, gel, open-type lead-acid |
| Included adapter cable | MC4 to XT60 / XT90 / Anderson / DC5521 |
