Vision VFM-WA4X4/3. Mounting: Screws, Maximum weight capacity: 20 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 152.4 cm (60"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -2 – 12°. Product colour: Black

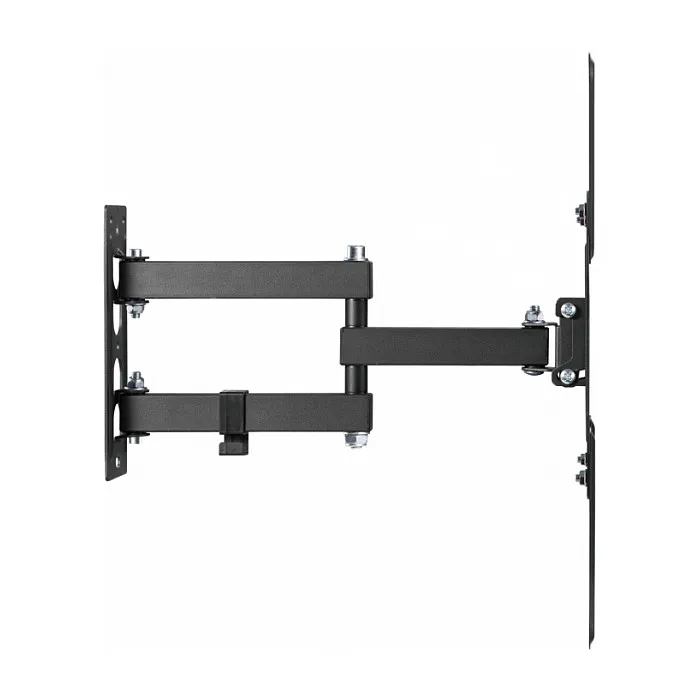

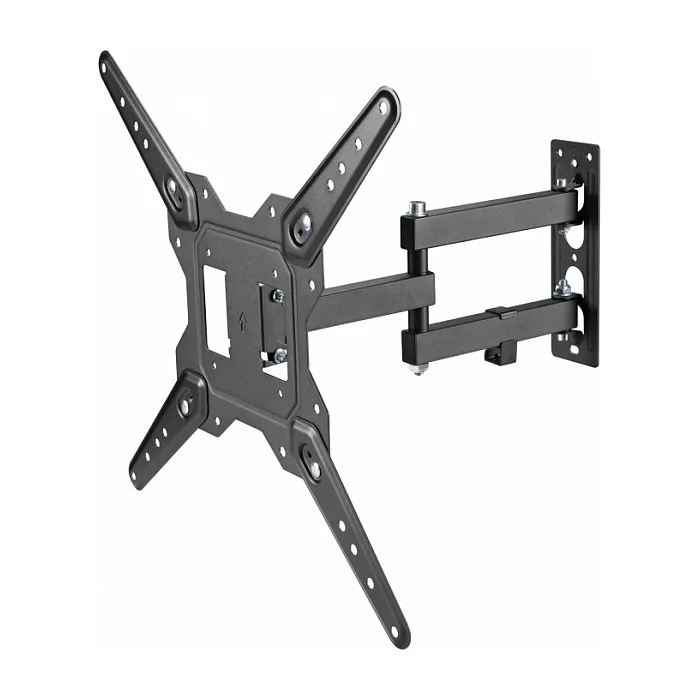

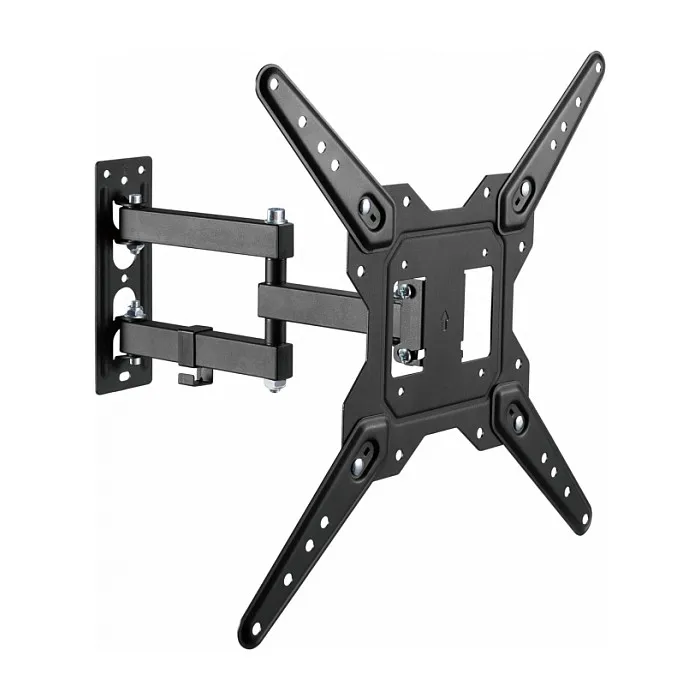

Vision’s Vision Flat-Panel Mount – Wall Arm range is tough and flexible. The VFM-WA4X4/3 fits any flat-panel LCD or LED screen which has rear mounting holes up to 400 x 400 mm apart.
Mounting
Maximum weight capacity: 20 kg
Minimum screen size: 94 cm (37″)
Number of displays supported: 1
Maximum screen size: 152.4 cm (60″)
Mounting: Screws
Mounting type: Wall
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 100 x 100,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Extension arm (max): 40.2 cm
Distance to the wall (min): 3.9 cm
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -2 – 12°
Swivel angle: 90°
Design
Housing material: Steel
Product colour: Black
Weight & dimensions
Width: 430 mm
Height: 430 mm
Weight: 3 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 342 mm
Package depth: 290 mm
Package height: 60 mm
Package weight: 3.5 kg
Sustainability
Feature: Sustainability compliance
Other features
Compliance certificates: REACH, RoHS
Certification: ISO 9001:2015
Logistics data
Harmonized System (HS) code: 85299097
Maximum weight capacity: 20 kg
Minimum screen size: 94 cm (37″)
Number of displays supported: 1
Maximum screen size: 152.4 cm (60″)
Mounting: Screws
Mounting type: Wall
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 100 x 100,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Extension arm (max): 40.2 cm
Distance to the wall (min): 3.9 cm
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -2 – 12°
Swivel angle: 90°
Design
Housing material: Steel
Product colour: Black
Weight & dimensions
Width: 430 mm
Height: 430 mm
Weight: 3 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 342 mm
Package depth: 290 mm
Package height: 60 mm
Package weight: 3.5 kg
Sustainability
Feature: Sustainability compliance
Other features
Compliance certificates: REACH, RoHS
Certification: ISO 9001:2015
Logistics data
Harmonized System (HS) code: 85299097
