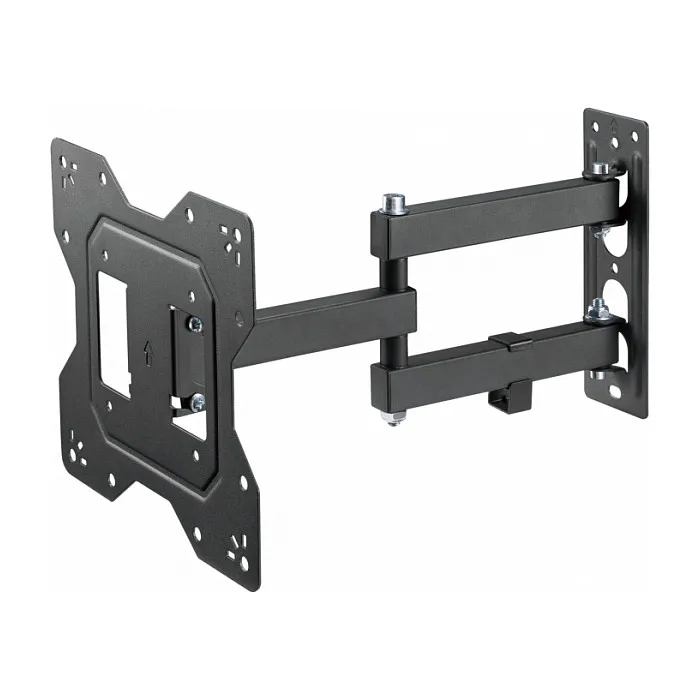

Vision VFM-WA2X2/3. Maximum weight capacity: 25 kg, Minimum screen size: 50.8 cm (20"), Maximum screen size: 127 cm (50"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: -3 – 10°. Product colour: Black
Up to 50″
Most displays up to 50″ use VESA 100 or 200 mounting points, so the WA2X2 fits the majority of displays up to this size. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.
Fast Installation
The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with two bolts.
SWL 25 kg
This mount has a „safe working load” of 25 kg (55 lb). The single-arm design makes this mount especially flexible.
Cable Management
An included clip keeps cables tidy behind the TV.
Tilt and Swivel
-3° up and 10° down tilt adjustment, and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.
VESA
The VESA standard is based on how far apart the mounting holes are on the back of your flat-panel. Holes 200 x 200 mm apart are known as VESA 200 and will suit this mount. This product also fits displays with smaller VESA sizes listed below. This product also fits displays with smaller VESA sizes listed in the specifications.
Thumbscrews
Thumbscrews are used to fix the display to help speed up the installation of this mount.
Maximum weight capacity: 25 kg
Minimum screen size: 50.8 cm (20″)
Number of displays supported: 1
Maximum screen size: 127 cm (50″)
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 200 x 200 mm
Panel mounting interface: 100 x 100,200 x 200 mm
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -3 – 10°
Swivel angle: 90°
Design
Product colour: Black
Housing material: Steel
Technical details
Quantity per pack: 1 pc(s)
Weight & dimensions
Depth (min): 5.6 cm
Depth (max): 37.8 cm
Weight: 1.8 kg
Packaging data
Quantity per pack: 1 pair(s)
Package width: 238 mm
Package depth: 295 mm
Package height: 65 mm
Package weight: 2 kg
Logistics data
Harmonized System (HS) code: 85299097
