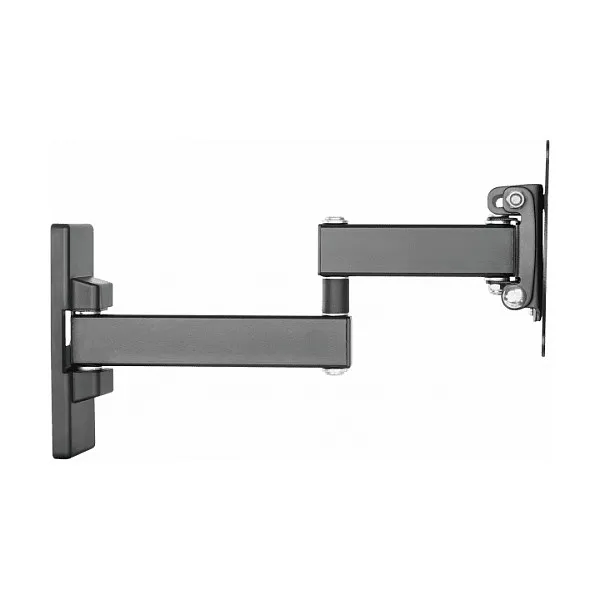

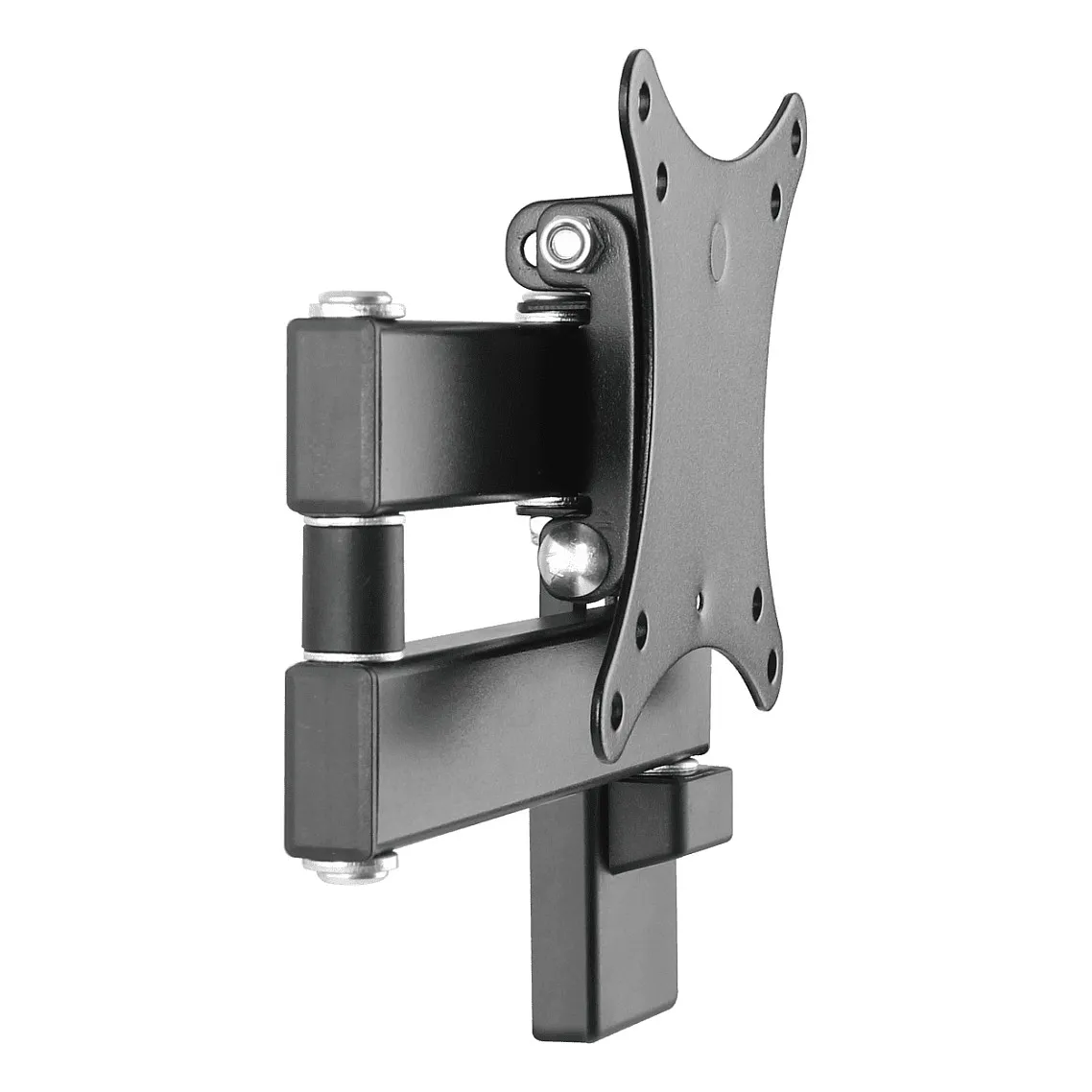

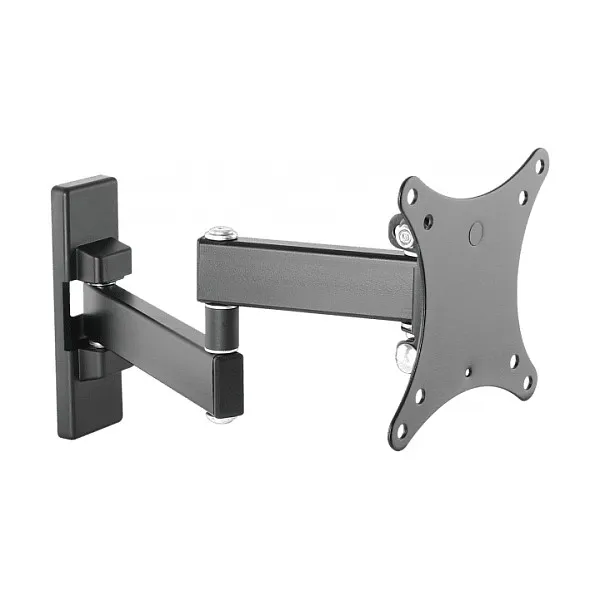

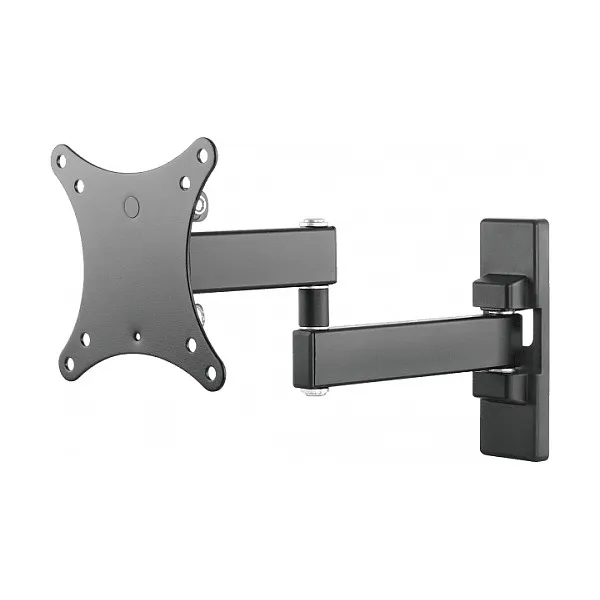

Vision VFM-WA1X1B. Maximum weight capacity: 15 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 68.6 cm (27"), Maximum VESA mount: 100 x 100 mm. Tilt angle range: -3 – 10°. Product colour: Black
Up to 27″
Most displays from 13-27″ fit this mount. If a larger monitor has the correct mounting points and weighs less than the SWL this mount can support it safely.
Thumbscrews
Vision considers every little detail to make installation faster. Two sizes of thumbscrews are included to fix the mount to the monitor.
Fast Installation
The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with a single nut.
Rotation
Didn’t fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place.
SWL 15 kg
This mount has a “safe working load” of 15 kg (33.1 lb). It is made of steel to make it robust.
Tilt and Swivel
-3-10° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office.
Powder-Coated
Robust powder-coating makes this product more scratch resistant than the competition.
VESA
The VESA standard is based on how far apart the mounting holes are on the back of your flat-panel. Holes 100 x 100 mm apart are known as VESA100 and will suit this mount. This product also fits displays with the smaller VESA75 size.
Maximum weight capacity: 15 kg
Minimum screen size: 33 cm (13″)
Number of displays supported: 1
Maximum screen size: 68.6 cm (27″)
Mounting type: Wall
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm
Distance to the wall (min): 4.4 cm
Distance to the wall (max): 28.2 cm
Ergonomics
Tilt angle range: -3 – 10°
Swivel angle: 90°
Design
Housing material: Plastic, Steel
Product colour: Black
Weight & dimensions
Weight: 800 g
Packaging data
Package width: 182 mm
Package depth: 191 mm
Package height: 46 mm
Package weight: 900 g
Other features
Certification: REACH
Logistics data
Harmonized System (HS) code: 85299097
