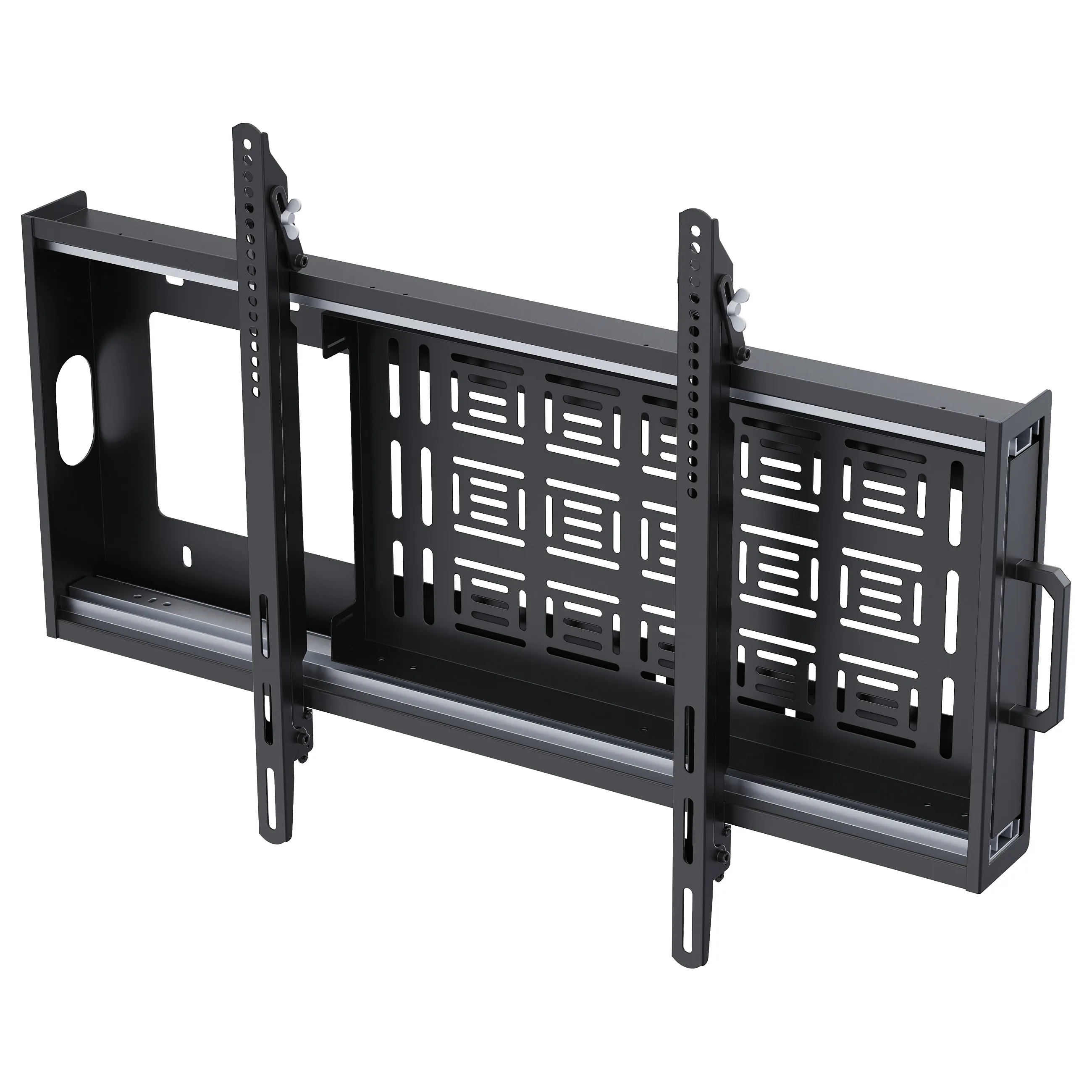

Vision VFM-W8X6S. Maximum weight capacity: 130 kg, Minimum screen size: 119.4 cm (47"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 300 x 300 mm, Maximum VESA mount: 800 x 600 mm. Product colour: Black

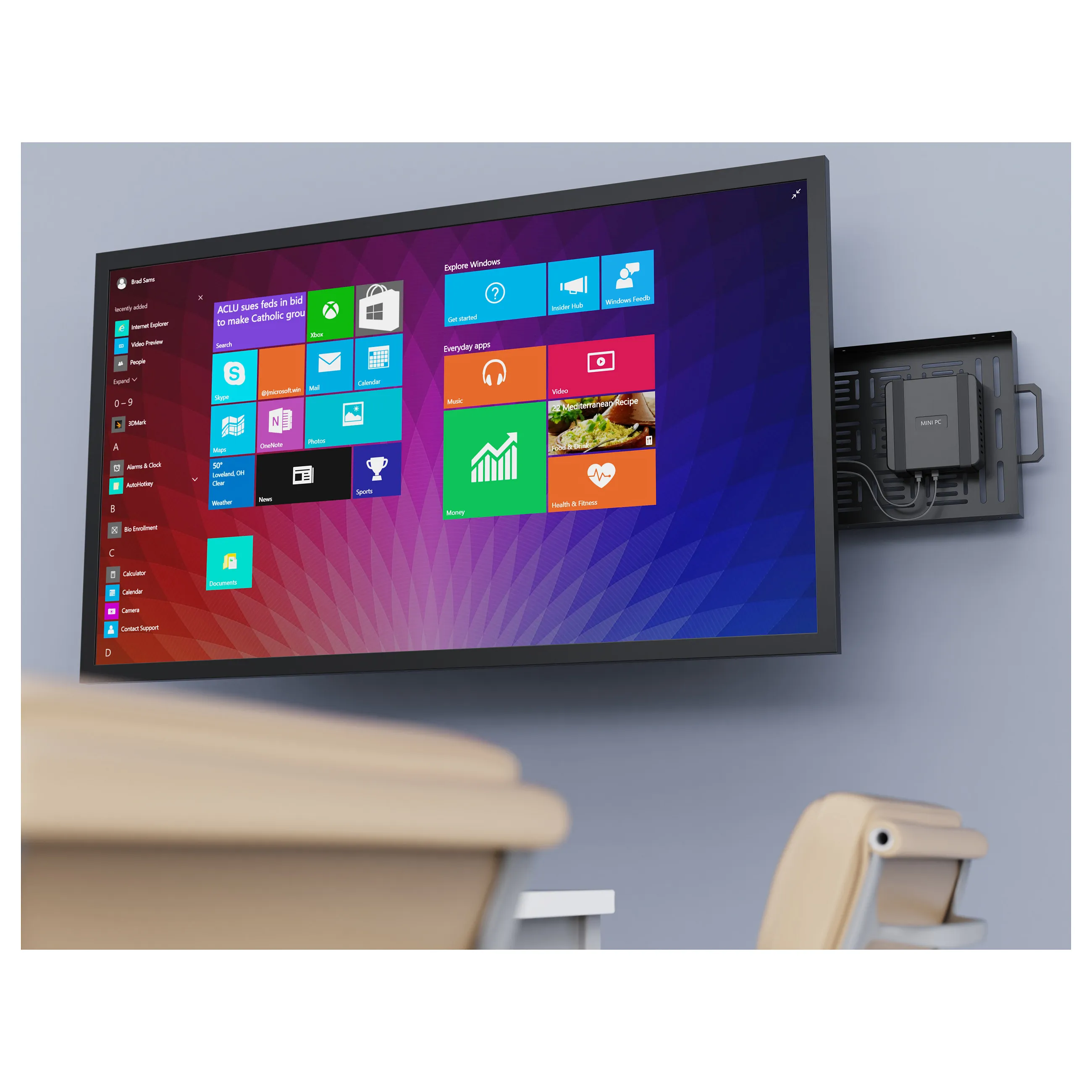

Additionally, it features an innovative slide-out stowage system for concealing power distribution boards and mini PCs behind the display.

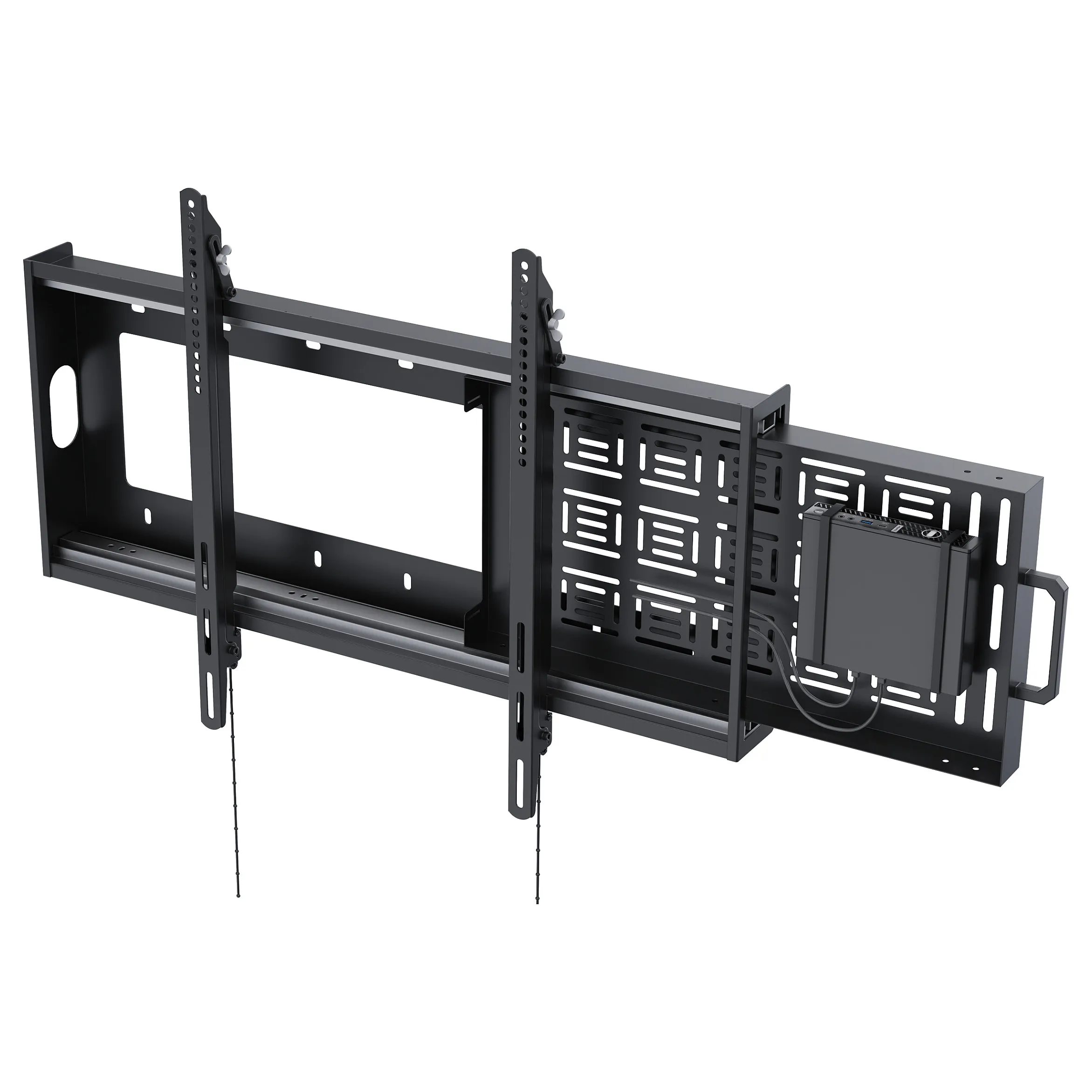

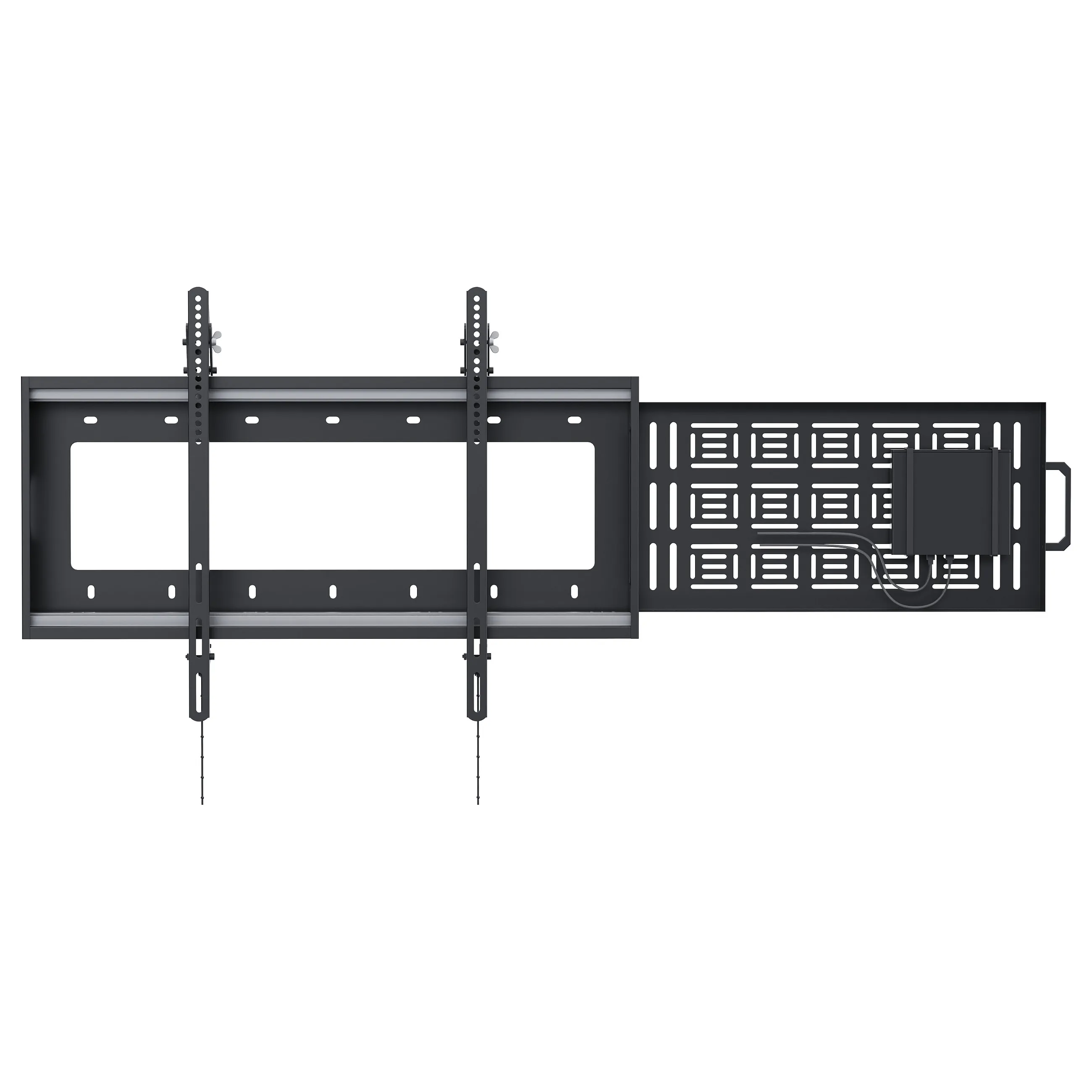

Slide-Out Storage
Fix media players, mini-PCs, and power distribution boards on the slide-out section, simplifying maintenance access.
Heavy Duty
Interactive flat panels are large and very heavy. Vision’s VFM-W8X6S uses heavy gauge sheet metal to take the weight up to SWL 90 kg / 198 lb safely.
Everything Included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
For 47-90″ Displays
Fits most displays from 47-90″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.
Designed for Professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.
Latches Securely
The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
Tilt
Ideal in applications where the display is mounted high, this mount features tilt to direct the display downward.
Maximum weight capacity: 130 kg
Minimum screen size: 119.4 cm (47″)
Number of displays supported: 1
Maximum weight capacity (per display): 130 kg
Maximum screen size: 2.29 m (90″)
Mounting type: Wall
Minimum VESA mount: 300 x 300 mm
Maximum VESA mount: 800 x 600 mm
Panel mounting interface: 800 x 600,800 x 500,800 x 400,700 x 400,600 x 600,600 x 500,600 x 400,500 x 500,500 x 400,400 x 600,400 x 400,400 x 300,400 x 200,300 x 400,300 x 300
Design
Product colour: Black
Housing material: Steel
Certification: RoHS, ADA (Americans with Disability Act) Compliant
Weight & dimensions
Width: 845 mm
Depth: 51 mm
Height: 635 mm
Weight: 6.2 kg
Packaging data
Package width: 880 mm
Package depth: 235 mm
Package height: 55 mm
Package weight: 7.5 kg
