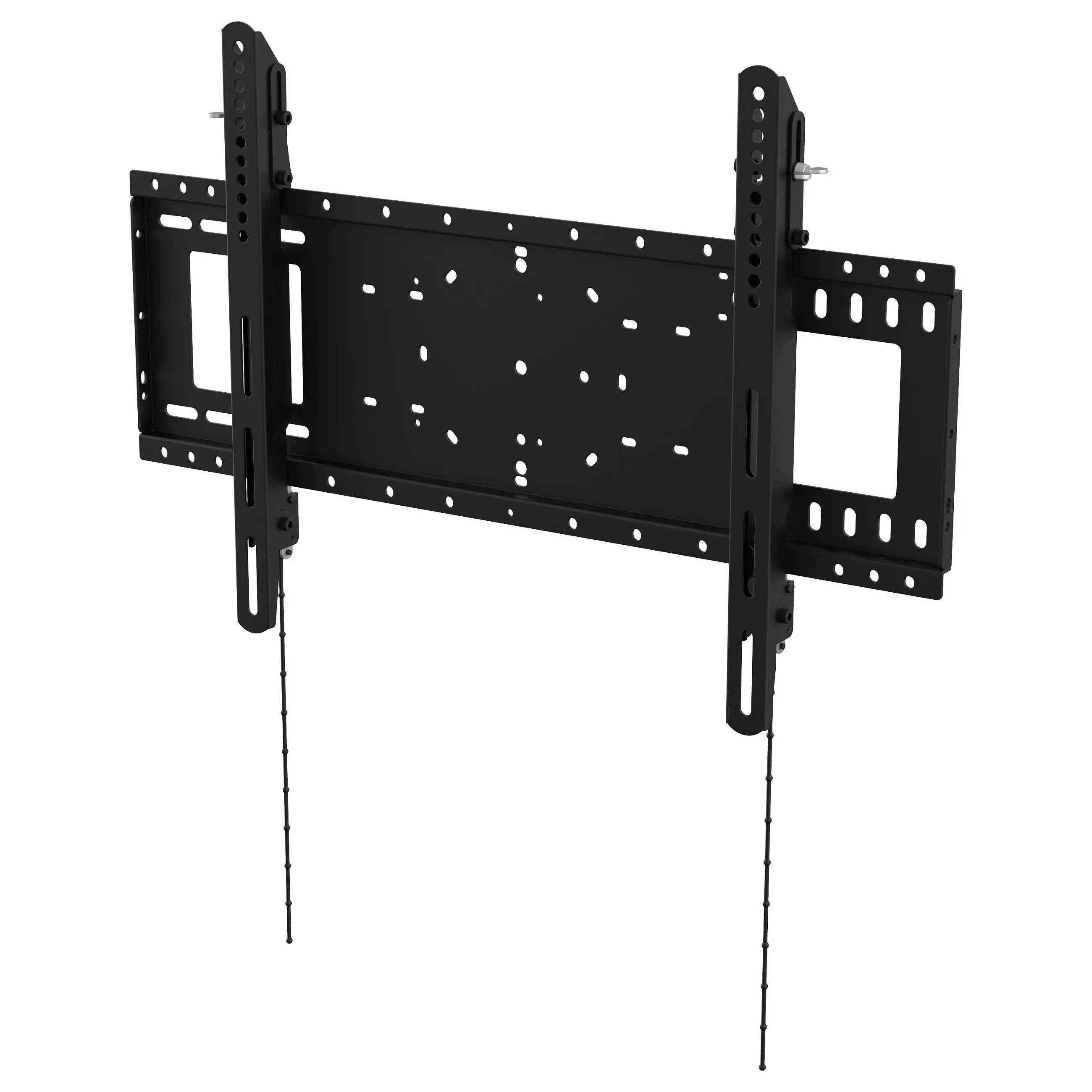

Vision VFM-W6X4T. Maximum weight capacity: 100 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 – 12°, Distance to the wall (max): 4.5 cm. Product colour: Black
Heavy Duty
Interactive flat panels are large and very heavy. Vision’s VFM-W6X4T uses heavy gauge sheet metal to take the weight up to SWL 100 kg / 220 lb safely.
Everything Included

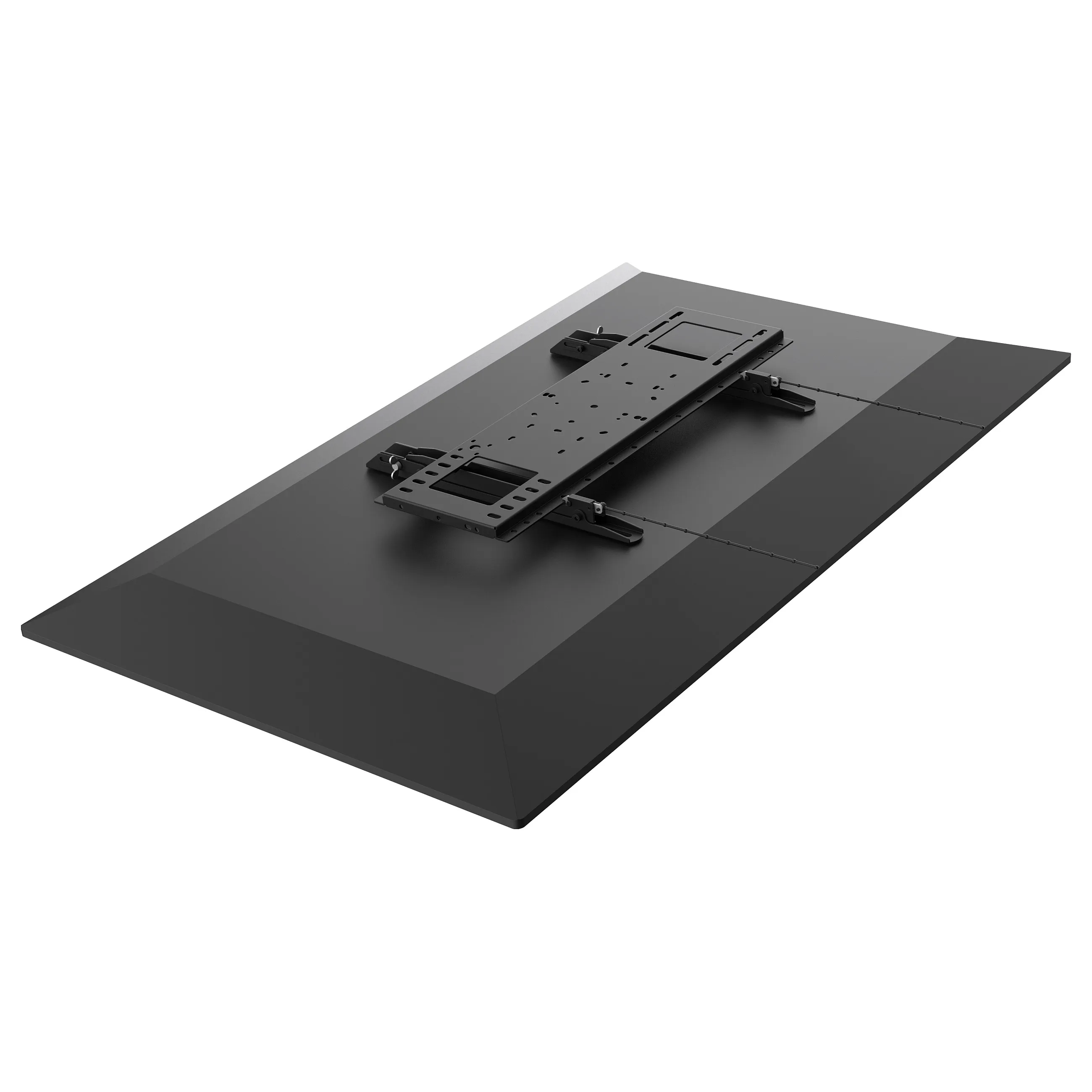

Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
For 37-75″Displays
Fits most displays from 37-75″. Note: curved screens are not supported by this mount.
Meets ADA Regulations

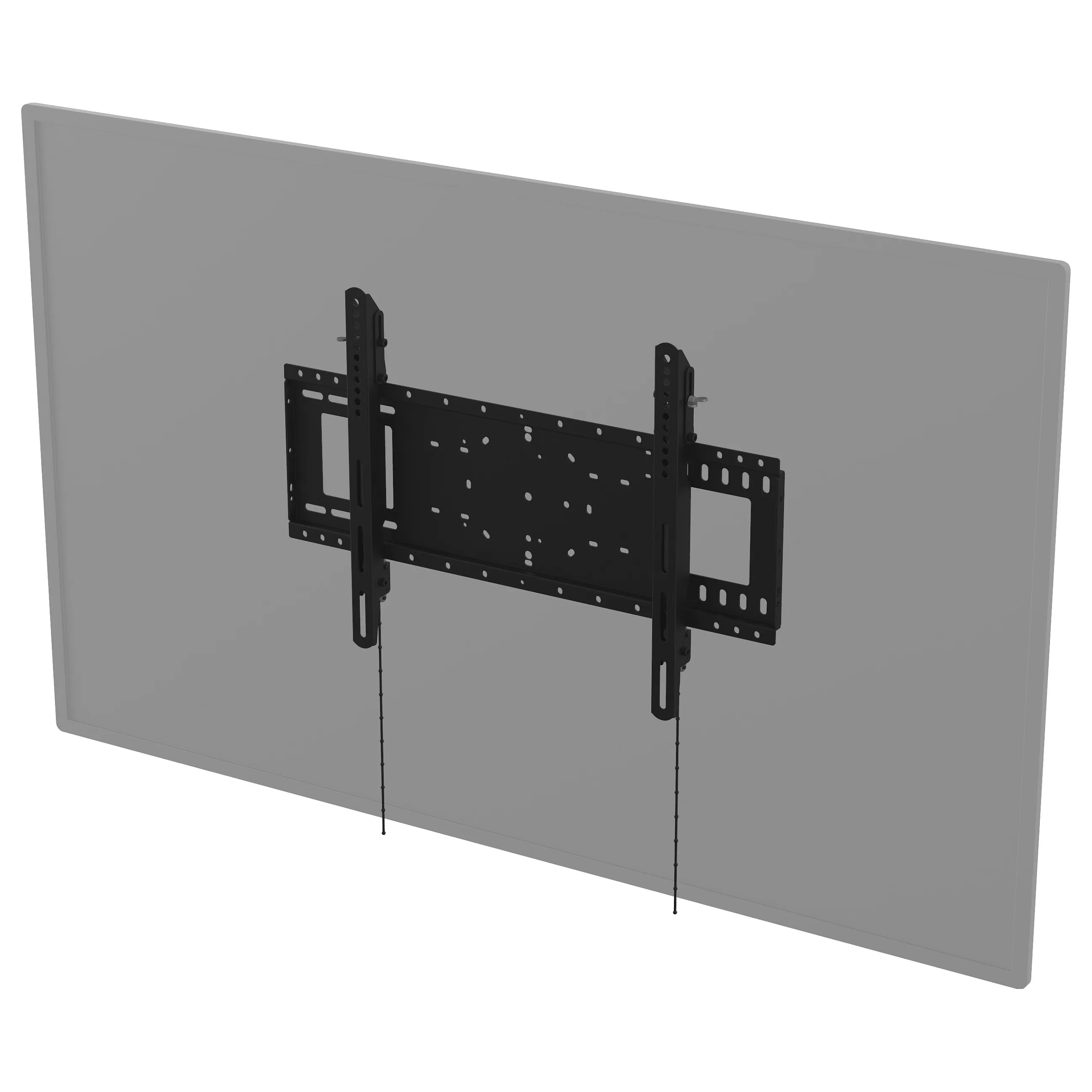

The thin design holds the display just 45 mm / 1.8″ off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
Designed for Professionals

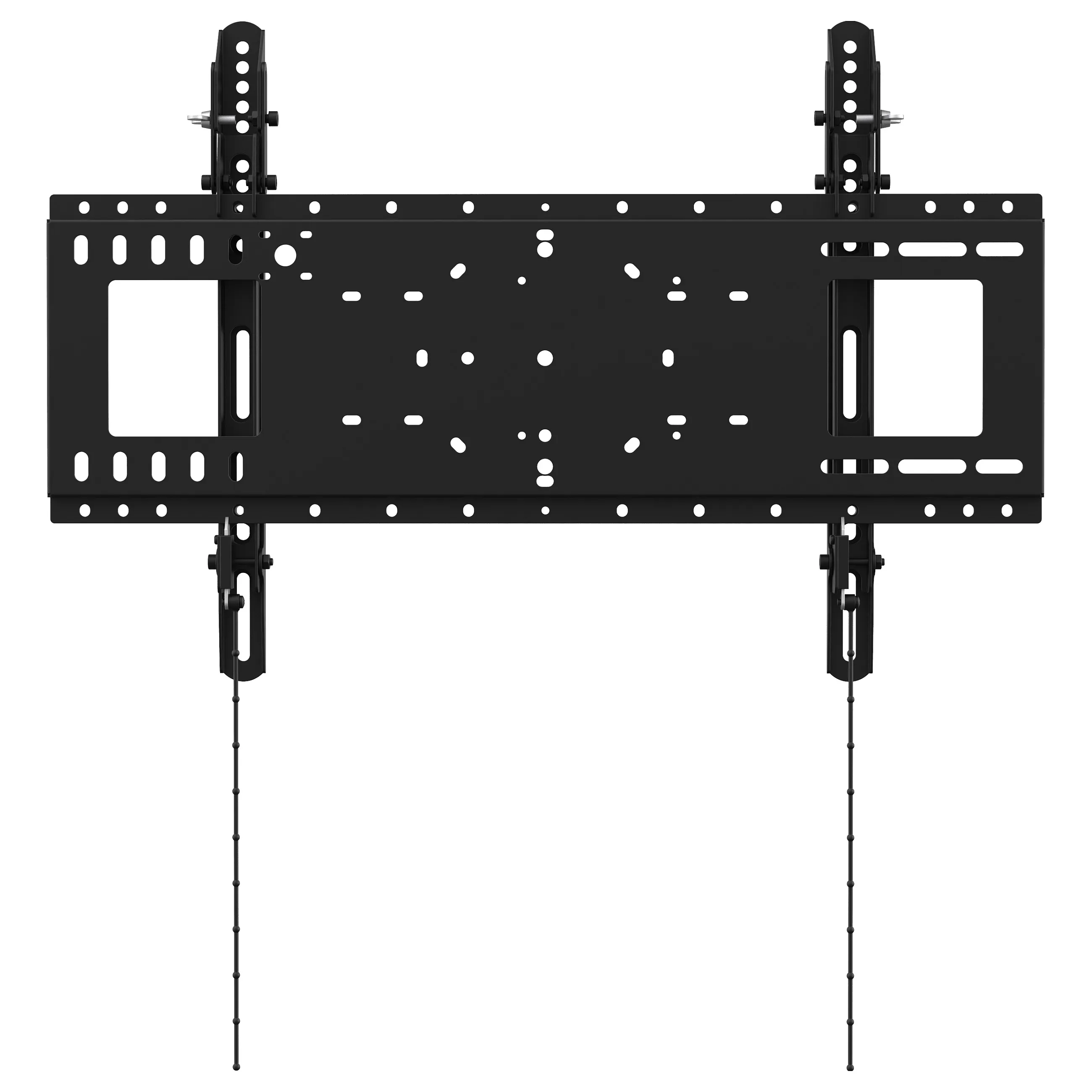

A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.
Latches Securely

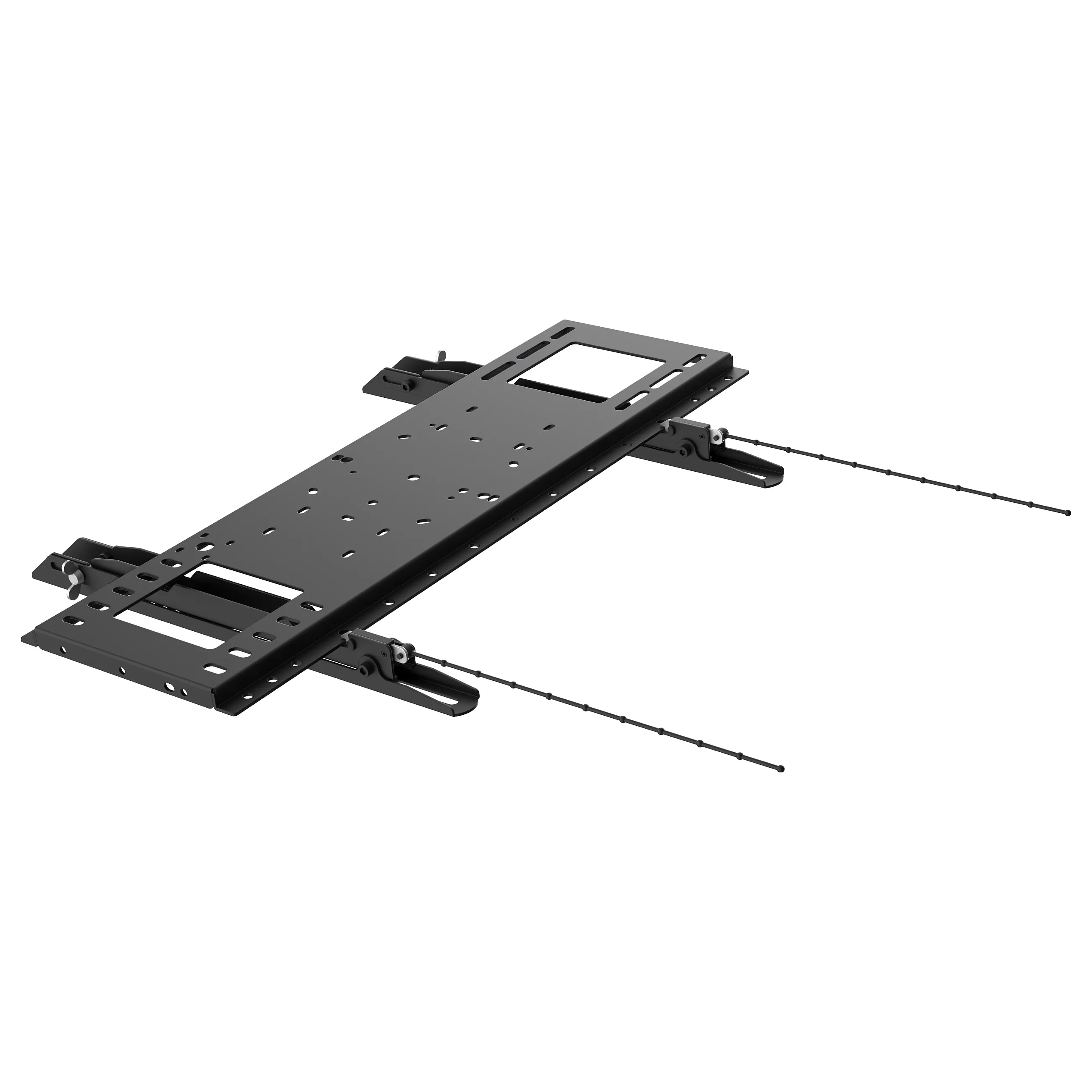

The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
Side by Side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.
Hide Media Player

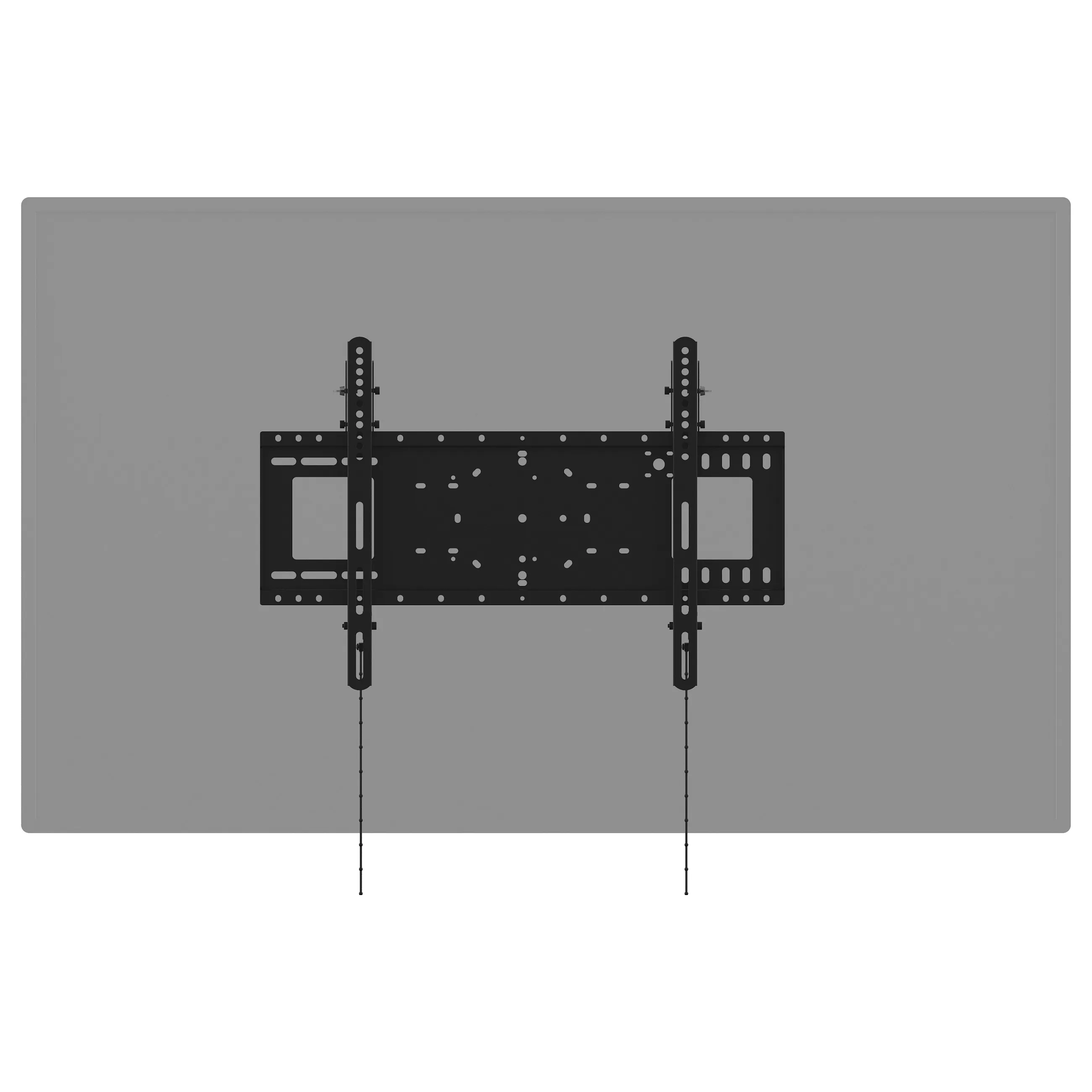

Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.
Side Shelf
An optional flip-up laptop shelf comes with an adjustable outrigger which fixes it to the horizontal section. It can be positioned at the correct height to the side of the display. Part Number: VFM-WSS [EU SAP: 4857149 / US SAP: tbc]
Video Conference Shelf
An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally can be fixed to the shelf. It is also designed to accommodate Yamaha’s VVC-1000, Barco’s Clickshare CSE-200 base station, or Logitech’s Meetup wall bracket can fix to the vertical part. With VESA 100 x 100 mm holes on the vertical section, product’s like Heckler’s Zoom Room iPad enclosure can be fixed. Part Number: VFM-WVC [EU SAP: 5048878 / US SAP: tbc]

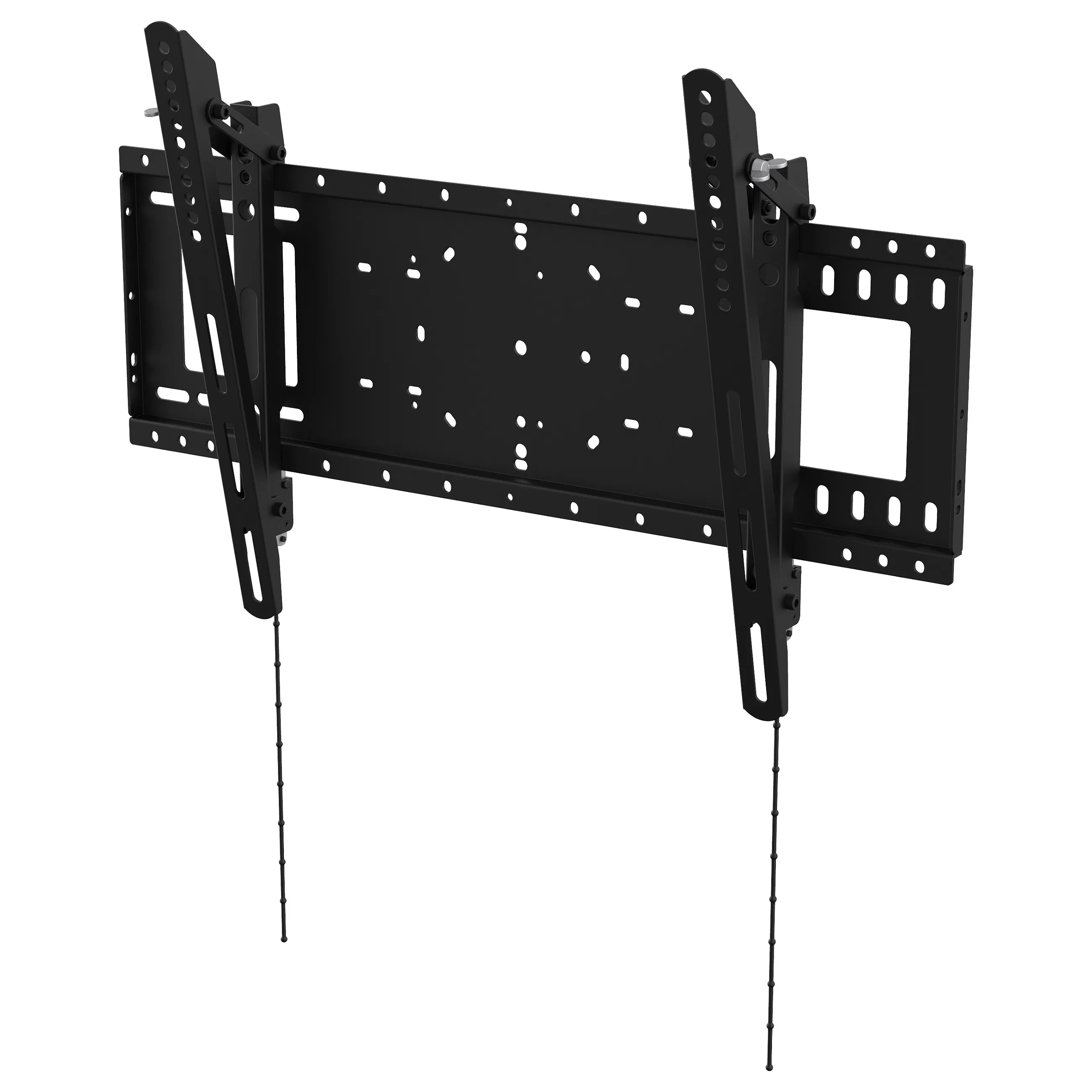

12° Tilt
Ideal in applications where the display is mounted high, this mount features tilt to direct the display downward.
Maximum weight capacity: 100 kg
Minimum screen size: 94 cm (37″)
Number of displays supported: 1
Maximum screen size: 190.5 cm (75″)
Feature: Suitable for computer monitor
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,200 x 400,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,500 x 400,500 x 500,500 x 300,600 x 300,600 x 400
Mounting type: Wall
Ergonomics
Feature: Adjustable depth
Tilt angle range: 0 – 12°
Distance to the wall (max): 4.5 cm
Design
Product colour: Black
Housing material: Metal
Certification: ADA
Technical details
Compliance certificates: RoHS
Packaging content
Feature: Manual
Weight & dimensions
Width: 645 mm
Depth (min): 4.45 cm
Height: 435 mm
Weight: 4 kg
Packaging data
Package width: 680 mm
Package depth: 55 mm
Package height: 235 mm
Package weight: 4.7 kg
Logistics data
Harmonized System (HS) code: 85299097
