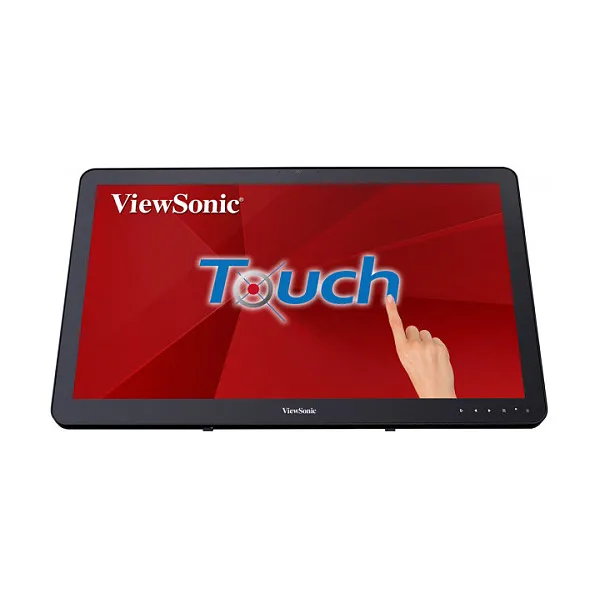

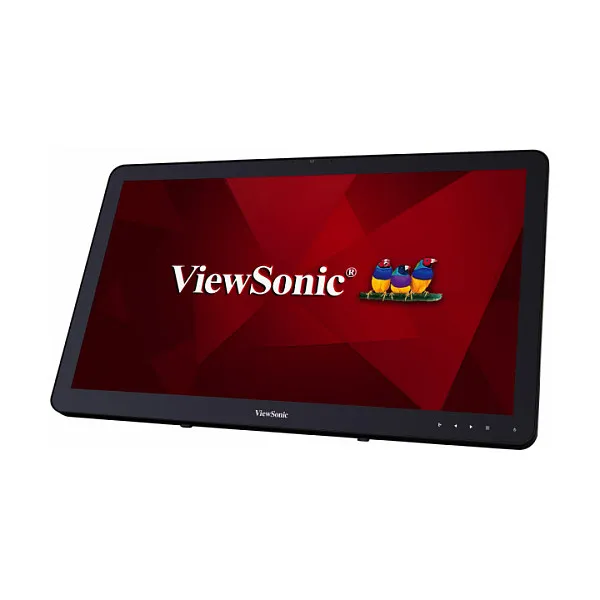

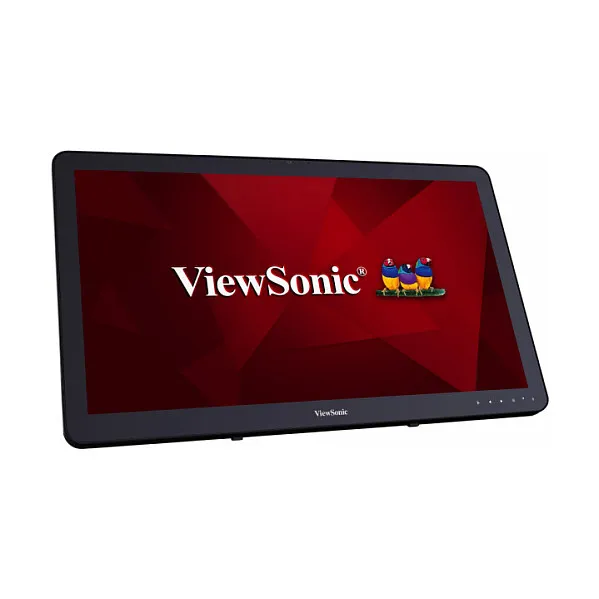

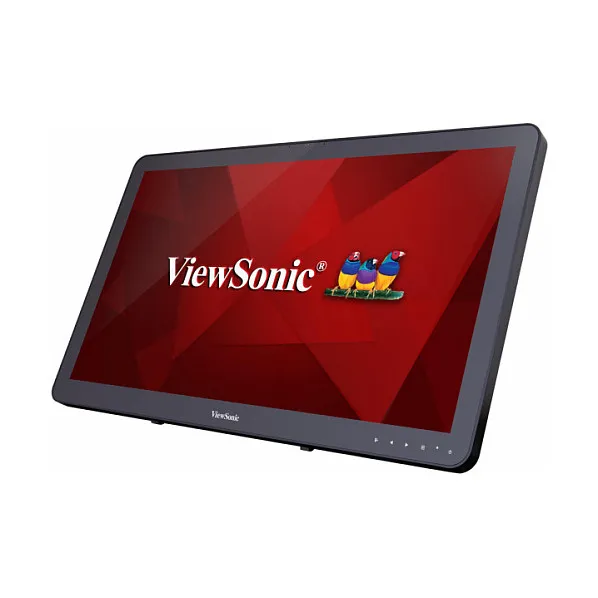

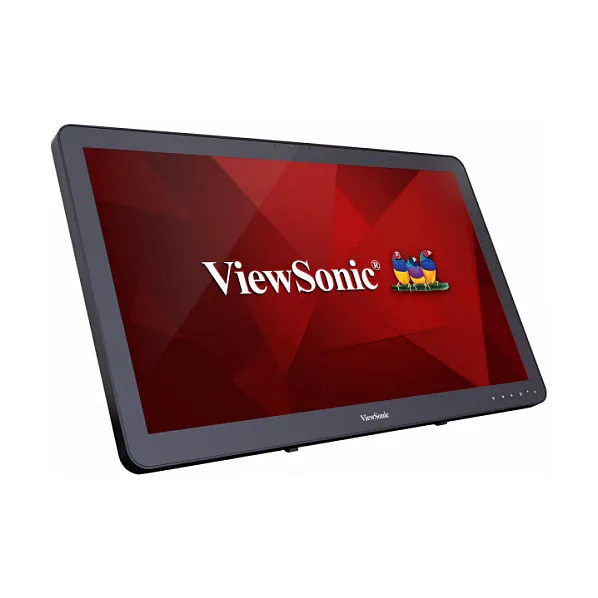

Viewsonic TD2430. Display diagonal: 59.9 cm (23.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
– SuperClear® MVA-type panel technology
– Frameless Design
– Versatile Connectivity
– Durable, Scratch-resistant Screen
Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.
*Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.
Display diagonal: 59.9 cm (23.6″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 200 cd/m²
Response time: 5 ms
Screen shape: Flat
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 50000000:1
Maximum refresh rate: 76 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.2715 x 0.2715 mm
Horizontal scan range: 24 – 82 kHz
Vertical scan range: 50 – 75 Hz
Display diagonal (metric): 60 cm
Performance
Windows operating systems supported: Windows 10, Windows 7, Windows 8
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android
Multimedia
Number of speakers: 2
RMS rated power: 5 W
Feature: Built-in speaker(s)
Design
Product colour: Black

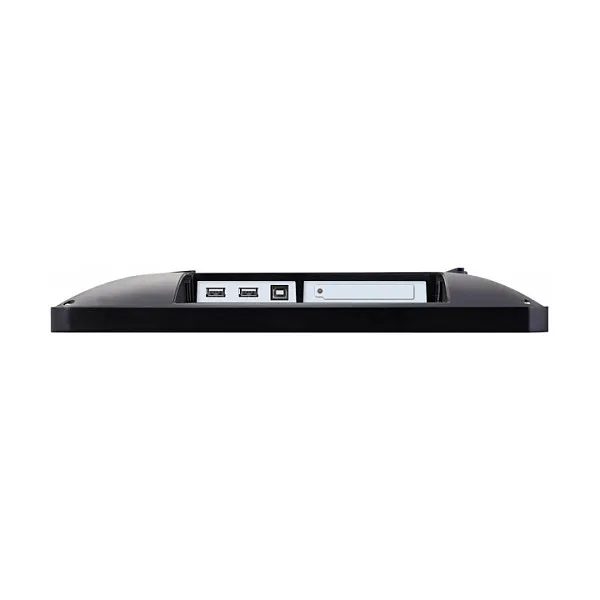

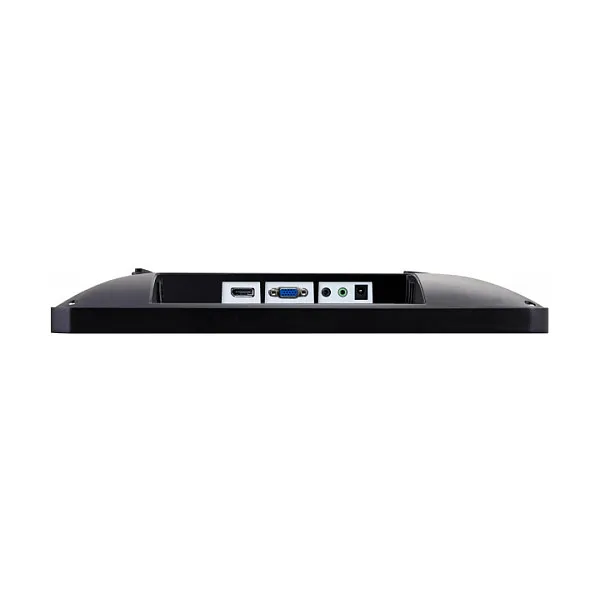

Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 1
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 2
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: Headphone out
Headphone outputs: 1
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable

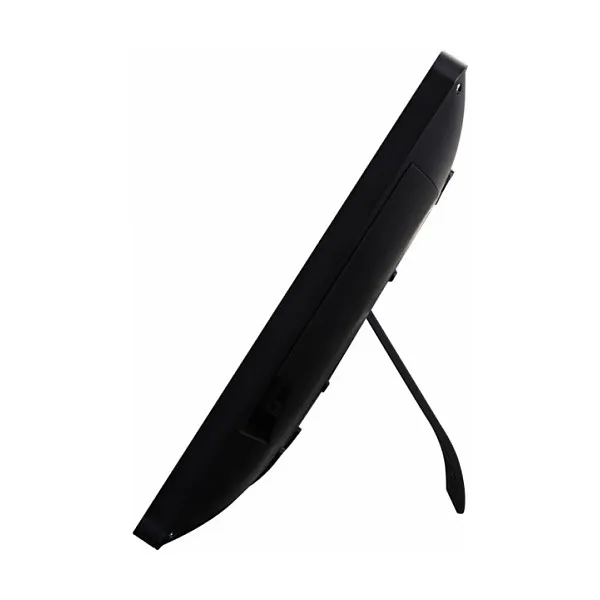

Feature: Tilt adjustment
Tilt angle range: 20 – 53°
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15 kWh
Power consumption (typical): 25 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100-240 V
AC input frequency: 50 – 60 Hz
Power supply type: AC
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width (with stand): 573 mm
Depth (with stand): 47 mm
Height (with stand): 353 mm
Weight (with stand): 5.51 kg
Packaging data
Package width: 643 mm
Package depth: 140 mm
Package height: 435 mm
Package weight: 7.1 kg
Packaging content
Cables included: AC, Audio (3.5mm), HDMI, USB
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Other features
Display viewable area (HxV): 521.28 x 293.22 mm
Mobile operating systems supported: Android
Weight: 5.5 kg
Compliance certificates: CE, REACH, RoHS
Technical details
Native refresh rate: 60 Hz
Logistics data
Products per master (outer) case: 1 pc(s)
Pallet gross width: 120 cm
Pallet gross length: 100 cm
Pallet gross height: 189 cm
Harmonized System (HS) code: 8528521000
