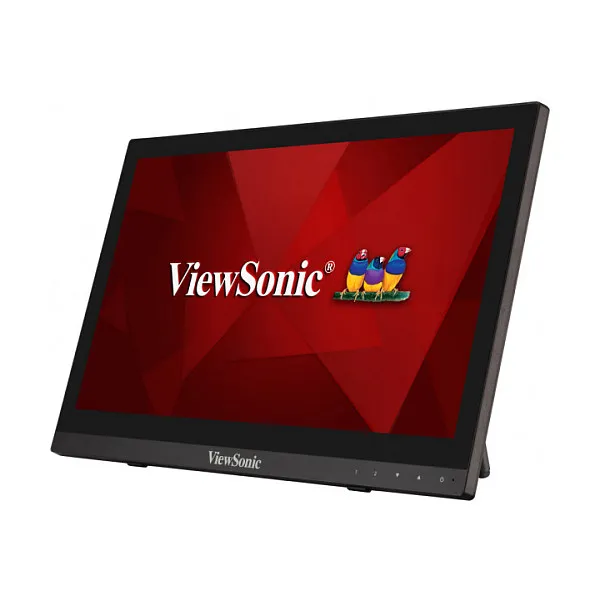

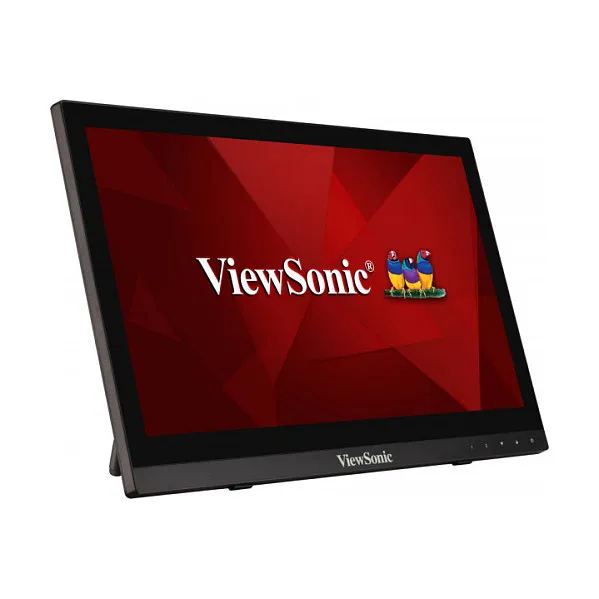

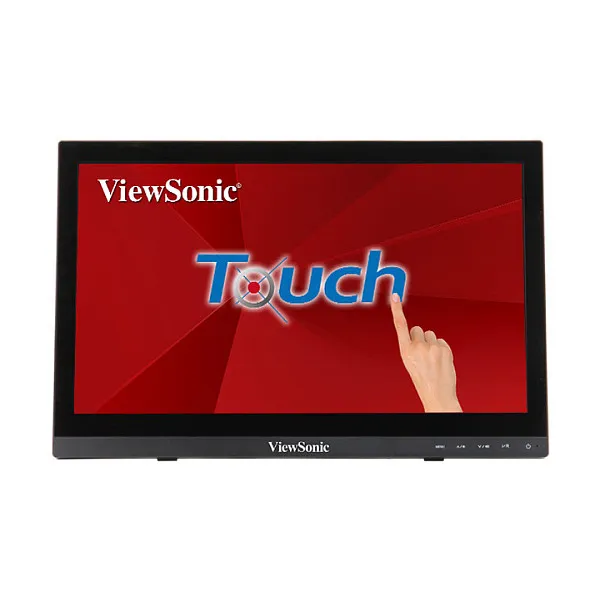

Viewsonic TD1630-3. Display diagonal: 39.6 cm (15.6"), Display resolution: 1366 x 768 pixels, HD type: HD, Display technology: LCD, Response time: 12 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 90°, Viewing angle, vertical: 60°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
10-point Multi-touch

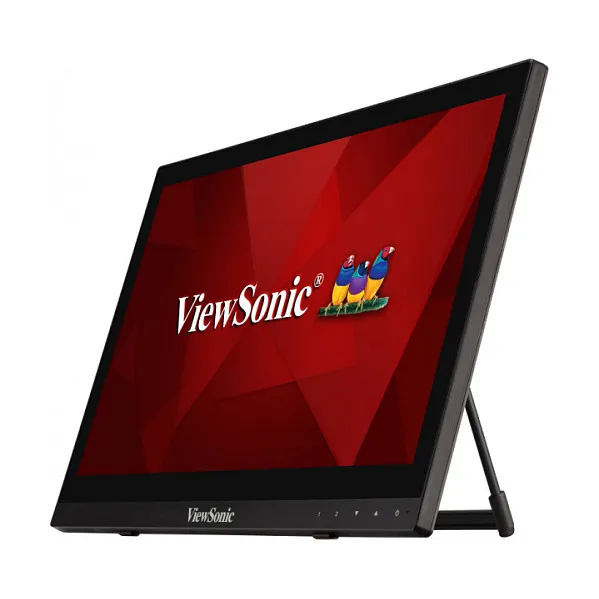

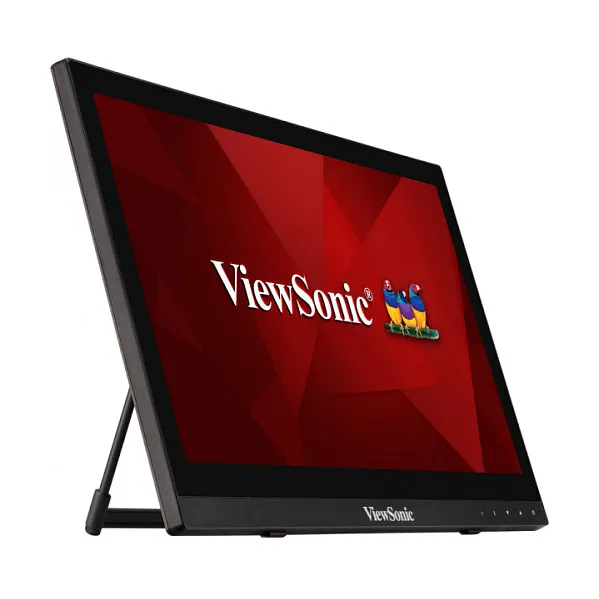

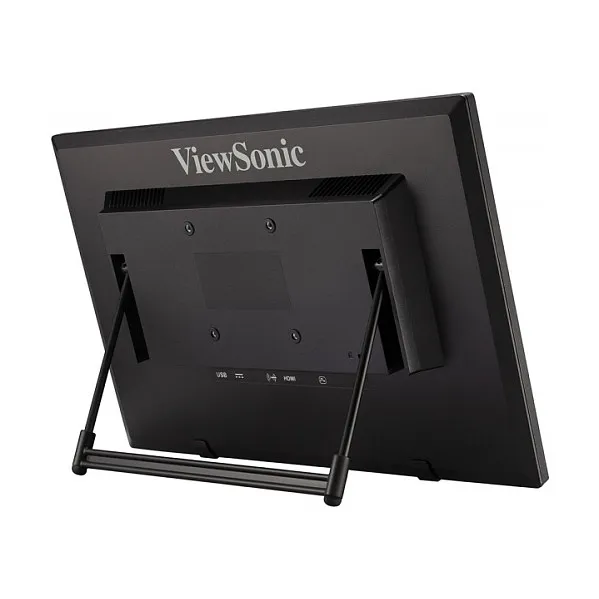

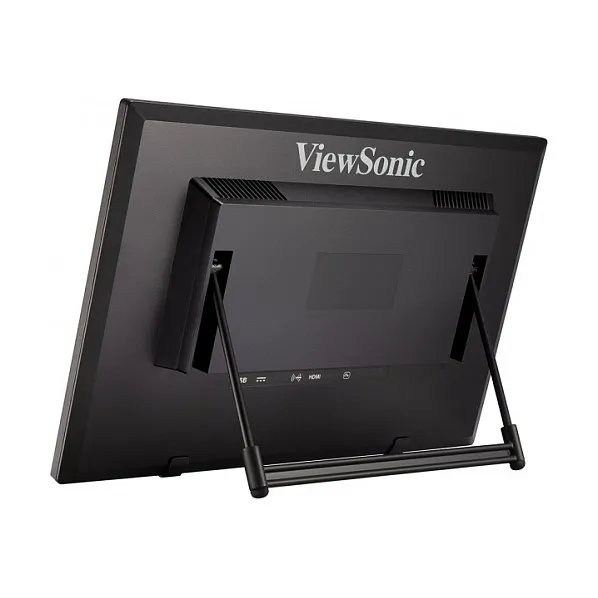

Advanced ergonomic stand design

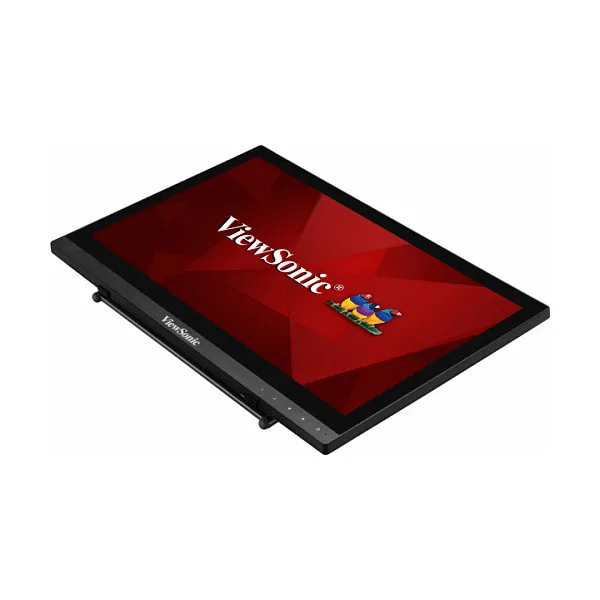

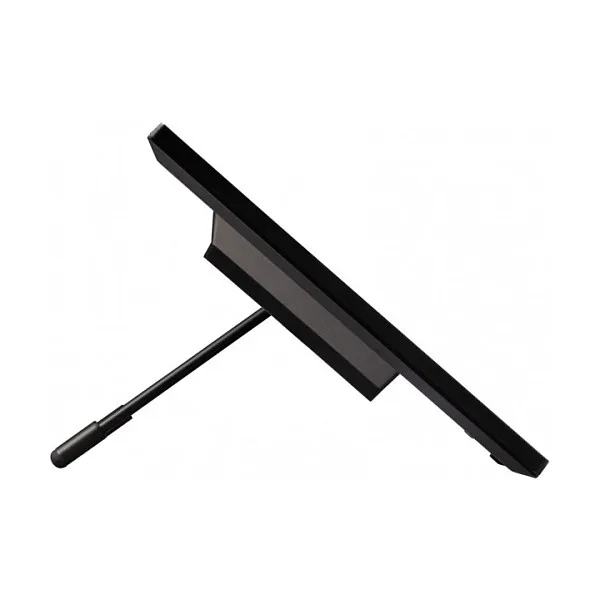

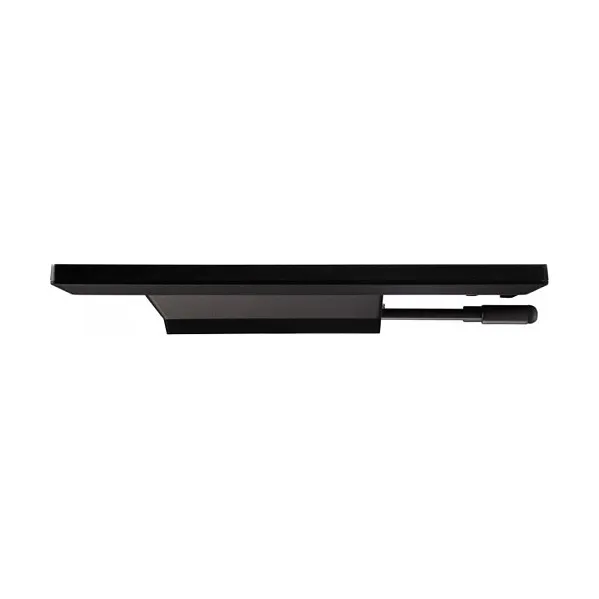

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.

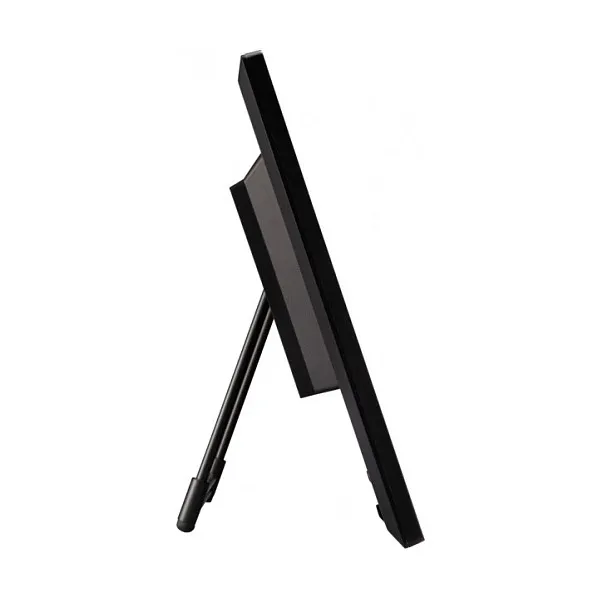

Ergonomic stand
Versatile Connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Cross-platform compatibility
Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions.
Supports Windows 7/8/10, Linux Kernel 4.X/3.X
Windows 10, Linux
Durable, Scratch-resistant Screen
This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
7H Hardness
Dual integrated speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Dual integrated speakers
Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Blue light filter Flicker Free

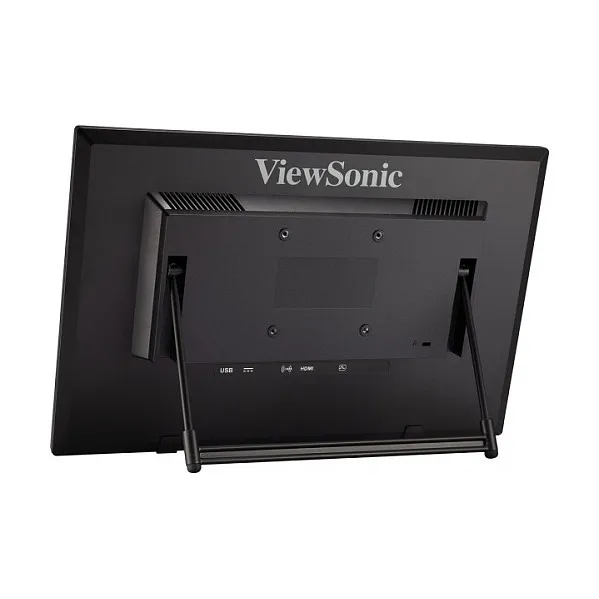

VESA-compatible mount
Conveniently mount the monitor to your liking by utilizing VESA compatible mount design.
Display diagonal: 39.6 cm (15.6″)
Display resolution: 1366 x 768 pixels
HD type: HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: TN
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 220 cd/m²
Response time: 12 ms
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768
Contrast ratio (typical): 500:1
Contrast ratio (dynamic): 10000000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 90°
Viewing angle, vertical: 60°
Display number of colours: 262144 colours
Pixel pitch: 0.252 x 0.252 mm
Horizontal scan range: 30 – 61 kHz
Vertical scan range: 56 – 75 Hz
Display diagonal (metric): 39.6 cm
Performance
Windows operating systems supported: Windows 10, Windows 7, Windows 8
Mac operating systems supported: Yes
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
Audio input: 1
Ergonomics
Feature: VESA mounting
Panel mounting interface: 75 x 75 mm
Feature: Wall mountable
Feature: Tilt adjustment
Tilt angle range: 15 – 50°
Power

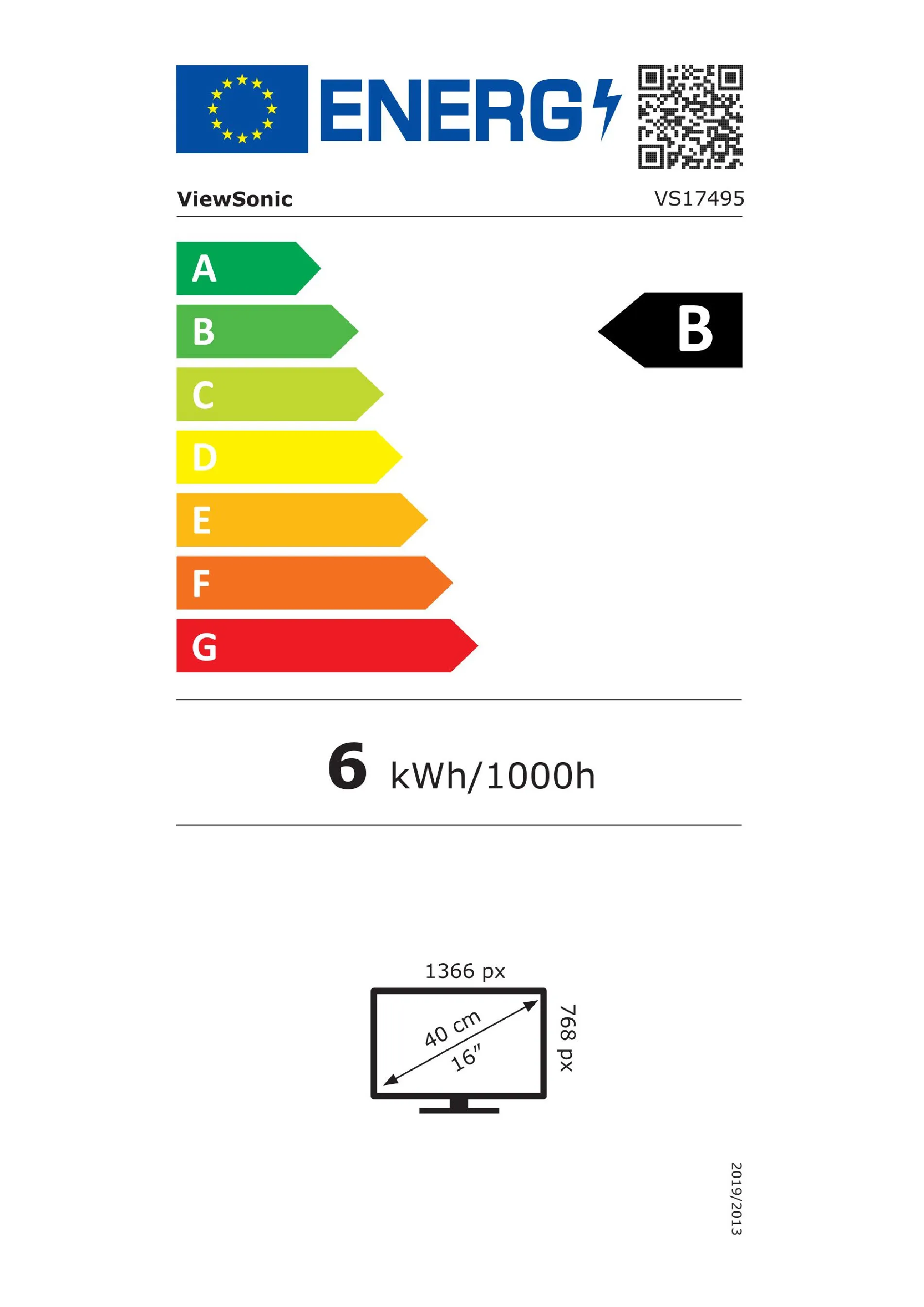

Energy efficiency class (SDR): B
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 6 kWh
Power consumption (typical): 5.5 W
Power consumption (standby): 0.2 W
Power consumption (off): 0.2 W
AC input voltage: 100-240 V
AC input frequency: 50 – 60 Hz
Power supply type: AC
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 85%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width (with stand): 379.2 mm
Depth (with stand): 37.1 mm
Height (with stand): 247.1 mm
Weight (with stand): 1.32 kg
Packaging data
Package width: 453 mm
Package depth: 86 mm
Package height: 389 mm
Package weight: 2.5 kg
Packaging content
Cables included: AC, Audio (3.5mm), USB, VGA
Sustainability
Sustainability certificates: ErP
Other features
Display viewable area (HxV): 344.23 x 193.54 mm
Weight: 1.3 kg
Compliance certificates: CE, REACH, RoHS
Certification: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
Technical details
Native refresh rate: 60 Hz
Logistics data
Products per master (outer) case: 1 pc(s)
Pallet gross width: 120 cm
Pallet gross length: 100 cm
Pallet gross height: 2.17 m
Harmonized System (HS) code: 8528521000
