VALUE 17.99.1185. Maximum weight capacity: 75 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 – 5°, Swivel angle range: -5 – 5°. Product colour: Black
Description

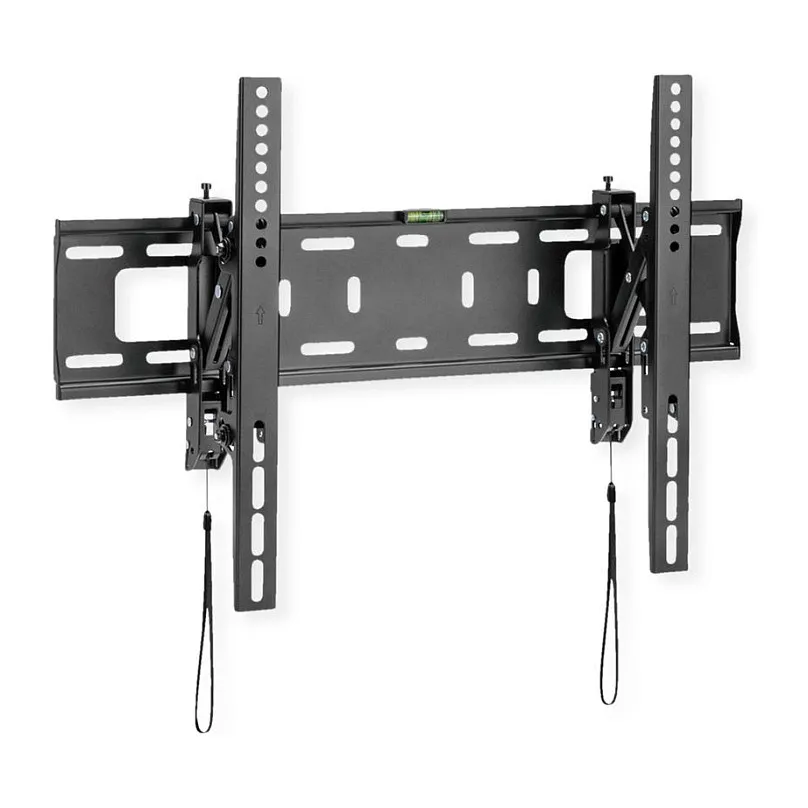

Large TV sets mounted on conventional tilting TV wall mounts often hit the wall when tilted. However, this VALUE TV wall mount offers a particularly long extension length. The distance to the wall can therefore be up to 133 mm, so that large televisions can be fully tilted. In addition, the swivel function offers a flexible viewing angle.
Mounting
Maximum weight capacity: 75 kg
Minimum screen size: 94 cm (37″)
Number of displays supported: 1
Maximum weight capacity (per display): 75 kg
Maximum screen size: 2.03 m (80″)
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment

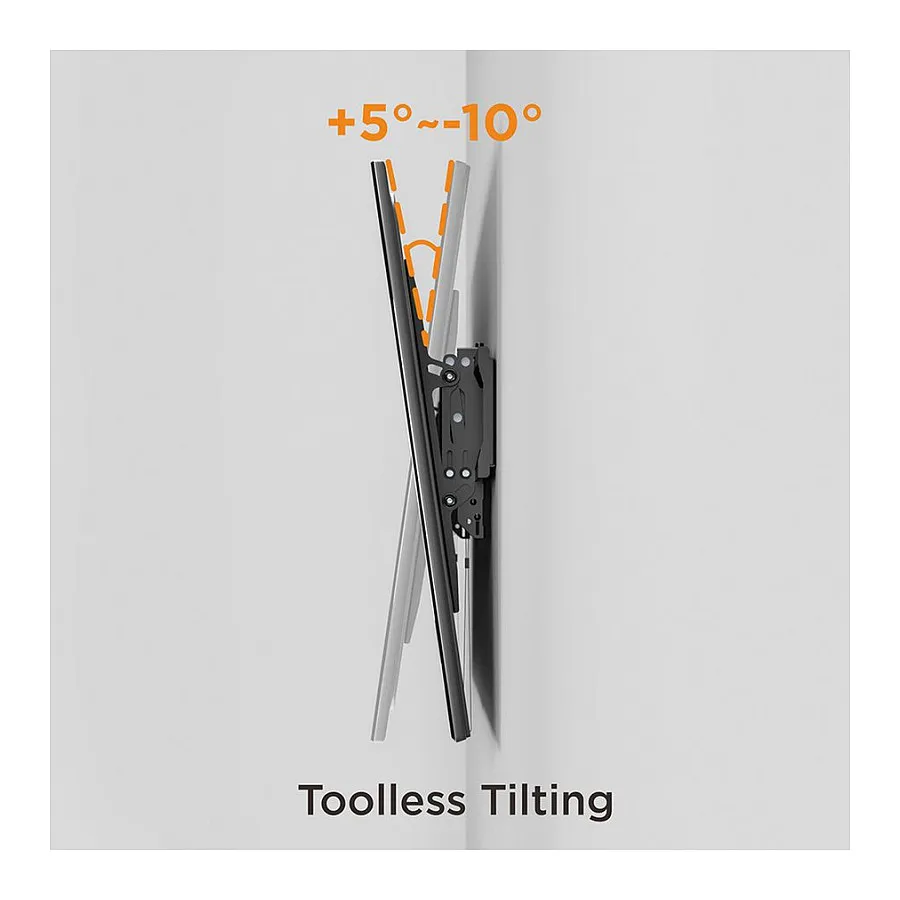

Tilt angle range: -10 – 5°
Feature: Swivelling
Swivel angle: 10°

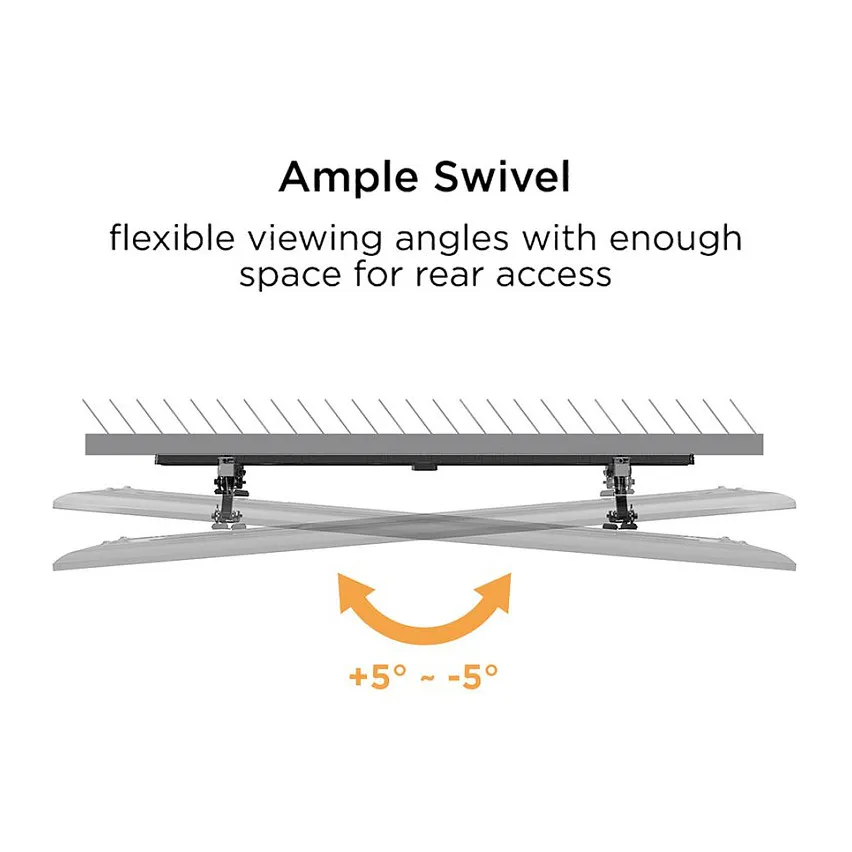

Swivel angle range: -5 – 5°
Minimum distance to floor: 7.2 cm
Maximum distance to floor: 13.3 cm
Design
Product colour: Black
Housing material: Metal
Weight & dimensions
Width: 653 mm
Depth (max): 13.3 cm
Height: 430 mm
Weight: 3.28 kg
Packaging data
Quantity per pack: 1 pair(s)
Package width: 170 mm
Package depth: 680 mm
Package height: 70 mm
Package weight: 4 kg
Maximum weight capacity: 75 kg
Minimum screen size: 94 cm (37″)
Number of displays supported: 1
Maximum weight capacity (per display): 75 kg
Maximum screen size: 2.03 m (80″)
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -10 – 5°
Feature: Swivelling
Swivel angle: 10°
Swivel angle range: -5 – 5°
Minimum distance to floor: 7.2 cm
Maximum distance to floor: 13.3 cm
Design
Product colour: Black
Housing material: Metal
Weight & dimensions
Width: 653 mm
Depth (max): 13.3 cm
Height: 430 mm
Weight: 3.28 kg
Packaging data
Quantity per pack: 1 pair(s)
Package width: 170 mm
Package depth: 680 mm
Package height: 70 mm
Package weight: 4 kg
