Ubiquiti UNVR-Instant. Maximum resolution: 3840 x 2160 pixels. HDD size: 3.5". Ethernet LAN data rates: 10,100,1000 Mbit/s. LED indicators: LAN, PoE, Product colour: White. Processor frequency: 1.7 GHz

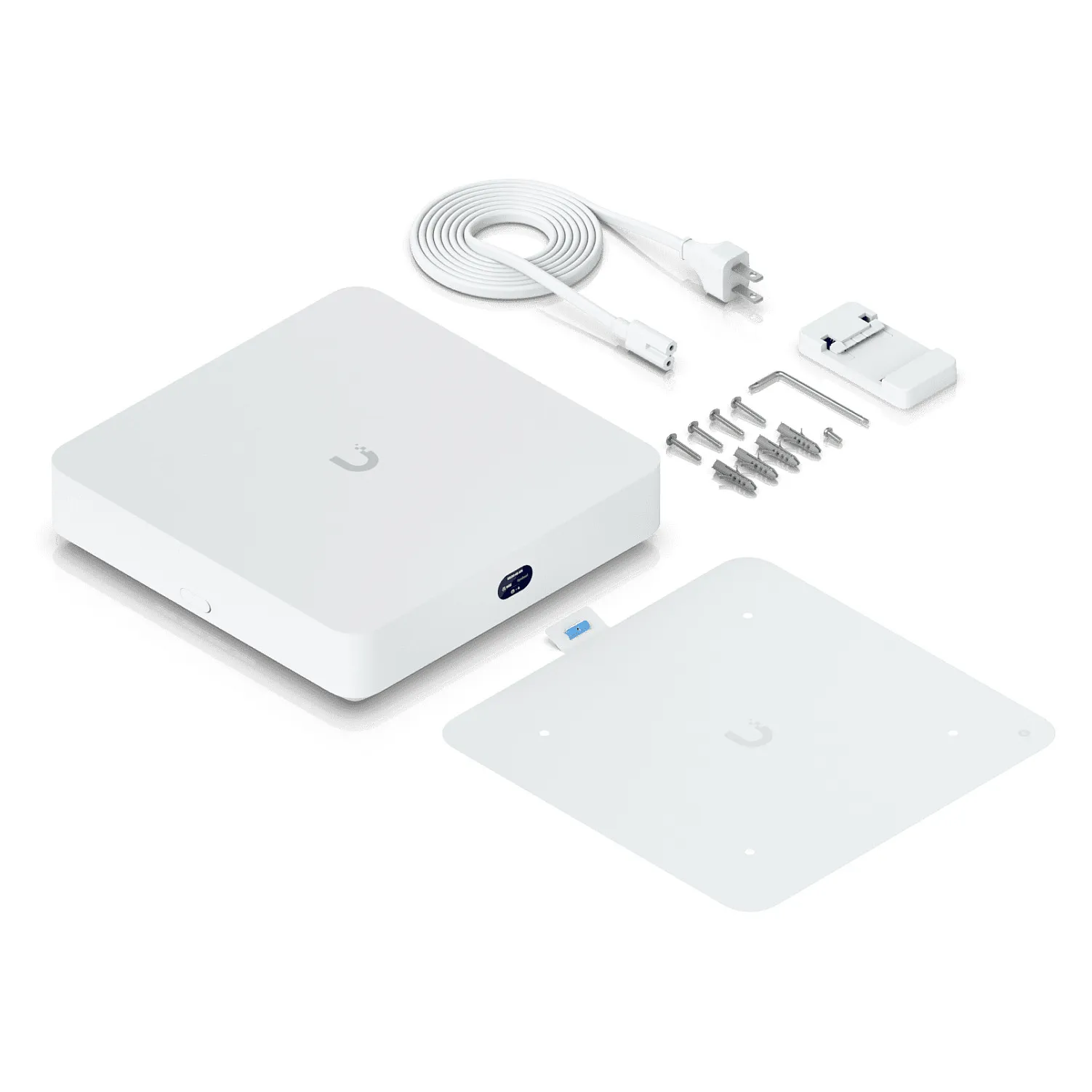

Compact UniFi Protect NVR with 3.5″ HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Performance
Maximum resolution: 3840 x 2160 pixels

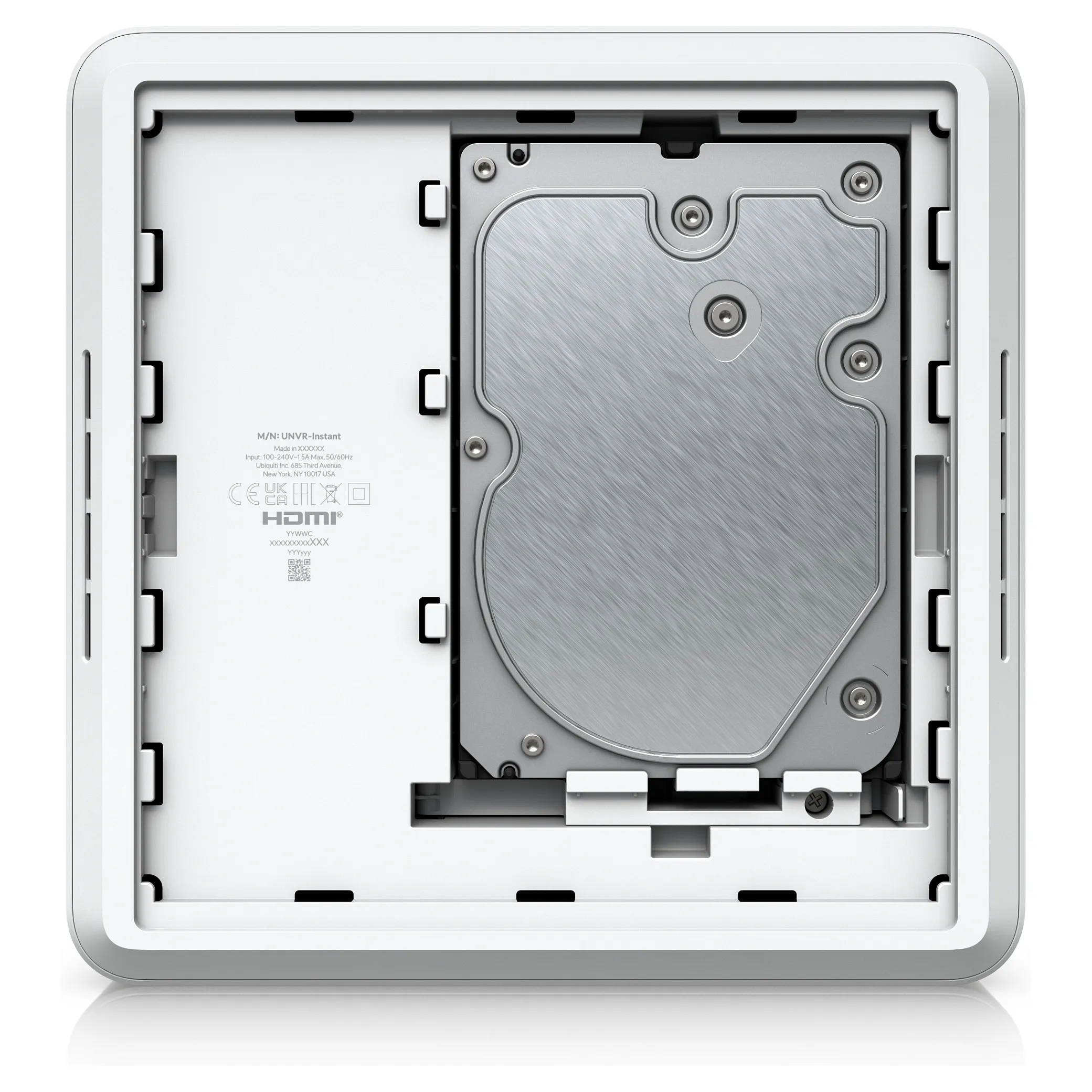

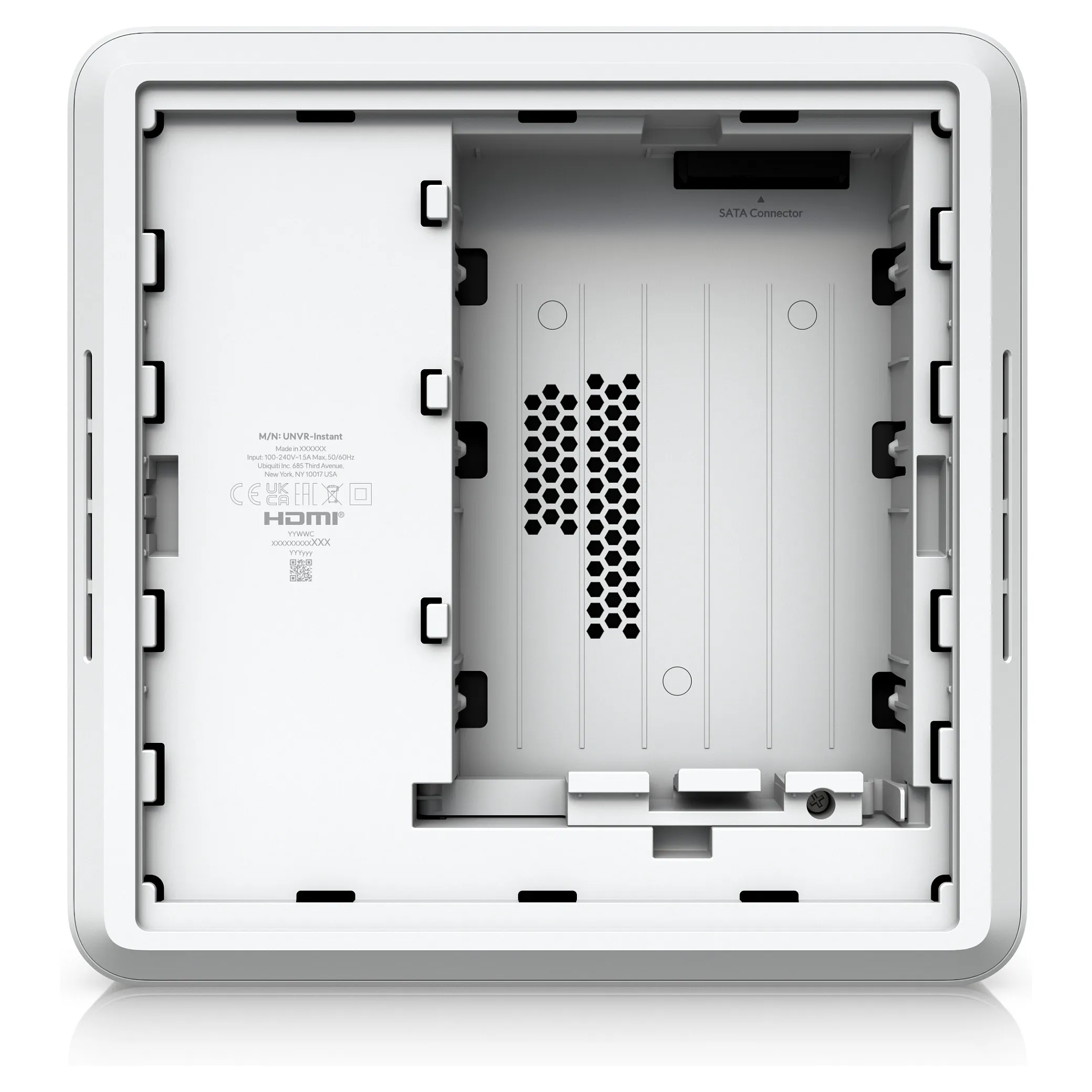

Hard drive
Number of HDDs supported: 1
HDD size: 3.5″

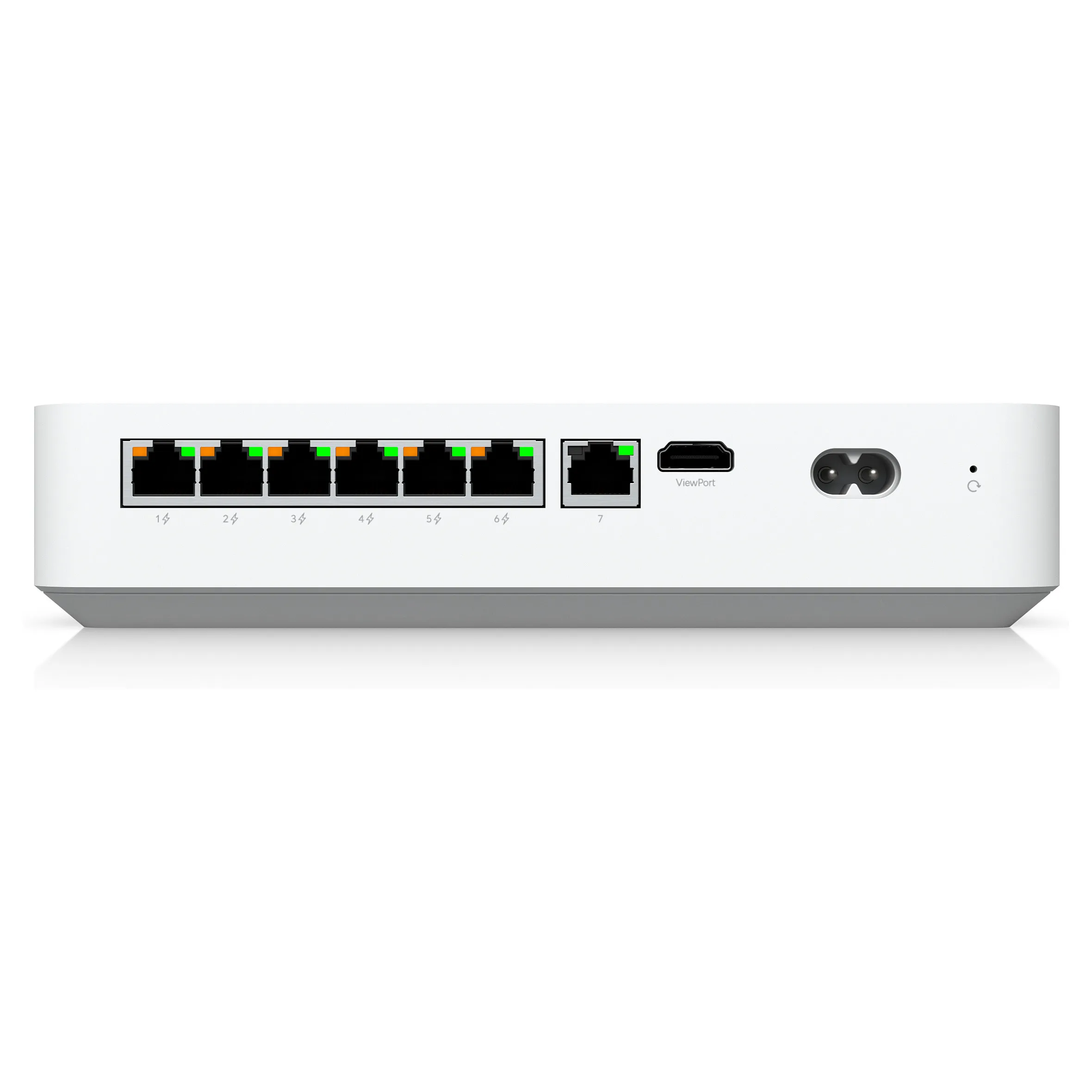

Ports & interfaces
Ethernet LAN (RJ-45) ports: 7
Feature: Power over Ethernet (PoE)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity: 6
Feature: HDMI output
HDMI ports quantity: 1
Features
LED indicators: LAN, PoE
Feature: Reset button
Product colour: White
Processor
Feature: Built-in processor
Processor cores: 4
Processor frequency: 1.7 GHz

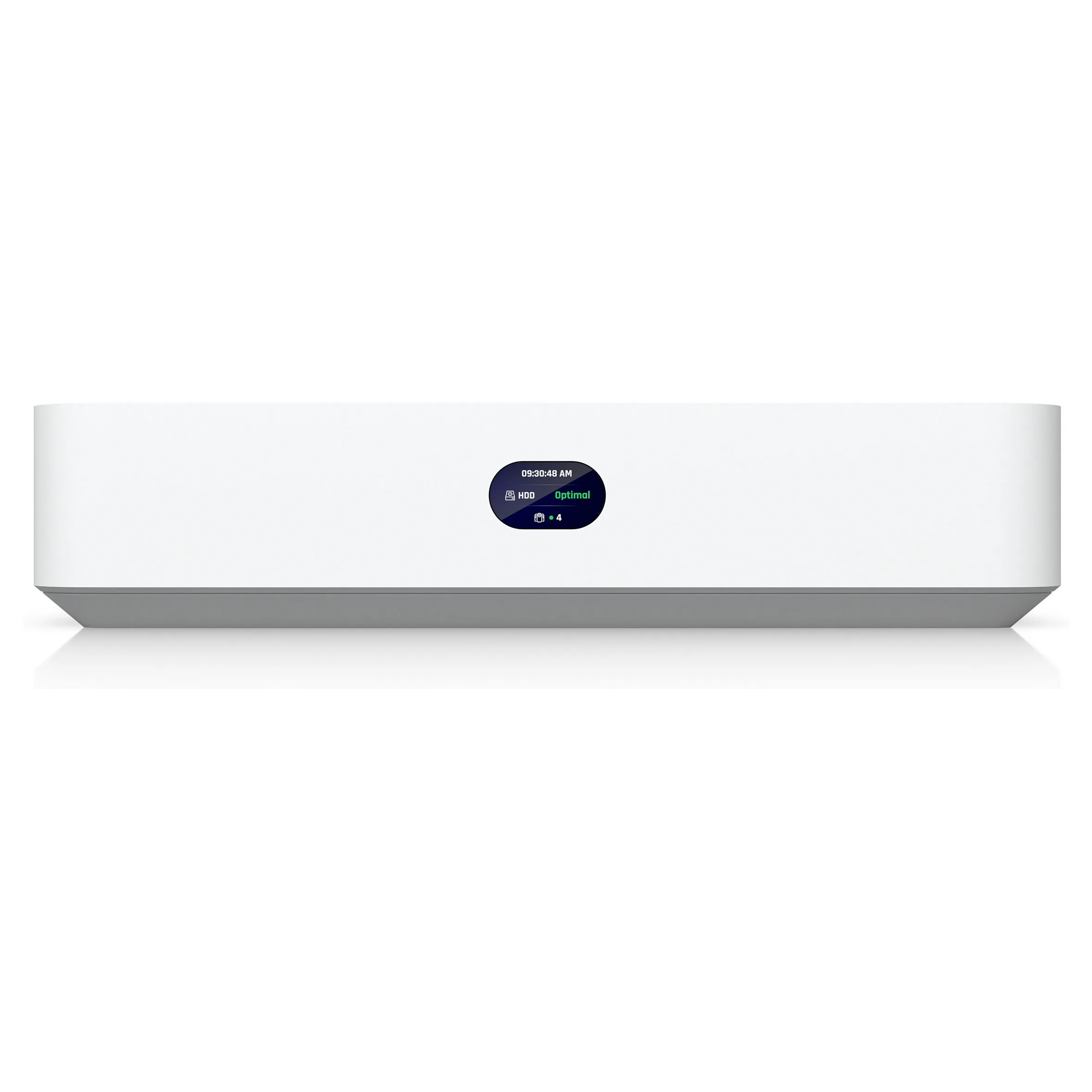

Display
Feature: Built-in display
Display diagonal: 2.9 cm (1.14″)
Power
Power consumption (max): 9 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 40 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 5 – 95%
Technical details
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA), UL
Weight & dimensions
Width: 220 mm
Depth: 220 mm
Height: 47 mm
Weight: 1.04 kg
Packaging content
Cables included: Power
Logistics data
Harmonized System (HS) code: 85219000
