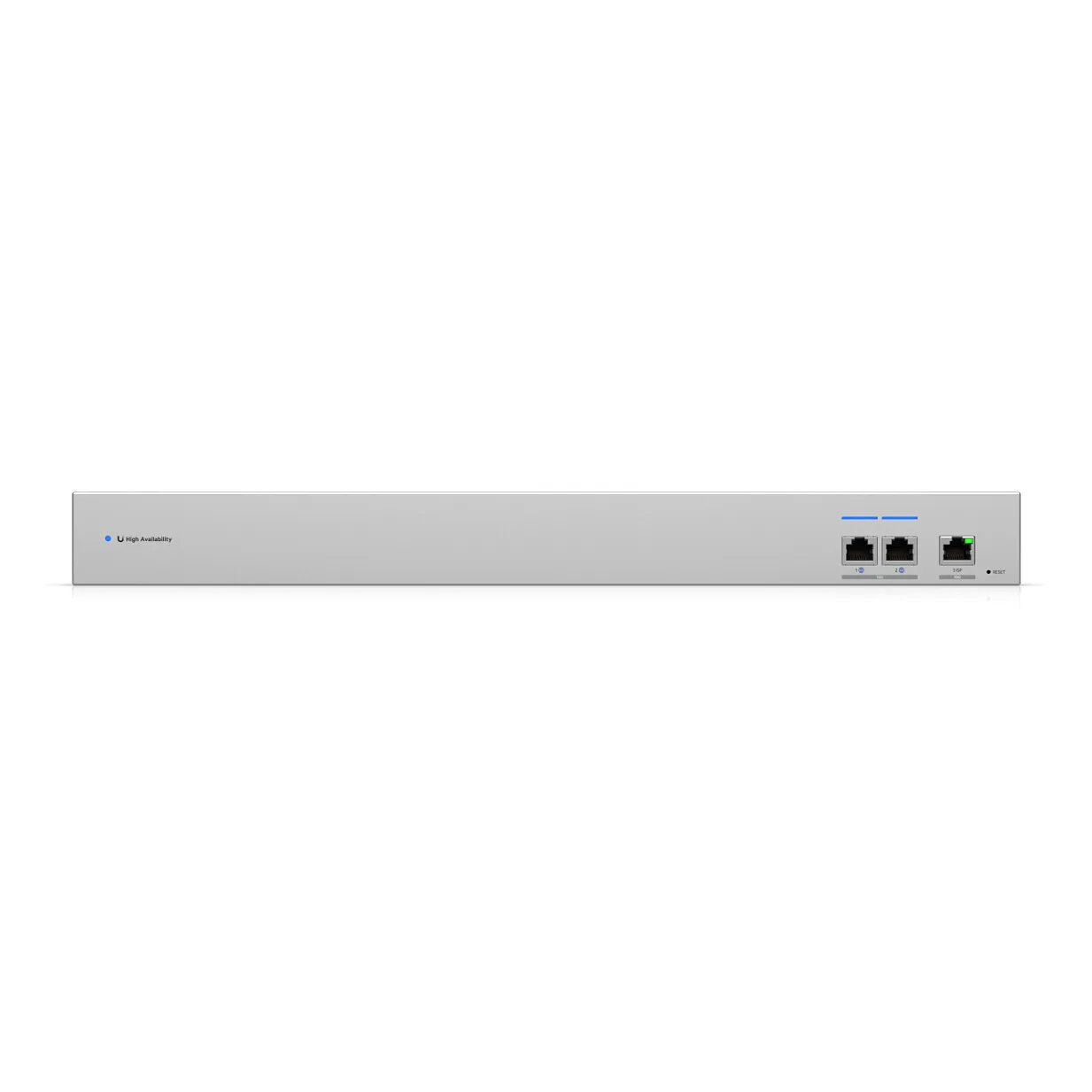

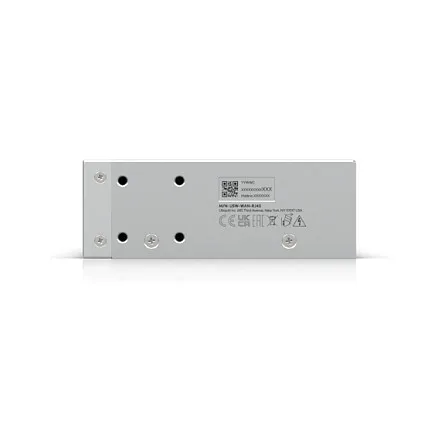

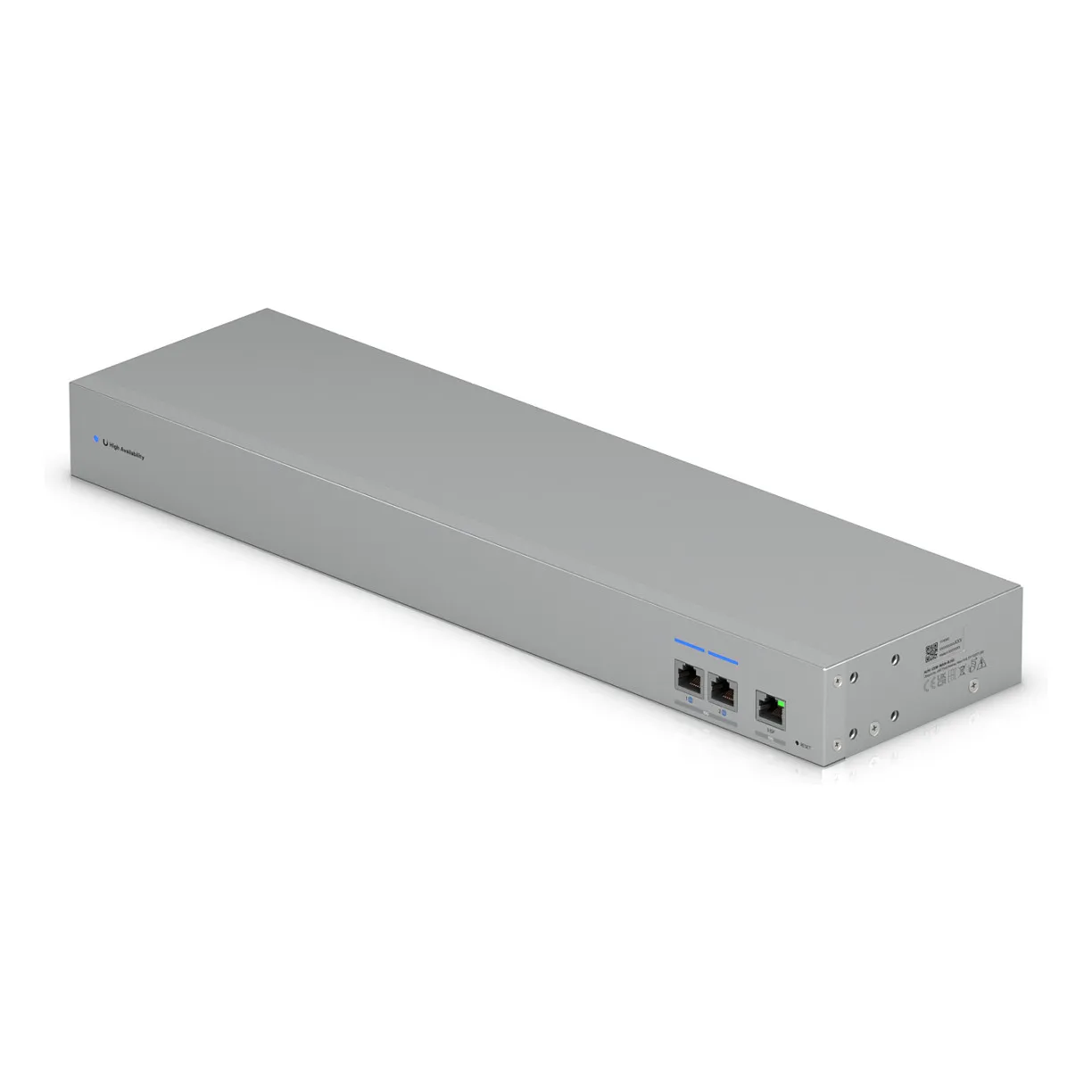

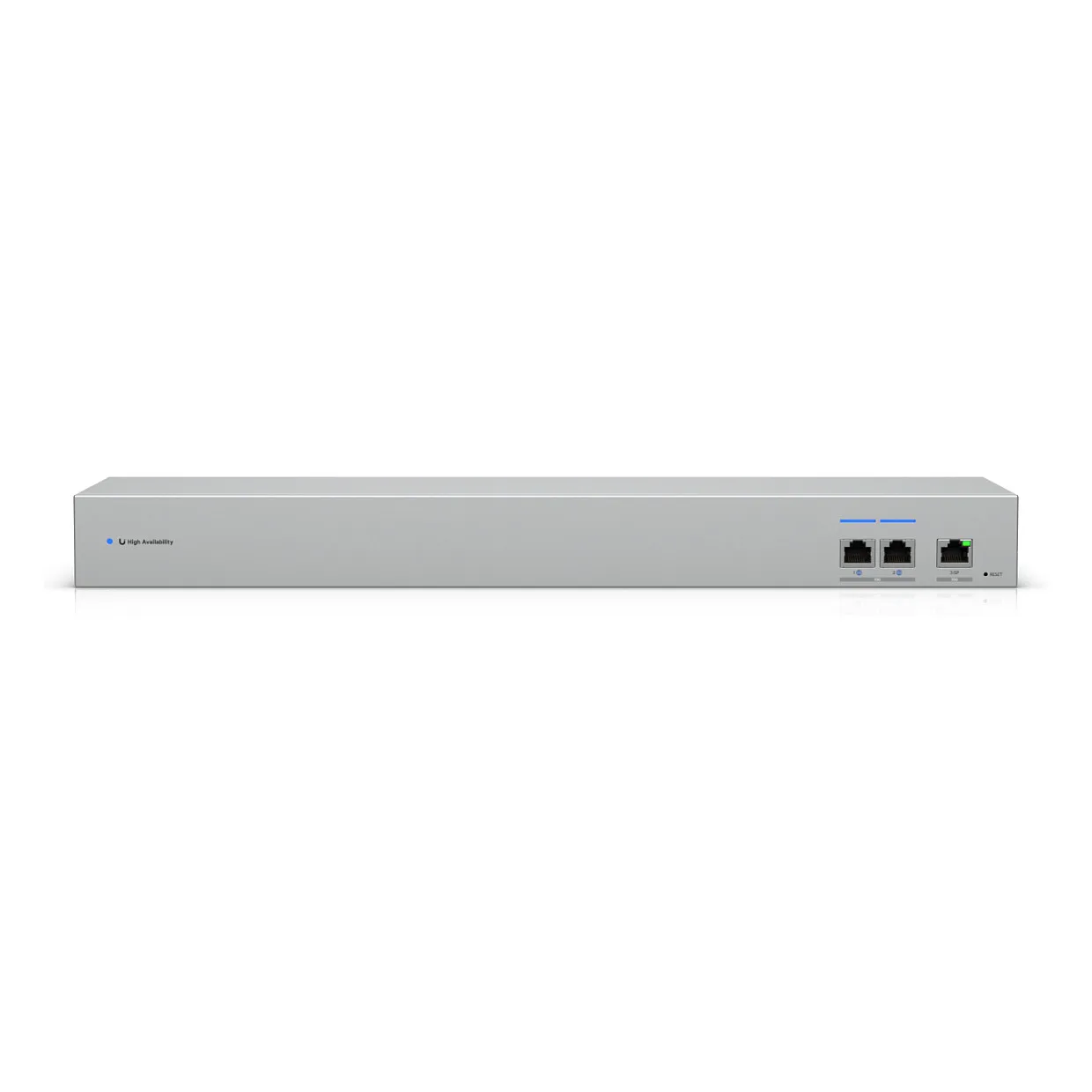

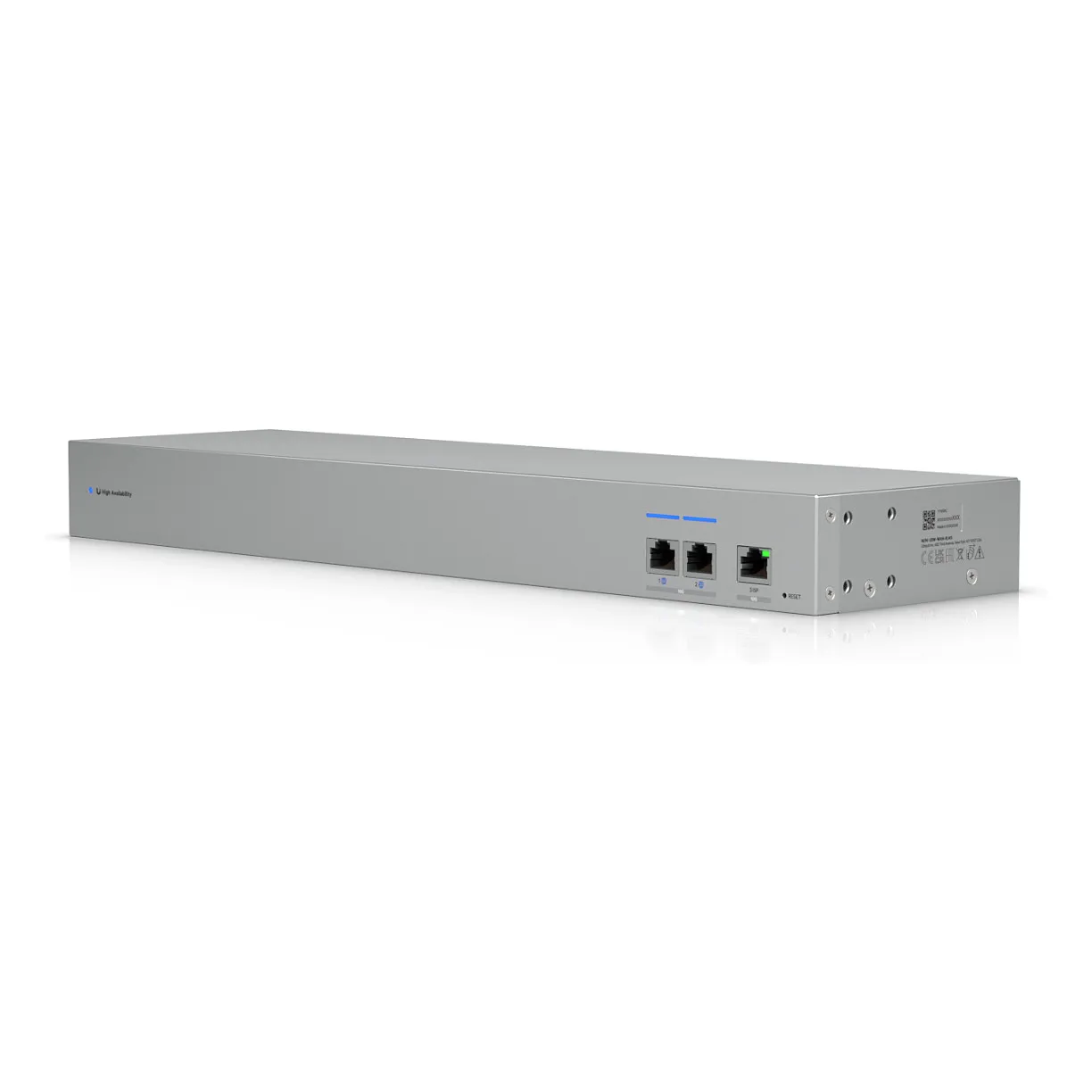

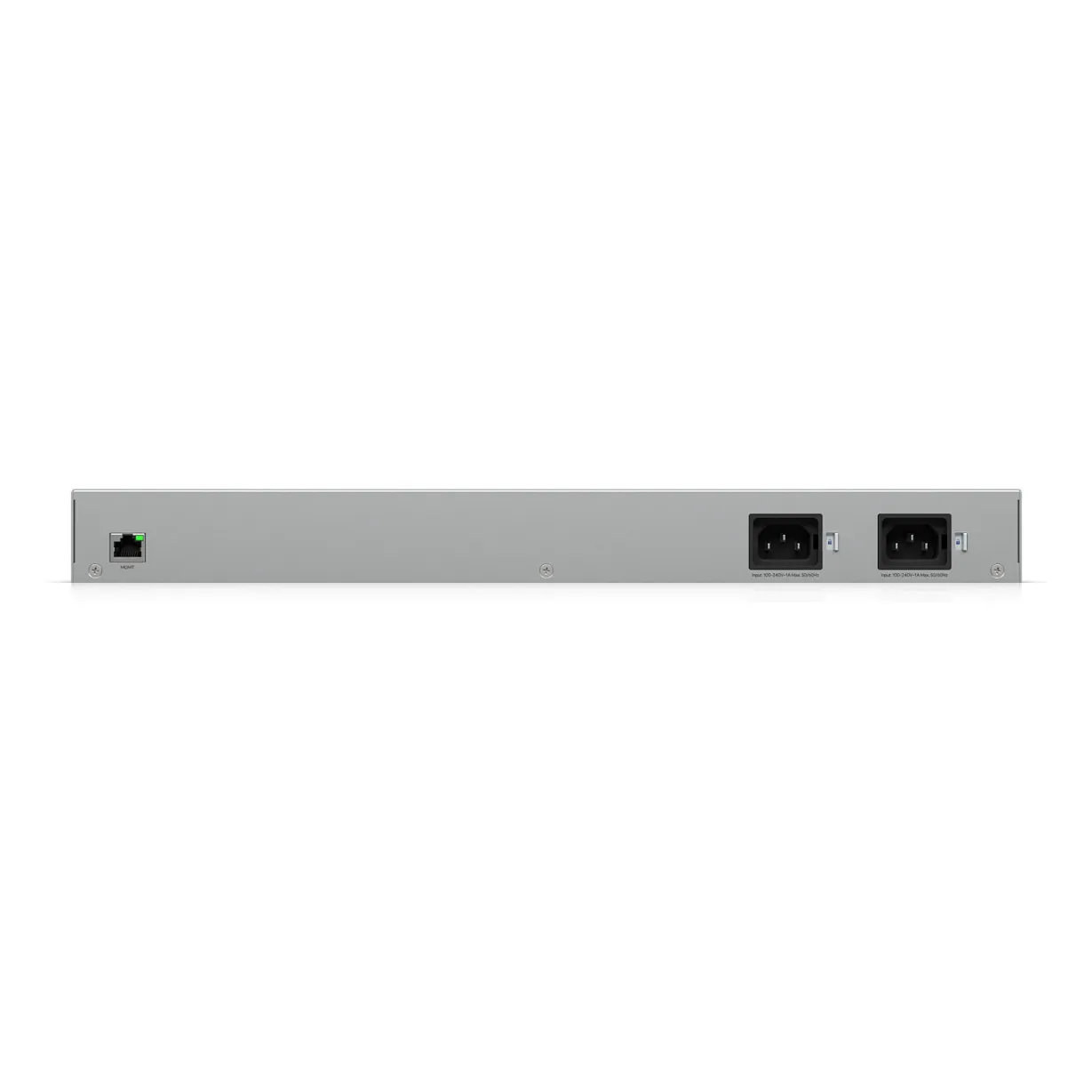

Ubiquiti UniFi WAN Switch RJ45. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 1. Switching capacity: 20 Gbit/s. Power connector: AC/DC. Rack mounting, Form factor: 1U
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 1
10G Ethernet (copper) ports quantity: 3
Power cables quantity: 2
Power connector: AC/DC
Network
Feature: 10G support
Data transmission
Switching capacity: 20 Gbit/s
Throughput: 10 Gbit/s
Forwarding rate: 15 Mpps
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: Network, System
Power
Power source: AC/DC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 18 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 442.4 mm
Depth: 120 mm
Height: 43.7 mm
Weight: 2.3 kg

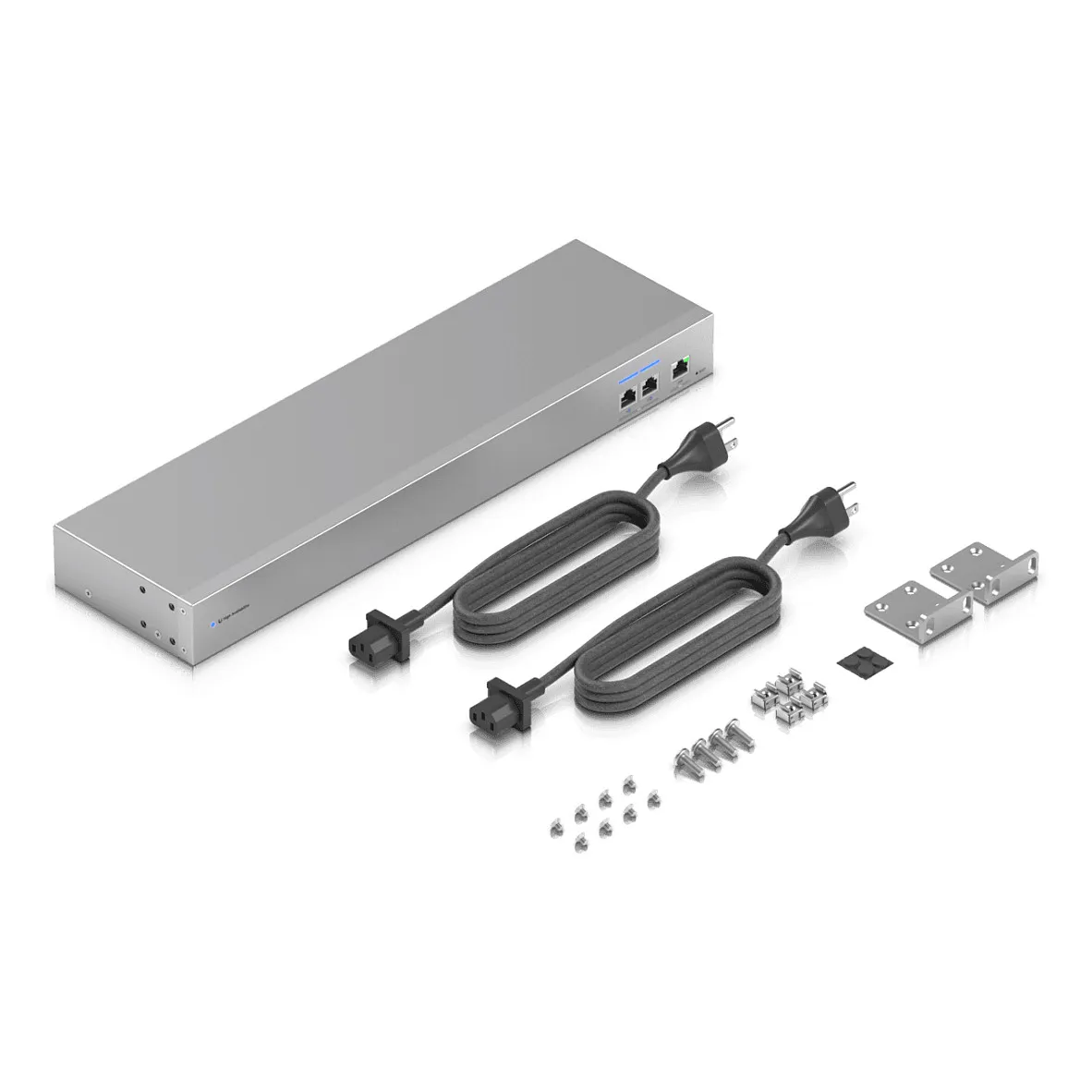

Packaging content
Cables included: Power
Feature: Rack mount kit
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Basic switching RJ-45 Ethernet ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 1
10G Ethernet (copper) ports quantity: 3
Power cables quantity: 2
Power connector: AC/DC
Network
Feature: 10G support
Data transmission
Switching capacity: 20 Gbit/s
Throughput: 10 Gbit/s
Forwarding rate: 15 Mpps
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: Network, System
Power
Power source: AC/DC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 18 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 442.4 mm
Depth: 120 mm
Height: 43.7 mm
Weight: 2.3 kg
Packaging content
Cables included: Power
Feature: Rack mount kit
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
