Ubiquiti UniFi Pro HD 24 PoE

Management features
Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 22
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 22
10G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 4
Power connector: AC/DC
Network
Networking standards: IEEE 802.1x
10G support: Yes
Port mirroring: Yes
Flow control support: Yes
Broadcast storm control: Yes
Rate limiting: Yes
IPv4 routes: 12000
VLAN support: Yes
Virtual LAN features: Voice VLAN
Number of VLANs: 1000
Data transmission
Switching capacity: 230 Gbit/s
Throughput: 115 Gbit/s
Forwarding rate: 171 Mpps
MAC address table: 32000 entries
Static route: Yes
Jumbo frames support: Yes
Packet buffer memory: 2 MB
Security
DHCP features: DHCP guarding, DHCP relay, DHCP server, DHCP snooping
IGMP snooping: Yes
Loop protection: Yes
Multicast features
Multicast support: Yes
Design
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Reset button: Yes
LED indicators: Link, Speed, Status
Display type: LCM
Power
Power source: AC/DC/PoE
Power supply included: Yes
Redundant power supply (RPS) support: Yes
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 60 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet 4PPoE (PoE++) ports quantity: 24
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 600 W
Operational conditions
Operating temperature (T-T): -5 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 442.4 mm
Depth: 400 mm
Height: 44 mm
Weight: 6.2 kg

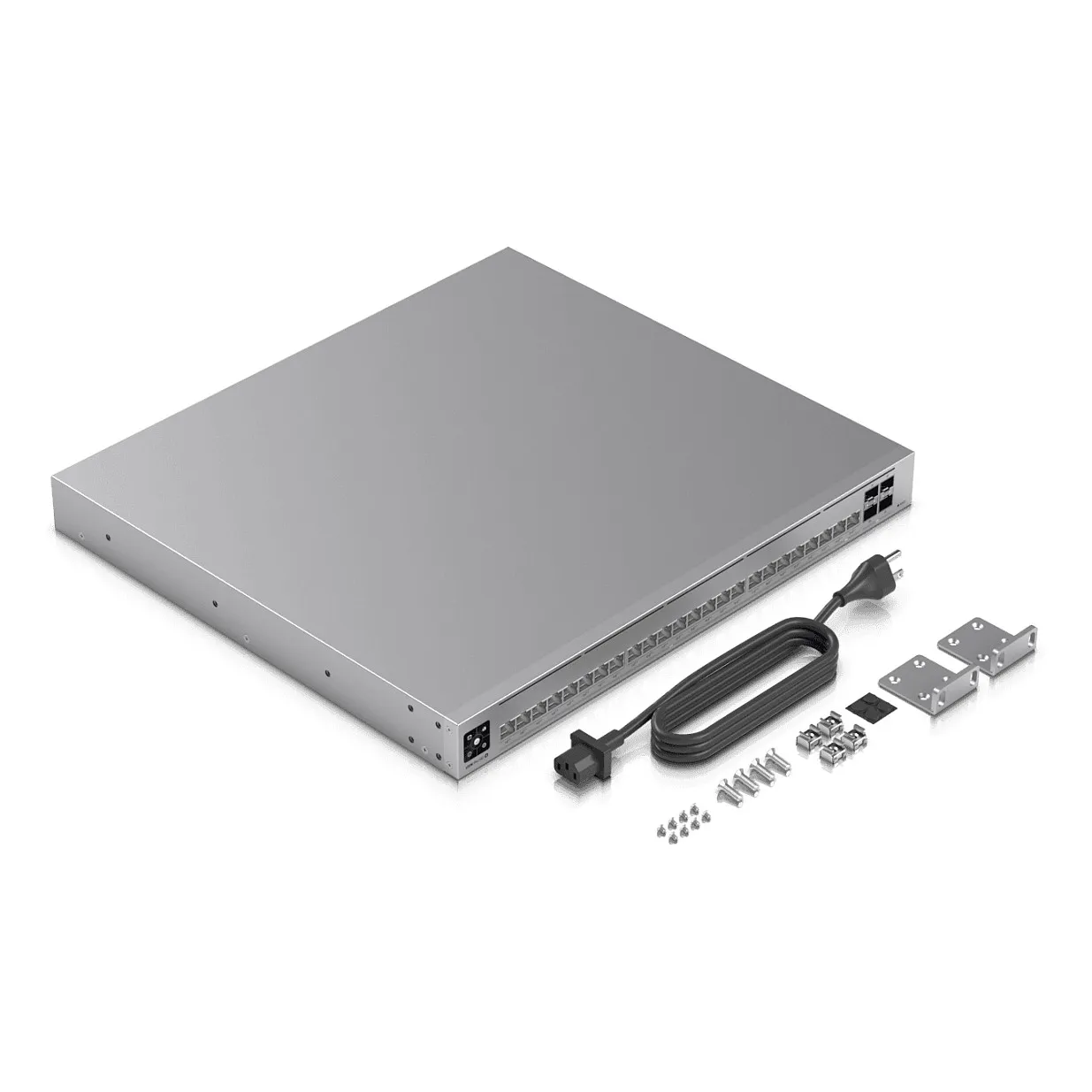

Packaging content
Cables included: Power
Rack mount kit: Yes
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
