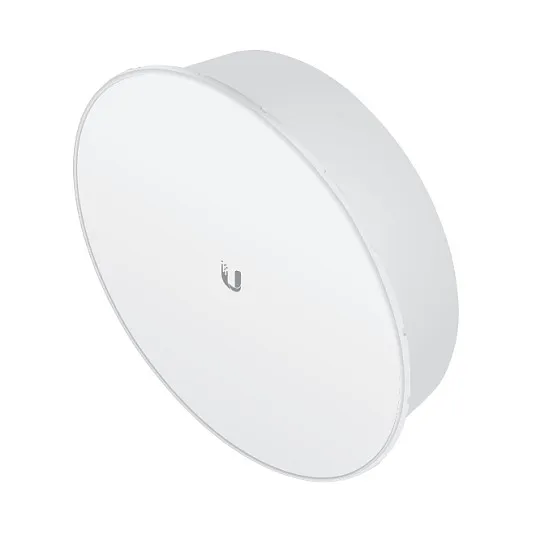

Ubiquiti PowerBeam AC ISO Gen2. Maximum data transfer rate: 450 Mbit/s. Antenna gain level (max): 25 dBi. Frequency band: 5.150 – 5.850 GHz, Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK. Product type: Network bridge, Material: Metal, Product colour: White. Power source type: PoE, DC input voltage: 20 – 26 V, Power consumption (max): 8.5 W
Incorporating advanced engineering with proprietary airMAX ac technology, the PowerBeam® ac ISO is ideal for deployments requiring maximum performance and RF isolation.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Innovative Mechanical Design
The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.
Superior RF Isolation
Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.
Superior Processing
Ubiquiti’s airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Maximum data transfer rate: 450 Mbit/s
Antenna
Antenna gain level (max): 25 dBi
Wireless LAN features
Frequency band: 5.150 – 5.850 GHz
Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Network
Feature: Ethernet LAN
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Features
Product type: Network bridge
Material: Metal
Product colour: White
LED indicators: LAN, Power, Signal strength
Feature: Surge protection
Feature: Quality of Service (QoS) support
Processor model: MIPS 74Kc
Internal memory: 64 MB
Power
Power source type: PoE
DC input voltage: 20 – 26 V
Power consumption (max): 8.5 W
Feature: Power over Ethernet (PoE)
Power consumption (24V): 500 mA
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Operating temperature (T-T): -40 – 158 °F
Operating relative humidity (H-H): 5 – 95%
Certificates
Certification: RoHS, CE, FCC, IC
Weight & dimensions
Dimensions (WxDxH): 459 x 261 x 459 mm
Weight: 3.22 kg
Logistics data
Harmonized System (HS) code: 85176990
