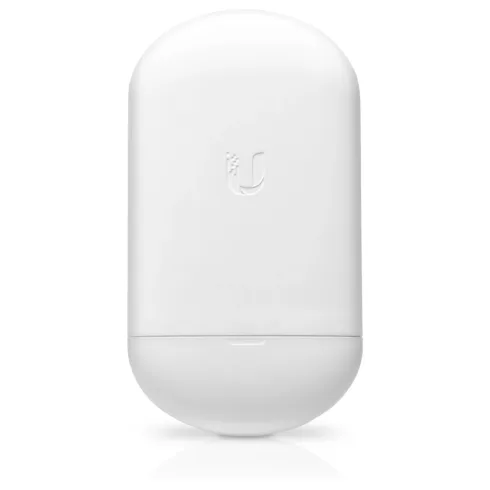

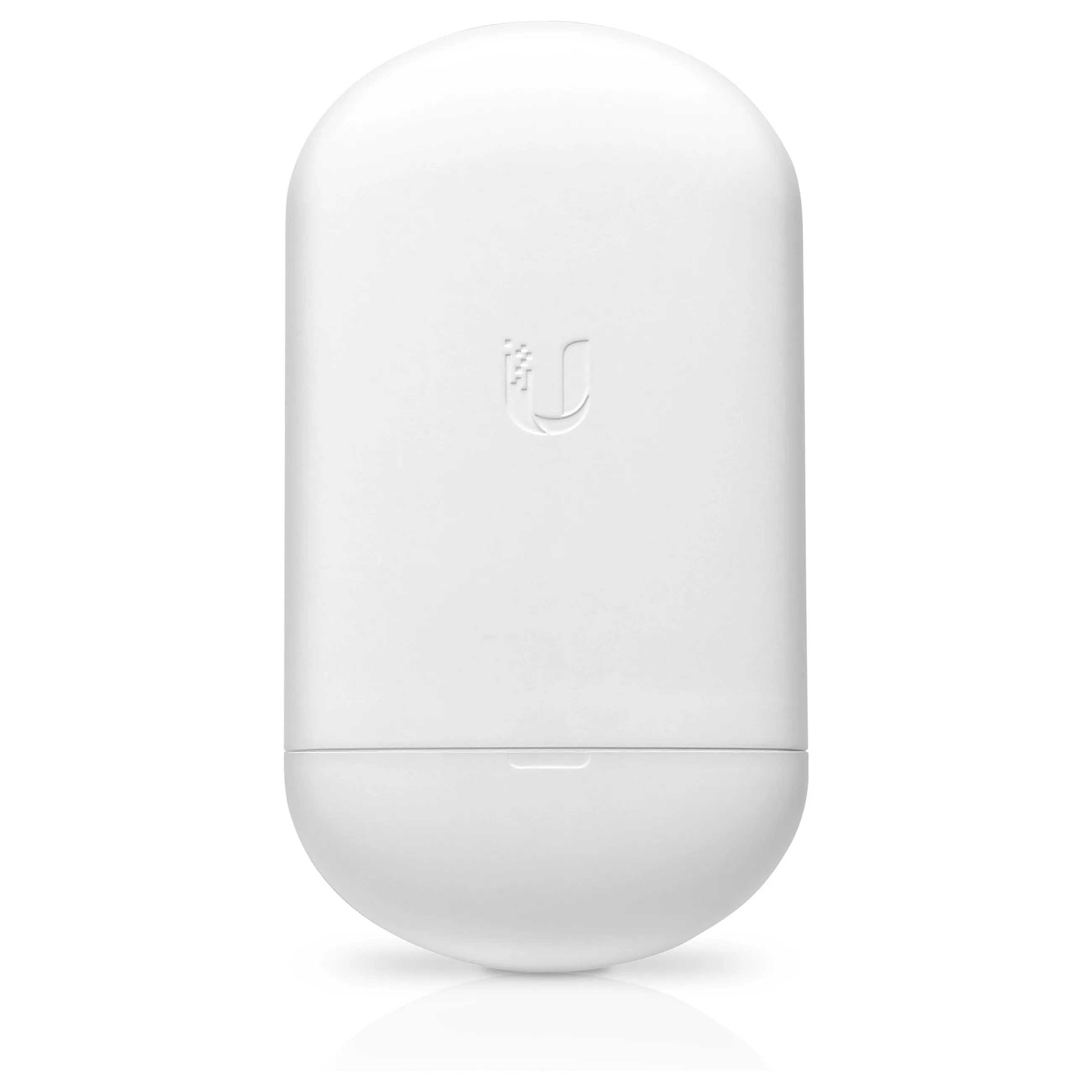

Ubiquiti NanoStation 5AC Loco. 5 GHz, Maximum data transfer rate: 1000 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

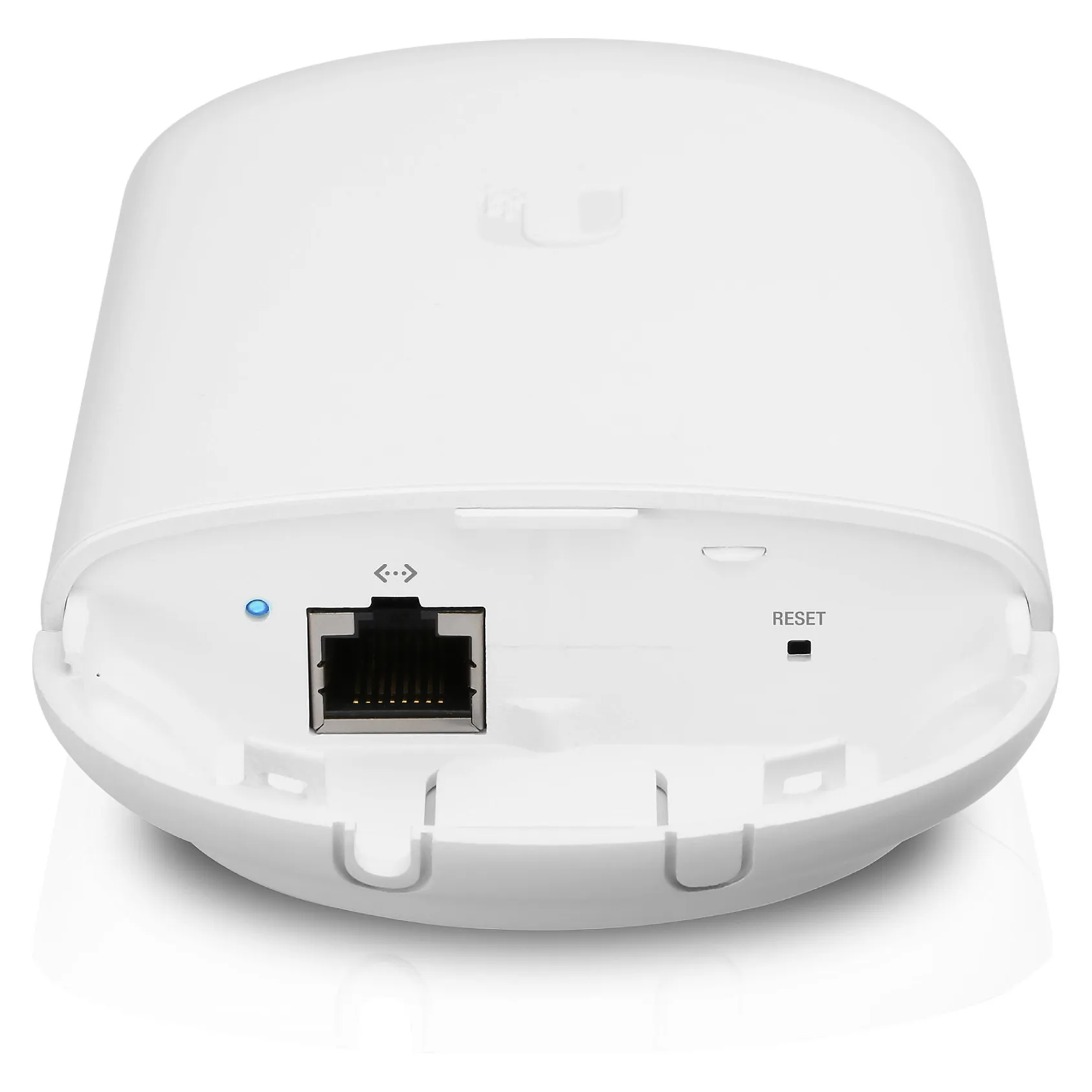

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Feature: 5 GHz
Maximum data transfer rate: 1000 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Throughput data rate: 450 Mbit/s
Frequency band: 5.150 – 5.250, 5.250 – 5.350, 5.470 – 5.725, 5.725 – 5.850 GHz
Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Maximum outdoor range: 10000 m
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Power
Feature: Power over Ethernet (PoE)
AC input voltage: 24 V
Input current: 0.5 A
Design
Placement: Ceiling
Product colour: White
LED indicators: Network, Power, Signal strength
Antenna
Antenna type: Internal
Performance
Feature: Built-in processor
Internal memory: 64 MB
Operating system installed: AirOS
Certificates
Certification: CE, FCC, IC
Weight & dimensions
Width: 179 mm
Depth: 77.5 mm
Height: 59.1 mm
Weight: 180 g
Operational conditions
Operating relative humidity (H-H): 5 – 95%
Operating temperature (T-T): -40 – 70 °C
Logistics data
Harmonized System (HS) code: 85176990
