Ubiquiti NanoBeam 5AC Gen 2. Maximum data transfer rate: 450 Mbit/s, Maximum transfer distance: 15000 m. Antenna gain level (max): 19 dBi. Frequency band: 5.15 – 5.875; 5.15 – 5.25; 5.25 – 5.35; 5.47 – 5.725; 5.725 – 5.85 GHz, Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WPA2
Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

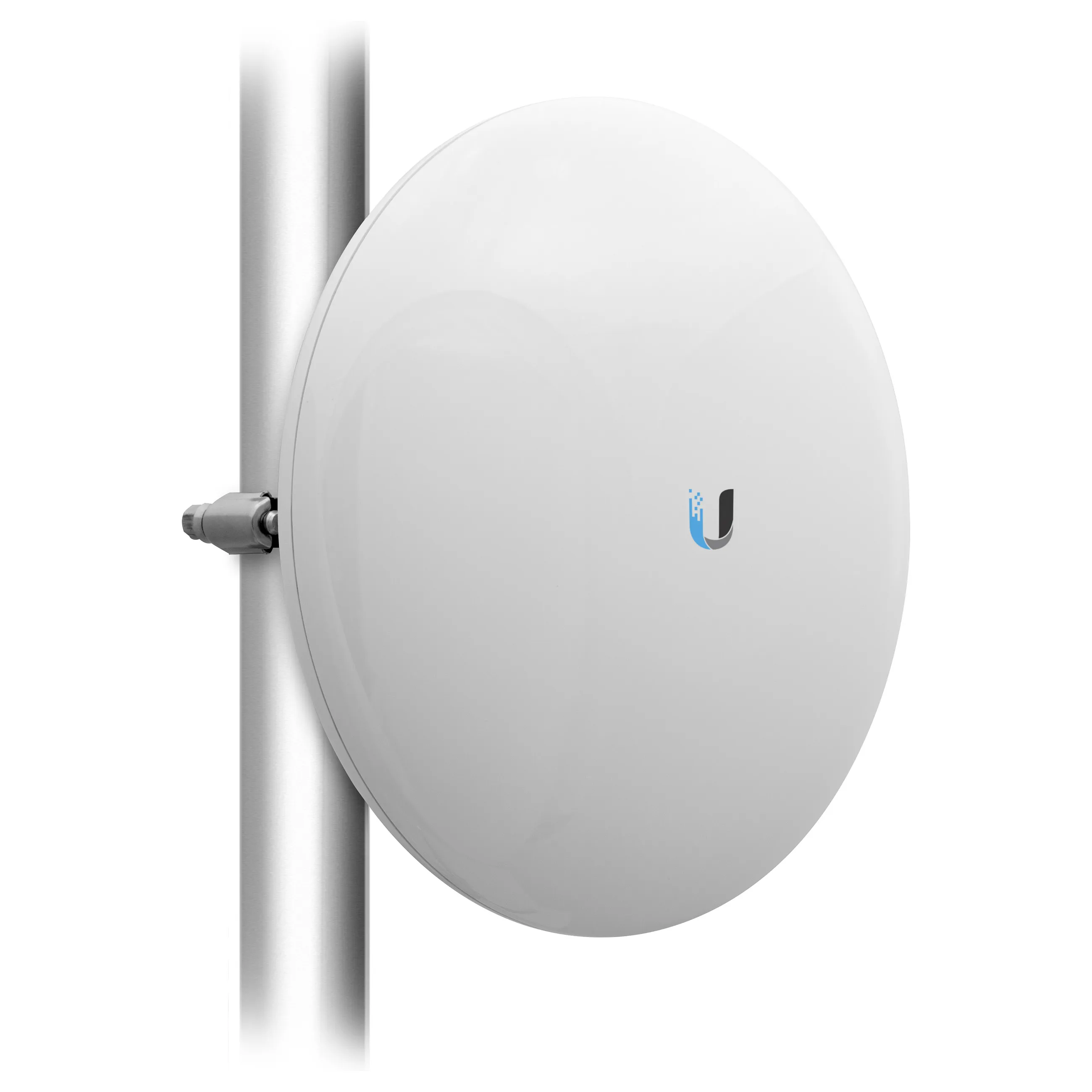

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS8
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Maximum data transfer rate: 450 Mbit/s
Maximum transfer distance: 15000 m
Antenna
Antenna gain level (max): 19 dBi
Wireless LAN features
Feature: Wi-Fi
Frequency band: 5.15 – 5.875; 5.15 – 5.25; 5.25 – 5.35; 5.47 – 5.725; 5.725 – 5.85 GHz
Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ports & interfaces

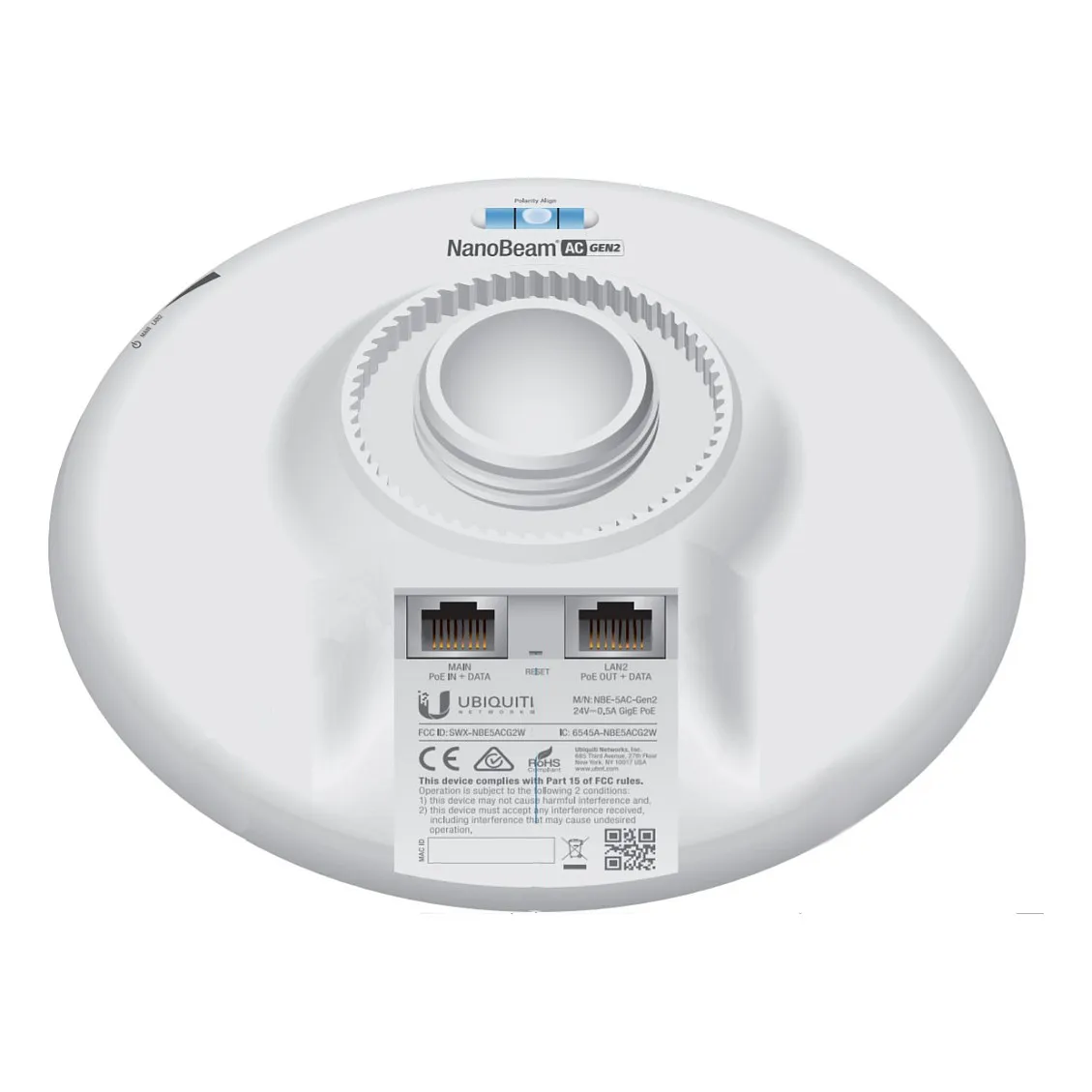

Ethernet LAN (RJ-45) ports: 2
Security
Security algorithms: WPA2
Management features
Feature: Web-based management
Features
Product type: Network bridge
Material: Plastic
Mounting type: Wall/Pole
Product colour: White
LED indicators: LAN, Power, Signal strength
Feature: Reset button
Feature: Surge protection
Processor family: Atheros
Processor model: MIPS 74Kc
Processor frequency: 720 MHz
Internal memory: 128 MB
RAM type: DDR2
Power
Power source type: PoE
Power consumption (max): 8.5 W
Feature: Power over Ethernet (PoE)
DC output voltage: 24 V
DC output current: 0.5 A
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Operating temperature (T-T): -40 – 176 °F
Operating relative humidity (H-H): 5 – 95%
Certificates
Compliance certificates: CE, RoHS
Certification: CE, FCC, IC, RoHS
Weight & dimensions
Width: 189 mm
Depth: 189 mm
Height: 125 mm
Weight: 530 g
Packaging content
Feature: PoE+ Injector(s)
Feature: Mounting bracket(s) included
Cables included: AC
Memory
Flash memory: 8 MB
Packaging data
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85176990
