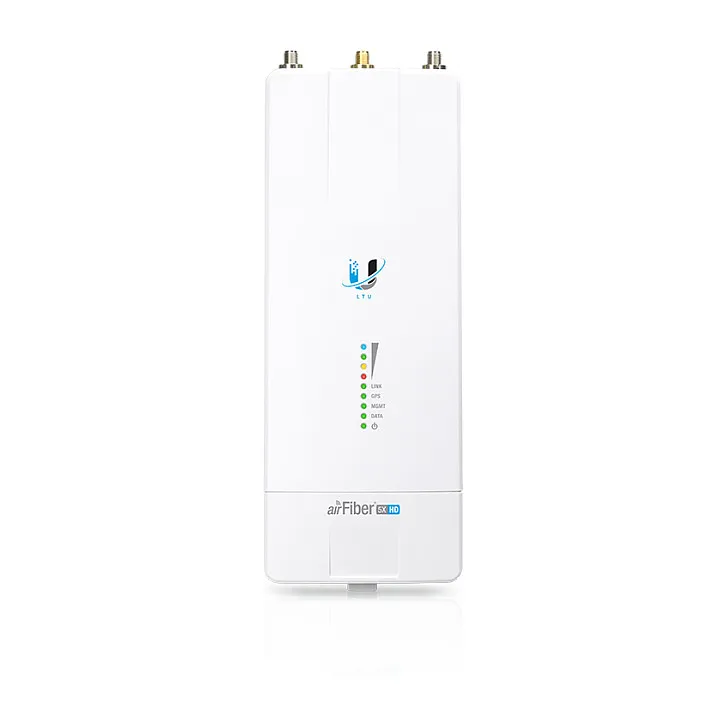

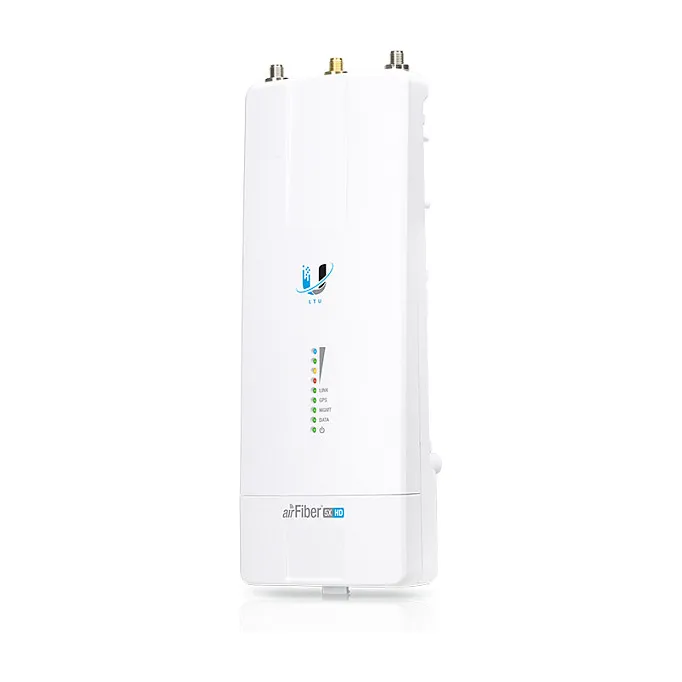

Ubiquiti AirFiber AF-5XHD. 5 GHz, Maximum data transfer rate: 1000 Mbit/s. Security algorithms: 256-bit AES. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 12 W
The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s
Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.
Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.
IP-67 Durability
airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.
Features
Feature: 5 GHz
Maximum data transfer rate: 1000 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 5.150 – 5.250 / 5.740 – 5.850 GHz
Channel bandwidth: 100 MHz
Modulation: QAM
Feature: GPS (satellite)
Maximum outdoor range: 200000 m
Transmitting power: 29 dBmW
Security
Security algorithms: 256-bit AES
Ports & interfaces

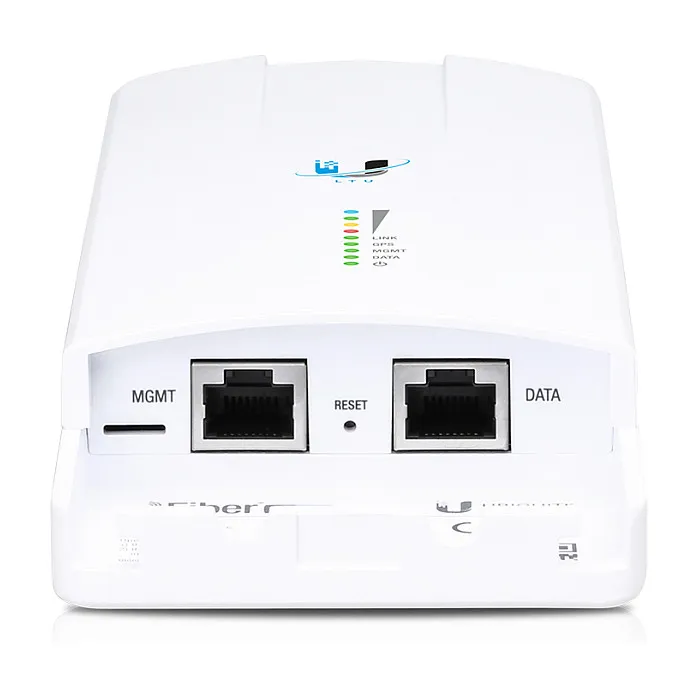

Ethernet LAN (RJ-45) ports: 2
Power
Feature: Power over Ethernet (PoE)
AC input voltage: 20 – 50 V
Output voltage: 24 V
Output current: 1 A
Power consumption (max): 12 W
Design
Placement: Wall
Product colour: White
International Protection (IP) code: IP67
Antenna
Antenna connector type: RP-SMA
Performance
Operating system installed: AirOS
Certificates
Certification: FCC
Weight & dimensions
Width: 82 mm
Depth: 48 mm
Height: 224 mm
Weight: 350 g
Packaging content
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): -40 – 55 °C
Logistics data
Harmonized System (HS) code: 85176990
Feature: 5 GHz
Maximum data transfer rate: 1000 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 5.150 – 5.250 / 5.740 – 5.850 GHz
Channel bandwidth: 100 MHz
Modulation: QAM
Feature: GPS (satellite)
Maximum outdoor range: 200000 m
Transmitting power: 29 dBmW
Security
Security algorithms: 256-bit AES
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
Feature: Power over Ethernet (PoE)
AC input voltage: 20 – 50 V
Output voltage: 24 V
Output current: 1 A
Power consumption (max): 12 W
Design
Placement: Wall
Product colour: White
International Protection (IP) code: IP67
Antenna
Antenna connector type: RP-SMA
Performance
Operating system installed: AirOS
Certificates
Certification: FCC
Weight & dimensions
Width: 82 mm
Depth: 48 mm
Height: 224 mm
Weight: 350 g
Packaging content
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): -40 – 55 °C
Logistics data
Harmonized System (HS) code: 85176990
