Trendnet TPE-B541. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE…. Power over Ethernet (PoE). Wall mountable

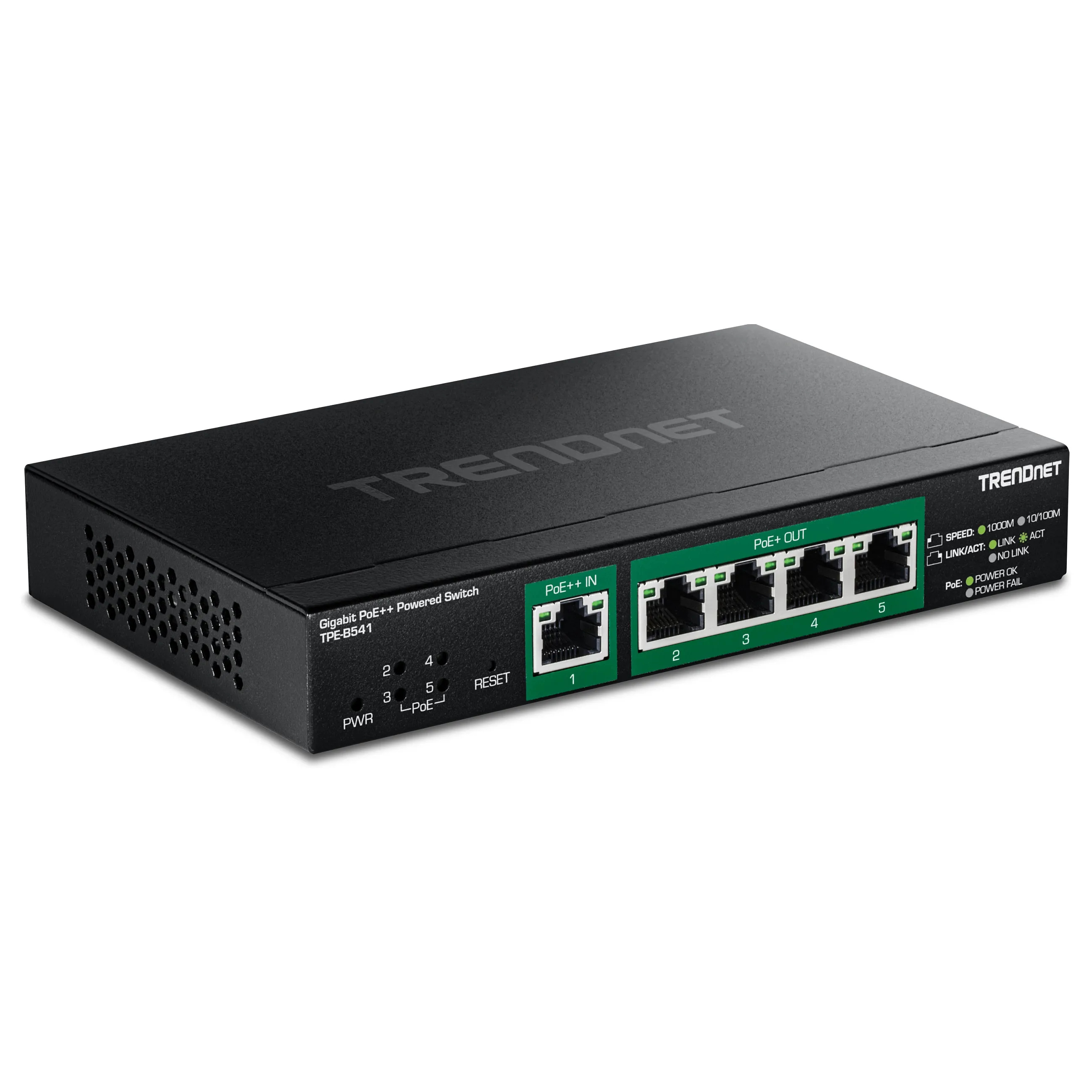

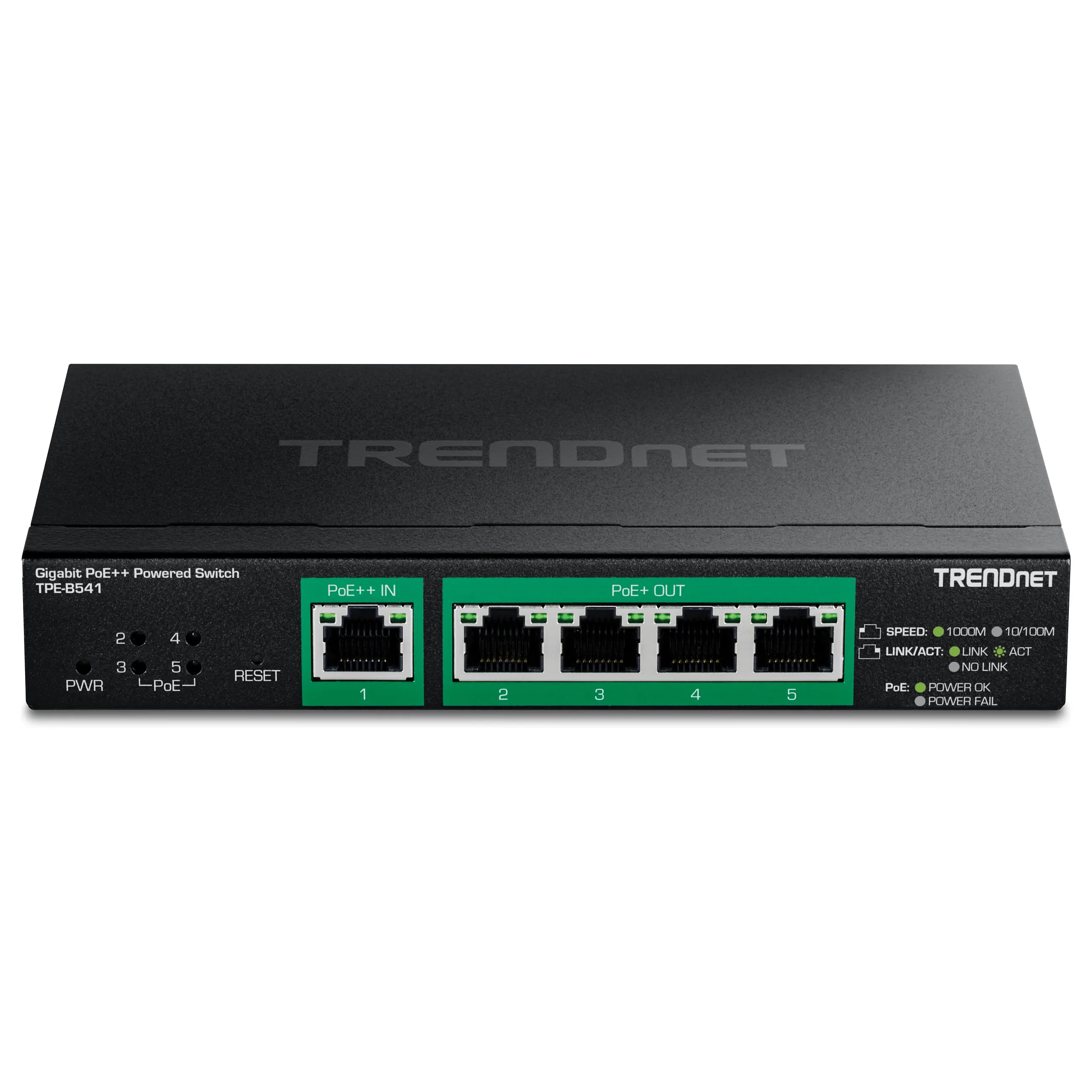

TRENDnet’s 5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough, model TPE-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The compact PoE++-powered managed switch features four gigabit PoE+ ports to power devices, such as IP cameras, VoIP handsets, and wireless access points, with a 60W total PoE power budget. Reducing unnecessary switch complexity, this PoE++ passthrough managed switch is equipped with management features such as VLANs, QoS, PoE control, and monitoring.
Management features
Switch type: Managed
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Security
Feature: IGMP snooping
Multicast features
Feature: Multicast support
Design
Product colour: Black
LED indicators: Yes

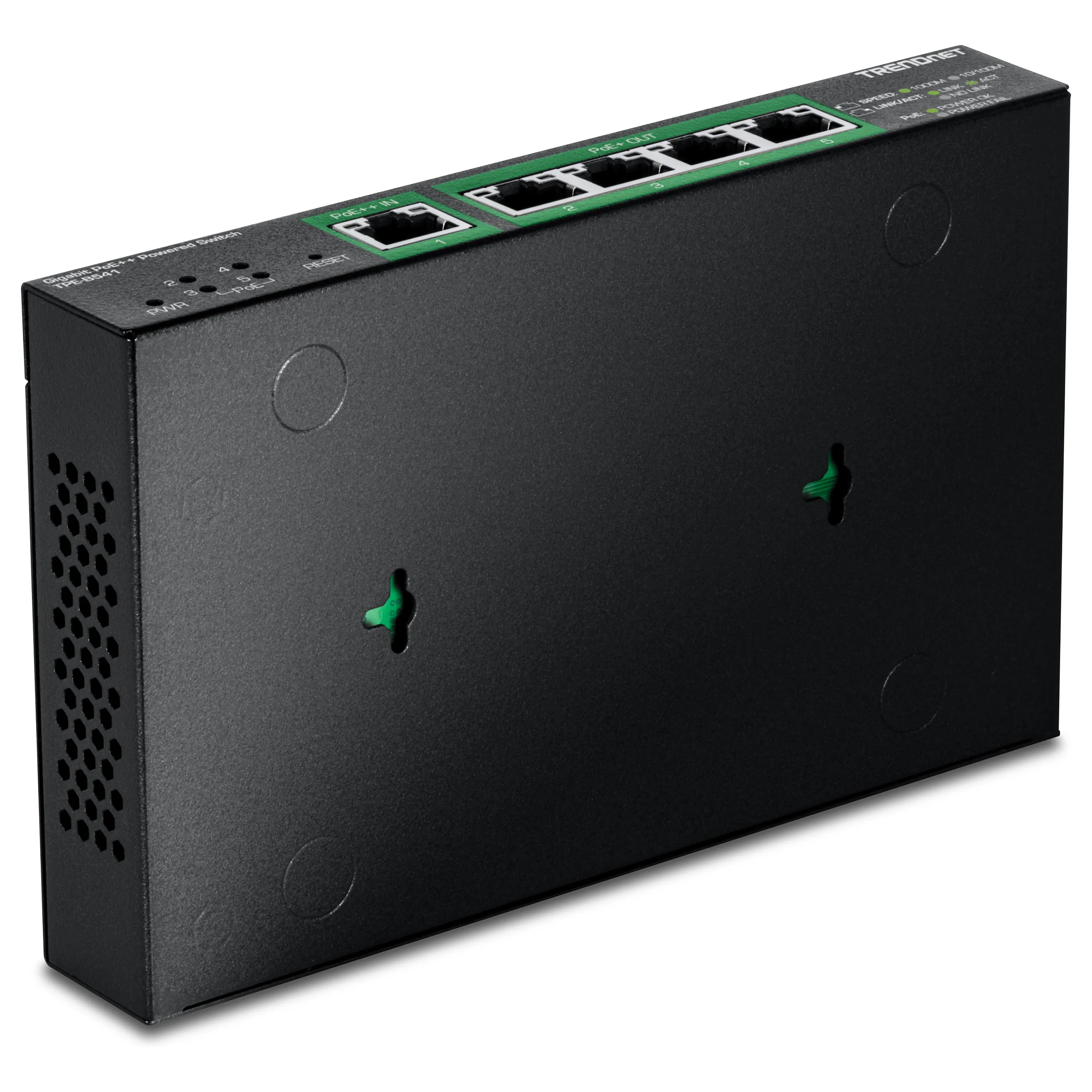

Feature: Wall mountable
Performance
Mean time between failures (MTBF): 503726 h
Power
Power source: PoE
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Width: 170 mm
Depth: 105 mm
Height: 28 mm
Weight: 450 g
Certificates
Certification: CEFCCLVD
Switch type: Managed
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Security
Feature: IGMP snooping
Multicast features
Feature: Multicast support
Design
Product colour: Black
LED indicators: Yes
Feature: Wall mountable
Performance
Mean time between failures (MTBF): 503726 h
Power
Power source: PoE
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Width: 170 mm
Depth: 105 mm
Height: 28 mm
Weight: 450 g
Certificates
Certification: CEFCCLVD
