Trendnet TPE-115GI. Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: Cat. 5/5e. AC adapter input voltage: 100 – 240 V, AC adapter frequency: 50/60 Hz, Input current: 0.65 A. Compliance industry standards: IEEE 802.3/802.3u/802.3ab/802.3at/802.3af, Certification: CE, FCC. Weight: 162 g

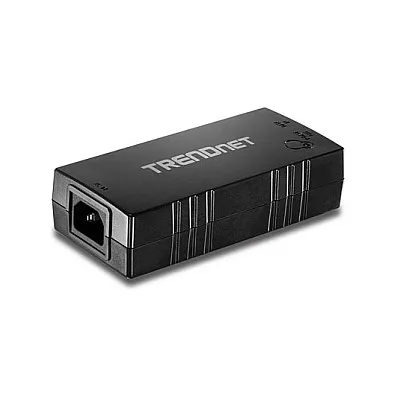

The Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE Gigabit switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter.
Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: Cat. 5/5e
Feature: Power over Ethernet (PoE)
Features
LED indicators: Yes
Ports & interfaces

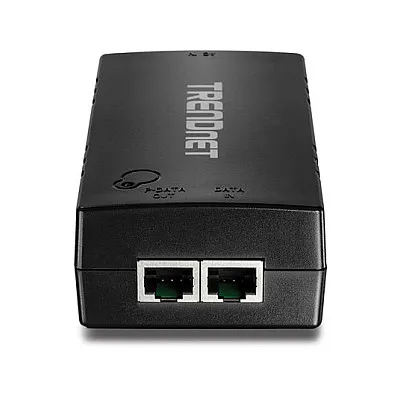

Ethernet LAN (RJ-45) ports: 2
Power
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Input current: 0.65 A
Power consumption (typical): 30 W
Certificates
Compliance industry standards: IEEE 802.3/802.3u/802.3ab/802.3at/802.3af
Certification: CE, FCC
Operational conditions
Operating temperature (T-T): -10 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Weight: 162 g
Logistics data
Harmonized System (HS) code: 85044095
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: Cat. 5/5e
Feature: Power over Ethernet (PoE)
Features
LED indicators: Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
AC adapter input voltage: 100 – 240 V
AC adapter frequency: 50/60 Hz
Input current: 0.65 A
Power consumption (typical): 30 W
Certificates
Compliance industry standards: IEEE 802.3/802.3u/802.3ab/802.3at/802.3af
Certification: CE, FCC
Operational conditions
Operating temperature (T-T): -10 – 45 °C
Operating relative humidity (H-H): 0 – 95%
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Weight: 162 g
Logistics data
Harmonized System (HS) code: 85044095
