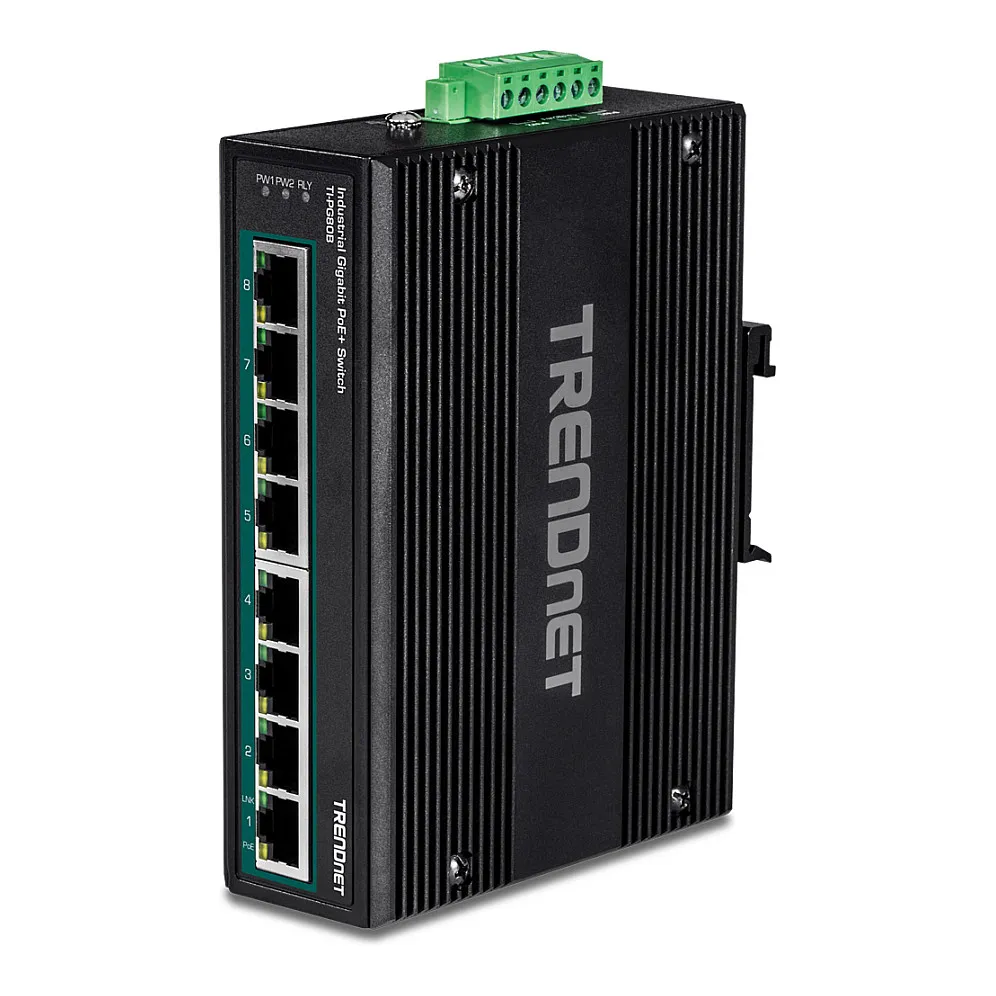

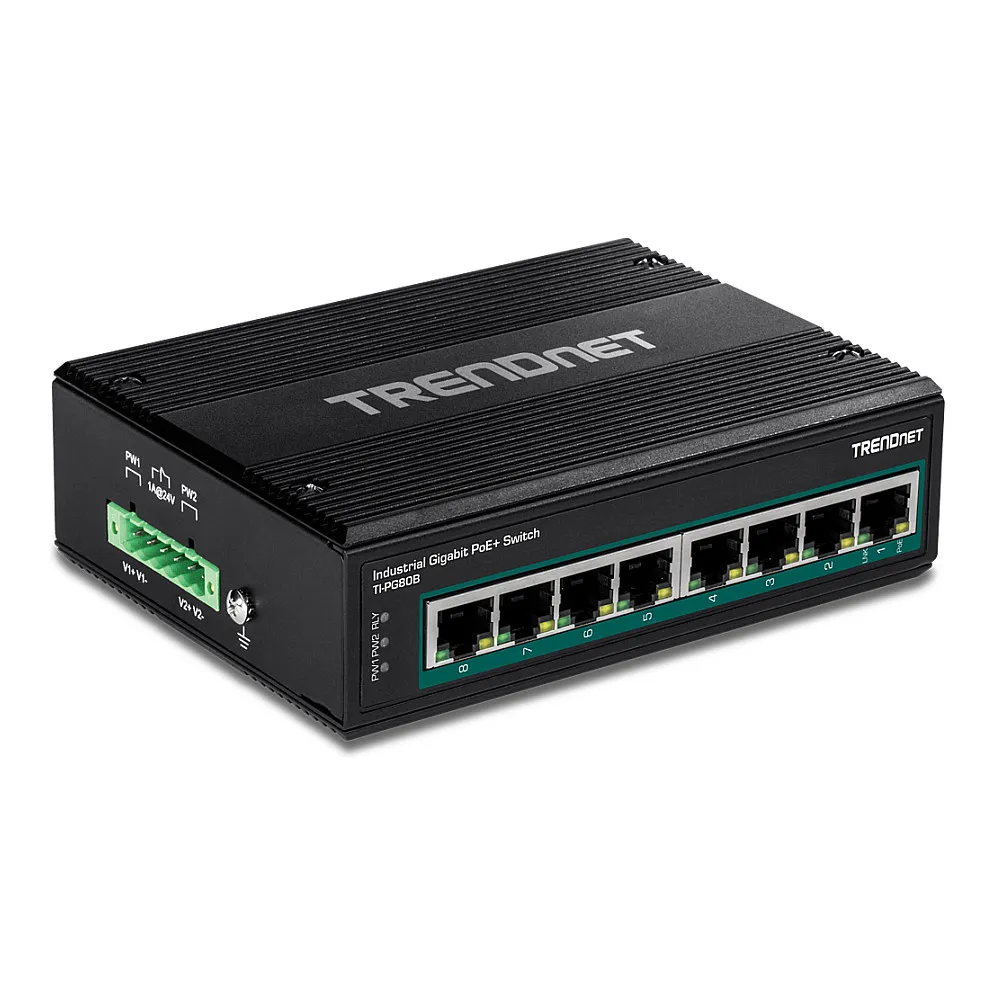

Trendnet TI-PG80B. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 24 – 56 V. Power over Ethernet (PoE). Wall mountable
PoE Power
The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection.
Industrial Design
Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).
PoE+ Power Budget
Supplies up to 30W of PoE power per port on the industrial variable voltage switch with a 200W PoE power budget

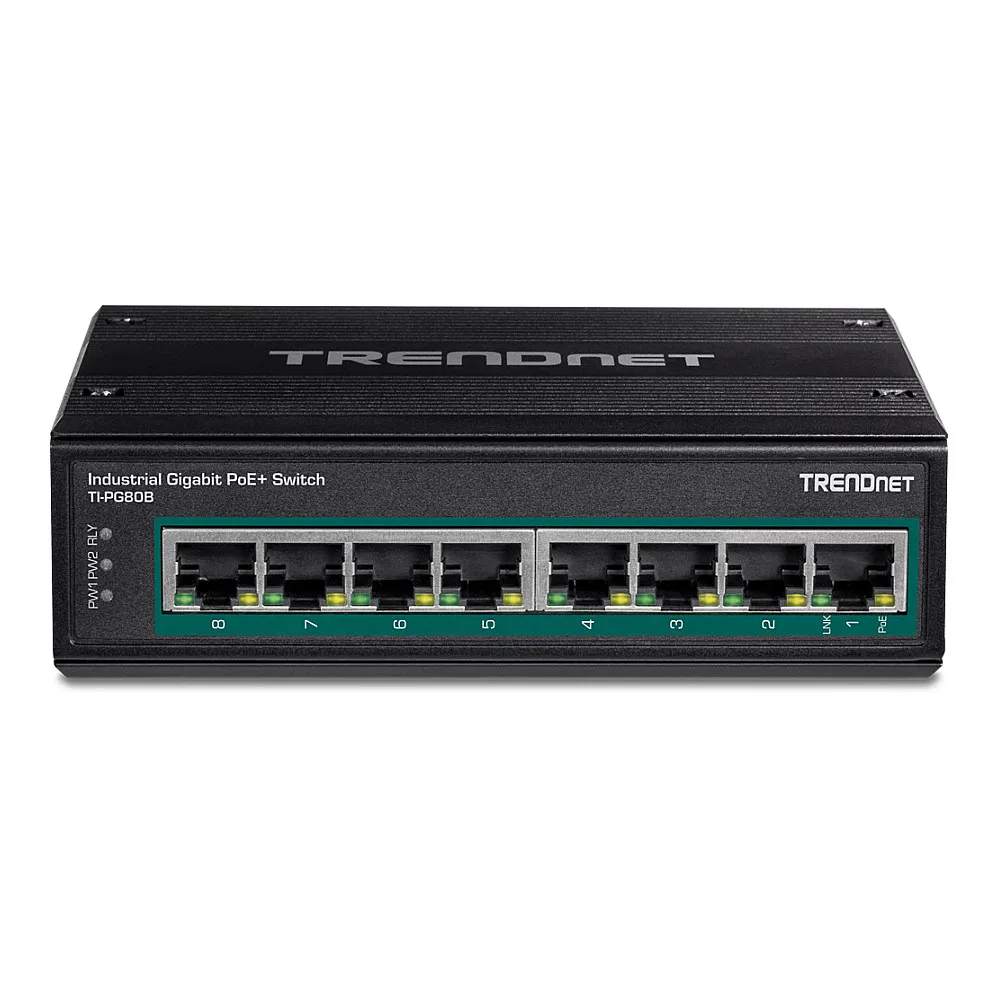

Network Ports
8 x Gigabit PoE+ ports

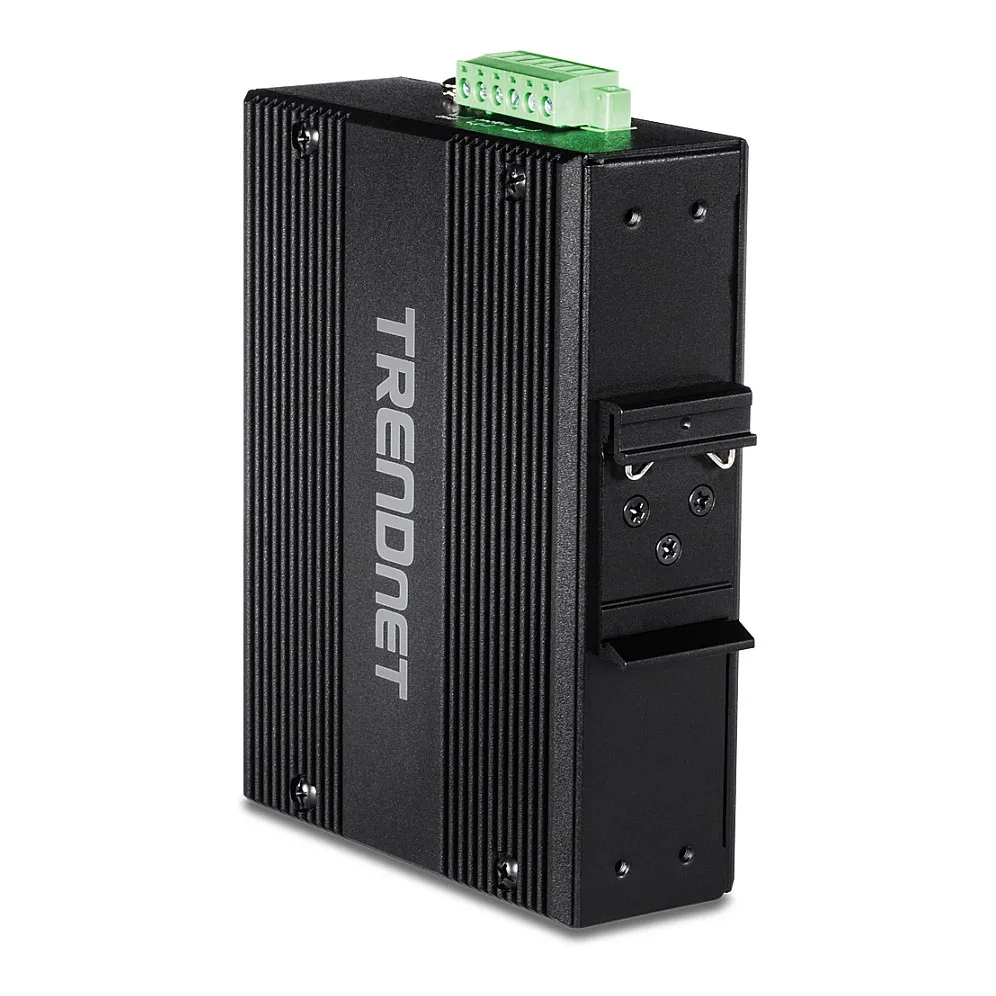

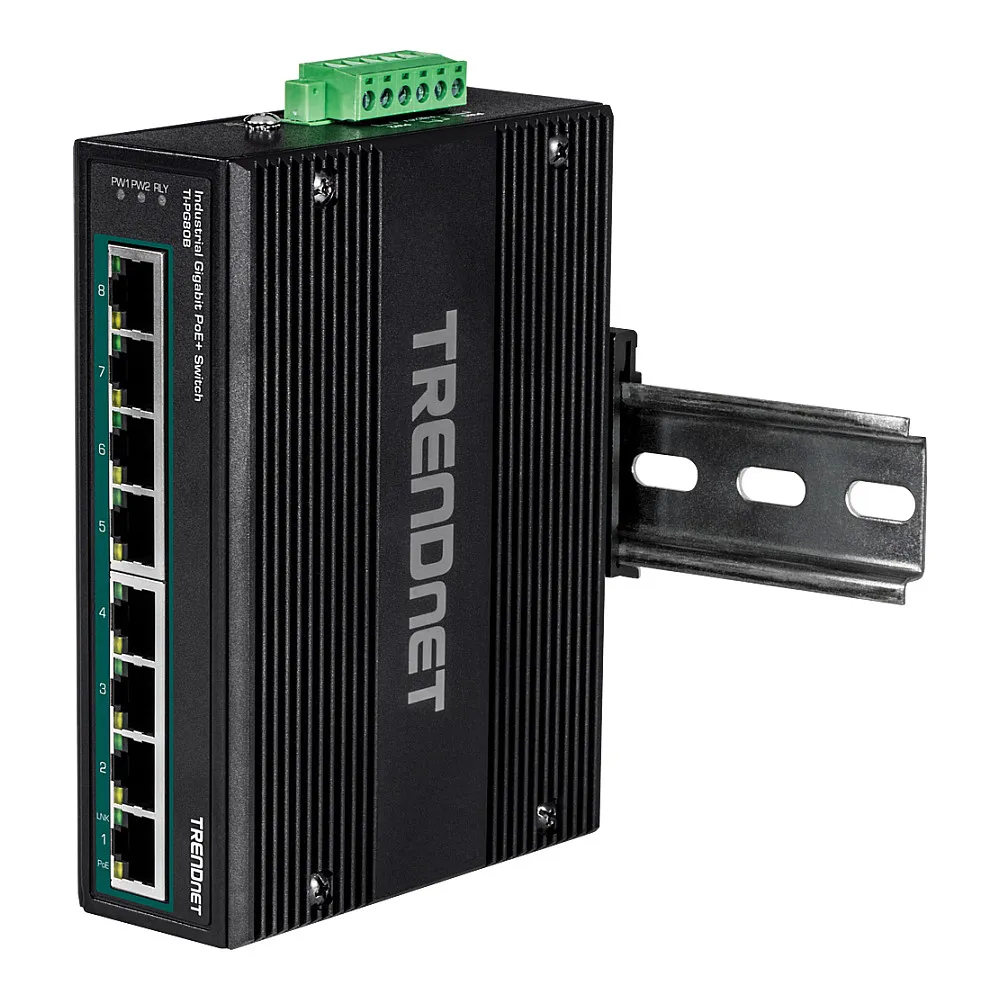

DIN-Rail/Wall Mounts

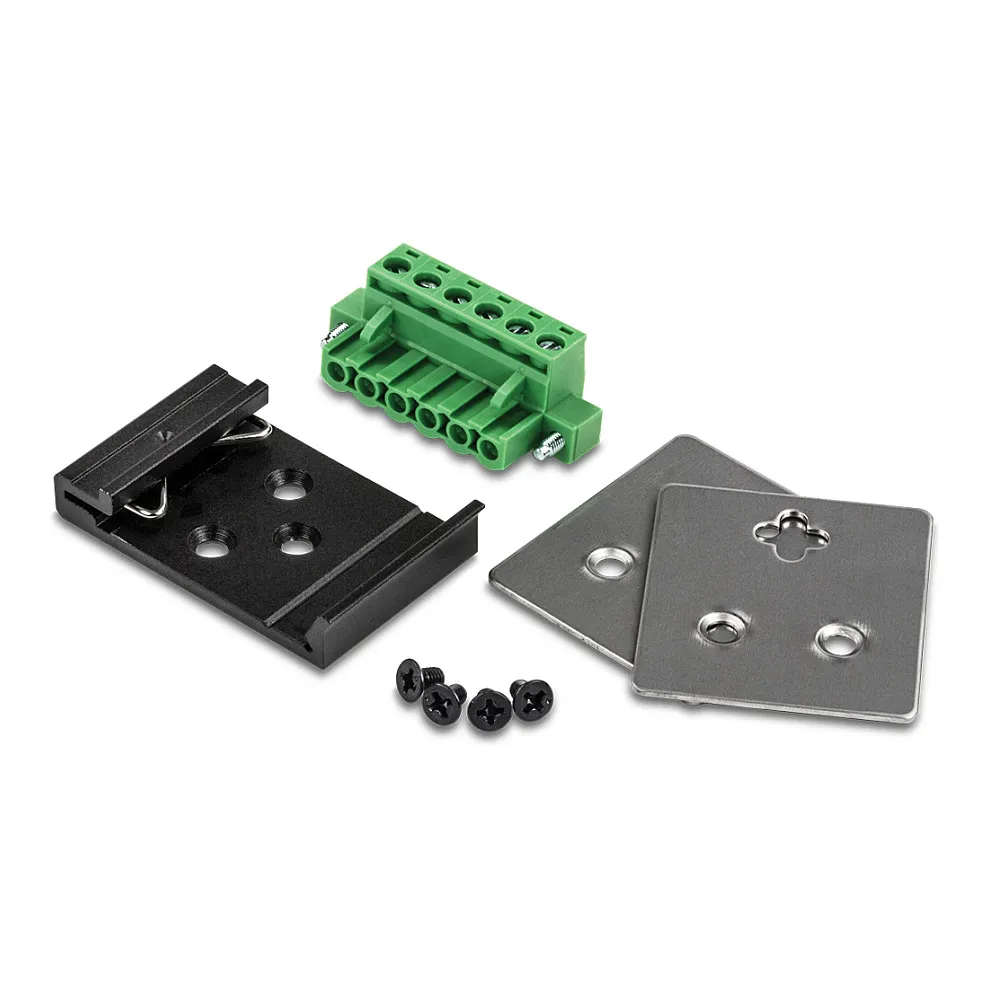

IP30 rated metal enclosure with DIN-Rail and wall mount hardware included
Switching Capacity
16Gbps switching capacity

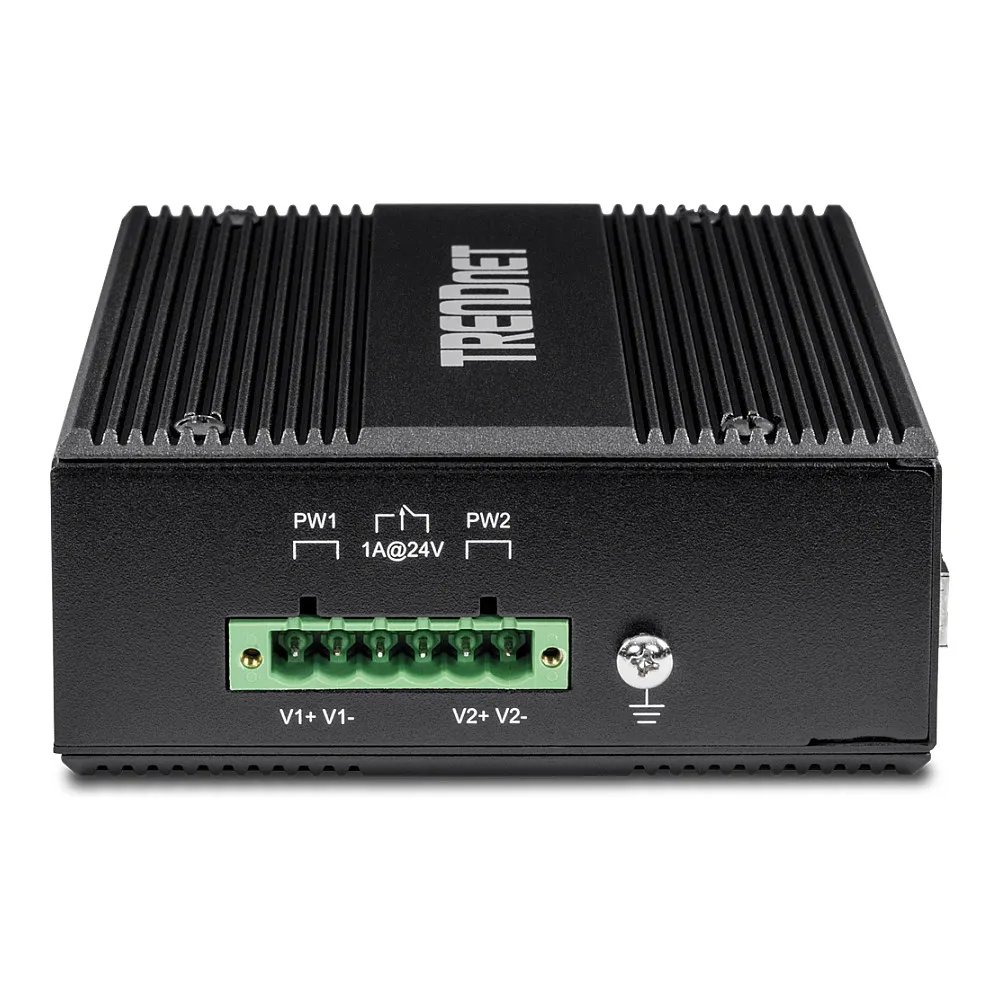

Redundant Power
Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies for this industrial variable voltage PoE+ switch sold separately, models: TI-S24048, TI-S12024)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch
Wide Operating Temperature
Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial variable voltage switch protects equipment from external electrical surges
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 529765 h
Power
DC input voltage: 24 – 56 V
Power consumption (max): 5.3 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 200 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 142 mm
Depth: 105 mm
Height: 36 mm
Weight: 622 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CEFCCIEC 60068-2-27IEC 60068-2-32IEC 60068-2-6IEC 61000-4-2IEC 61000-4-4IEC 61000-4-5
Logistics data
Harmonized System (HS) code: 85176990
