Name: Trendnet TI-PG80 network switch
Brand: TRENDNET
SKU: K-TI-PG80
Price: 167.80 EUR
Availability: InStock

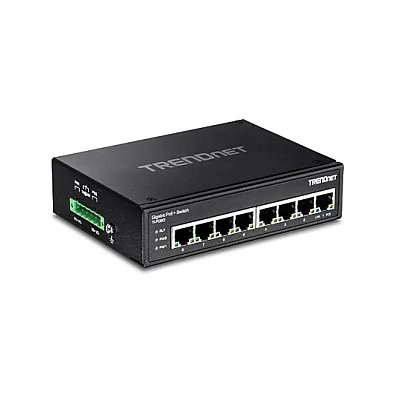

Trendnet TI-PG80 network switch

Produkto kodas: K-TI-PG80

Barkodas: 0710931160352

167,80 €

Atsiėmimas parduotuvėje – 8 d.d.

Pristatymas kurjeriu – 12 d.d.

Garantija – 24 mėn.

Pridėkite likusią sumą (300,00 €) ir pristatysime nemokamai!

Trendnet TI-PG80. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable

TRENDnet’s TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Dual redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications.

– 8 x Gigabit PoE+ Ethernet ports
– Up to a 200 Watt full PoE+ power budget
– 16 Gbps switching capacity
– Hardened IP30 rated metal switch

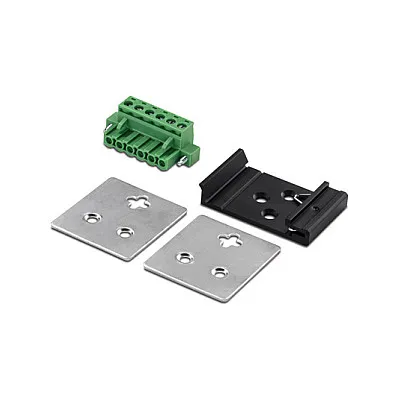

– Includes DIN-rail and wall mounts
– Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
– Dual redundant power inputs with overload current protection
– Alarm output triggered by power failure
– Powers supply sold separately

Management features
Switch type: Unmanaged
Switch layer: L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support
Data transmission
Switching capacity: 16 Gbit/s
Throughput: 11.9 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Packet buffer memory: 1 MB
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Performance
Mean time between failures (MTBF): 510304 h
Power
Feature: Redundant power supply (RPS) support
Power consumption (max): 5.76 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 200 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 104 mm
Depth: 36 mm
Height: 143 mm
Weight: 554 g
Packaging content
Feature: Quick start guide
Packaging data
Feature: Wall mounting kit
Certificates
Certification: FCC, CE
Logistics data
Harmonized System (HS) code: 85176990

Svoris

0,709 kg

Gamintojas

TRENDNET
