Trendnet TI-PG541. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack. Power over Ethernet (PoE)

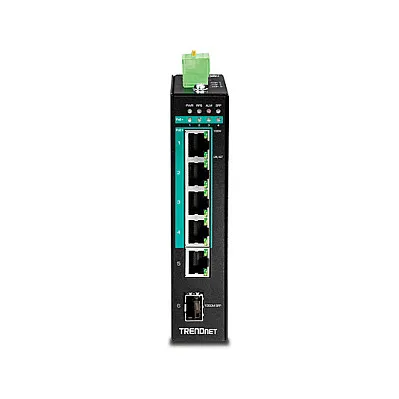

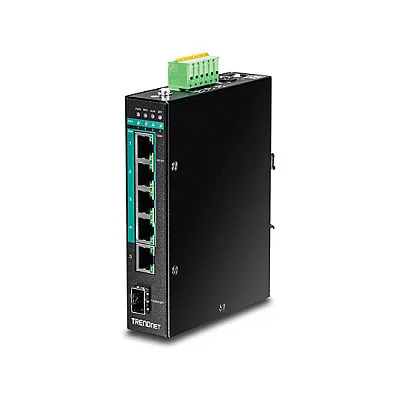

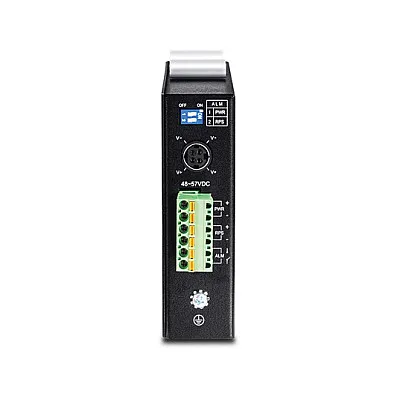

TRENDnet’s TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure.
Management features
Switch type: Unmanaged
Switch layer: L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
SFP module slots quantity: 1
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support
Optical fiber
Fiber ethernet cabling technology: 1000BASE‑LX, 100BASE-SX
Data transmission
Switching capacity: 12 Gbit/s
Throughput: 8.9 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Performance
Buffer size: 512 KB
Power
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (typical): 130 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 100 mm
Depth: 30 mm
Height: 135 mm
Weight: 500 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CE, FCC
Logistics data
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Switch layer: L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
SFP module slots quantity: 1
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support
Optical fiber
Fiber ethernet cabling technology: 1000BASE‑LX, 100BASE-SX
Data transmission
Switching capacity: 12 Gbit/s
Throughput: 8.9 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Performance
Buffer size: 512 KB
Power
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (typical): 130 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 100 mm
Depth: 30 mm
Height: 135 mm
Weight: 500 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CE, FCC
Logistics data
Harmonized System (HS) code: 85176990
