Trendnet TI-PG160. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 – 56 V. Power over Ethernet (PoE). Wall mountable

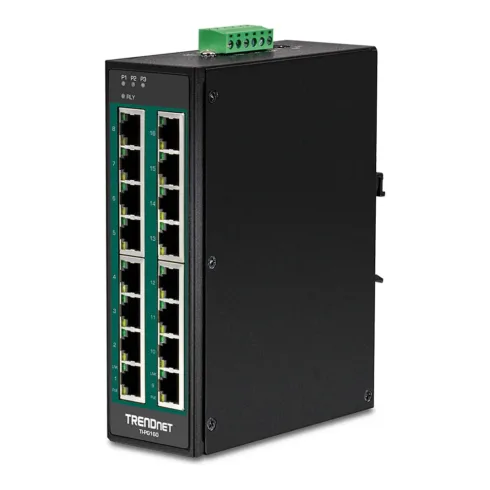

TRENDnet’s 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Data transmission
Switching capacity: 32 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8192 entries
Feature: Jumbo frames support
Jumbo frames: 9216
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 699103 h
Power
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
DC input voltage: 48 – 56 V
Power consumption (max): 5.76 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 155 mm
Depth: 120 mm
Height: 48 mm
Weight: 500 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CE, FCC, UL
Logistics data
Harmonized System (HS) code: 85176990
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Data transmission
Switching capacity: 32 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8192 entries
Feature: Jumbo frames support
Jumbo frames: 9216
Design
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable
Feature: DIN rail mounting
Performance
Mean time between failures (MTBF): 699103 h
Power
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
DC input voltage: 48 – 56 V
Power consumption (max): 5.76 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 155 mm
Depth: 120 mm
Height: 48 mm
Weight: 500 g
Packaging content
Feature: Quick start guide
Certificates
Certification: CE, FCC, UL
Logistics data
Harmonized System (HS) code: 85176990
