Trendnet TI-PF11SFP. Maximum data transfer rate: 2000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Wavelength: 0.56 nm, Buffer size: 1000 KB, Mean time between failures (MTBF): 500000 h. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 48 – 56 V, Power consumption (typical): 2 W, Total Power over Ethernet (PoE) budget: 30 W
Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
PoE+ Output
Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.
Extreme Environments
Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.
Network Ports
1 x Gigabit PoE+ Ethernet port and 1 x SFP slot

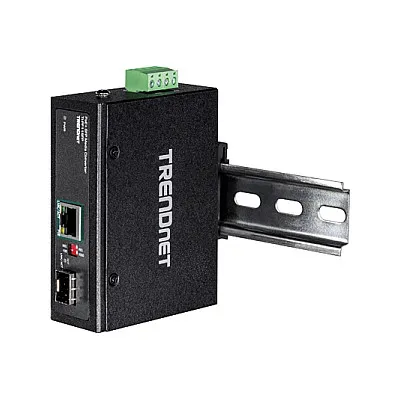

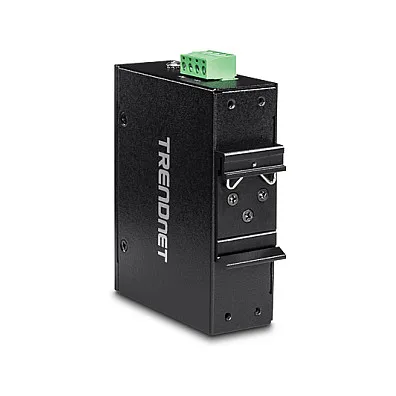

DIN-Rail/Wall Mounts

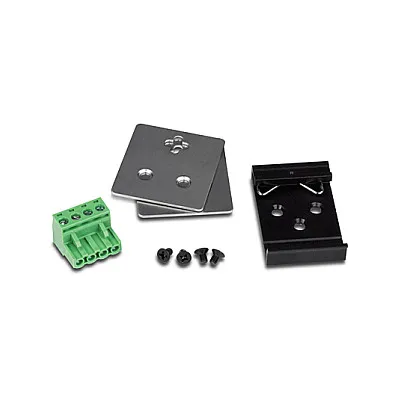

IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
2Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S12048)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperatures
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)
Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
Certifications
Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

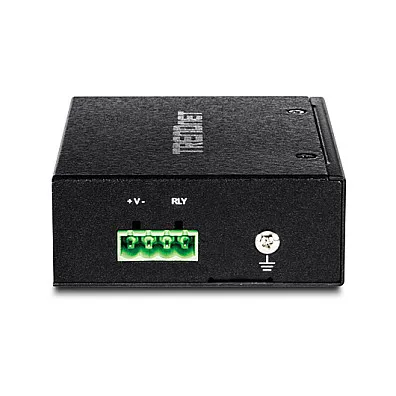

Grounding Point
Grounding point protects equipment from external electrical surges
Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Jumbo frames: 9
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full, Half
Performance
Wavelength: 0.56 nm
Buffer size: 1000 KB
Mean time between failures (MTBF): 500000 h
Features
LED indicators: Yes
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
Feature: DIN rail mounting
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power over Ethernet plus (PoE+) ports quantity: 1
Power
Input voltage: 48 – 56 V
Power consumption (typical): 2 W
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 30 W
Weight & dimensions
Width: 32 mm
Depth: 81 mm
Height: 104 mm
Weight: 154 g
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Packaging content
Feature: Quick installation guide
Certificates
Certification: CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN60950-1
Logistics data
Harmonized System (HS) code: 85176990
